A truck air dryer cartridge must match both its documented physical family and the filtration function required by the installed dryer. A standard desiccant cartridge and an oil-coalescing cartridge are not interchangeable merely because their housings look alike. Desiccant controls water vapor; an additional coalescing stage improves removal of fine oil aerosol. Some manufacturers permit a specified coalescing cartridge to replace a standard version, but prohibit the reverse. Identify the dryer, its required cartridge grade and the approved service reference before accepting a substitute. A higher oil-removal capability does not, by itself, approve a different dryer family, regeneration arrangement or vehicle application.
This guide is for fleet parts teams, commercial-vehicle distributors and workshop buyers comparing replacement cartridges. The decision is narrower than replacing a complete air dryer: it is whether a quoted service cartridge retains the required filtration capability without changing an unsupported interface or system assumption. The examples below explain manufacturer documentation; they are not universal cross-references, installation instructions or claims that Elecdura supplies genuine branded parts.
If the original complaint is water in reservoirs, abnormal purge behavior or a damaged dryer assembly, start with the existing heavy-duty air dryer replacement guide. Cartridge selection should follow that service decision. This page concentrates on what changes when two apparently similar cartridges use different filtration functions, and why a purchasing description must retain that difference.
Compressed air can carry contaminants in different physical forms. Water vapor is a gas mixed with the air. Liquid water may appear after cooling and condensation. Oil can be present as larger droplets or as a fine aerosol suspended in the air stream. Calling all of these “moisture” hides the different work that the dryer and its filtration stages must perform. A description of drying performance is therefore not a complete description of oil-removal capability.
Desiccant adsorbs water vapor onto its available surfaces. Adsorption is a surface process, not simply a sponge soaking up visible liquid. In a regenerative vehicle air dryer, the drying material is used during the charging phase and restored through the designed regeneration process. Its useful performance depends on the cartridge and the surrounding dryer arrangement, rather than on the visible volume of beads alone. A supplier's photograph of a full canister cannot establish how much usable dry air that combination will provide.
A coalescing stage addresses a different part of the contamination problem. Fine oil droplets encounter the media and can combine into larger droplets that the design collects and removes. In the documented Bendix AD-9si PuraGuard arrangement, this added stage sits before the desiccant bed. That description should not be converted into a universal cutaway for every manufacturer's cartridge. The location, media construction and handling of collected contamination belong to the specific design.
Neither label should be stretched beyond its meaning. A standard cartridge is not necessarily an empty drying can without any preliminary separation. An oil-coalescing cartridge is not a device that guarantees removal of every possible oil contaminant under every operating condition. In particular, oil aerosol and oil vapor are different terms. A claim about droplet capture should not become an unsupported claim about all vapor-phase substances. Ask what the manufacturer actually tested and specified.
For purchasing, this creates two separate questions. Does the proposed cartridge deliver the drying function required by the identified dryer? Does it also preserve the required oil-aerosol control? A favorable answer to the first question cannot silently stand in for the second. Keeping the questions separate prevents a “same fit, same desiccant” description from concealing a removed filtration stage.

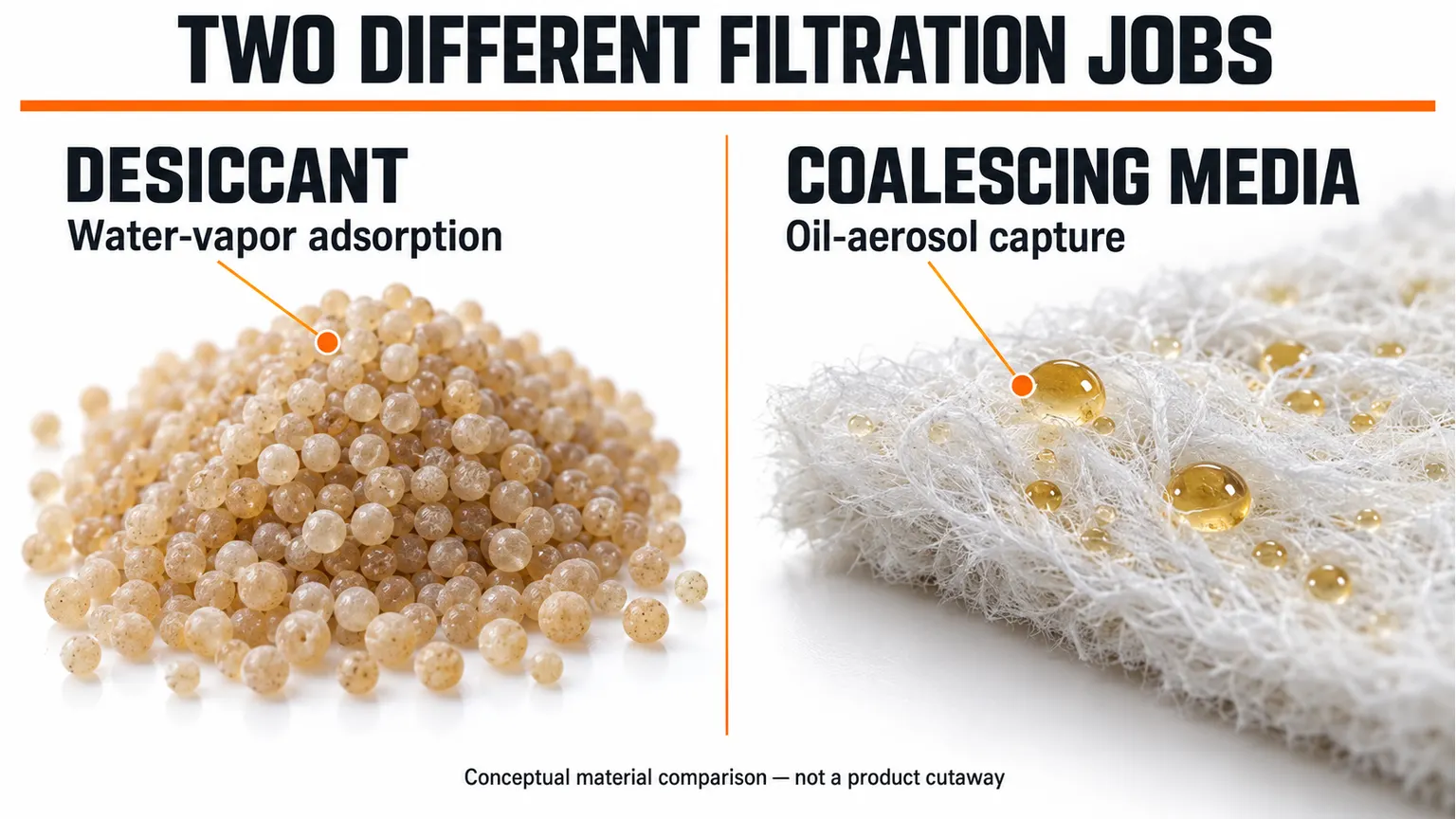

Figure — Different media perform different functions. These material illustrations do not show the internal construction of a named cartridge.
The removed cartridge is an important observation, but it is not automatically the authority for the next order. A previous repair may have installed a substitute without recording the decision. A faded label may identify only a brand family. A complete dryer may also have been changed during the vehicle's service life. Begin with the current dryer identity and applicable service information, then reconcile the cartridge found on the vehicle with that evidence.
Keep the complete dryer reference separate from the cartridge reference. One identifies the assembly and its configuration; the other identifies a service item. A catalog entry for a whole dryer can include a heater, governor or other base features that are not supplied with the cartridge. Conversely, a cartridge listing may show compatibility with several named dryers without saying that those complete assemblies are interchangeable. Treat each reference at the level at which the manufacturer publishes it.
When oil coalescing is required, put that requirement in the order description as well as the reference field. The plain-language description is a useful defense against a truncated suffix or an overly broad distributor cross-reference. It also tells a warehouse why a visually similar standard cartridge is not an acceptable last-minute substitution. Do not rely on paint color or a photograph when the manufacturer documentation provides a specific grade and service number.
Conflicting evidence needs a clear resolution. Suppose a vehicle record specifies an oil-coalescing service cartridge but the removed unit appears standard. The discrepancy is not permission to continue using the standard type. Ask the responsible service or application source to confirm the installed dryer and required replacement. The purchasing file should preserve both observations and the final explanation, rather than deleting the conflict by choosing whichever number is available sooner.
Appearance can still help narrow an identification problem. Overall form, mounting relationship and label location may distinguish one family from another. They do not demonstrate the filtration media hidden inside a sealed cartridge. Avoid cutting open a serviceable or pressurized assembly to resolve an order question. Use the manufacturer's identification route and have qualified personnel follow the applicable vehicle safety and service procedures.
Bendix's AD-9si service data provides a useful, bounded example. It describes the PuraGuard version as having a similar exterior to the standard dryer while adding coalescing media. The document allows the specified PuraGuard replacement for the standard arrangement, but requires like-for-like oil-coalescing replacement where PuraGuard is fitted. The quick-reference catalog lists standard cartridge 5008414 and PuraGuard cartridge 5008414PG for the relevant AD-9si service context.
The lesson is about direction, not a general invitation to upgrade anything. If a manufacturer documents option A replacing option B, the statement does not establish that B can replace A. The additional function may be the reason the first substitution is acceptable. Removing it reverses the engineering assumption. A cross-reference that reduces both items to “fits AD-9si” loses that distinction and may look more permissive than the underlying documentation.
A buyer should also resist turning a valid example into a brand-wide rule. The PuraGuard name appears across different dryer families and service references. It does not make every cartridge carrying that name physically equivalent. The complete part number, named dryer family and applicable service instructions still matter. The letters identifying an oil-coalescing grade are not a substitute for the rest of the reference.
There is a similar distinction between a product's capability and permission to modify a vehicle. A documented service-cartridge choice is not an approval to relocate a dryer, alter its purge volume or change the compressor arrangement. Keep the replacement decision within the manufacturer's stated scope. If the proposed purchase changes more than the cartridge, describe that change separately and obtain the appropriate application review.
This asymmetric logic is especially useful when availability drives a substitution request. A supplier may offer a standard item that appears identical and can ship sooner. The buyer should not accept a downgrade merely because the original coalescing version is temporarily unavailable. The appropriate response is to retain the required grade, find a documented alternative or leave that line unresolved. Delivery preference does not establish technical equivalence.

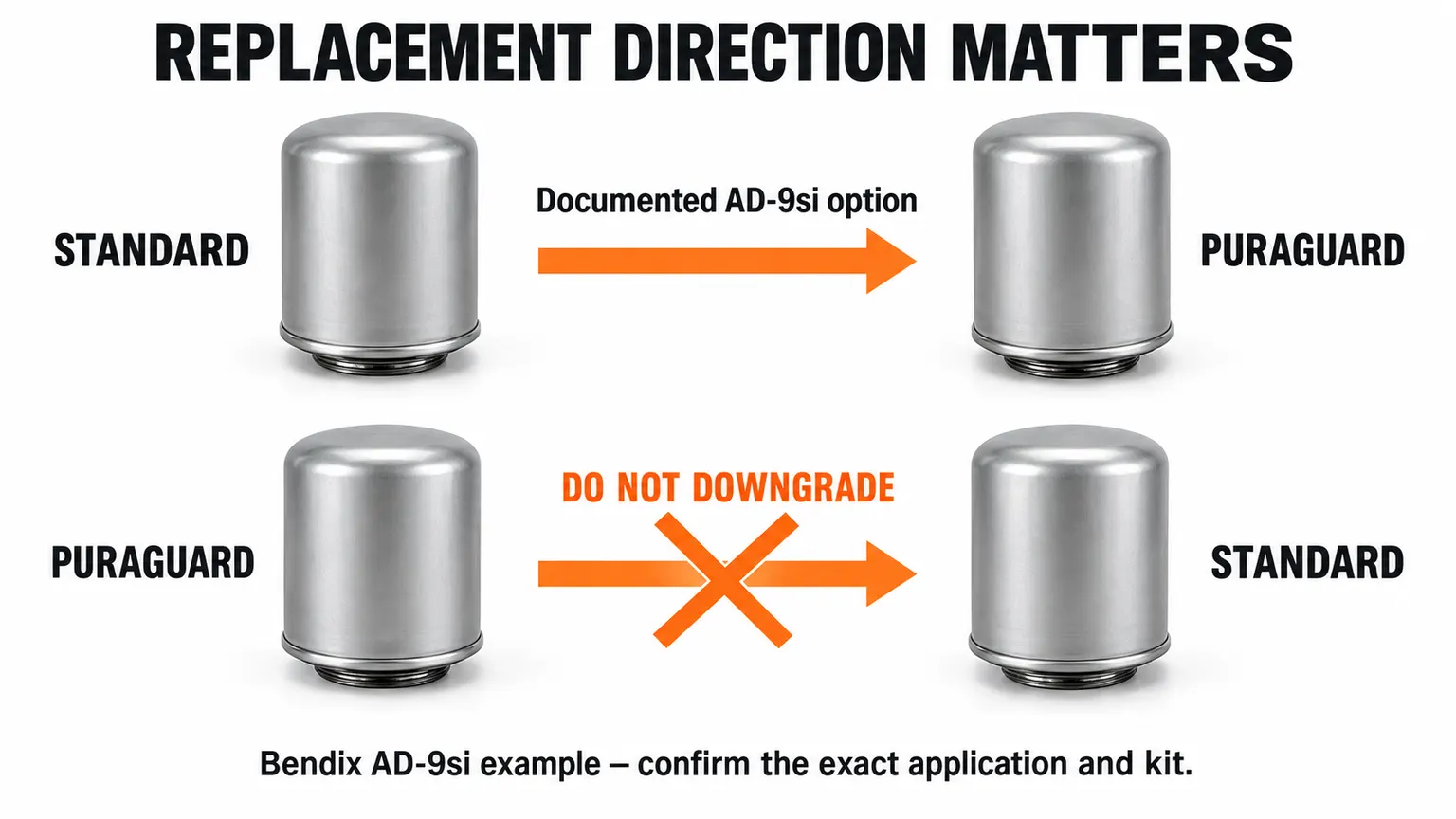

Figure — The illustrated replacement direction applies to the documented AD-9si example. It is not a cross-brand interchangeability chart.
WABCO's System Saver cartridge literature illustrates why one “standard versus premium” comparison is incomplete. Its SP18022 publication identifies standard and coalescing references within both the 1200 and 1800 Series. Those are two family choices, each with a filtration-grade distinction. A purchasing system should retain both dimensions instead of treating all four references as variants of one universal canister.
Documented family | Standard reference | Coalescing reference | What the comparison establishes |
|---|---|---|---|
System Saver 1200 Series | R950011 | R950068A | The publication distinguishes two filtration grades within this named family. |
System Saver 1800 Series | R950048 | R950069 | The second family also has separate standard and coalescing references. |
These references are examples from the named manufacturer's publication, not a current stock offer or a complete application list. Confirm the applicable current service reference before ordering. A subsequent part-number change needs its own documented relationship; it should not be inferred from a similar suffix or a seller's shortened description. Preserve the original reference when requesting confirmation of a newer service item.
MM34 also distinguishes the physical cartridge sizes of the 1200 and 1800 families. That is enough to reject the assumption that an oil-coalescing label resolves every physical-fit question. It does not justify fitting the larger cartridge wherever a smaller one was used. Available clearance, the identified dryer and the manufacturer's application information still govern. Greater material volume is not, by itself, a complete system-capacity approval.
In a mixed-fleet stock list, separate rows can be necessary even when the purchasing department would prefer one consolidated item. If two references differ only by required filtration grade, record that difference. If they belong to different dryer families, record that separately. Consolidation becomes justified only when the applicable source explicitly supports the proposed common service reference for each included application.
The same discipline applies to photographs. A taller canister beside a shorter one can illustrate a family difference, but the image cannot prove interchangeability, drying capacity or the correct installed clearance. Use dimensions as identification evidence where the manufacturer supplies them, not as a replacement for an application record. A near match is still an unresolved match.
A regenerative air dryer does not work only while air travels toward the vehicle reservoirs. The cartridge also participates in a designed regeneration process. In the AD-9si example, stored purge air flows back through the drying bed while a delivery check valve separates the brake-system reservoirs from that return path. This explains why the cartridge cannot be evaluated as an isolated container of drying material.
Do not assume that every dryer obtains regeneration air in the same way. WABCO's System Saver documentation distinguishes arrangements with dedicated purge tanks, regeneration components and other family-specific features. Those distinctions describe the system architecture, not merely the grade of the cartridge installed above it. A coalescing element does not convert one architecture into another or compensate for an incompatible base assembly.
For an ordinary replacement-cartridge order, the practical action is to keep the existing approved architecture intact. Identify the dryer and use the documented service cartridge. If a quotation includes a different complete dryer, an altered reservoir arrangement or additional valves, it has become a broader substitution. It should no longer be approved under a cartridge-only purchasing line.
Regeneration also explains why a cartridge's performance cannot be judged solely from an external photograph or a single observation of dry air. The cycle includes conditions that the photograph does not show. A visually intact canister does not prove the associated purge path is functioning correctly. Conversely, an abnormal system cycle does not automatically prove that a newly supplied cartridge has the wrong media. Those are separate questions requiring the appropriate service evidence.
Leave fault isolation with the existing unloader-versus-governor pressure-cycle guide. Leave changed accessory demand with the air-compressor duty-cycle review. The selection task here is to avoid treating cartridge grade as permission to change the surrounding supply, control or regeneration system.

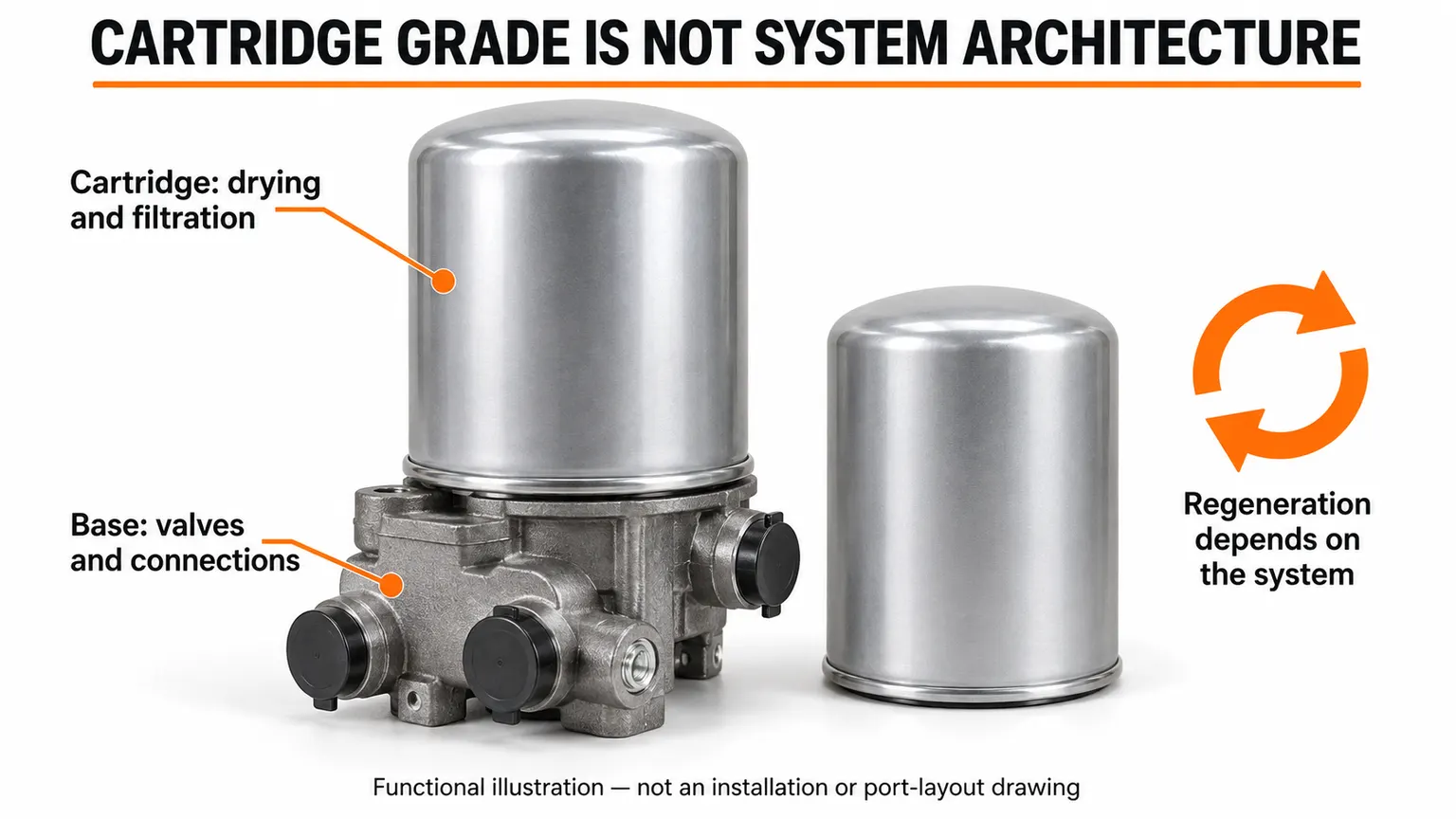

Figure — A cartridge and a complete dryer are different purchasing scopes. The illustration does not specify port positions or an approved installation.
Cartridge brochures may discuss drying performance, oil separation and resistance to vibration on the same page. These are not three ways of measuring one result. Drying performance concerns the condition of the air after treatment. Oil-separation testing concerns contamination passing through the system under the stated challenge. Vibration testing concerns the assembly's response to mechanical exposure. A favorable result in one category does not establish the others.
WABCO's SP18022 publication is useful because it identifies separate testing behind these claims. Its comparisons relate to a named air dryer and tests performed in 2018. The procurement value is understanding what each comparison measures, not copying a headline percentage into a universal fleet guarantee. A result obtained with a specified test setup should retain that setup and date when discussed.
Consider two hypothetical supplier submissions. One provides a drying curve with the dryer model and test conditions. The other provides only a statement that its cartridge removes oil. Neither submission necessarily contradicts the other; they may simply address different properties. The buyer cannot rank the two cartridges on a common scale until the required property and comparable evidence are identified. More impressive wording does not close the missing comparison.
Ask whether the evidence covers the exact proposed reference and filtration grade. A report for a standard cartridge should not automatically be assigned to a coalescing version, or vice versa. Adding a filtration stage changes the article being assessed. Likewise, a test on one housing family should not be presented as proof for every canister size sold under a common brand name.
The stated outcome matters as much as the test label. A report may measure a downstream condition, a change over a test cycle or a structural observation after exposure. Those are different kinds of evidence. A passing result without the acceptance criterion leaves the buyer unable to tell what passed. However, the absence of a report in a quotation does not itself prove the product failed a test; it means that the claim has not yet been supported for the purchasing decision.
Keep manufacturer marketing comparisons attributed. Do not describe them as Elecdura tests, independent certifications or proof that all competing products are inferior. A buyer can use a source to understand a required function without adopting every promotional conclusion in the brochure. The final selection still depends on application approval, the required grade and traceable supplied identity.
The drying charts in SP18022 describe usable flow volume in cubic feet per cycle. That is not the same quantity as a compressor's delivery rate in cubic feet per minute. One describes an amount associated with a cycle; the other includes a time denominator. A buyer cannot compare the two numbers directly or use their apparent relationship to approve a compressor-and-dryer combination. The meaning of the cycle and the applicable operating conditions must remain attached to the drying result.
The oil-separation chart uses particle concentration, which is also different from a mass-of-oil measurement. A particle count describes a particular observation made by the stated method. It does not become a universal mass-removal percentage simply by being displayed on a graph. If a competing submission reports oil mass instead, ask for the method and the intended comparison before deciding that its larger or smaller number represents better filtration.
Even two drying results expressed in similar units may use different endpoints. The relevant question is how each test defines acceptable dry air and the conditions under which that endpoint was measured. Do not erase those distinctions when preparing a quotation comparison. A short note identifying the measured property, units, endpoint and tested reference is more informative than a column headed only “performance.” Where those details are missing, leave the ranking open rather than manufacture an equivalence.
It is tempting to interpret “oil coalescing” as meaning that the cartridge can always remain in service longer. That conclusion does not follow from the label. The relevant manufacturer may publish different recommendations for different cartridges, dryer families and operating conditions. A grade comparison describes filtration function; a maintenance recommendation describes when the identified application needs attention. Neither should be substituted for the other.
The WABCO and Bendix documents do not provide one common schedule for all truck dryers. Their stated recommendations must remain with their named products and conditions. Do not select whichever published interval is longest and apply it to a mixed fleet. The vehicle manufacturer's requirements may also be more restrictive than a general component brochure. That relationship should be resolved before an inventory plan assumes a particular annual consumption.
For parts planning, record the approved service basis alongside each stocked reference. A depot can distinguish a routine scheduled cartridge change from an investigation of contamination or abnormal operation. That distinction helps explain why the same vehicle may require service outside its normal calendar. It also prevents a warranty conversation from being reduced to the claim that the cartridge had not yet reached a generic advertised lifespan.
A changed vehicle duty deserves separate attention. Adding pneumatic consumers or changing the vehicle's work pattern can affect the system conditions that the original maintenance plan assumed. Buying a coalescing cartridge does not automatically validate that change. Refer it to the appropriate system review rather than using a more capable-looking cartridge as a substitute for understanding the new demand.
Imagine a depot ordering a documented PuraGuard service cartridge for an identified AD-9si dryer. A supplier offers the corresponding-looking standard type because it is available sooner. The housing photograph is convincing and the seller describes it as fitting the same dryer. The relevant question is not whether the canister can be attached. It is whether the replacement retains the filtration grade required by the application.
The documented non-downgrade rule resolves this situation without inventing a new test. The standard alternative is not accepted as an equivalent substitute for that line. The buyer can request the required reference or a separately documented appropriate alternative. There is no need to claim that the offered part is counterfeit or defective; it may be a legitimate standard cartridge proposed for the wrong requirement.
This distinction also improves communication with the warehouse. Mark the unresolved order line as a grade mismatch, not simply a brand preference. That gives the next person a specific reason not to release a visually similar item. If the supplier later provides a different coalescing reference, evaluate that reference's actual application support rather than approving it solely because the description now includes the preferred word.
Consider a distributor serving vehicles identified with both 1200 and 1800 Series dryers. The stock team wants to reduce the number of service lines. The brochure's four references reveal two separate distinctions: family and filtration grade. Choosing the coalescing option does not remove the family distinction. Nor does selecting the larger canister establish that it can replace every smaller one in the fleet.
The useful next step is a documented application-by-application consolidation review. If the manufacturer supports a common service reference for identified configurations, the stock list can reflect that supported relationship. If it does not, keeping separate references is the accurate outcome. The purpose is not to maximize the number of stock lines, but to avoid hiding an unresolved fitment decision inside an administrative simplification.
Separate quantities remain meaningful even when a supplier ships the items together. Packaging can group an order without merging its technical identities. The receiving record should still distinguish the family and grade of each item. A combined carton is a logistics choice; a common substitute reference is an application claim. They should not be approved as though they were the same change.
In a third hypothetical case, a fleet reports recurring oil contamination and asks for the “strongest” cartridge available. The proposed coalescing product may have a documented role, but the complaint does not establish that changing cartridge grade alone will resolve the cause. Compressor condition, existing dryer operation and the actual service history remain relevant to the repair investigation.
The buyer can progress the matching task while keeping the remedy claim open. Confirm the required cartridge grade for the installed dryer and obtain the correct service item. At the same time, do not represent the purchase as proof that the source of contamination has been repaired. The existing truck air compressor guide explains the broader diagnostic boundary.
That separation protects the later comparison. If contamination remains, it does not automatically prove the cartridge was ineffective; if it disappears, one observation does not establish a universal upgrade benefit. Record the actual service actions and operating context. The cartridge order should state what was supplied and why it matched, while the repair record states what cause was identified and what result was observed.
A cartridge-only quotation should identify the exact reference, named dryer application and filtration grade. It should also state the included service items. A cartridge, cartridge kit and complete dryer are different scopes even when a catalog photograph shows the assembled unit. Ask which seals or other components belong to the specified kit, and use its own instructions rather than assuming that every package contains or uses identical pieces.
For a reference confirmation, provide the dryer identification, removed cartridge markings and the source establishing the required grade. Explain any conflict between those records. This compact information set answers the actual matching question more directly than a long generic vehicle description with no dryer number. If the dryer cannot yet be identified, leave the proposed cartridge provisional rather than calling the closest photograph a confirmed match.
Keep authenticity and compatibility as separate statements. An aftermarket reference offered for matching does not establish genuine Bendix or WABCO status, authorized distribution or manufacturer warranty coverage. Those claims require their own evidence. Similarly, a genuine product can still be the wrong family or grade for a particular dryer. A clear quotation should not use one kind of assurance to cover a different unresolved question.
The release decision should be readable in one sentence: the proposed service reference belongs to the identified dryer application, retains the required filtration grade and has the stated kit scope. If one of those elements remains unverified, identify it specifically. This is more useful than an unexplained “premium replacement approved” note that leaves the next purchaser unable to reconstruct the reason.
This comparison does not approve passenger-car, workshop compressed-air, refrigerated, twin-tower or other industrial dryer cartridges for truck service. It does not establish compatibility for every electronic air-processing unit or every product carrying the same manufacturer name. Use the applicable product documentation when the installed system falls outside the named examples.
It also does not authorize opening pressurized components, altering valves, bypassing a dryer or returning a vehicle with an unresolved brake-system defect to service. Qualified personnel must follow the vehicle and component procedures. The purchasing objective is narrower: preserve the required drying and oil-removal functions with the correct documented service item, without disguising a system change as a routine cartridge substitution.
For an Elecdura matching inquiry, send the dryer reference, cartridge markings and required standard or coalescing grade through the enquiry form on this page. State whether you need a cartridge, a defined service kit or a complete assembly. Availability and supplied-brand status must be confirmed for the actual quotation.
