M009T71179 MBE4000 Starter Motor Distributor

M009T71179 Starter Motor Distributor Value for MBE4000 Fleets

MBE4000 operators often serve long routes where a no-start event creates towing and delivery costs. A distributor can build a more useful stock plan by stating truck population, depot locations and service lead time when requesting M009T71179 pricing.

A three-hole 5.5kW housing is not sufficient evidence on its own. Confirm twelve teeth, module 3.175, the 13.5 mm holes, solenoid and terminal orientation, then pair the result with the MBE4000 engine and Freightliner chassis.

M009T71179 Starter Motor Dimensions for Heavy-Duty B2B Matching

The represented product is 12V, 5.5kW, 12T, module 3.175 and clockwise rotation. Keeping this full set beside M009T71179 reduces confusion with 11T Mack units and other SAE-mount starters found in mixed heavy-truck inventories.

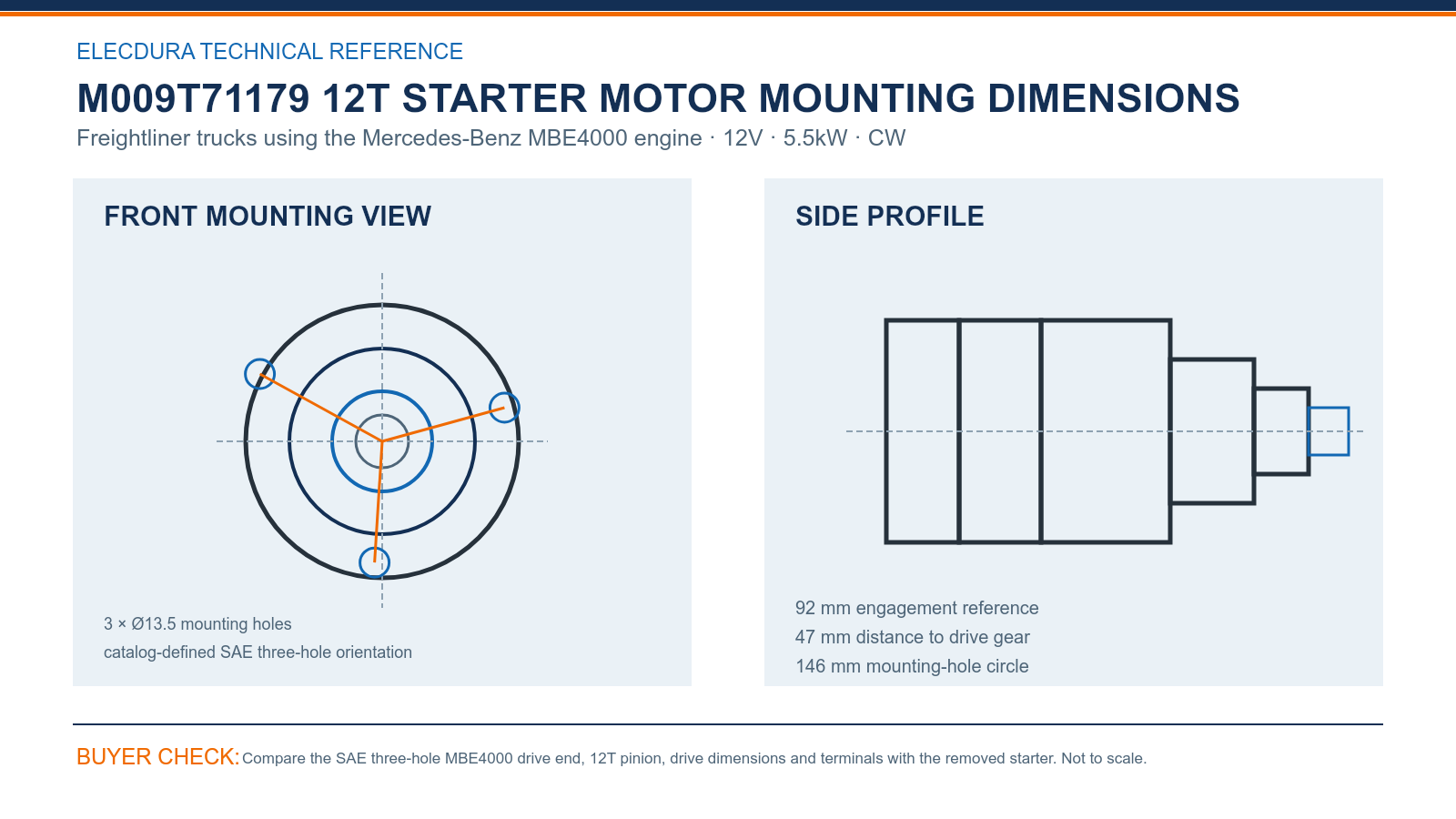

M009T71179 MBE4000 Starter Motor Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

Use the 92 mm engagement reference, 47 mm drive-gear distance, three Ø13.5 holes and 146 mm mounting circle as a physical checklist. A square front image and terminal-side photograph make remote comparison more dependable before ordering a sample.

M009T71179 Starter Motor OE Guidance for Freightliner Distributors

M009T71179, M9T71179, MIB971179 and 19600N provide several procurement routes, while 8200287 identifies a related Delco replacement. Keep the exact old-unit marking and MBE4000 application together rather than combining fragments from separate reference lists.

Fleet customers can hold a central reserve and smaller depot quantities according to route exposure. Distributor records should show which Freightliner chassis and MBE4000 installations have been matched, supporting accurate repeat sales without broadening fitment beyond verified vehicles.

M009T71179 Starter Motor Fleet Supply and Production Capability

Inspect first-lot samples for twelve teeth, all three ears, protected studs, rating labels and secure carton support. Retain product photographs and sampled electrical results with the inbound lot so later branches receive the same clearly defined M009T71179 configuration.

Elecdura’s video shows heavy starter assembly, component handling and electrical testing for wholesale supply. MBE4000 buyers can review manufacturing capability while defining their own lot sampling, export packaging, identification and delivery requirements.

M009T71179 Starter Motor FAQs for MBE4000 Distributors

Why should Freightliner chassis details accompany an MBE4000 starter request?

The MBE4000 engine identifies the main application, while the chassis and model year connect the request to a real truck configuration. Add the M009T71179 label and straight product photographs. This combination gives the distributor a stronger purchasing basis than an engine name copied from a broad marketplace listing.

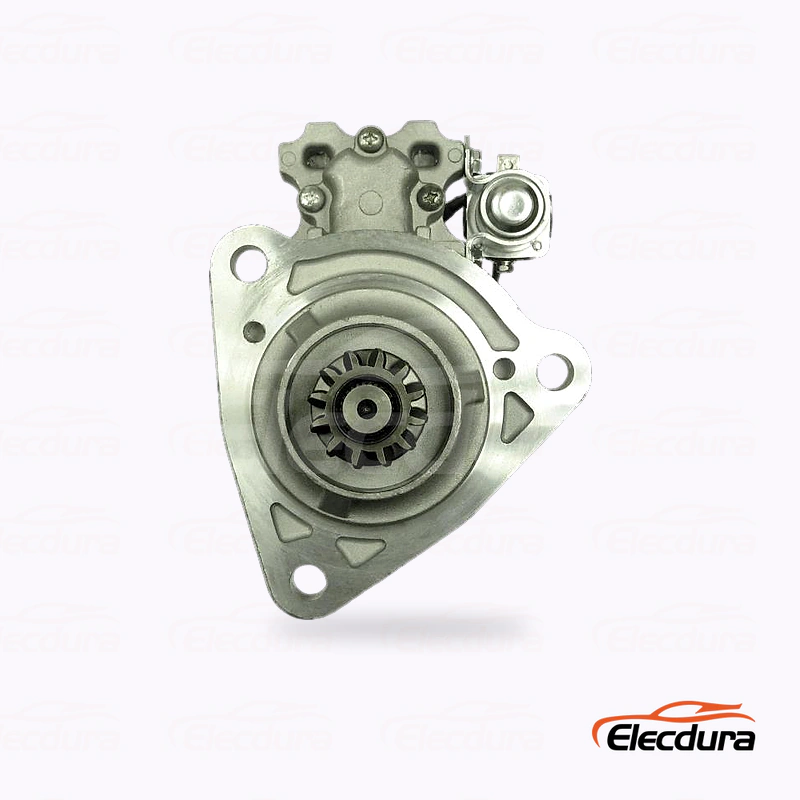

Which measurements define the M009T71179 SAE three-hole face?

The supplier drawing specifies three Ø13.5 holes on a 146 mm mounting circle, a 92 mm engagement reference and 47 mm distance to the drive gear. Compare all of them from square front and side views. Confirm twelve teeth and module 3.175 at the same time so the flange is not checked in isolation.

What does Delco Remy 8200287 contribute to an M009T71179 search?

8200287 provides a recognized heavy-duty replacement route associated with the M009T71179 family. Use it beside, not instead of, the complete Mitsubishi number, MBE4000 engine and removed-unit images. The reference can connect existing purchasing history, while the 12T SAE three-mount product remains the unit being quoted.

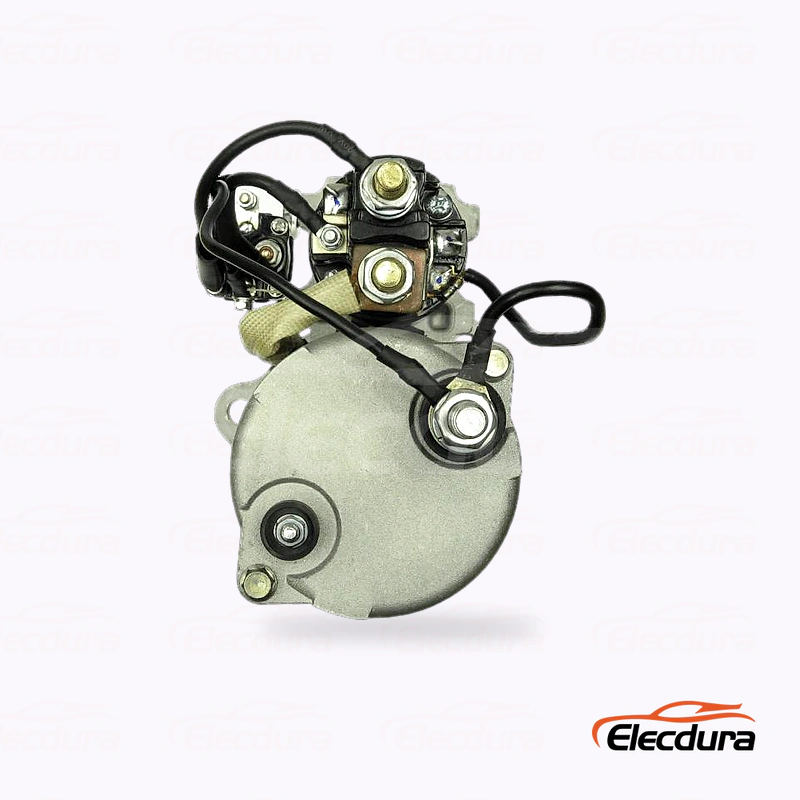

Why should the terminal side be photographed on an MBE4000 starter?

Terminal and solenoid orientation affect cable reach, service access and clearance around the engine. A straight terminal-side view lets the buyer compare stud positions and attached leads without relying on a front photograph. Include nearby chassis space when clearance is tight, especially for replacement work away from the main fleet workshop.

Where should a Freightliner fleet hold M009T71179 emergency stock?

Prioritize depots serving the largest MBE4000 population, long routes and locations where towing or transfer takes the most time. Use previous failure and withdrawal data to refine the reserve. A smaller quantity placed near critical trucks can protect operations better than more units stored only at a distant central warehouse.

How should the first M009T71179 lot be distributed to branches?

Sample cartons from several pallet positions, confirm twelve teeth, three intact 13.5 mm holes, rating labels, terminal protection and body support. Compare each sampled unit with the accepted photographs and retain test information. Move the balance into available stock only after the sampled appearance and specification remain consistent across the shipment.

What diagnosis should precede replacement on an MBE4000 truck?

Test battery condition under load, inspect high-current cables and grounds, and measure voltage drop while cranking is requested. Verify the start relay and solenoid command, then inspect ring-gear condition and engine rotation. These checks help avoid returning a sound M009T71179 for a problem caused by power supply, wiring or mechanical resistance.

Which materials make an M009T71179 distributor RFQ complete?

Attach the Freightliner chassis and MBE4000 engine details, all readable old-unit numbers, clear drive-end, pinion and terminal photographs, quantity and annual forecast. State destinations, packaging, labels and required dates. Elecdura can then review the exact twelve-tooth product and respond with commercial terms matched to the buyer’s distribution plan.

Request M009T71179 Starter Motor Distributor Pricing for MBE4000

Send the Freightliner chassis, MBE4000 engine information, complete old-starter numbers, clear mounting and terminal photographs, quantity, destination and required arrival date to info@elecdurauto.com. Elecdura will review M009T71179 and provide distributor pricing.
