8200474 Ford ISBe5-186 Starter Motor Wholesale

8200474 Starter Motor Wholesale Fitment for Ford ISBe5-186 commercial vehicles

Ford commercial-vehicle parts distributors, Cummins service networks and starter wholesalers use 8200474 to keep Ford ISBe5-186 commercial vehicles demand tied to one 24V, 4.0kW, 10T CW configuration. The practical distinction is the 24V 4.0kW 10T module-3.175 drive assigned to the Ford ISBe5-186 catalog application, which should be checked before a similar heavy-duty housing is accepted.

Build the 8200474 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

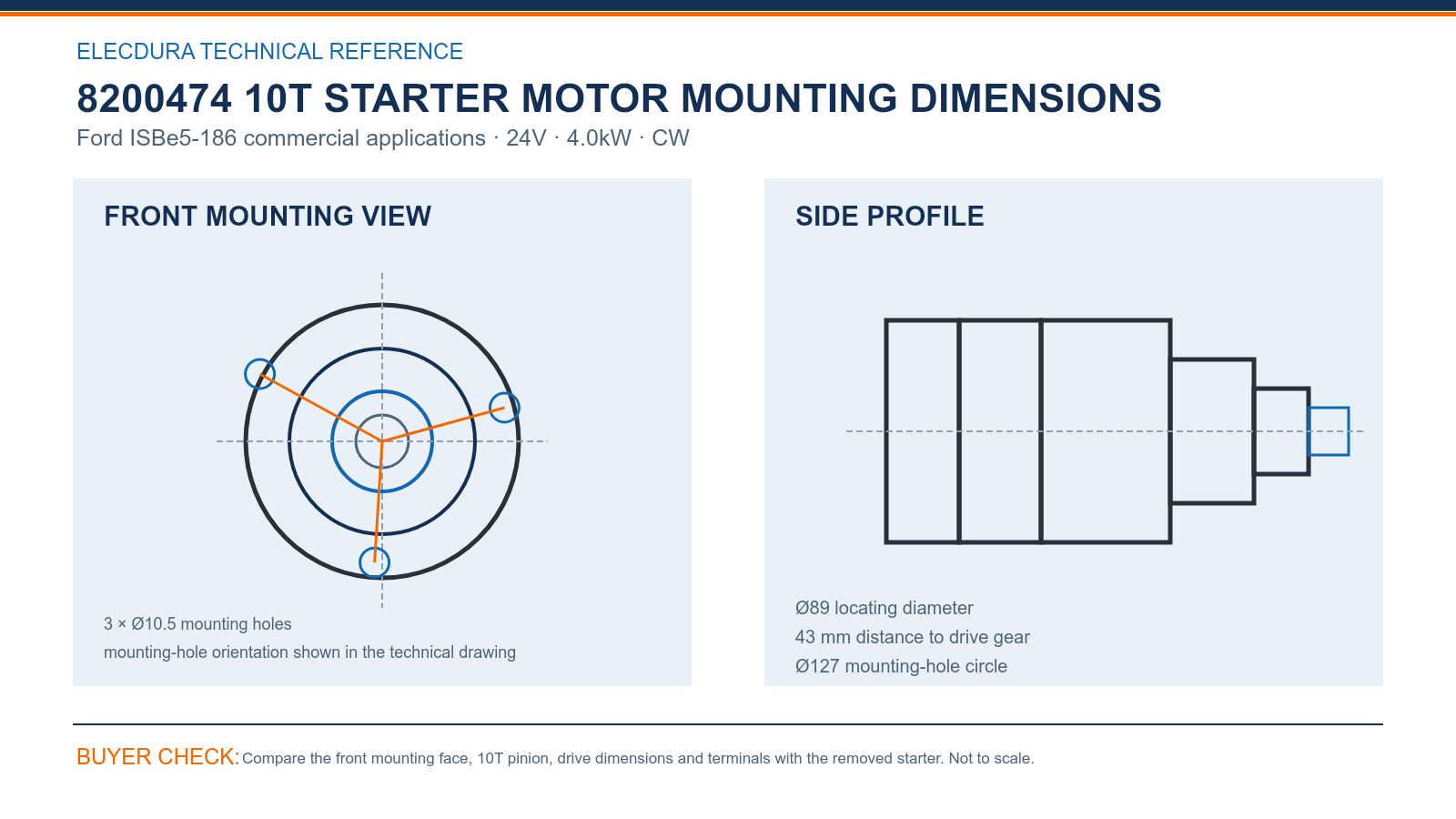

8200474 Starter Motor Specifications and Drawing for Wholesale Buyers

Compare 8200474 at the 3 × Ø10.5 mounting holes, Ø127 mounting-hole circle and Ø89 locating diameter. The 43 mm distance to drive gear helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 8200474, count the 10T pinion and confirm module 3.175, CW rotation, 24V and 4.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

8200474 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 8200474, BC45-11001-BA, BC45BAFORD, S1035, STR80207 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

8200474 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 8200474 quantity, destination and required arrival date.

Plan stock by supported fleet account and retain the Ford and engine identifiers on branch labels for accurate reordering. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 8200474 remains tied to the stated Ford ISBe5-186 commercial vehicles application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

8200474 Starter Motor Questions from Commercial Buyers

Before removing 8200474, what should the workshop test under load in a Ford ISBe5-186 fleet workshop?

Before fitting 8200474, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for 8200474 during a Ford ISBe5-186 fleet inspection?

For 8200474, use a straight front view to compare the 3 × Ø10.5 mounting holes and Ø127 mounting-hole circle; use the side view for Ø89 locating diameter and 43 mm distance to drive gear. Complete the check with 10T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

What should a distributor match before ordering 8200474 for Ford ISBe5-186 commercial vehicles during fleet sourcing?

Use the complete removed-unit number and exact Ford ISBe5-186 commercial vehicles record. Compare the 10T pinion, 3 × Ø10.5 mounting holes, Ø89 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order 8200474 from an alternate OE number in a Ford ISBe5-186 fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 8200474 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

How can 8200474 stock be separated by application risk in a Ford ISBe5-186 fleet program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 8200474 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving 8200474 during a Ford ISBe5-186 fleet receiving check?

For 8200474, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø10.5 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for 8200474 in a Ford ISBe5-186 fleet sourcing program?

Send the complete OE number, exact Ford ISBe5-186 commercial vehicles details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 4.0kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review 8200474 after installation in a Ford ISBe5-186 fleet review?

Keep the carton or product traceability code and note when and where 8200474 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

8200474 Request Starter Motor Wholesale Pricing

Send the complete 8200474 reference, Ford ISBe5-186 commercial vehicles details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 4.0kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
