65.26201-7070D Daewoo Starter Motor 24V 8.0kW 11T

65.26201-7070D Construction Equipment Starter Motor for DAEWOO 215-9 excavator (small-pinion version)

For aftermarket product managers building a new starter range, this aftermarket construction equipment starter motor is specified for DAEWOO 215-9 excavator (small-pinion version) with 24V, 8.0kW and 11T. The page keeps the replacement identity, technical definition and stocking order information in one place.

For engine-parts specialists requesting production pricing, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

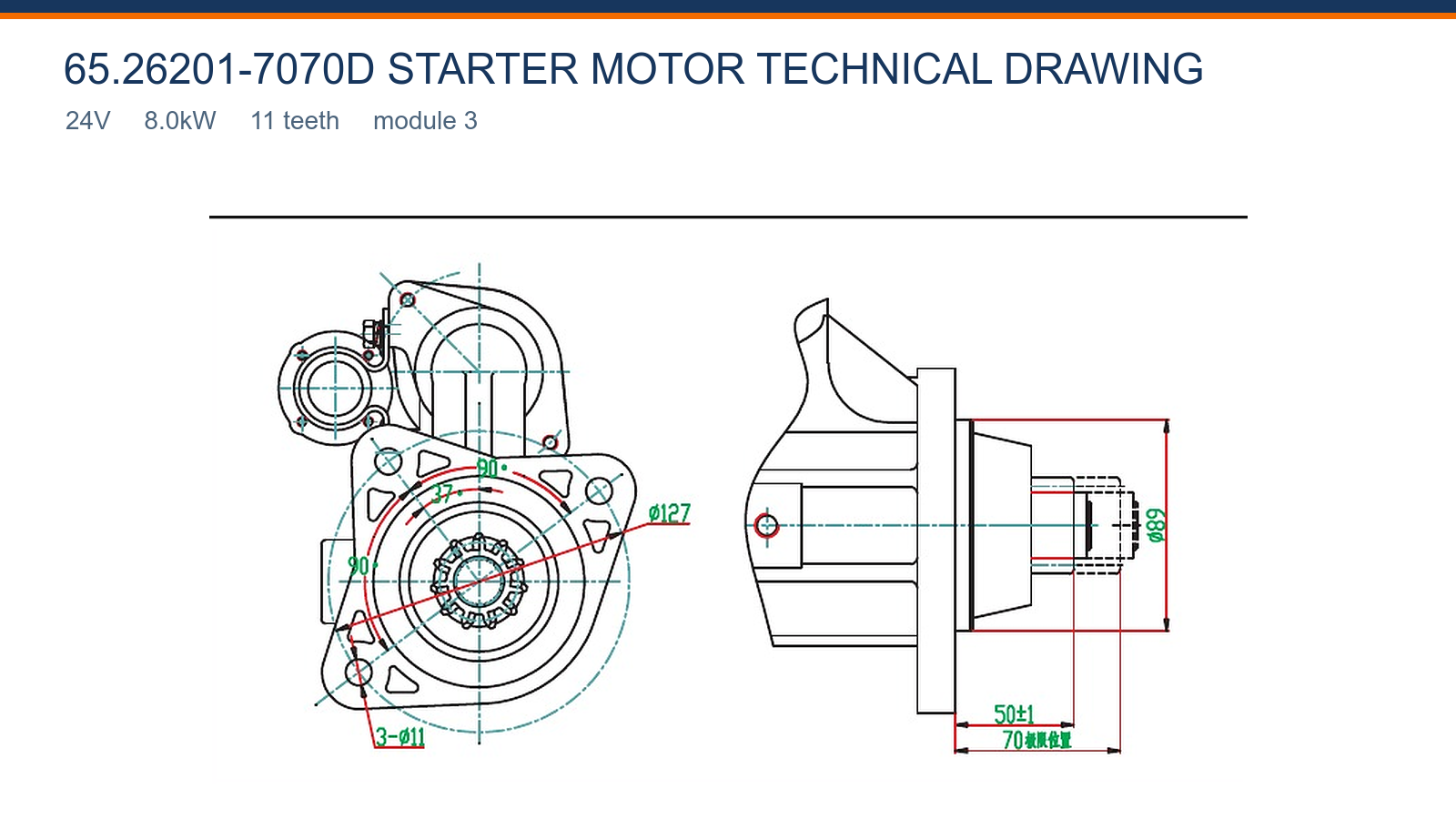

65.26201-7070D Starter Motor Specifications and Technical Drawing

For service-parts networks confirming electrical ratings, the 8.0kW output makes the electrical match especially important. Confirm the 24V system, cable capacity, grounds and the old starter rating before approving this configuration for a batch order.

For importers checking repeat-order specifications, the source-faithful technical drawing records the available mounting information for 65.26201-7070D, including 3×Ø11, 50±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

65.26201-7070D Aftermarket Replacement and Application

For fleet-parts buyers evaluating a direct replacement, use 65.26201-7070D as the primary product identity for DAEWOO 215-9 excavator (small-pinion version). The cross-reference group 65.26201-7070D supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

For technical sales teams comparing the flange and terminals, before a purchase order is released, compare the removed starter's mounting face, 11T drive and terminal direction with the approved gallery. Module 3 is part of the pinion definition. Any conflicting physical feature should remain on a separate RFQ line until the correct replacement is confirmed.

65.26201-7070D Wholesale Supply for Distributors and Importers

For sourcing managers opening a first B2B purchase, distributor supply for 65.26201-7070D can include neutral packaging, customer-brand review and order-specific labels. Current commercial guidance is 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For wholesale program managers confirming an incoming batch, available quality support includes armature, solenoid, no-load and load testing. Buyers may define sampling, report format, reference labels, terminal protection and carton marks before production so the shipment can be checked against the approved order specification.

65.26201-7070D Starter Motor Buyer FAQ

Which detail separates 65.26201-7070D drawing dimensions before accepting a substitute?

For purchasing teams comparing the flange and terminals, read the 65.26201-7070D drawing as a comparison aid, not as permission to ignore the old starter. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

What should purchasing verify first for 65.26201-7070D three-view gallery before stock is assigned?

For distributors reviewing a replacement proposal, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to 65.26201-7070D; they should be reviewed together with the 11T drive and DAEWOO 215-9 excavator (small-pinion version) application. Request an additional close-up when the customer's unit hides a deciding feature.

What must be matched before quoting 3×Ø11 and 50±1 mm before comparing delivery options?

For technical buyers preparing a technical RFQ, use the supplied technical drawing to compare 3×Ø11 and 50±1 mm. Take each measurement from the same face shown or described, then compare the locating shoulder, bolt pattern and drive-end projection as one set. A single matching diameter is not enough if the hole pattern or axial reach places the pinion differently.

What should purchasing verify first for 65.26201-7070D replenishment for warehouse identification?

For engine-parts specialists preparing a volume quote, keep 65.26201-7070D, 24V, 8.0kW, 11T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different starter removed from the machine appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

What must be matched before quoting 11T and module 3 before accepting a substitute?

For fleet-parts buyers confirming electrical ratings, the supplied drive uses 11 teeth with module 3. Count the old pinion teeth and compare outside diameter, rest position and engagement depth before the PO is released. The 3 module is part of the gear definition, so another pitch must not be combined on the combined buying line. This check protects the ring gear from an incorrect mesh.

How should a distributor confirm DAEWOO 215-9 excavator (small-pinion version) during fitment review?

For technical sales teams checking repeat-order specifications, DAEWOO 215-9 excavator (small-pinion version) identifies the intended construction machine family, but it should not be used by itself. Pair the application with 65.26201-7070D, the 24V electrical system and the 11-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration before agreeing cost and lead time.

Which check should lead 50±1 mm before an installation slot is booked?

For fitment reviewers confirming the stated application, use 50±1 mm when comparing 65.26201-7070D. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

Which specification deserves priority for 11-tooth pinion identification before a purchase order is released?

For application specialists checking application evidence, count all 11 teeth on the 65.26201-7070D pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

Request a Wholesale Quote for 65.26201-7070D Construction Equipment Starter Motor

For sales teams preparing a volume quote, provide 65.26201-7070D, DAEWOO 215-9 excavator (small-pinion version), expected order quantity and destination. Include photos or measurements when the old starter differs in suffix or mounting appearance, and Elecdura will review the correct version before pricing.
