S0702S Case W15 4.0kW Starter Motor Wholesale

S0702S Starter Motor B2B Fitment Guide for Case W15 loader

Case construction-equipment dealers, loader fleets and heavy-duty electrical importers can source S0702S for Case W15 loader. Preserve the 9T pinion and 24V 4.0kW 9T module-3 catalog configuration for the Case W15; do not substitute by engine family or housing appearance alone.

Before comparing S0702S prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0702S Starter Motor Technical Data for Fleet Parts Buyers

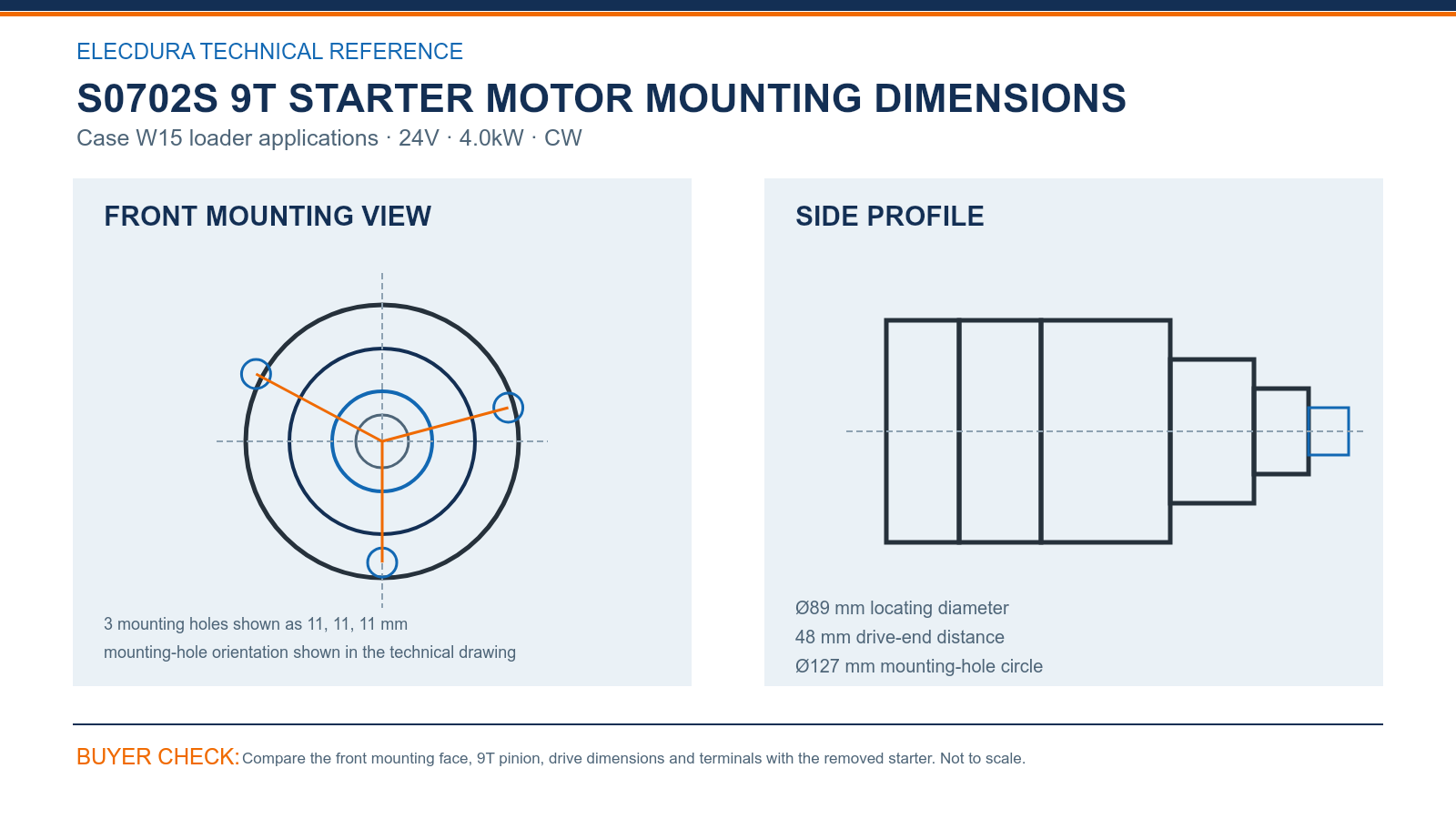

Check the S0702S drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The S0702S drive-end decision is completed by 9T, module 3 and CW, together with 24V and 4.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S0702S Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S0702S, 113184, 0001368069, A186142, P941519Q, Q941519, 19084023 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0702S Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S0702S quantity, destination and required arrival date.

Mark power, drive-end distance and W15 application on warehouse records. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0702S, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0702S Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for S0702S in a Case W15 4.0kW dealer review?

Keep the carton or product traceability code and note when and where S0702S was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

Why is the S0702S reference match only the start of product selection in a Case W15 4.0kW dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0702S group is acceptable only when 24V, 4.0kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Which details separate S0702S from similar starters used around Case W15 loader during dealer sourcing?

For S0702S, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 4.0kW, 9T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

What workshop readings are useful when diagnosing a starting complaint involving S0702S during a Case W15 4.0kW dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0702S. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming S0702S during a Case W15 4.0kW dealer inspection?

Align the removed starter and S0702S at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 48 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine S0702S replenishment share one enquiry in a Case W15 4.0kW dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0702S usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched S0702S unit quickly during a Case W15 4.0kW dealer receiving check?

For S0702S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for S0702S in a Case W15 4.0kW dealer sourcing program?

Send the complete OE number, exact Case W15 loader details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 4.0kW 9T CW starter with packing, lead time, warranty and freight options.

S0702S Ask for Starter Motor Export Pricing

To discuss S0702S supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
