A starter that spins without turning the engine has an engagement or torque-transfer problem to investigate, but that symptom alone does not prove a failed Bendix drive. The pinion, overrunning mechanism, ring gear and installation can produce overlapping complaints. A click or silence instead calls for electrical and control-system checks, including any fitted protection features. Some starters deliberately turn the pinion slowly before full engagement or prevent an immediate restart attempt. Identify the installed technology, separate observations from confirmed faults, and establish the correct replacement assembly before buying a drive or complete starter for a heavy-duty application.
Workshop conversations often use Bendix to mean the starter drive or pinion mechanism. That shorthand is useful for describing the area of concern, but it is not a complete design specification or a part number. A parts enquiry headed Bendix broken may actually concern an electrical command, an engagement problem, a drive that does not transmit torque, or a damaged engine ring gear. Ask what happened during the start request before accepting the component diagnosis written on the job sheet.
The starter contains a motor and a mechanism that connects its output to the engine for starting. The visible pinion engages the flywheel or flexplate ring gear, while the drive arrangement must transmit cranking torque and accommodate the engine starting. How those actions are achieved depends on the starter design. Do not assume that a familiar external gear means every internal drive, reduction mechanism or control device is identical. The complete starter reference and the applicable service information establish which design the workshop is evaluating.
Record the sequence in plain language: the start command was given, a click or rotation was heard, the engine did or did not turn, and the event stopped or continued after the command ended. Include whether the complaint appeared on the first attempt or after repeated attempts. Keep observations separate from interpretations. Starter audible, engine stationary is an observation; overrunning clutch defective is a proposed explanation that still needs supporting evidence. This distinction helps the technician and parts buyer discuss the same problem without prematurely selecting a repair.
If the workshop has already established that replacement is required, the heavy-duty starter motor range provides a starting point for a specific matching enquiry. It does not replace the application check or confirm which component failed. Supply the existing unit's identity and the approved replacement scope. A complete starter quotation and a drive-only quotation should not be treated as equivalent merely because both were requested using the same informal name.

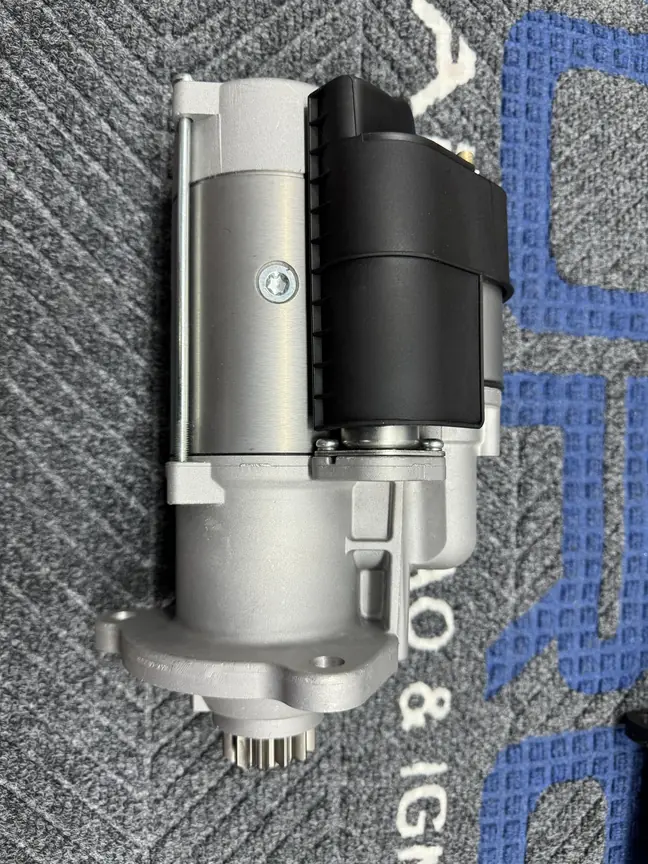

An overall starter view records the supplied assembly and visible interfaces; it does not establish its internal drive design or application.
Sound and visible engine movement help organise diagnosis. They do not identify the failed component on their own. The following table deliberately separates the observation from the next question. It is a discussion aid for trained service personnel and parts buyers, not a substitute for a vehicle-specific test procedure. Several faults can coexist, so correcting one electrical problem does not certify the mechanical drive, and finding worn teeth does not explain every no-crank event.
Observed event | What the observation establishes | What still needs resolving |
|---|---|---|
Starter rotation is audible, but the engine does not turn. | The reported problem concerns transfer of starter motion to the engine. | Whether the pinion engages correctly, the drive transmits torque and the relevant ring-gear teeth are serviceable. |
Grinding occurs as the start request begins. | Engagement is abnormal and repeated attempts risk further damage. | Pinion and ring-gear condition, mounting geometry, correct application and whether the engine was already moving. |
A click occurs without rotation. | Something in the starting sequence has operated; the sound alone does not establish contact closure or motor supply. | Battery and cable condition, the actual control arrangement, applicable protection states and mechanical restrictions. |
No click and no rotation occur. | The expected start event has not occurred. | Start permission, command delivery, wiring, fitted control/protection features and the starter's applicable diagnostic procedure. |
An immediate repeat attempt produces a different response. | The response depends on the recent sequence or operating conditions. | Documented retry protection, heating, voltage conditions and intermittent mechanical or electrical faults. |
Starter noise or engagement continues after the engine starts. | The event requires the equipment's safe shutdown and service process. | Continued command, electrical contact behaviour and mechanical disengagement; none is proven by the sound alone. |
Try to preserve the first reliable account of the event. Repeated uncontrolled start attempts can change battery condition, heat the starter and damage engagement surfaces, leaving the workshop with several symptoms instead of one. Do not keep cranking to obtain a better recording or to prove that the fault is repeatable. Existing observations, equipment fault information and the manufacturer's permitted test process are a safer basis for deciding which branch needs attention.
Broader no-crank and slow-crank questions belong alongside the heavy-duty starter symptom guide. This article concentrates on how those observations affect the drive diagnosis and replacement decision. A correctly observed engine that turns slowly is a different event from a starter motor that turns without moving the engine. Mixing those descriptions can direct a buyer toward a pinion repair when the actual question concerns available cranking performance.
Delco Remy's Electrical Soft-Start explanation describes controlled slow rotation of the pinion until it engages the ring gear, followed by cranking. On a starter confirmed to use that feature, the preliminary movement is part of the design, not automatically evidence of a sticky drive. The official Electrical Soft-Start overview supports that narrow distinction. It does not establish that every starter has the feature or that every delayed engagement is normal.
Ask the workshop to identify the installed unit before interpreting an unfamiliar sound or sequence. If an approved replacement uses a different engagement strategy, compare the expected behaviour with the relevant documentation. A driver may accurately report that the new unit sounds different without having observed a defect. Equally, a supplier should not dismiss persistent grinding or failure to crank by saying that all unusual behaviour is soft start. The feature explains one possible normal event; it does not excuse an unresolved fault.
Delco Remy's 2018 Smart IMS diagnostic guidance warns that certain protective functions can be mistaken for starting faults. These include restrictions associated with rapid re-engagement, cranking duration and voltage conditions, as well as protection against engagement with an engine already running. Read the Smart IMS diagnostic explanation within its stated scope. The important first question is whether the actual starter and installation use that system, not whether the symptoms resemble a description found online.
A useful job record notes the start-attempt sequence and any relevant operating conditions before a control-state conclusion is drawn. If a documented protection condition applies, resolve the underlying condition through the approved service process. Do not bypass the device or substitute an ordinary relay to make the starter respond. The older manufacturer's article contains specific timing and voltage values for its discussed arrangement; those values are not a universal test sheet for every heavy-duty vehicle, every starter revision or both system voltages.
Delco Remy's current Over-Crank Protection page describes a built-in thermal circuit breaker that resets at a safe operating temperature. The feature is offered on specified starter families; actual fitment still needs confirmation. This differs from interpreting a programmed retry delay as a thermal event. The OCP feature description provides a reason to consider thermal protection when the equipped unit stops responding after adverse cranking conditions, but it does not diagnose the particular vehicle.
A return to operation after cooling is relevant history, not proof that the starter is undamaged or that the drive was never at fault. Ask why the adverse cranking condition occurred and whether the workshop has completed the applicable checks. Do not create a generic cool-down time from another starter's instructions. A replacement chosen only because it lacks the original protection could conceal the underlying problem and change the installation's intended behaviour rather than provide a verified repair.
The names identify different arrangements and must not be collapsed into a single box marked solenoid. For example, Delco Remy's current IMSS page describes a one-wire design integrated inside the solenoid. That construction description does not establish that it uses every protective feature described in an older Smart IMS article. See the manufacturer's Internal Magnetic Switch Solenoid overview. Identify the actual part and its instructions before choosing which control-system explanation applies.
This matters during matching as well as diagnosis. A photograph may show a housing, terminal or attached device without revealing its internal function. Ask the supplier to confirm the specified control arrangement in the offered assembly. Do not infer a technology solely from a black plastic cover, the number of visible studs or an abbreviated description in a stock list. An unexplained change in that arrangement is a reason to seek application confirmation before releasing the replacement for installation.
The one-wire description concerns the integrated control design; it does not mean that the complete starter operates with only one power connection. It is not an instruction to remove other cables or to assign functions to unidentified terminals. When a quotation uses this terminology, ask for the exact assembly reference and the relevant connection documentation. The useful purchasing answer explains the supplied configuration and its application, rather than relying on a shortened feature name that the workshop may interpret differently. The same caution applies when an external device is absent from a replacement: its absence alone does not show whether the function has been integrated, changed or omitted.
Keep diagnostic numbers attached to their source and configuration. The official Delco Remy diagnostic manual contains a SIMS/IOCP discussion that must be read for the arrangement it describes; it should not be combined indiscriminately with the older Smart IMS technical tip. Different published values do not, by themselves, prove that one document has been withdrawn. Ask the responsible service source which instruction applies to the installed part. An unlabelled worksheet assembled from several references can create a false failure threshold even when every copied number originally came from an official source. Keep any unresolved document conflict out of a parts-failure verdict until that applicability question is answered.
When the motor runs but the engine remains stationary, separate reaching the ring gear from transmitting torque through it. A pinion that never meshes presents a different question from a drive that appears to reach the required position but cannot carry the load. The technician needs the applicable procedure and safe access to distinguish those events. Hearing the motor establishes neither full engagement nor the condition of the internal overrunning mechanism. Keep those unknowns visible in the parts request.
DENSO's starter-troubleshooting guidance identifies damaged flywheel or flexplate ring-gear teeth and a defective drive assembly as possible explanations for similar complaints. It also calls attention to the actual meshing condition. The DENSO starter troubleshooting article therefore supports checking both sides of the engagement, rather than using audible starter rotation as confirmation that the drive alone has failed. A complete replacement will not repair damaged teeth on the engine's ring gear.
The workshop should document how much of the ring gear it has inspected and any limitation imposed by access. An accessible section with no visible damage is not the same as a verified full circumference. A fault associated with particular engine stopping positions can make that distinction important. Do not direct an operator to turn or reposition the engine using improvised methods for the sake of a photograph. Inspection access and engine positioning belong to the equipment manufacturer's safe service procedure.
Keep pinion and ring-gear observations separate in the report. Describe the visible location and condition without claiming an unperformed measurement. A photograph can preserve a chipped area or show the arrangement presented for inspection, but it cannot establish working engagement depth under load. If the report says the pinion is good, ask whether that means no visible tooth damage, a dimensional check, or a functional assessment of the complete drive. Those conclusions have different implications for repair approval.
Do not assume that every drive which turns freely by hand has passed a meaningful clutch test. The correct direction, fixture, load and interpretation depend on the design and service method. The existing unit may also have shaft-support or motor faults that a simple movement check cannot reveal. A supplier's video of free movement can show what occurred in that demonstration; it should not be promoted into evidence that the drive will transmit the required cranking torque in the intended application.
If the engine starts and abnormal starter engagement or noise continues, stop following the routine retry path. Use the equipment's prescribed safe shutdown and service response. Continued electrical command, contacts that do not open correctly and mechanical release problems require different investigations. Do not attempt to settle the distinction by touching, striking or adjusting the starter while it is operating. Preserve the reported sequence so that the workshop can investigate without turning a potentially damaging event into repeated demonstrations.

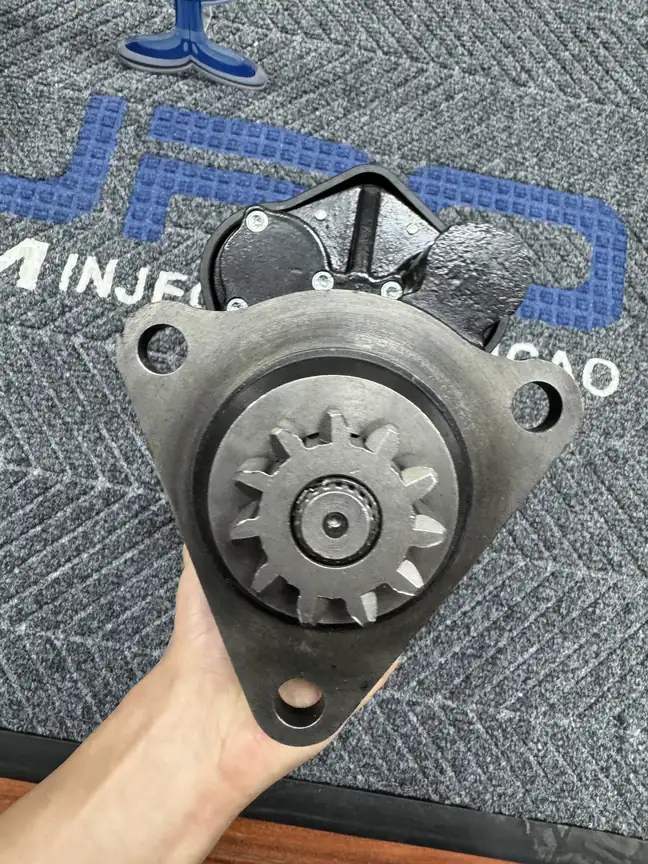

A drive-end photograph preserves visible pinion and mounting geometry. It does not show ring-gear engagement depth or prove that the drive transmits torque.
A complaint that starts immediately after replacement deserves a comparison of the old installation, the approved part and the delivered item. This does not prove that the replacement is defective. It creates a focused question about what changed: the application reference, mounting arrangement, retained engine-side parts, control configuration or the condition of components that remained on the vehicle. Replacing the new starter again without resolving that question can reproduce the same problem.
Delco Remy's gear-reduction conversion guidance explains that an OE spacer can be an engine-related part used to establish appropriate pinion-to-ring-gear clearance. It warns that the spacer may remain attached to the removed starter and directs uncertain, missing or damaged-spacer questions to the engine manufacturer. The gear-reduction conversion technical note supplies a concrete reason to preserve the installation record. It is not permission to add a spacer to every starter or invent a universal clearance value.
When an engine-side spacer is specified, its identity and condition belong in the workshop's installation check. They should not disappear from the record because the replacement carton contains only the starter. If the buyer cannot establish whether one is required, hold that application question open. Neither copying an unknown spacer from another vehicle nor adding material until grinding stops constitutes documented matching. The service organisation must resolve the installation geometry using the applicable engine and starter information.
External appearance can also change with a legitimate, documented replacement. A nose-less gear-reduction design need not resemble the removed nose-style unit. That observation explains why appearance alone is an unreliable rejection rule, but it does not make arbitrary starters interchangeable. Check the approved replacement relationship and its stated conditions. Conversely, a starter that resembles the old one still needs the correct drive geometry, mounting interface and control arrangement; visual similarity cannot replace the application evidence.
Record any extra installation requirement before authorising the order. If the seller proposes transferring an item, changing a connection arrangement or supplying a different mounting configuration, ask which instruction supports that proposal and who will evaluate it. A note saying fits with modification leaves the essential decision unresolved. Purchasing should not silently turn a quotation for a complete replacement into an installation-development project whose technical responsibility and required parts have never been defined.
Electrical checks remain important even when the complaint sounds mechanical. Reduced voltage available to the relevant operating circuit can affect the start sequence. The useful service result records the condition under which a measurement was made and compares it with the equipment's actual specification. A satisfactory unloaded battery reading does not establish the voltage available during the attempted start. Equally, a failed electrical check does not independently certify the drive or ring gear once that electrical issue is resolved.
Separate the main-current path from the control path. A statement that voltage is present leaves several questions unanswered: where it was measured, whether the circuit was loaded, which stage of the event was occurring and which control technology is installed. Ask the technician for the applicable result, not a general assurance that the battery is good. The starter relay guide can support the control-circuit branch; the starter solenoid testing guide concerns a different part of the sequence.
For an equipped protection system, interpret electrical results in the state required by its service instructions. A device deliberately withholding operation cannot be assessed simply by applying the expectations of an unprotected circuit. Do not use this article as a wiring diagram or terminal-identification chart. External photographs help document the arrangement but do not establish terminal functions, internal contact condition or whether a controller has granted start permission. Those answers require the correct documentation and appropriate test method.
Keep high-current testing with qualified personnel using rated equipment and approved restraints, isolation and vehicle-securing procedures. There is no universal voltage-drop limit, probe connection sequence or bypass instruction in this guide. The parts buyer's role is to request an intelligible result and identify what it means for selection. If an electrical fault is corrected, the workshop should evaluate the original complaint again through its service process instead of assuming that any previously suspected mechanical fault has also been ruled out.

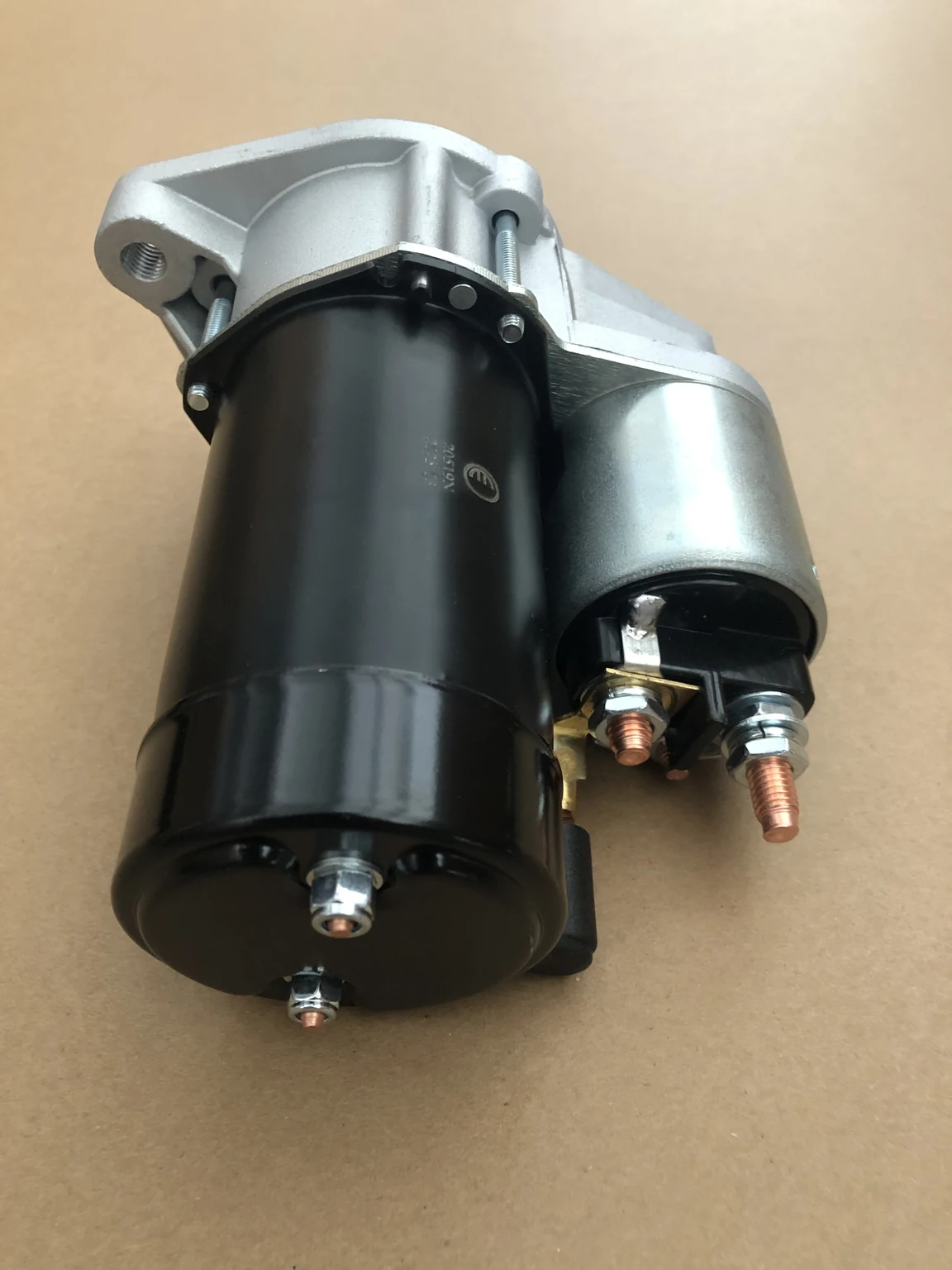

External terminal photographs support identification of the supplied arrangement. Terminal functions and electrical test procedures must come from the applicable documentation.
A bench demonstration can answer a limited question about the item and conditions actually demonstrated. It does not automatically reproduce engine load, installation geometry, cable conditions or the fitted vehicle control system. Ask what the test covered and what the result establishes. A video showing the motor turning should be described as such, not as proof of correct engagement on the vehicle. The complete starter, a removed drive and a separately assessed solenoid also require different identification and test scopes.
For a proposed drive-only repair, establish that the correct drive is available for the identified starter and that the rest of the assembly has been assessed. Relevant questions include shaft support, housing condition, motor condition, solenoid operation and contamination, as applicable to that design. Replacing the visibly affected part is not a complete repair plan if other findings remain unresolved. Do not force the drive into a supposed pass condition by hand or substitute an improvised bench restraint.
A complete replacement or professional rebuild may be the more appropriate scope when faults extend beyond the drive, the remaining internal condition cannot be established, or the repair capability is unavailable. This is a conditional decision, not a blanket claim that every complete starter is safer than every drive repair. The buyer should know what the service provider has inspected, what will be renewed or retained, and which party is responsible for the completed assembly. Compare those actual scopes rather than only the component prices.
After an approved repair, retain enough information to interpret a repeat complaint. Record the unit, the repaired components, the supporting findings and the installation-related checks. A later symptom should be compared with that history, not dismissed because the starter has recently been repaired. If the original ring-gear or application question was never resolved, the presence of a new drive is not evidence that it has disappeared. This record also helps distinguish an item discrepancy from a new or continuing vehicle-side condition.
Begin with the complete starter number and the vehicle or equipment application. Keep every readable original reference, including suffixes, and identify which characters are uncertain. Add the engine and transmission information where relevant to the application. Confirm the system's rated voltage and the required starter performance from application-specific documentation; neither can be inferred from housing size or pinion tooth count. The request should say whether it concerns a complete starter, a drive component or a professional rebuild. A supplier cannot reliably fill those gaps from the phrase heavy-duty Bendix or from an engine-family name shared by several configurations.
Use photographs to answer distinct identification questions. An overall image shows the assembly being discussed; a drive-end view shows the pinion and mounting arrangement; a terminal-side view records the external electrical configuration. Keep these linked to the actual enquiry. The three photographs illustrating this guide show different real starter views, not a documented sequence on one failed unit. No image here identifies a specific Smart IMS, IMSS or soft-start assembly, demonstrates a fault or approves a replacement number.
Pinion tooth count is useful but insufficient. Relevant supporting information may include pinion diameter and tooth form, drive projection, mounting flange and hole pattern, rotation as defined by the applicable source, and the terminal/solenoid arrangement. Measurements need identified reference points and a suitable method. A perspective photograph without scale is not a dimensional drawing. When the original label is missing, ask the supplier or application specialist to state the remaining identification uncertainty instead of selecting whichever catalogue photograph looks closest.
Before accepting an alternative, ask the seller to identify its own complete offered reference and the evidence connecting it to the application. Document any change in drive design, supplied control equipment or required retained installation parts. Do not allow the original engine description to hide those differences. An accepted application-specific alternative should remain attached to that enquiry; it does not create a universal interchange rule for other machines with a similar starter appearance.
State the quantity, delivery destination and required timing, then ask for the exact contents and commercial conditions of the offer. These are questions to be confirmed, not promises inferred from a category page. At receipt, compare the supplied identity and visible arrangement with the approved offer. Hold an unexplained difference for resolution before installation. A replacement enquiry is complete when the buyer and service organisation know what is being supplied and which technical questions still require an answer, not merely when a price has arrived.
For an Elecdura enquiry, send the complete starter or OE reference, equipment details, the observed start event, the required repair scope and clear drive-end and terminal photographs through the heavy-duty starter motor product route. State missing information openly. Remote matching support is not a vehicle diagnosis, and no particular stock position, delivery date, authorisation or test result is established by this guide.
This article does not authorise installation changes, starter disassembly, live high-current testing or engine positioning. It cannot determine a replacement from sound alone, approve a spacer thickness, assign functions to unidentified terminals or interpret every electronic starting system. Modified equipment, conflicting part records, an uncertain control arrangement or continuing engagement after engine start requires the relevant service specialist and the equipment manufacturer's procedure. Preserve the observations and the unit identity, then resolve the application and safety questions before releasing parts for use.
It can on a starter confirmed to use an engagement strategy such as Delco Remy Electrical Soft-Start. Verify the installed reference and its expected operation before interpreting that movement. The feature does not make persistent grinding, failure to crank or every delay normal; those events still require the applicable diagnostic process.
No. A pause may coincide with cooling, a documented retry condition or an intermittent fault. Record the preceding attempts and identify the installed protection technology. Recovery is useful history, but it neither proves a thermal trip occurred nor verifies the drive's torque-transfer capability or the condition that caused the original complaint.
Photographs support identification of visible features, but some application and internal-control differences are not visible. Supply the complete unit reference and equipment information as well. If those are unavailable, ask which conclusions the seller can support and which remain unresolved; do not treat attractive or detailed images as an application certificate.
Not solely for that reason. A documented replacement design can look different. The decision still needs the application-specific replacement relationship, correct mounting and drive interface, and any required engine-side parts. The existence of one approved nose-less conversion does not establish interchangeability for another starter or engine.
You can obtain pricing, but keep purchase or installation approval separate from that preliminary quotation. Record what has and has not been inspected. If the unexamined engine-side condition could cause repeat failure, the lower drive price does not resolve the repair decision; the service organisation must address that uncertainty.
