Replacing a hydraulic cartridge valve requires separate approval of the cavity, the hydraulic function and the mounting package. A replacement may fit the existing manifold yet route oil differently when power is removed. Another replacement may be suitable only with a documented retrofit plate and associated hardware. For equipment-parts buyers, the question is therefore not simply whether the new cartridge screws in or shares a flange pattern. Establish which configuration the machine requires, then determine whether the proposed part preserves it. This guide explains that purchasing decision; it does not authorize manifold modification or replace the equipment manufacturer's service procedure.
A cavity designation identifies the interface inside the valve block. A thread description identifies only part of that interface. Similarly, a nominal cartridge size or coil size is not a complete description of the receiving cavity.
For example, the HydraForce 10-size, 4-way cavity reference provides separate drawing entries for VC10-4, HVC10-4 and other named variants. The directory heading should not be used as a substitute for the applicable drawing. The existence of those entries also does not establish which variants are interchangeable.
Start with the manifold drawing, equipment parts information or a documented identification from the responsible technical supplier. Ask the reviewer to compare the proposed cartridge against that interface, including its locating datum, insertion depth, port positions and sealing lands. A photograph of the removed valve can help recover identity, but it cannot certify the internal cavity dimensions or establish that a previous replacement was correct.
Keep two findings separate: the cavity has been identified, and the proposed cartridge has been approved for it. If only the external thread is known, the first finding remains incomplete. Do not turn an incomplete identification into a cross-reference by adding a different seal or pulling a flange into place with its fasteners.
Two named HydraForce products provide a useful counterexample. Both specify VC10-4, but they do not perform the same hydraulic job.
Reference: SV10-40
Specified cavity: VC10-4
Function described by the manufacturer: Four-port, two-position spool valve; the unpowered state connects ports 3–2 and 4–1.
What the buyer must not infer: That another VC10-4 valve preserves this unpowered state.
Reference: SV10-47A
Specified cavity: VC10-4
Function described by the manufacturer: Four-port, three-position tandem-center spool valve; the unpowered state blocks the cylinder ports while allowing flow from 3 to 1.
What the buyer must not infer: That a two-position valve provides the required center state or control arrangement.
This is not a recommended substitution pair. It demonstrates why an approved cavity alone cannot complete a replacement decision. The equipment's required unpowered state, commanded flow paths and electrical control arrangement must also match. For the three-position example, the manufacturer describes separate commands to two coils; a familiar connector or nominal supply voltage does not establish that the machine provides the required controls.
Have the technical comparison refer to the actual hydraulic symbols and full model options. The supplier's conclusion should identify what remains equivalent, not simply repeat “fits VC10-4.” If the function changes, the proposal is a circuit change requiring the appropriate engineering review, not an ordinary like-for-like parts substitution.
Not every supported replacement uses the old retention hardware. Conversely, a different-generation valve does not automatically require a new manifold. A manufacturer may document a specific retrofit that retains an existing cavity.
HydraForce's G3 mounting reference distinguishes standard G3 cavities with a counterbore from listed G1/G2 retrofit configurations. These are drop-in, flange-mounted examples, not instructions for tightening a screw-in cartridge. The reference assigns mounting components to the configuration rather than treating them as universal accessories.
The SV98-G38 data sheet dated September 25, 2024 makes that distinction concrete: it lists standard VC-G028 installation and separate mounting accessories for retrofit VC-T011 use. A quote for the valve alone and a quote for the correct retrofit package therefore do not represent the same supply scope.
Before ordering, identify the existing cavity, the exact proposed valve and the applicable mounting configuration. Ask which plate and associated hardware are included, which items must be ordered separately, and which existing components the approved instructions allow the workshop to retain. Resolve inconsistent accessory information against the exact-model documentation and manufacturer clarification before releasing the order.
This guide deliberately provides no screw-size or torque schedule. The general G3 mounting page contains inconsistent screw-size wording, and a general article must not convert that inconsistency into a workshop instruction. Nor should the G3 example be extended to an unidentified cartridge or another manufacturer's cavity.
A correct part number does not establish that the receiving manifold is serviceable. Damage or an unresolved interface can prevent a valid replacement from functioning as intended.
The HydraForce installation reference calls for checking the housing's port logic and inspecting the cavity for burrs or machining irregularities. It also warns that excessive tightening can distort components and cause a spool or poppet to stick. The purchasing implication is limited but important: a sticking replacement is not, by itself, proof that its coil or internal valve was defective when supplied.
Ask the workshop to distinguish an unsuitable cartridge from damage to the existing cavity and from an installation problem. That distinction determines whether the next order should be a confirmed replacement cartridge, a documented mounting package, or no additional cartridge until the manifold issue has been assessed.
Do not prescribe a larger seal, extra washer, improvised spacer or higher tightening force to make an uncertain combination fit. Any cavity repair or modification belongs with the responsible equipment or manifold specialist. If the original complaint is leakage rather than a known replacement mismatch, first address the separate hydraulic valve leakage diagnosis; this compatibility review cannot establish which component caused the initial leak.
The useful output is a decision about a particular proposed replacement, not a checklist marked complete without supporting identities. Put the removed reference, the proposed full reference and the identified cavity on the same comparison record. Separate the technical acceptance of that combination from the commercial question of what the shipment contains.
What has been established? The cavity matches, but the required hydraulic state or control arrangement differs.
Purchasing decision: Hold the proposed substitution and resolve the functional mismatch.
What remains outside that conclusion? A physical fit does not approve a circuit conversion.
What has been established? The exact valve and existing cavity have a documented retrofit route.
Purchasing decision: Specify the complete approved mounting package and equipment acceptance requirements.
What remains outside that conclusion? The retrofit does not automatically authorize reuse of the old plate or fasteners.
What has been established? The cavity identity is missing, instructions conflict, or the housing is damaged.
Purchasing decision: Obtain the responsible technical determination before another cartridge order.
What remains outside that conclusion? A sample that appears to fit does not close the missing evidence.
What has been established? Interface, function and required hardware have been confirmed for the application.
Purchasing decision: Release the identified supply configuration, subject to the workshop's applicable installation and verification procedure.
What remains outside that conclusion? Document review is not evidence that installation or machine testing has already passed.
For a return enquiry, retain the delivered part's markings, its ordered configuration and the specific mismatch found. A wrong cavity, an incorrect hydraulic state and omitted retrofit hardware require different corrections. Avoid a broad “wrong solenoid” claim that leaves the supplier unable to determine whether it must correct the cartridge identity, the package contents or an unsupported substitution proposal.
No. Even if a manufacturer identifies a physically compatible proportional version, the control signal, driver requirements and resulting hydraulic behavior need separate approval. Ask for the documented conversion requirements and the equipment owner's technical acceptance. A cavity match addresses the interface, not the machine-control change.
Not from the date alone. Ask whether the revision corrects documentation or changes an interface requirement, and which version applies to the existing block and proposed valve. Keep that explanation with the comparison. A newly dated drawing should not trigger a manifold replacement without an identified technical difference affecting the installation.
Do not approve a test fixture from nominal size alone. The fixture's actual cavity, port connections and operating limits must suit the exact valve and the specified test. Record the fixture identity with the result. A test in an unsuitable body cannot establish that the replacement will function correctly in the machine's manifold.
No automatic approval follows. Preserve the accepted full reference and configuration, then review any changed suffix or accessory package against it. A later variation may change an option relevant to the application even when the main family name stays the same. Ask the supplier to explain the change before extending the sample's acceptance to the new delivery.
The named examples are manufacturer-documentation comparisons, not a statement of Elecdura stock, brand authorization or equivalent supply. For an actual requirement, review Elecdura's hydraulic solenoid valve range and provide the exact reference, equipment/manifold information and unresolved matching question in your enquiry. Confirm available supply scope before treating any proposed item as an approved replacement.

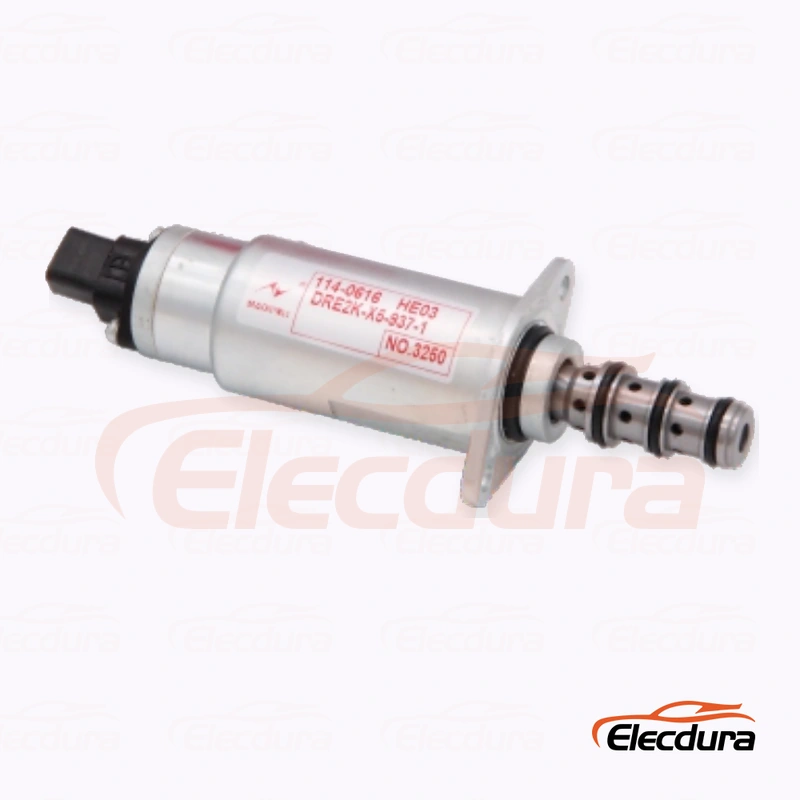

External catalogue example from the linked product page. Record the actual removed unit's full marking, flange and cartridge details; this image is not a cavity drawing or proof of a HydraForce retrofit match.
