A diesel engine that loses power, produces unusual exhaust smoke or develops a new turbocharger noise may have a problem with its turbocharging system. However, these symptoms do not automatically mean the turbocharger itself has failed.
Air intake restrictions, charge-air leaks, exhaust restrictions, lubrication problems and engine faults can produce similar symptoms. Replacing the turbocharger without identifying the underlying cause may leave the original problem unresolved and put the replacement unit at risk.
For heavy-duty truck operators, repair shops, distributors and parts buyers, the priority is to identify the likely source of the problem before deciding whether a replacement turbocharger is necessary.
Turbocharger failure symptoms vary depending on the affected component, engine design and operating conditions. The following signs can help determine what needs further inspection.
A noticeable reduction in engine power, slow acceleration or poor response under load may indicate that the engine is not receiving the expected boost pressure.
Possible causes include:
Leaking charge-air hoses, clamps or intercooler connections
A restricted air filter or intake duct
Exhaust restrictions or leakage
A malfunctioning boost-control system
Mechanical damage inside the turbocharger
Fuel-system or other engine faults
What to check: Inspect accessible intake and charge-air connections for damage, loose clamps and leakage. Review relevant fault codes and compare boost readings with the applicable engine manufacturer's diagnostic procedure.
Low boost alone is not sufficient evidence that the turbocharger needs replacement.
For a more detailed diagnostic sequence, see our heavy-duty turbocharger underboost diagnosis guide.
Exhaust smoke can provide useful diagnostic clues, but its color alone cannot confirm turbocharger failure.
Black smoke may be associated with insufficient air relative to fuel, restricted intake flow, boost leakage, fuel-system problems or other combustion issues.
Blue or blue-gray smoke may indicate that engine oil is entering the combustion or exhaust system. Possible causes include turbocharger oil leakage, restricted oil drainage, excessive crankcase pressure or internal engine wear.
White smoke can have several causes, including unburned fuel, coolant entering the combustion chamber or operating conditions that prevent complete combustion.
The timing of the smoke is also important. Note whether it appears during acceleration, under sustained load, at idle or after the engine has been running for some time.
The correct diagnosis depends on the engine configuration, operating conditions and accompanying symptoms. Do not condemn the turbocharger solely because the exhaust smoke has changed.
A change in turbocharger noise deserves attention, particularly when accompanied by power loss, smoke or increased oil consumption.
A whistling sound may result from an air leak, loose connection or exhaust leakage rather than internal turbocharger damage. A rubbing or scraping sound may indicate contact between rotating components and the housing, foreign-object damage or another mechanical problem.

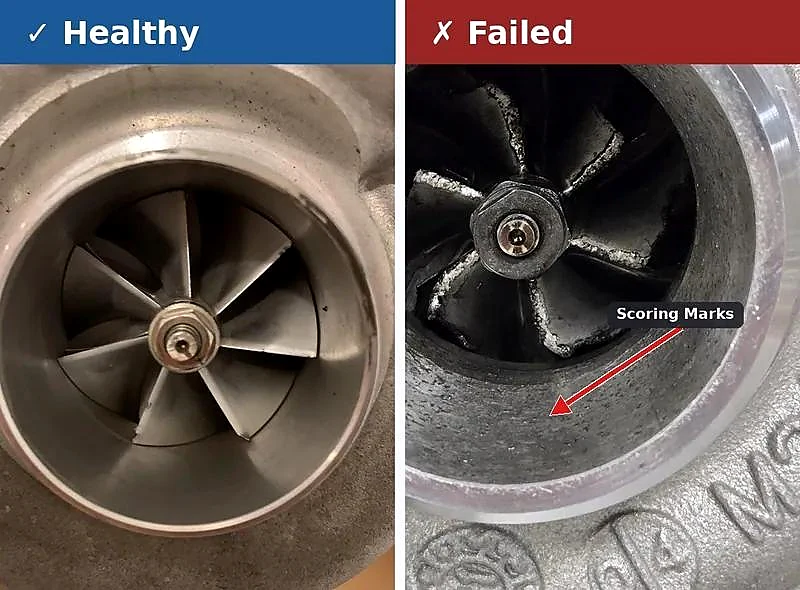

What to check: With the engine stopped and cool, inspect accessible hoses, clamps, connections and supports. If mechanical contact, damaged blades or severe abnormal noise is suspected, stop operating the engine until a qualified technician has assessed the fault.
Do not attempt to inspect a running turbocharger by touching rotating components or placing tools near moving parts.
For more specific mechanical inspection considerations, see our turbocharger wheel clearance and housing-rub diagnosis guide.
Oil around a turbocharger does not necessarily mean its internal sealing components have failed.
Potential causes include:
A restricted or damaged oil drain line
A leaking or obstructed oil feed connection
Excessive crankcase pressure or a blocked breather system
An unsuitable oil-drain arrangement or installation problem
Internal turbocharger damage
The location and extent of the oil, engine oil consumption, crankcase ventilation condition and intake or exhaust system findings all matter.
A thin film of oil in an intake pipe is not, by itself, proof that a turbocharger has failed. Follow the applicable manufacturer's inspection procedure to determine whether the oil is abnormal and where it originates.

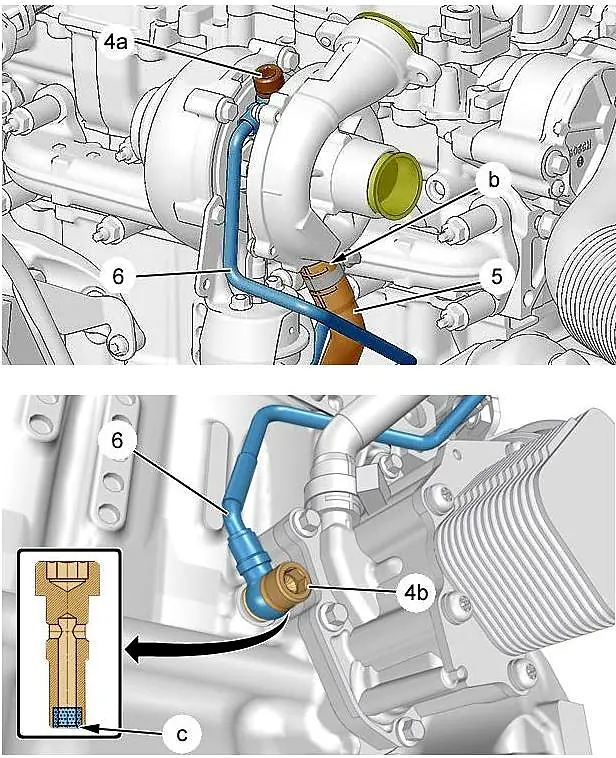

See our turbocharger oil feed line inspection guide for more information about lubrication-related checks.
Several engine-system problems can imitate turbocharger failure. Replacing the turbocharger before checking these systems can lead to unnecessary expense or repeated faults.
Symptom | Other possible causes | What needs checking |
|---|---|---|
Low boost or poor power | Charge-air leaks, intake restrictions, exhaust restrictions or fuel-system faults | Intake, charge-air and exhaust systems |
Black smoke | Insufficient air supply, boost leakage or fueling problems | Airflow, boost integrity and fuel delivery |
Blue or blue-gray smoke | Oil drainage restrictions, crankcase pressure or internal engine wear | Oil feed and drain paths, crankcase ventilation and engine condition |
Whistling or hissing | Leaking hoses, loose joints or exhaust leakage | Connections, hoses, clamps and exhaust joints |
Rubbing or scraping noise | Possible rotating-component contact or foreign-object damage | Turbocharger mechanical condition, following the applicable service procedure |
Repeated turbocharger damage | Unresolved lubrication, contamination, foreign-object or operating problems | Original failure evidence and the complete system |
These are diagnostic possibilities rather than one-to-one symptom matches. Several faults may occur together, and the same symptom can have different causes on different engines.
For variable-geometry turbochargers, additional considerations may include vane movement, actuator operation, feedback signals and control-system faults. These components should be assessed according to the specific turbocharger and engine configuration.
See our VGT turbo problems guide for heavy-duty diesel engines for more focused information.
Before ordering or installing a replacement, establish why the original unit may have failed.
Record the engine model, vehicle or equipment application, relevant fault codes and the conditions under which the problem occurs.
Note whether the issue developed gradually or appeared suddenly. Information about recent repairs, increased oil consumption, abnormal smoke or changes in engine performance can help narrow the diagnostic possibilities.
Check the air filter, intake ducts, hoses, clamps and intercooler connections for restrictions, damage or leakage.
A charge-air leak can reduce delivered boost and affect engine performance even when the turbocharger remains mechanically serviceable.

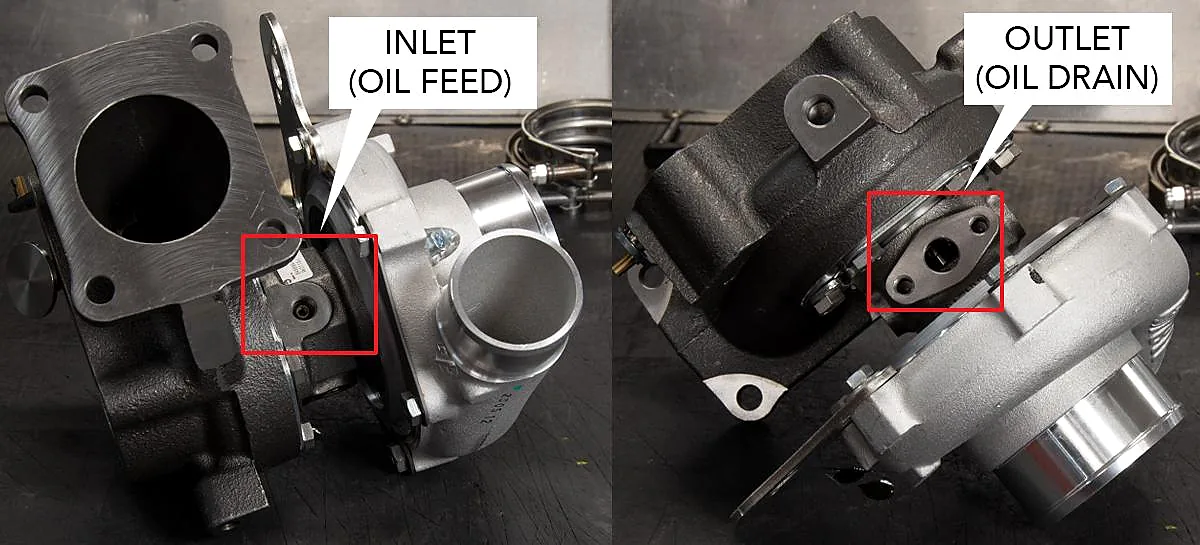

Inspect the engine oil condition and level, oil feed line, oil drain line and crankcase ventilation according to the applicable service procedure.
A replacement turbocharger may be damaged again if the underlying lubrication problem remains unresolved. Installing a new unit does not correct a blocked line, contaminated oil or excessive crankcase pressure.
Depending on the engine configuration, inspect the relevant actuators, boost-control components, sensors, wiring and exhaust system.
Variable-geometry turbochargers have additional control and vane-related considerations. A control fault may produce symptoms similar to mechanical turbocharger failure, so the diagnostic process must account for the specific design.
Review the inspection results before deciding that the turbocharger must be replaced.
If the unit has confirmed mechanical damage, determine whether the original cause has also been identified. If the evidence points to an external system fault, address that problem before assuming the turbocharger is defective.
The final decision should follow the applicable engine and turbocharger manufacturer's service information.
When a replacement turbocharger develops similar symptoms shortly after installation, investigate the complete system rather than assuming the same component has failed for the same reason.
Potential contributing factors include:
An unresolved oil supply or drainage problem
Contaminated oil or foreign material
Intake or exhaust restrictions
Excessive crankcase pressure
Charge-air leakage or control-system faults
Incorrect application or installation
Review the original failure evidence alongside installation records and the condition of related components. The cause cannot be determined without appropriate inspection and testing.
Before installing another unit, correct confirmed underlying faults and follow the engine and turbocharger manufacturer's installation instructions.
This is especially important when a vehicle has experienced repeated turbocharger failures. Replacing the component again without investigating the original cause may repeat the same problem.
For further guidance, see our turbocharger installation guide covering oil paths, priming and first start.
For importers, distributors, wholesalers and repair businesses sourcing aftermarket replacement turbochargers, accurate application information is essential.
Before requesting a quotation, prepare:
The original turbocharger part number or identification plate information
The engine model and vehicle or equipment application
Clear photographs of the identification markings and relevant connections
The actuator or control configuration, where applicable
The required quantity and packaging or documentation requirements
If the original identification is missing or unreadable, provide the available engine and application information along with clear photographs. Additional verification may be necessary before compatibility can be established.
Do not assume that two turbochargers are interchangeable because they look similar. Differences in mounting arrangements, connections, actuator configuration or application can affect compatibility.
Elecdura supplies aftermarket replacement automotive parts for business customers. Availability, application compatibility, configuration and supporting documentation should be confirmed against the requested part before an order is finalized.
Common warning signs include loss of engine power, abnormal exhaust smoke, unusual turbocharger noise and increased oil consumption. These symptoms can also result from faults elsewhere in the engine system, so further diagnosis is necessary.
Yes. Intake restrictions, charge-air leaks, exhaust restrictions, fuel-system faults and boost-control problems can all affect engine performance. The complete system should be checked before the turbocharger is condemned.
No. Oil feed or drain restrictions, excessive crankcase pressure and other engine conditions may contribute to oil leakage. The source and extent of the leakage should be established before deciding whether the turbocharger needs replacement.
A replacement may be damaged if the original cause—such as inadequate lubrication, oil contamination, foreign-object damage or an unresolved system fault—has not been corrected. Incorrect application or installation can also contribute to problems.
Start with the original part number or identification plate, engine model and application. Photographs of markings, mounting points and relevant connections can help resolve configuration questions, but compatibility must be verified for the specific application.
These references support general diagnostic guidance. They do not establish the failure rate of any specific Elecdura-supplied product or prove that a particular fault has increased during the second half of 2026.
