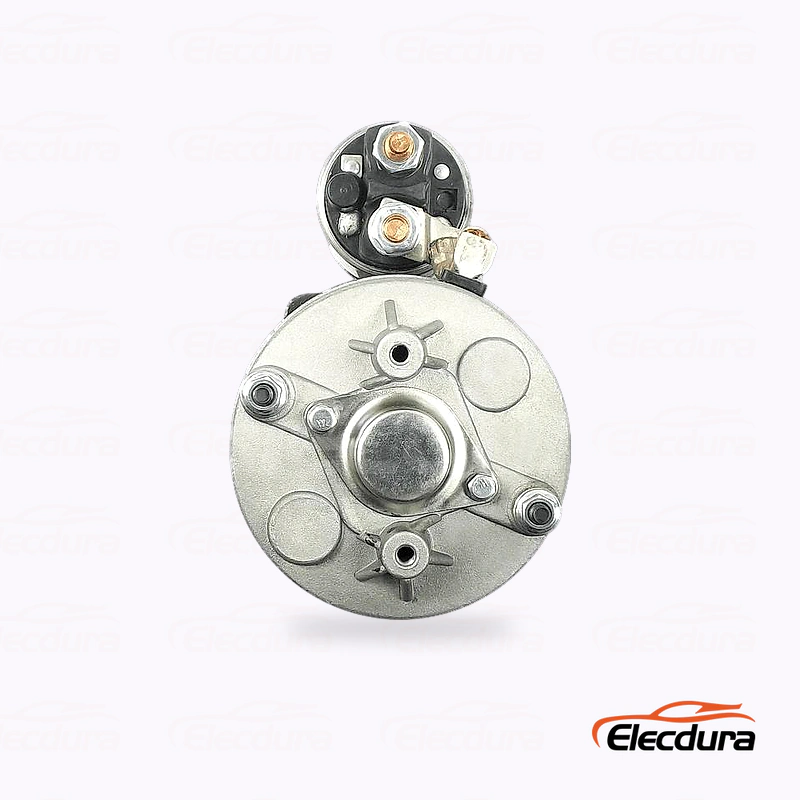

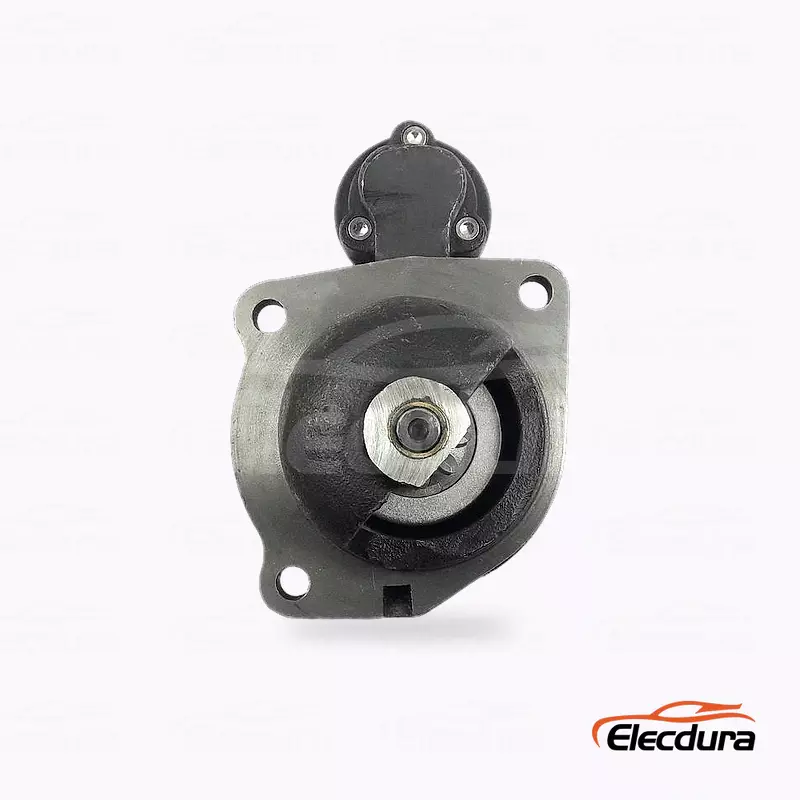

S0519 Deutz BF6L912 Starter Motor Wholesale

S0519 Starter Motor Wholesale Fitment for Deutz BF6L912 and Atlas Copco VSS125

Deutz engine distributors, compressor fleets and construction-equipment electrical suppliers use S0519 to keep Deutz BF6L912 and Atlas Copco VSS125 demand tied to one 12V, 3.0kW, 9T CW configuration. The practical distinction is the 12V 3.0kW 9T catalog configuration for the BF6L912 and VSS125 group, which should be checked before a similar heavy-duty housing is accepted.

Before comparing S0519 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0519 Starter Motor Technical Data for Fleet Parts Buyers

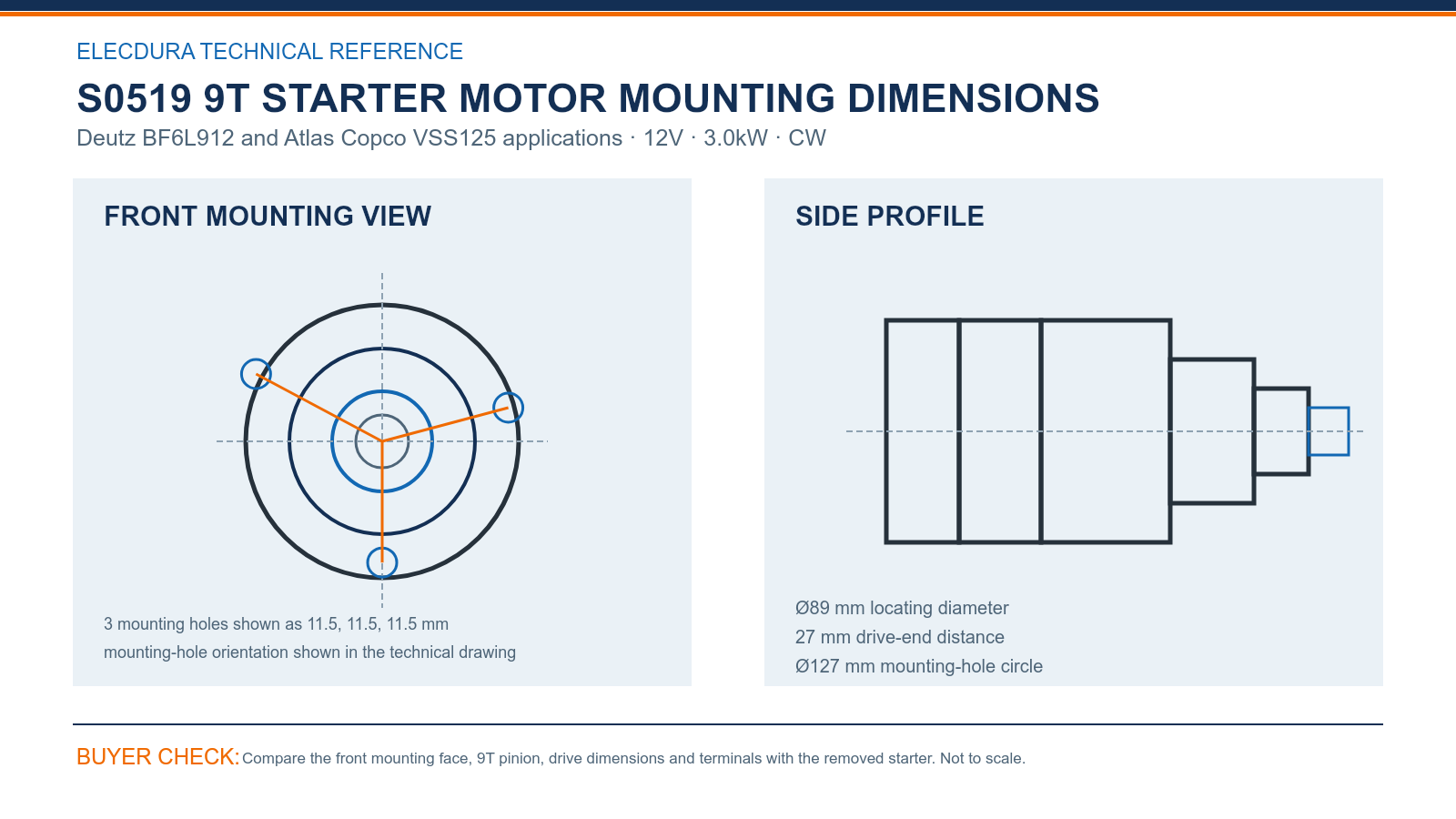

S0519 Deutz BF6L912 and Atlas Copco VSS125 12V 3.0kW 9T starter mounting dimensions.

The S0519 dimensional review starts at the mounting face: verify 3 mounting holes shown as 11.5, 11.5, 11.5 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 27 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S0519, electrical and mechanical identity must agree: 12V, 3.0kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0519 Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: S0519, 0001367074, 6541008, 06541008, 18025N can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 3.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0519 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S0519 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0519 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0519 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0519 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S0519 stock in a Deutz BF6L912 fleet program?

Plan compressor and engine-service stock against the accepted geometry. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a mixed-reference enquiry for S0519 be prepared in a Deutz BF6L912 fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0519 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Can S0519 be selected from the application name alone during fleet sourcing?

Confirm S0519 with the complete OE number, Deutz BF6L912 and Atlas Copco VSS125 record and clear front, side and terminal photographs. Check 9T, 3 mounting holes shown as 11.5, 11.5, 11.5 mm and 27 mm drive-end distance so visually related starters stay on separate order lines.

Why should voltage-drop results accompany an enquiry for S0519 during a Deutz BF6L912 fleet electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for S0519 installation and for any later service discussion with the supplier.

Which dimensions in the S0519 drawing should receiving teams sample during a Deutz BF6L912 fleet inspection?

For S0519, check 3 mounting holes shown as 11.5, 11.5, 11.5 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 27 mm drive-end distance. Count the 9T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of S0519 during a Deutz BF6L912 fleet receiving check?

Receiving should verify the S0519 label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S0519 in a Deutz BF6L912 fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0519, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S0519 in a Deutz BF6L912 fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0519 without assuming that every no-crank complaint originates inside the starter.

S0519 Start a Starter Motor Wholesale Enquiry

Send the complete S0519 reference, Deutz BF6L912 and Atlas Copco VSS125 details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 3.0kW, 9T CW starter, MOQ, packing, lead time, warranty and freight.
