A normal-looking total charging voltage does not prove that the two halves of a 24V battery system are balanced. On a vehicle that takes 12V power from the midpoint of series-connected battery banks, investigate the battery condition, the midpoint load and the identified equalizer before ordering another alternator. An inactive equalizer indication, a balance warning and an equalizer fault are not interchangeable findings. A complaint that starts after battery replacement may also require a model-specific review of stored battery information. This guide helps fleet buyers decide which evidence is missing and which replacement decision should wait; it is not a wiring or live-testing procedure.
The Vanner VoltMaster owner's manual describes two 12V battery banks in series with an equalizer connected at the total-voltage, midpoint and ground points. Drawing 12V power from the midpoint without suitable balancing can leave the two banks charging and discharging unevenly. That is the architecture addressed here, not every vehicle carrying two batteries.
Ask the workshop for the actual system diagram and the exact equalizer identity. Confirm which loads use the complete series bank and which use the 12V supply. A radio or control circuit may be described as “12V,” but its voltage alone does not establish whether it is supplied from a midpoint, a separate converter or another battery system.
A battery isolator serving separate banks solves a different problem. The site's alternator and diode-isolator compatibility guide covers that arrangement. Do not transfer its component-capacity checks into an equalizer diagnosis merely because both systems contain multiple batteries.
The voltages across two series sections add to the total. The same total can therefore conceal different contributions from the two sections. For a complaint about unequal battery behavior, a report containing only “24V charging OK” is incomplete even if that statement is accurate at its measurement point.
Request the full-bank and individual-section findings under a defined condition, with the operating state and active loads recorded. Readings collected at unrelated times or with different loads may not form a valid comparison. Leave measurement access and the applicable limits to the qualified workshop; this article does not prescribe a universal acceptable difference.
Start with what changed: a battery replacement, added equipment, a charging-system repair or no known intervention. Then distinguish the actual symptom from the technician's initial label. “Equalizer problem” is not enough to decide whether to order an equalizer, a battery or an alternator.
Reported observation: Total charging appears normal, but the battery sections behave differently.
What it establishes: The total reading has not explained the section-level complaint.
What the buyer still needs: Comparable section measurements, battery assessment and the identified 12V load arrangement.
Reported observation: The equalizer's activity indication is off.
What it establishes: An observed indication, not yet a failed-component diagnosis.
What the buyer still needs: The exact model's definition of that indication and the operating condition when it was observed.
Reported observation: A battery imbalance warning is present.
What it establishes: A monitored abnormal condition needs interpretation.
What the buyer still needs: The specific warning identity and the corresponding vehicle/equalizer diagnostic result.
Reported observation: The problem began after batteries were renewed.
What it establishes: A service event is relevant to the timeline.
What the buyer still needs: Installed battery configuration, completed connections and any applicable battery-state commissioning requirement.
Reported observation: Both the full-bank charging result and section balance are abnormal.
What it establishes: More than one condition requires investigation.
What the buyer still needs: Separate evidence for the charging source and the balance complaint; do not assume one replacement explains both.
These comparisons direct the next request for evidence; they are not diagnostic verdicts. A parts team should be able to state why a component is implicated before it treats a warning description as a purchase instruction.
The Vanner 70-M manual explicitly distinguishes fault monitoring from older indications that only showed activity. It explains that a balanced system can stop equalizing, and that misunderstanding an activity indication can cause unnecessary replacement. The same manual separates imbalance, high/low voltage, equalizer fault and remote-sense fault signals.
That does not mean every dark indicator is harmless. It means the meaning must come from the correct model and operating state. Nor is a battery-imbalance warning identical to an equalizer fault: the 70-M documentation identifies more than one possible cause of imbalance. Have the workshop report the actual status and applicable diagnostic conclusion, not only a photograph of a lamp.
If several signals have been combined into one vehicle warning, ask which underlying condition triggered it. When the complaint is intermittent, preserve the circumstances of the warning rather than assuming that a later normal display proves nothing happened. A cleared warning without an explained cause is weaker evidence than a model-specific finding tied to the original event.
Do not buy another unit to bypass missing status information. Equally, do not use this discussion to overrule a workshop that has completed the correct fault procedure and identified a failed component.
New batteries can introduce a different question from an old equalizer's activity lamp. New Flyer/MCI bulletin TSIB 26-06 Rev A, dated March 30, 2026, concerns the listed Vanner 80, 81, 85 and 86 series. It describes old battery models retained by the Model Based Battery Monitoring software after replacement, with possible incorrect charging of the new batteries.
For covered applications, the bulletin includes a battery-state reset following its specified charging conditions. This is not a general factory reset or an instruction for every Vanner unit. Confirm the applicable vehicle documentation and completed commissioning with the responsible workshop before interpreting the post-replacement behavior as proof that new parts have failed.
Keep this question separate from the physical replacement record. Knowing that batteries were delivered does not establish that the correct configuration was installed or that the relevant commissioning work was completed. Conversely, a recorded software action does not prove that the batteries, connections or load arrangement are correct.
The current Havis listing for the Vanner 70-60M identifies a 24V-to-12V equalizer with a 60A output rating. That is a different rating location and function from the alternator's total charging-system output. A larger alternator rating does not, by itself, establish that the installed equalizer is suitable for an altered 12V duty.
If the imbalance began after new accessories were added, ask for their actual supply path and duty, then have the system's approved capacity reviewed. Do not request a higher-output alternator simply to make its nameplate number larger than the equalizer's number. Nor should the buyer infer a conversion ratio from the two nameplates and call that an engineering approval.
Changing one component may affect mounting, protection, control or other parts of the vehicle specification. Treat a capacity change as a defined system proposal, not as an ordinary like-for-like replacement. This guide does not authorize moving loads, bypassing protection, changing battery chemistry or rewiring the midpoint.
For a suspected alternator return, retain the original alternator identity and the workshop's applicable charging-system findings. Add the section-level complaint separately. The existence of a battery imbalance does not cancel a genuine alternator defect, but neither does it establish one.
If the evidence points instead to a battery, an equalizer-related path, the 12V load arrangement or an applicable commissioning step, route that issue to the responsible party. Do not substitute a new alternator merely because it is the easiest component for the supplier to quote.
When a component replacement is justified, the purchase record should connect the diagnosis to the exact requested item. If the requested part is an upgrade rather than a replacement, identify the person responsible for approving the system change. Keeping those decisions explicit helps prevent the next return from repeating the same unresolved complaint.
No. Voltage balance and the batteries' ability to perform their required duty are different questions. Obtain the applicable battery condition or capacity assessment rather than using equal-looking readings as a complete battery-health report.
No. Establish why the difference exists and follow the vehicle and battery manufacturer's configuration and replacement requirements. A lower reading alone does not decide whether a battery, its connections or the way the system is being used needs correction.
No. Two 12V batteries connected only in parallel do not create the 24V series-bank midpoint described here. Have their actual charging and load-sharing arrangement assessed; do not label a parallel-bank problem as an upper-versus-lower series-section imbalance.
No. A bench report can describe the alternator under its stated test conditions, but it does not test the vehicle's battery arrangement, midpoint loads or installed equalizer controls. Use it for the component question and retain separate evidence for the vehicle-system question.
When the workshop has established an alternator replacement requirement, use Elecdura's heavy-duty alternator range as the starting point for matching. Provide the exact original reference, vehicle and engine identity, required electrical configuration and the relevant findings. The Vanner examples in this article explain system boundaries; they do not represent Elecdura equalizer stock, software-service capability or approval of a vehicle modification.

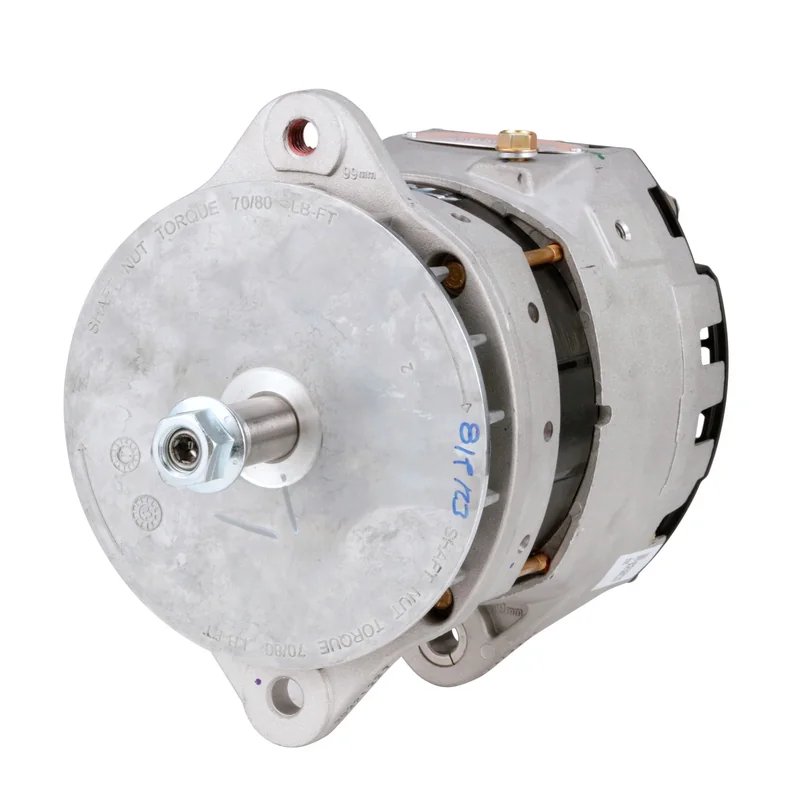

Catalogue alternator example for a replacement enquiry after the workshop has established the component requirement. It is not a battery equalizer or evidence that this unit will correct battery-bank imbalance.
