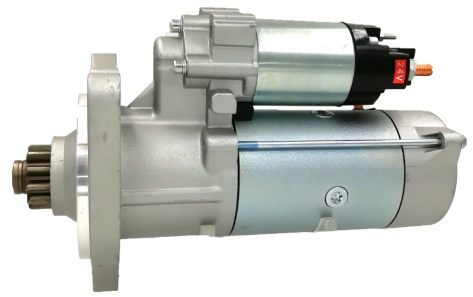

The 2900EM is a 24V, 8.5kW, 11-tooth aftermarket starter for Hino EM100, EP100, EL100, EF300, EF700, EF550 and EF750 engine applications. The replacement reference 281001520 is also written as 28100-1520.
281001520
| Quantity: | |
|---|---|
The 2900EM is a 24V, 8.5kW, 11-tooth aftermarket starter for Hino EM100, EP100, EL100, EF300, EF700, EF550 and EF750 engine applications. The replacement reference 281001520 is also written as 28100-1520.
24V
8.5kW
11 teeth
47 mm pinion
| Specification | 2900EM |
|---|---|
| Configuration code | 2900EM |
| Rated power | 8.5kW |
| System voltage | 24V |
| Pinion teeth | 11 |
| Pinion outside diameter | 47 mm |
| Mounting register diameter | Ø122 mm |
| Mounting holes | 3 × Ø15.5 mm |

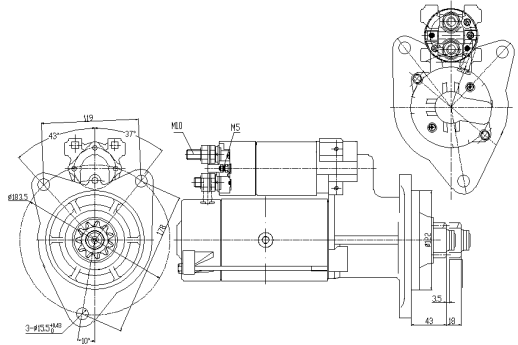

Drive-end and three-hole flange

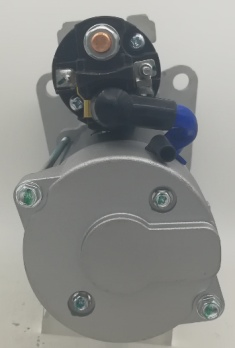

Rear electrical connections
For the following Hino engine references with a matching 28100-1520 starter installation.
| Engine group | Engine references |
|---|---|
| EM / EP / EL | EM100; EP100; EL100 |
| EF | EF300; EF700; EF550; EF750 |
Check the installed starter plate and mounting arrangement for the vehicle or equipment being serviced. The engine name alone does not identify the required power rating or every starter installation.
This configuration combines a 47 mm pinion outside diameter with a Ø122 mm mounting register. The drawing shows the three-hole flange pattern, drive-end projection and solenoid connections. Compare the hole positions and pinion dimensions together; the register diameter by itself is not a fitment check.
| Brand | Part number | Type |
|---|---|---|
| Hino | 281001520 / 28100-1520; 03506020111; 281001472 | Replacement references |
| Sawafuji | 03506020030; 03506020036; 03506020411 | Cross-references |
Elecdura supplies aftermarket replacements. The reference brands and numbers identify replacement applications; they do not identify the manufacturer of the supplied product.
No. Use the configuration code and rating as well as the reference number. This page describes the 2900EM at 24V and 8.5kW; a different rating requires a separate installation comparison.
Those two dimensions are insufficient. The 2900EM has a 47 mm pinion and its own flange-hole layout. Compare the complete drive-end drawing and electrical connections before considering another reference.

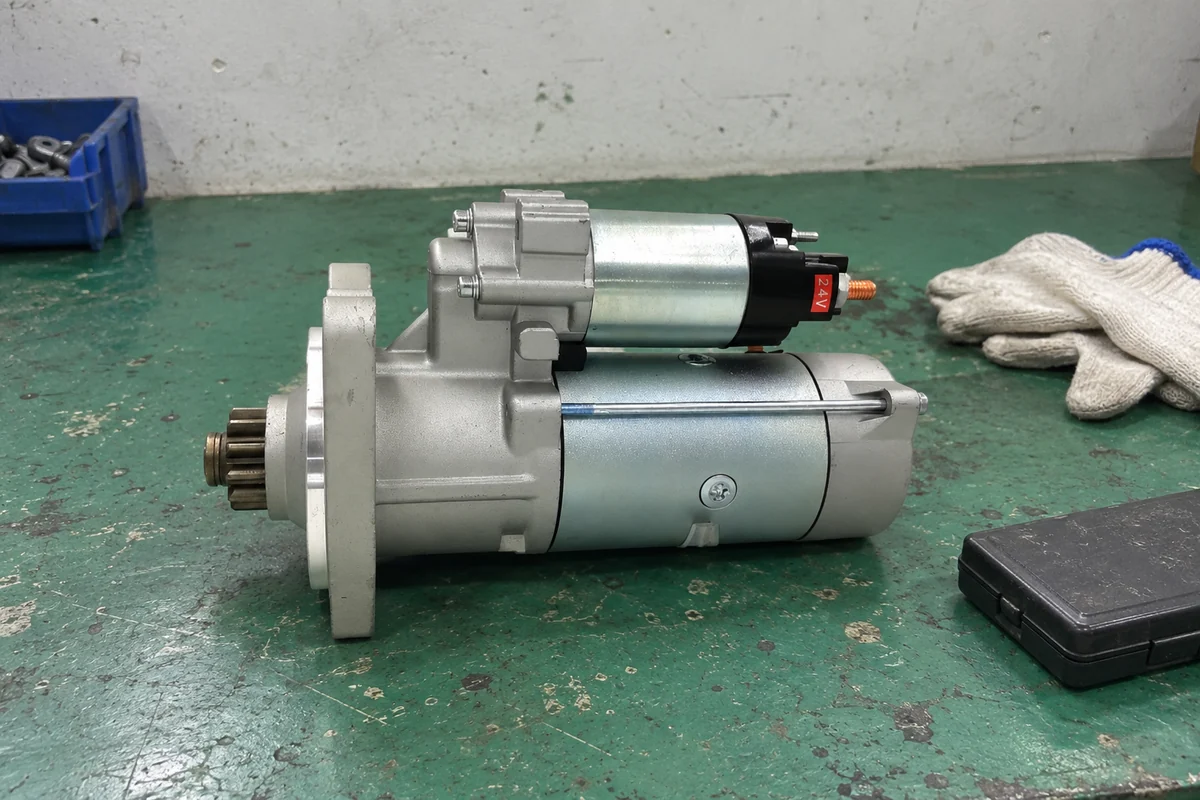

Workbench preparation concept · 2900EM · AI-assisted visualization
Send 2900EM / 28100-1520, the quantity required, Hino engine model and installed starter reference. Include the destination and carton or label requirements for quotation.
