An AC system diagram is more than a row of component names. For a heavy-duty truck, bus, agricultural machine, or construction vehicle, the diagram shows how refrigerant changes pressure, temperature, and physical state while moving through the compressor, condenser, metering device, evaporator, and return line. Reading that flow correctly helps technicians avoid replacing a compressor when the real restriction or control problem is elsewhere.
Elecdurauto supplies aftermarket components for commercial and off-highway applications, including the heavy-duty AC compressor range. Buyers can use the system map in this guide to identify what must be checked around a compressor, what information belongs in a replacement inquiry, and why the expansion device, receiver-drier or accumulator, hose routing, oil balance, and contamination condition matter to the life of a new unit.
The diagrams described here are functional rather than model-specific. Exact port locations, sensors, valves, refrigerant charge, and service procedures vary by vehicle and equipment platform, so the machine manufacturer's information remains authoritative. The goal is to give fleet, repair, and B2B sourcing teams a clear mental model for diagnosis and parts matching.

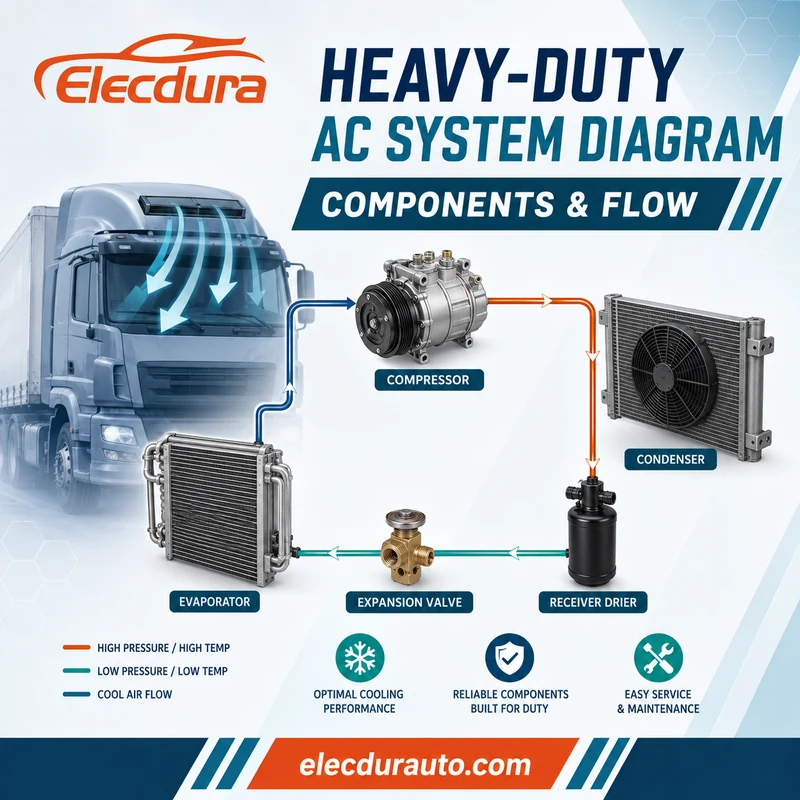

Start at the compressor discharge port and follow the circuit in one direction. The high side begins after compression, releases heat in the condenser, passes through storage or drying components when used, and reaches the metering device. The low side begins after the pressure drop, absorbs cabin heat in the evaporator, and returns refrigerant vapor to the compressor.
The compressor receives low-pressure vapor and raises its pressure and temperature. It also circulates refrigerant oil through the circuit. The discharge line is therefore a high-pressure, high-temperature location, and its temperature can help show whether the compressor is creating a meaningful pressure difference.
A failed clutch, weak belt drive, internal wear, control-signal problem, incorrect displacement command, or low refrigerant mass can all reduce compressor work. Readers dealing with a no-cooling complaint can compare those possibilities with the heavy-duty truck AC compressor symptom guide rather than judging the unit from one gauge reading.
Hot refrigerant enters the condenser as a high-pressure vapor. Airflow across the condenser removes heat until much of the refrigerant becomes a high-pressure liquid. Vehicle speed, fan operation, fin cleanliness, ambient temperature, condenser size, and airflow recirculation all influence this stage.
A refrigerant-flow diagram should be paired with an airflow arrow. High head pressure can result from a restricted condenser or poor fan performance even when the refrigerant path is open. On stationary or slow-moving equipment, fan and shroud condition may matter more than road speed.
In many thermal expansion valve systems, liquid refrigerant passes through a receiver-drier before the expansion valve. The receiver stores liquid, filters debris, and contains desiccant to manage moisture. Some layouts integrate these functions into a condenser-side cartridge or modular assembly.
The metering device creates the controlled pressure drop that allows refrigerant to boil in the evaporator. As the refrigerant changes state, it absorbs heat from air passing over the evaporator fins. Blower speed, evaporator cleanliness, cabin filter condition, door seals, and recirculation settings affect the heat load presented to the circuit.
Refrigerant should return to the compressor as low-pressure vapor, not as uncontrolled liquid. The suction line is normally cooler and larger in diameter than the discharge line. Its route, insulation, hose condition, and distance from heat sources influence the temperature seen at the compressor inlet.
Automotive and heavy-duty AC circuits commonly use either a thermal expansion valve architecture or a cycling-clutch orifice-tube architecture. Both move heat from the cab to ambient air, but they control refrigerant and protect the compressor differently.
A thermal expansion valve, or TXV, meters refrigerant at the evaporator inlet using temperature and pressure information. The typical sequence is compressor, condenser, receiver-drier, TXV, evaporator, and compressor. The receiver-drier sits on the high side because this architecture manages liquid before the valve.
The TXV adjusts flow in response to evaporator demand. A stuck, restricted, incorrectly installed, or mismatched valve can starve or flood the evaporator. A temperature-sensing bulb that is loose or poorly positioned can cause behavior that looks like an incorrect refrigerant charge.
A fixed or variable orifice tube meters refrigerant through a calibrated opening. The usual sequence is compressor, condenser, orifice tube, evaporator, accumulator, and compressor. The accumulator sits on the low side after the evaporator, helping prevent liquid from entering the compressor and carrying desiccant and oil-management functions.
Both components can manage moisture and debris, but their position and job differ. A receiver-drier is generally associated with the high-pressure liquid side of a TXV system. An accumulator is associated with the low-pressure vapor return of an orifice-tube system. Ordering by appearance without identifying the architecture can produce a serious mismatch.
A contamination event in a fixed-orifice system may leave visible debris on the orifice screen, providing evidence about compressor wear. A TXV may conceal or trap debris differently. Oil distribution, flushing decisions, component replacement, and evacuation procedures should follow the actual layout, not a generic parts list.
Gauge pressures make sense only when the technician knows where each service port sits in the flow path. The high-side port normally represents the compressed and condensed portion of the circuit. The low-side port represents refrigerant after metering and evaporation, before it returns to the compressor.
The compressor creates the major pressure rise.
The condenser rejects heat while pressure remains on the high side.
The metering device creates the major pressure drop.
The evaporator absorbs heat at low pressure.
The suction line returns vapor to the compressor inlet.
Ambient temperature, humidity, engine speed, blower speed, condenser airflow, cab heat load, refrigerant type, charge mass, and compressor-control strategy all affect gauge readings. A pressure pair without test conditions is difficult to compare across vehicles and can lead to unnecessary parts replacement.
Temperature measurements at the compressor discharge, condenser inlet and outlet, liquid line, metering-device inlet and outlet, evaporator outlet, and suction line create a more useful picture. A large unexpected temperature drop can indicate restriction. A missing temperature change across a component can show that little heat exchange or pressure change is occurring.
Look first at condenser airflow, fan operation, overcharge, non-condensable gas, condenser restriction, and excessive heat load. Replacing the compressor will not restore cooling if the system cannot reject heat. A new compressor may fail quickly when it is forced to operate against excessive discharge pressure.
Possible causes include low refrigerant charge, a restricted drier, blocked liquid line, restricted TXV or orifice tube, sensing-bulb error, or insufficient evaporator load. Frost location can help: ice before a restriction differs from uniform evaporator icing caused by airflow or control problems.
The compressor may not be creating enough pressure difference, a control valve may be holding displacement low, the expansion device may be overfeeding, or the cabin heat load may exceed system capacity. Confirm engine speed and command conditions before condemning the compressor.
An electrical clutch circuit, pressure sensor, evaporator temperature sensor, variable-displacement control valve, relay, belt, icing condition, or heat-related connection can interrupt cooling. Plotting electrical controls alongside the refrigerant diagram prevents the investigation from stopping at the mechanical circuit.
A compressor replacement is a system repair, not an isolated component swap. Internal compressor damage can distribute metal, degraded oil, and desiccant material through hoses, condenser passages, valves, and the evaporator. The diagram helps decide where debris is likely to travel and which components can be inspected, flushed, or must be replaced.
Modern parallel-flow condensers contain narrow passages that can trap debris. Flushing may not remove contamination reliably. When the failed compressor has released metal, the repair plan should consider condenser design and the equipment manufacturer's procedure rather than assuming every heat exchanger can be cleaned.
Oil remains in multiple components, not only inside the compressor. Replacing a compressor, condenser, evaporator, accumulator, or receiver-drier changes how much oil remains in the circuit. Too little oil can damage the compressor; too much can reduce heat transfer and occupy refrigerant volume.
Opening the system allows humid air to enter. Moisture can react with refrigerant and oil, contribute to corrosion or acid formation, freeze at the metering device, and saturate desiccant. Proper sealing, component caps, evacuation, and drier or accumulator decisions belong in the repair plan.
The heavy-duty AC compressor replacement guide expands on replacement preparation. Use it with the diagram to decide which surrounding parts and procedures are relevant to the specific failure.
A sleeper cab, bus, or specialty vehicle may use additional evaporators, long hose runs, branch fittings, auxiliary blowers, or separate control zones. Refrigerant and oil distribution become more complex, and a diagram must show branches rather than treating the circuit as one short loop.
Compact engine compartments, high ambient heat, dust loading, vibration, and long periods at low vehicle speed can limit condenser performance. Hose abrasion, fitting orientation, and service access often matter as much as nominal compressor capacity.
For one application example, the BH50145 10PA15C compressor reference for John Deere equipment illustrates why OE number, mount, pulley, port arrangement, and machine fitment must be matched together.
Not every newer system relies on a simple belt-driven clutch. Variable-displacement control, electronic valves, and electrically driven compressors add command signals, high-voltage safety, and control-module data to the diagnostic map. The refrigerant circuit still moves heat, but the method of creating flow and capacity changes.
A clear inquiry should show where the requested part sits in the circuit and what happened to the system. This reduces errors when similar compressors use different ports, control valves, pulley arrangements, or displacement specifications.
Vehicle or equipment make, model, year, engine, and cab configuration
Compressor label, OE number, aftermarket reference, and clear multi-angle photos
Mounting ears, pulley diameter, groove count, clutch voltage, and connector
Port position, manifold style, hose orientation, and control-valve details
Refrigerant type, charge specification, oil type, and system architecture
Failure evidence, contamination condition, gauge test conditions, and temperatures
Required quantity, packaging, label, inspection, and repeat-order plan
A reference number helps identify compatibility, but it does not prove genuine brand status. Unless authenticity is verified, use wording such as aftermarket replacement, OE-grade equivalent, or compressor for OE number matching. That language protects buyers from confusing reference compatibility with brand authorization.
Ask whether the quotation includes only the compressor or also the clutch, manifold, seals, control valve, oil, and installation notes. Confirm which drier, accumulator, or expansion component is recommended after a specific failure. Buyers can share diagrams, old-unit photos, and quantities through the Elecdurauto contact page for a more precise review.
A useful AC system diagram answers four questions: where refrigerant flows, where pressure changes, where heat enters and leaves, and where oil and contamination may travel. It should also show whether the circuit uses a TXV with a receiver-drier or an orifice tube with an accumulator.
For heavy-duty fleets and repair businesses, that map reduces guesswork and protects replacement compressors. For importers and distributors, it improves part matching and inquiry quality. Follow the flow, record test conditions, identify the architecture, and treat the compressor as one component inside a connected thermal and control system.
