Short answer: A heavy-duty truck air-conditioning system that blows warm air does not automatically have a failed compressor. Confirm the complaint under a repeatable operating condition, verify airflow and belt drive, check whether the clutch is commanded and actually engages, then record low- and high-side pressures while the system stabilizes. A compressor becomes the leading suspect only when electrical control, refrigerant charge, condenser airflow, restrictions, and leaks have been separated from the compressor’s own pumping or mechanical condition. This sequence prevents an expensive replacement from masking the real fault.
This guide is for fleet maintenance teams, workshops, distributors, and buyers who need a defensible diagnosis or a complete matching request. It explains what each observation can support, what it cannot prove, and which evidence should travel with an RFQ. For replacement options, review the heavy-duty AC compressor category after the installed unit and system fault have been identified.
“Not cold” is too broad to diagnose. Record whether the outlet air is warm at all engine speeds, becomes cooler only while driving, cycles between cold and warm, or stops cooling after the system has operated for several minutes. Also note ambient temperature, engine speed, blower setting, recirculation setting, and whether the symptom occurs at idle, under road load, or both. These details change the likely fault path.
Observed pattern | First systems to check | Why the pattern matters |
|---|---|---|
Warm at idle, cooler at road speed | Condenser airflow, fan operation, debris, pressure response | Vehicle speed may be compensating for weak airflow across the condenser. |
Cold initially, then warm | Clutch control, coil heating, freeze-up, pressure protection, charge condition | A time-dependent electrical or thermal condition is more likely than a permanently seized compressor. |
Clutch never engages | Request signal, fuses, relays, pressure inputs, voltage at the coil, air gap | The compressor cannot pump if the drive plate is not being pulled in. |
Clutch engages but pressures do not separate | Charge verification, gauge accuracy, drive integrity, compressor pumping | Engagement alone does not prove that the compressor is producing useful displacement. |
Noise only when the AC is requested | Clutch bearing, drive plate, belt alignment, compressor internals | Separating engaged from disengaged noise narrows the rotating source. |
A defensible compressor diagnosis begins with system conditions and measured evidence, not a warm vent alone.

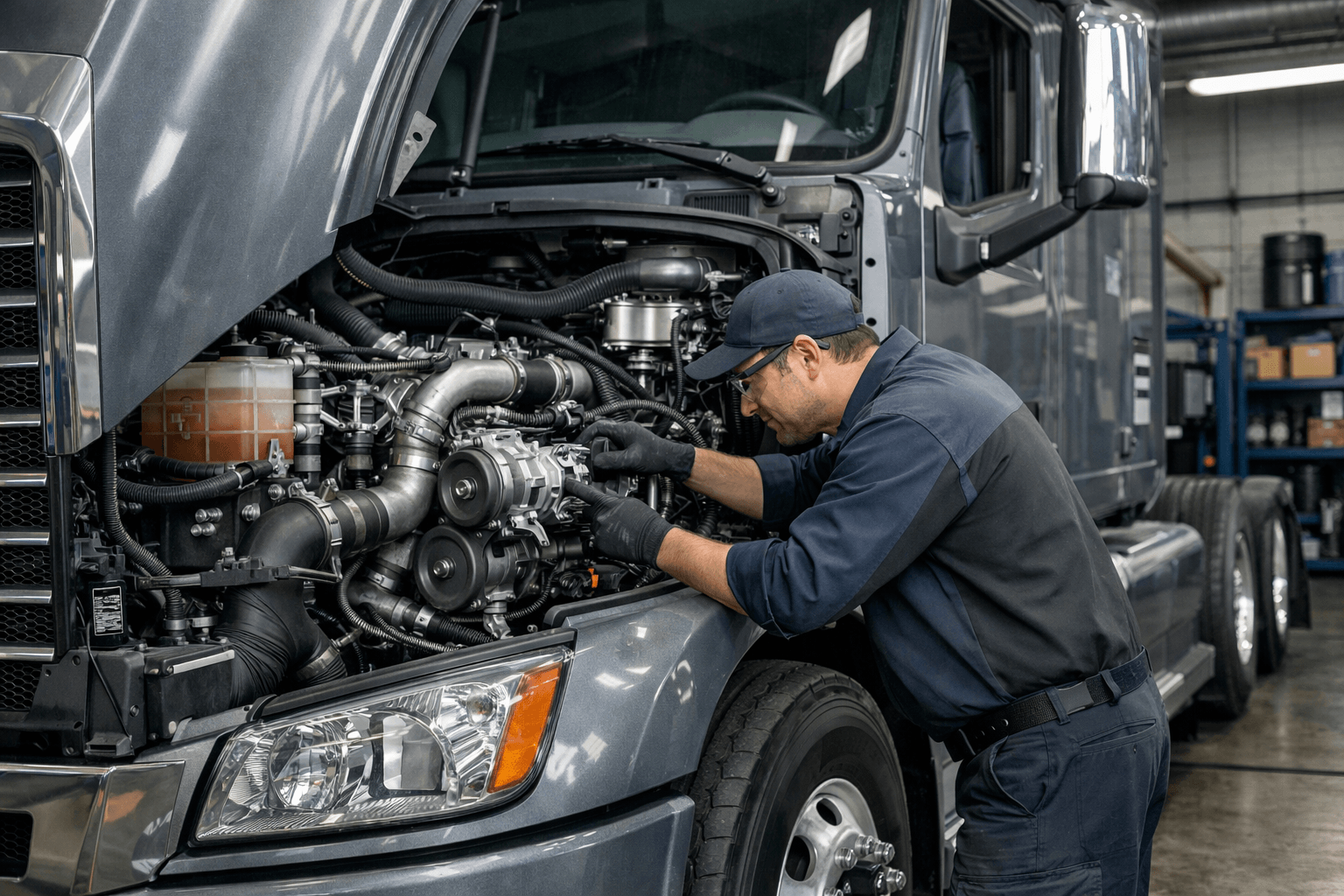

Before connecting gauges, confirm that the blower delivers adequate airflow, the cabin filter and evaporator path are not heavily restricted, and the condenser receives the airflow expected for the vehicle. Inspect the drive belt, tensioner, compressor mounting, and pulley alignment. A slipping belt, weak fan, blocked condenser, or restricted air path can create poor cooling while the compressor remains serviceable.

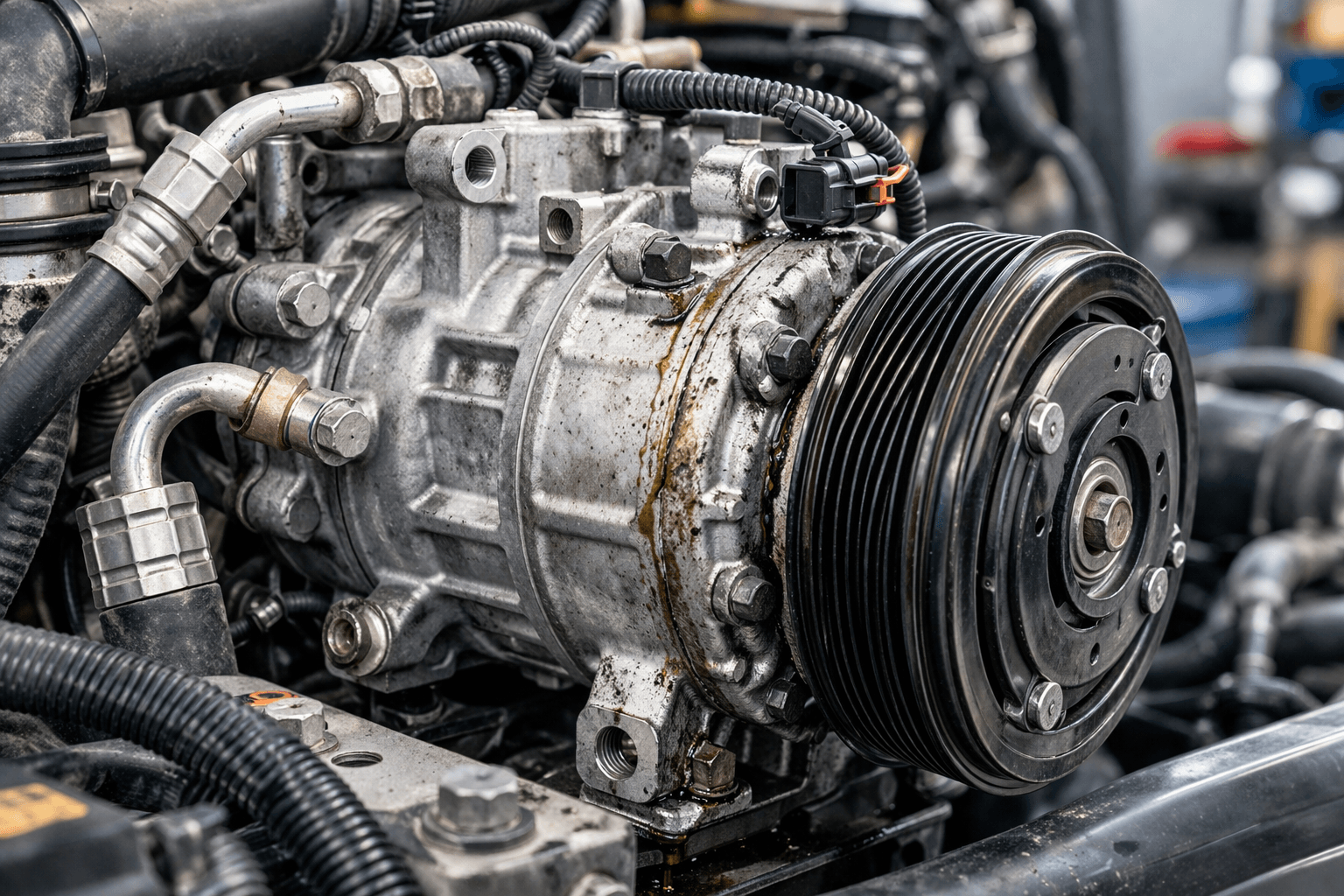

Visual inspection should also look for oil-stained joints, damaged hoses, rubbed lines, loose electrical connectors, and impact damage around the condenser. Oil residue is a clue, not proof of the exact leak location; the suspected area still needs an appropriate leak-detection method.

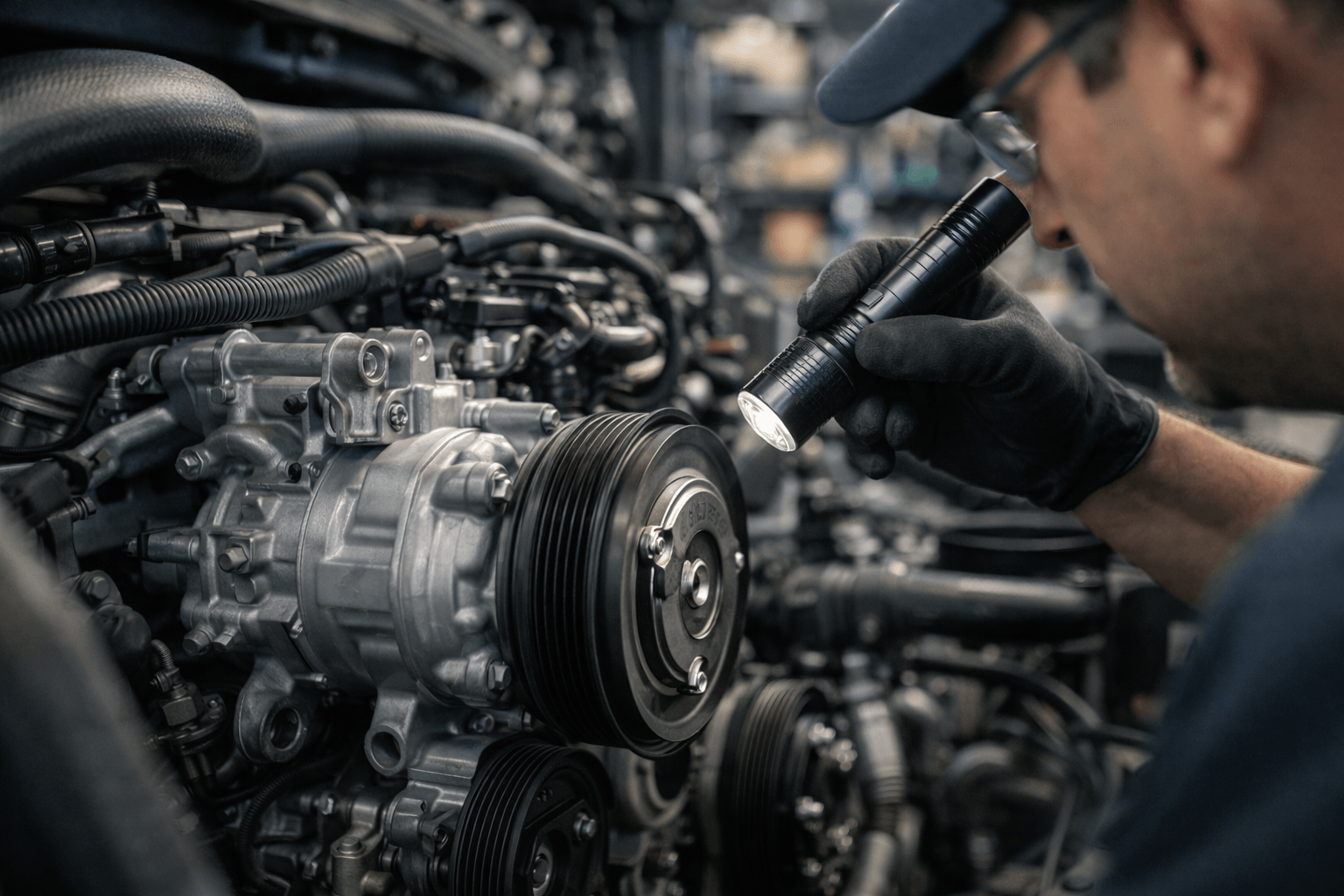

If the design uses an electromagnetic clutch, distinguish three events: the control system requests cooling, electrical power reaches the clutch circuit, and the drive plate physically engages. A scan-tool command or illuminated AC switch proves only the request. Measure voltage and ground at the clutch under load, inspect the relay and connector, and compare coil resistance and air gap with the applicable compressor or vehicle service information.
The request, power circuit, magnetic coil, air gap, and driven hub must all work before compressor output can be judged.
A coil can receive nominal voltage with excessive voltage drop elsewhere in the circuit, and an excessive air gap can prevent pull-in even when the coil is energized. Conversely, a clutch that engages does not prove correct refrigerant charge or compressor pumping. Keep electrical, mechanical-engagement, and refrigeration evidence separate.

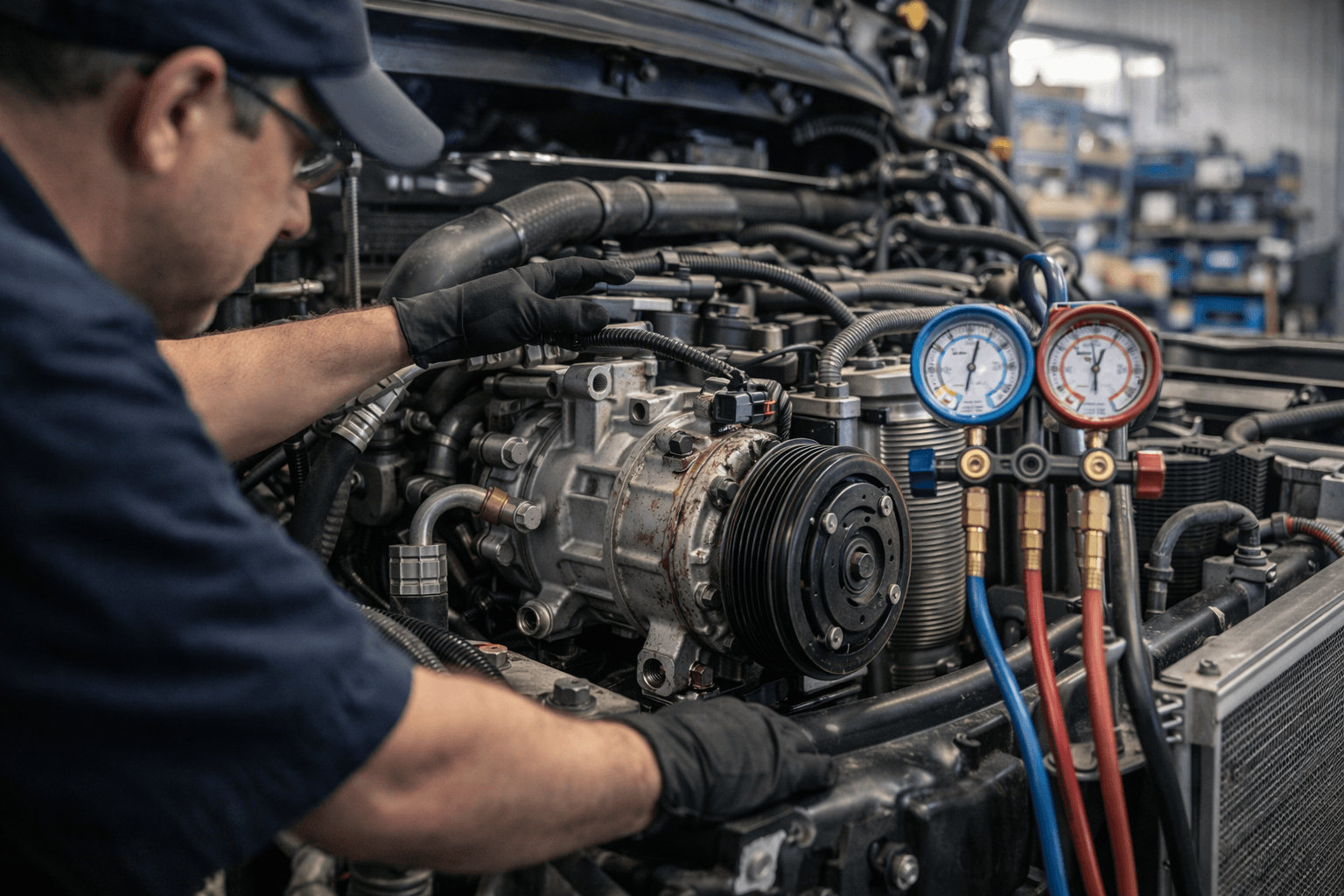

Connect service equipment using the vehicle manufacturer’s safety and refrigerant procedures. Record ambient temperature, engine speed, vent temperature, low-side pressure, high-side pressure, and the time allowed for stabilization. Compare the pattern with the applicable service chart; do not diagnose from one generic pressure number because refrigerant type, ambient conditions, fan performance, engine speed, and system design all affect readings.
Pressure interpretation is about the relationship between both sides and the operating conditions. Similar static pressures with the system off can be normal after equalization. When the compressor is driven, inadequate pressure separation may indicate low charge, a slipping drive, control-valve behavior, or weak compressor pumping. Abnormally high discharge pressure can arise from overcharge, non-condensable gas, restriction, or inadequate condenser airflow. The gauges identify a pattern; they do not identify the failed part by themselves.
Use an approved electronic detector, fluorescent dye procedure, nitrogen-based test, or another method specified for the refrigerant system. Confirm a suspected leak at the component or joint before condemning it. If the system is opened, examine recovered oil and debris according to the service procedure. Metallic contamination, seizure, or severe internal damage may require a system-level repair plan rather than a compressor-only swap.
Restrictions can imitate weak pumping. Temperature changes across a receiver-drier, expansion device, or damaged line can be relevant when measured in context, but they must be interpreted with the pressure pattern and system design. Replacing the compressor without correcting contamination, restriction, airflow, or charge errors creates a high risk of repeat failure.
The strongest conclusion uses several agreeing observations. Mechanical evidence may include binding or rough rotation when checked by the authorized procedure, clutch or hub damage, or abnormal noise that appears only when the compressor is driven. Refrigeration evidence may include inadequate pressure separation after charge, airflow, and drive conditions have been verified. Leakage evidence may identify the compressor shaft seal or housing, but a nearby oily area alone is not enough because oil can migrate from another joint.
Clutch wear, electrical supply, heat damage, and compressor mechanics require separate observations before a replacement decision.
Document the evidence that eliminated alternative causes. A useful work order states, for example, that condenser airflow was verified, the belt did not slip, the clutch received power and engaged, charge mass was corrected to the applicable specification, pressures were recorded under stated conditions, and pumping remained inadequate. This is much stronger than “compressor not working.”
A clutch-circuit problem does not always require a complete compressor. If the pulley, bearing, coil, and drive plate are serviceable separately for the exact model, a clutch-side repair may be appropriate. It is not appropriate when the compressor is seized, the shaft or nose is damaged, internal contamination is present, or the service information requires assembly replacement.

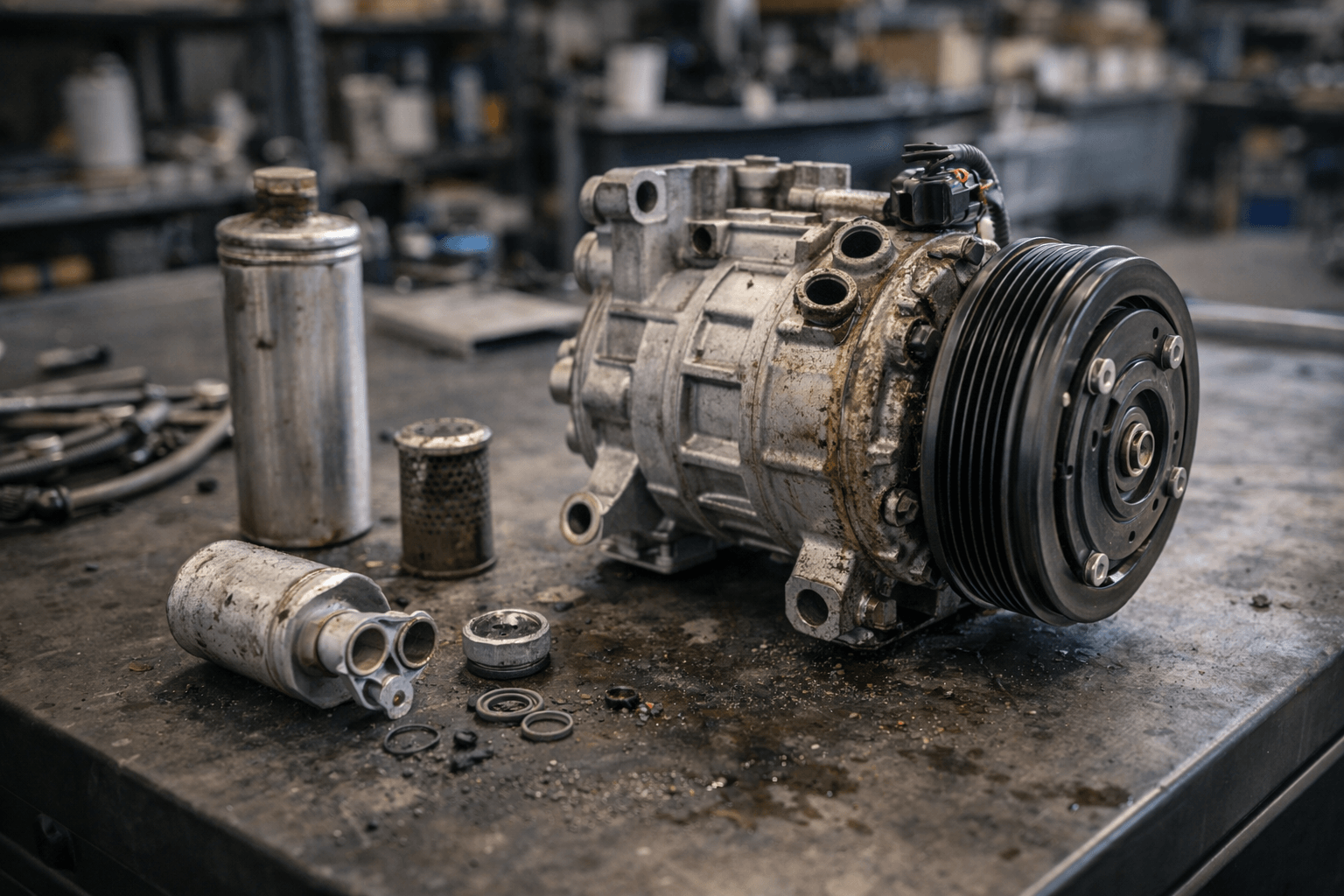

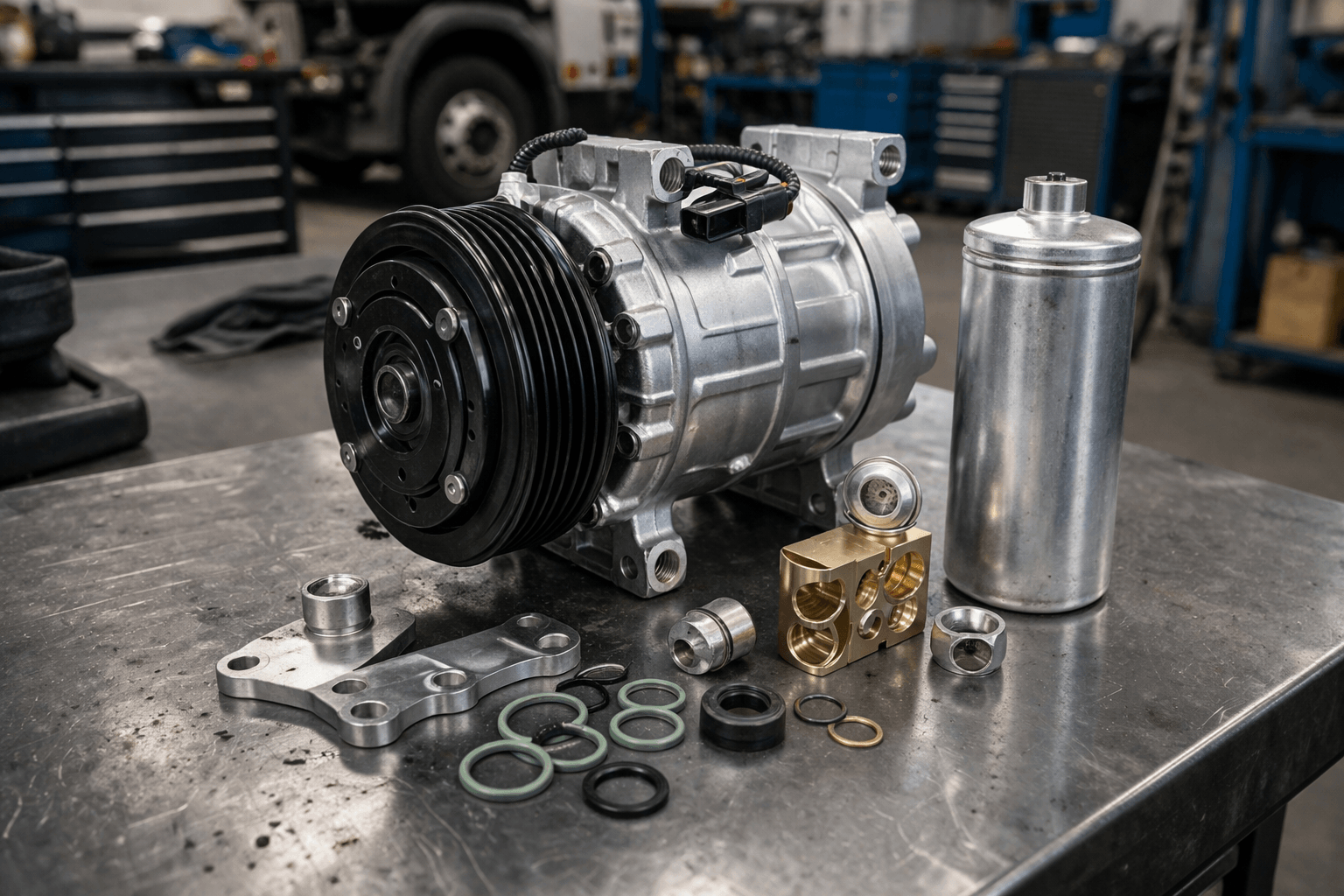

A complete compressor replacement is justified when the compressor itself has verified mechanical, leakage, or pumping failure and the rest of the system has been assessed. A broader system repair is necessary when debris, burnt oil, restriction, or a failed drier has affected other components. The flushing, component-replacement, evacuation, oil-balancing, and charging steps must follow the vehicle and compressor manufacturer’s instructions; a universal shortcut is not reliable.
Two compressors can look nearly identical and still differ in displacement, clutch voltage, pulley diameter or groove count, mounting-ear geometry, port style and orientation, oil specification, or control method. Record the installed label and every physical interface before ordering. Where the application is known, include vehicle or equipment make, model, year, engine, and VIN or serial information. Where the label is unreadable, provide measured mounting dimensions and clear photos rather than guessing an OE number.
An example product such as the Sanden 4498 / SD7H15 application listing is useful only when its label, mount, pulley, voltage, and ports match the removed unit and the machine application. A shared compressor family name does not guarantee interchangeability.
This workflow does not replace model-specific service information, refrigerant-handling rules, or qualified mobile-AC service. It also does not cover electric compressors used on high-voltage hybrid or battery-electric systems; those require additional isolation, oil-compatibility, and electrical-safety procedures. If the refrigerant identity is unknown, the system is contaminated, or the compressor has dispersed debris, stop normal component replacement and use the applicable recovery and contamination protocol.
Vehicle or equipment make, model, year, engine, VIN or machine serial number.
Clear label photo and every readable compressor, customer, or OE reference.
Mounting pattern, ear spacing, pulley diameter, groove count, and clutch voltage.
Rear-head or manifold photos showing suction and discharge port orientation.
Connector shape, control-valve details, and any pressure-switch provision.
Diagnostic evidence: clutch behavior, voltage/ground result, pressure readings, leak location, noise condition, and contamination findings.
Required quantity, destination, and whether an approved sample must be matched.
Send this evidence through the Elecdura matching and RFQ form. The goal is to identify the correct replacement configuration and the scope of the repair, not to infer fitment from a photograph alone.
Yes. A low charge can reduce suction pressure, refrigerant mass flow, and cooling capacity, so the pressure pattern may be mistaken for weak compressor output. The decision should not be based on pressure alone. First check for leakage, recover and measure refrigerant with approved equipment where the service procedure requires it, then charge the specified mass and repeat the test under recorded ambient temperature, engine speed, fan, and blower conditions. If correct charge and airflow restore normal pressure separation, the compressor was not proven faulty. This conclusion cannot be transferred to a contaminated or restricted system, which may need a different repair path.
No. Engagement proves that the clutch pulled in and transferred drive at that moment. It does not prove that the hub is not slipping under load, that the internal control valve is operating, or that the compressor produces the required pressure differential. After confirming engagement, record both gauge pressures and listen for noise while checking belt behavior. If the clutch engages but pressure response remains abnormal, verify charge, condenser airflow, and restrictions before assigning the fault to the compressor. This distinction matters when a buyer is deciding between a clutch component, complete compressor, or system-level repair.
Road speed increases airflow across the condenser, so weak fan performance, blocked fins, recirculating hot air, or an airflow-control problem may be partly hidden at speed. Test the symptom at idle with the hood and fan configuration specified for the vehicle, then observe condenser fan operation and the high-side pressure trend. If cooling and pressure normalize when airflow is corrected, replacing the compressor would not address the cause. The same symptom can also involve engine-speed-dependent compressor output, so airflow evidence should be combined with stabilized pressure readings rather than used as a stand-alone verdict.
No. Metal or degraded oil indicates that the repair boundary may extend beyond the compressor. The workshop must identify where debris has circulated and follow the applicable instructions for hoses, condenser design, receiver-drier or accumulator, expansion device, flushing, oil balance, evacuation, and charge. Some components cannot be reliably flushed. A new compressor installed into a contaminated circuit can fail again quickly. For procurement, report the debris and repair plan so the requested quote includes the correct related components; the presence of debris does not by itself determine which exact parts are reusable.
Provide the vehicle or machine identity, engine details, photos from all sides, connector and port close-ups, pulley diameter and groove count, clutch voltage, mounting-ear spacing, and the orientation of the rear head relative to the mounting face. Include any casting marks but label them as casting references, not confirmed order numbers. Compare these interfaces with a verified catalog or approved sample. A visual resemblance or one shared casting mark is not sufficient because several compressor variants may use a similar housing while differing at the pulley, control, ports, or mount.
