Views: 0 Author: Elecdura Publish Time: 2026-09-14 Origin: Site
A high-efficiency alternator is worth a price premium only when its lower mechanical demand produces a credible operating benefit in your fleet. Compare approved, adequately sized units at the same electrical output, shaft speed, voltage, and temperature, then connect the difference to actual operating hours and fuel-use assumptions. A peak efficiency rating alone cannot establish annual savings. Neither a larger amp rating nor a percentage improvement in alternator efficiency equals the same percentage reduction in total vehicle fuel consumption. Treat the savings estimate as conditional until the supplier's performance data and your duty-cycle information support the calculation.
Efficiency is not a remedy for choosing an alternator that cannot support the vehicle's required load. First establish the correct mounting and drive arrangement, voltage and control compatibility, and adequate output in the relevant operating conditions. If those requirements are unresolved, an attractive fuel-saving estimate is premature.
The truck alternator load-calculation guide addresses how much electrical output the vehicle needs. The idle and high-temperature output guide addresses whether it is available when needed. The question here begins after those checks: does a particular unit use less mechanical input to do the same electrical work?
This starting point keeps the comparison fair. A replacement that supplies less energy to the batteries may reduce measured mechanical demand without being more efficient. Conversely, a correctly functioning replacement may initially deliver more charging energy than the failing unit it replaced. Neither observation alone establishes the efficiency difference between two healthy, correctly specified alternatives.
Alternator efficiency is electrical output power divided by mechanical input power. For a stable comparison, both powers must refer to the same operating point and a clearly defined measurement boundary. Delco Remy's technical white paper on alternator efficiency and fuel use explains the energy path from engine fuel through the drive to electrical output, including the effect of operating conditions.

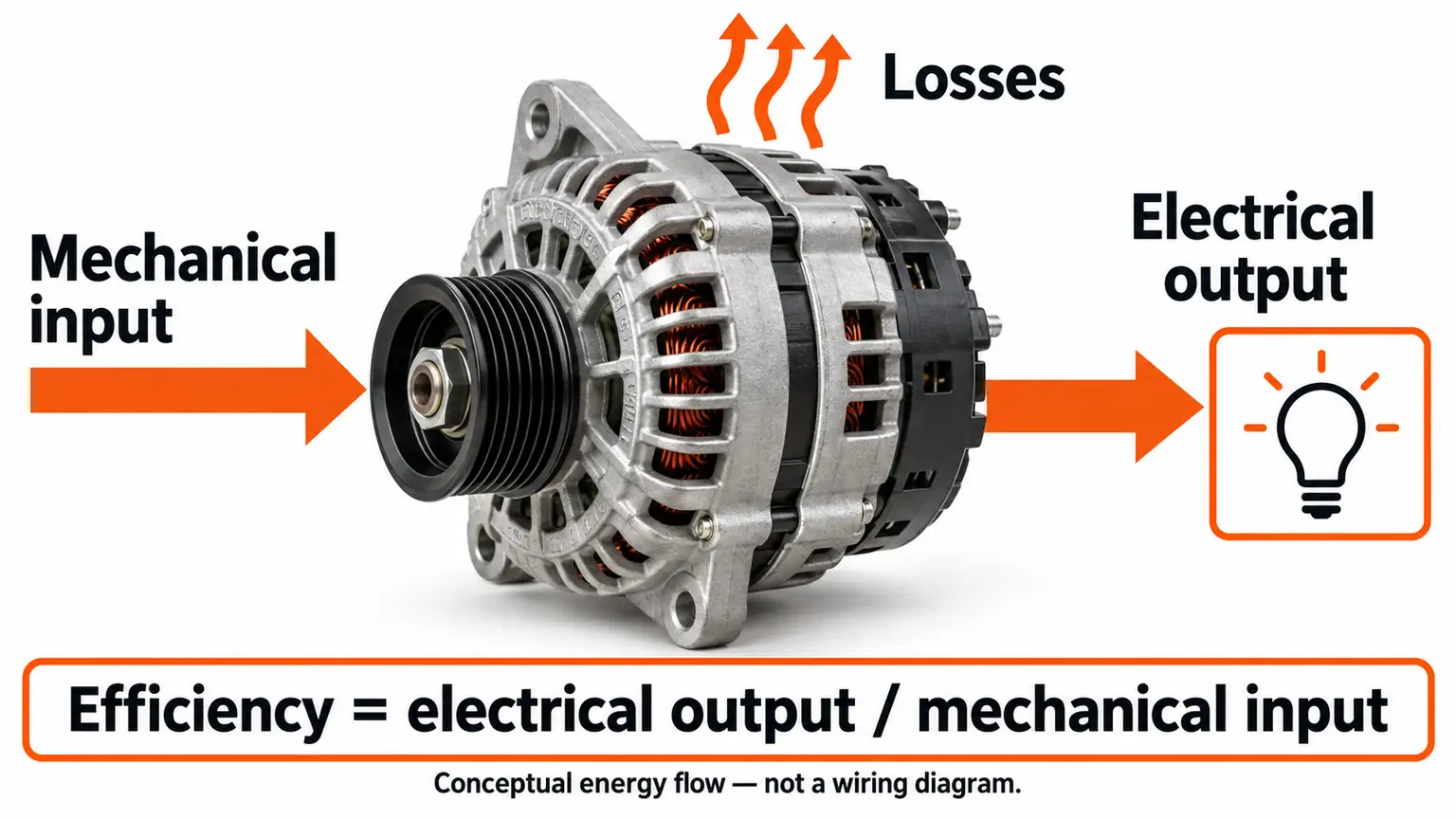

Conceptual energy flow, not wiring or measured performance. Efficiency compares electrical output with mechanical input at a defined operating point.
Ask which meaning of “improvement” appears in a quotation. A percentage point change, a relative efficiency gain, and a reduction in vehicle fuel use are not interchangeable descriptions.
Claim | What the denominator is | What the buyer must not assume |
|---|---|---|
Efficiency rises from 55% to 65% | Useful electrical output relative to mechanical input at the stated point. | A ten-percentage-point gain is not a 10% reduction in total vehicle fuel use. |
Mechanical input is reduced | The input required to produce the same electrical output. | The saving applies to every load and speed without supporting data. |
Fuel cost for electrical generation falls | The fuel attributable to that energy-conversion task. | The same percentage can be applied to the fleet's entire fuel bill. |
Annual vehicle fuel saving | The vehicle's fuel use over a specified duty cycle and time. | A different fleet will achieve the same result with different hours and loads. |
For example, Delco Remy's 2019 efficiency discussion includes savings language specifically concerning the fuel cost of generating electrical power. Preserve that boundary when evaluating or repeating such a claim. It is not permission to reduce a truck's complete fuel budget by the quoted percentage.
The Delco Remy 40SI model-family page lists a 72% efficiency rating alongside several output configurations. That is a useful manufacturer specification to investigate, not a complete efficiency map for every exact part number under every load, speed, and temperature.
When asking a supplier about a quoted unit, identify its full reference and configuration. Ask what the published number represents: a peak, a defined test point, or an average under a particular test schedule. Obtain the conditions and source of the data. Do not substitute a family brochure for unit-specific evidence when the offer changes the relevant design or configuration.
There is no need to reject every supplier that cannot immediately provide a large map. A small set of comparable, documented operating points may be useful for a preliminary assessment. Its limits must remain visible, however. Unknown operation between or beyond those points should not be represented as measured performance.
Electrical output power, with the associated current and terminal voltage.
Alternator shaft speed, clearly distinguished from engine speed.
Temperature condition and whether the reported result represents stabilized operation.
Mechanical input measurement or efficiency calculation method and its boundary.
Exact tested configuration, including relevant regulator and drive details.
Whether the data are measured, estimated, or taken from another reference.
A chart for a cold unit at one load cannot be compared directly with a hot result at another load. If the seller normalizes the data, ask how. A clearly labelled estimate can support an initial commercial discussion; relabelling it as a test result cannot.
The following calculation is an illustrative example, not a test of an Elecdura or competitor product. Assume two alternators provide the same 2.00 kW of electrical output at the same operating point. Their assumed efficiencies are 55% and 65%.

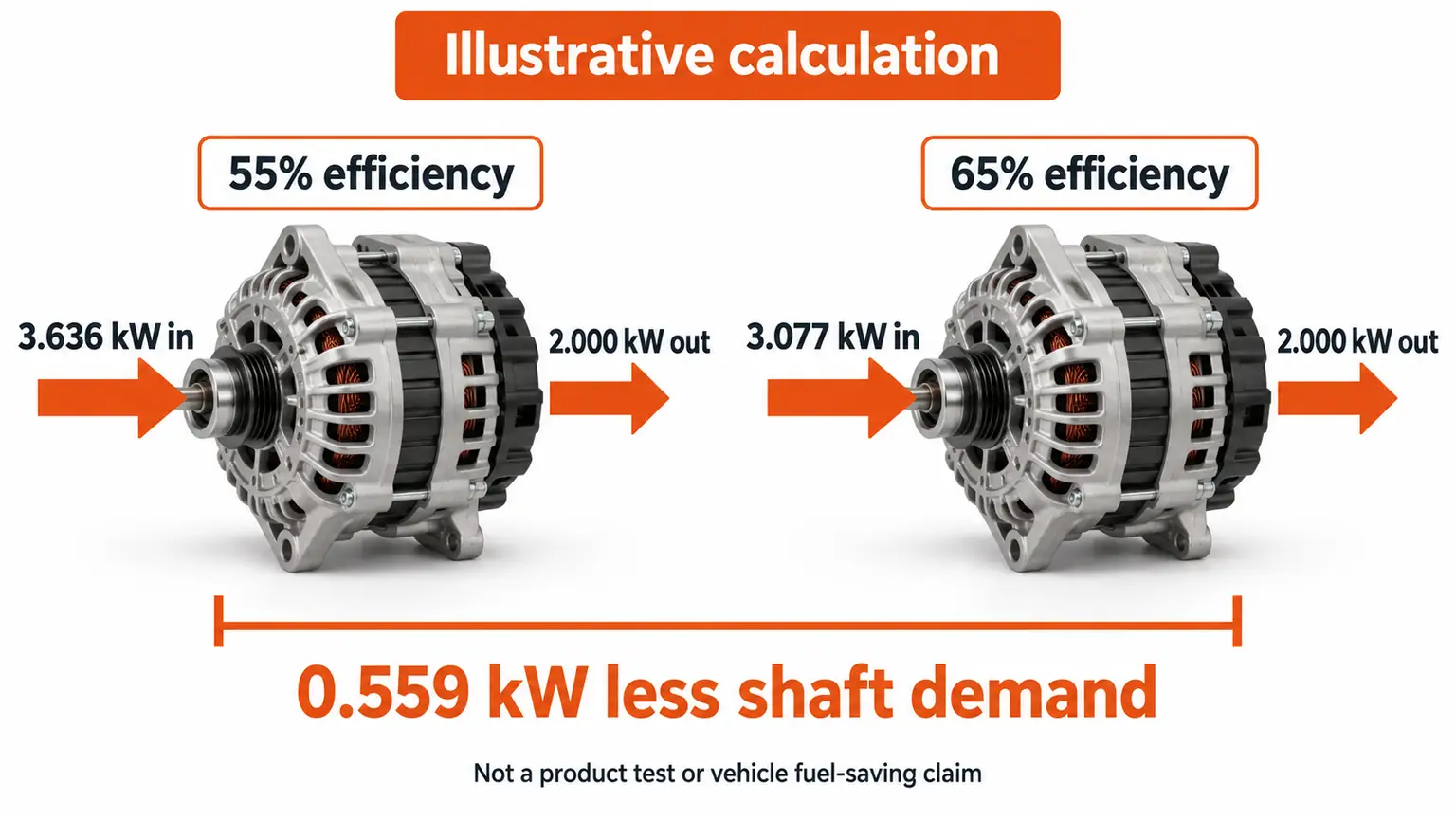

Illustrative calculation at the same 2 kW electrical output: 55% and 65% efficiency imply about 3.636 kW and 3.077 kW shaft input. The difference is not a whole-vehicle fuel-saving result.
Mechanical input equals electrical output divided by efficiency:
At 55% efficiency: 2.00 ÷ 0.55 = approximately 3.636 kW.
At 65% efficiency: 2.00 ÷ 0.65 = approximately 3.077 kW.
Difference at the alternator shaft: approximately 0.559 kW.
The calculation gives a mechanical-power difference at one point. It does not yet give litres of fuel, annual money saved, or a vehicle fuel-consumption percentage. Those results need additional information, including how long the vehicle operates near that point and how a change in accessory demand affects engine fuel use.
It also illustrates why the percentage language matters. The change from 55% to 65% is ten percentage points, approximately an 18.2% relative improvement in efficiency. At the same electrical output, mechanical input falls by approximately 15.4%. All three numbers describe the same hypothetical comparison, but none is the percentage reduction in total vehicle fuel consumption.
For multiple operating points, calculate the input energy for each point and add the results. Dividing total electrical energy by total mechanical input energy gives an aggregate efficiency for that defined duty cycle. An arithmetic average of several efficiency percentages can produce a misleading result when the loads and time spent at each point differ.
A long annual mileage does not automatically mean a large alternator-efficiency opportunity. The estimate needs the electrical work performed during the relevant engine-on periods. Separate recurring operation into a manageable number of load and speed conditions, and assign credible operating time to each.
Illustrative operating contexts, not measured fleet data. Weight comparable operating points by the fleet's actual eligible hours before estimating fuel or payback.
Use measured fleet information where available. If information is estimated, label it as an assumption and test a lower and higher case. Do not combine the highest observed electrical load with every annual operating hour unless that is genuinely representative.
Keep battery state comparable across the assessment. A short test that finishes with less energy stored in the battery has shifted part of the electrical demand outside the measurement window. That can look like a saving while leaving a later charging requirement uncounted.
The input-power difference is at the alternator shaft. A fuel model must account for the drive and the engine operating condition. Ask the technical reviewer to state the marginal fuel-use assumption: how much fuel changes when the engine's mechanical demand changes in the relevant condition. A broad average engine-efficiency figure is an assumption, not a measured fleet result.
Where an appropriate marginal fuel factor is available, a simplified calculation can multiply the change in engine mechanical demand by eligible hours and the factor expressed in litres per kilowatt-hour. Keep units consistent and identify any adjustment from alternator-shaft power to engine power. Do not apply the calculation blindly to periods where the assumed fuel relationship does not hold.
If the fuel-conversion evidence is missing, stop the quantitative conclusion at mechanical input energy. It is still useful to know that the proposed unit appears to require less shaft work under specified conditions. There is no obligation to turn incomplete information into an annual savings claim.
Compare the incremental installed cost of the proposed unit with the alternative you would otherwise buy. Include any required approved installation changes. Do not compare a complete installed quotation with a bare-unit price, and do not count a repair that was already necessary as an extra cost caused only by choosing the more efficient option.
The B2B alternator price guide covers quotation scope and landed-cost differences. For an efficiency premium, add a separate calculation showing expected eligible fuel savings, the fuel price used, and any supported difference in ongoing costs.
Simple payback in years equals the incremental installed cost divided by the positive expected annual net benefit. If the benefit is zero, negative, or too uncertain to support a decision, do not present a meaningful positive payback period. State which assumption must be resolved.
Run at least a conservative case alongside the central estimate. Reduce eligible hours or electrical load where those inputs are uncertain, and use a fuel-price range appropriate to the purchasing decision. If a small change in assumptions makes the premium unattractive, that sensitivity should be visible before approving a fleet-wide order.
Delco Remy's February 2025 calculator introduction describes a tool intended to estimate alternator-related fuel savings. Such a tool can organize a discussion, but save the inputs and read its assumptions. The output is a model result, not proof that your fleet has already achieved the saving.
A trial is most useful when it addresses the uncertain part of the buying decision. If the supplier's efficiency data are well defined but annual electrical loading is unknown, improve the duty-cycle information. If the quoted configuration differs from the tested one, resolve the product-data gap before expecting a road trial to explain it.
Agree in advance what will be compared, which vehicles and routes are suitable, what data will be recorded, and what difference would justify the premium. Keep vehicle condition, auxiliary use, and charging requirements as comparable as practical. Have qualified personnel perform installation and measurements using appropriate equipment and approved procedures.
A small change in total fuel use can be difficult to distinguish from changes in route, weather, payload, traffic, or driver operation. Do not attribute every improvement after installation to the alternator. If the result cannot separate the effect from normal variation, report it as inconclusive and decide whether more evidence is worth the cost.
For procurement, a defensible outcome may be a limited order, a request for better data, or rejection of the premium. None requires declaring that high-efficiency alternators are universally worthwhile or universally ineffective.
No. Rated current describes output capability under stated conditions. Efficiency compares electrical output with mechanical input. Two units with different ratings need to be compared at the same actual electrical task, and both must first meet the vehicle's capacity and compatibility requirements.
It can identify a product worth investigating, but it is weak evidence for an annual fuel calculation. Request comparable data at the operating points that matter to your fleet. If only a peak is available, keep the commercial conclusion provisional and avoid treating that peak as an all-day average.
Not without reviewing the data. The same current at a different voltage represents a different electrical power, and different configurations may have different efficiency characteristics. Compare the actual electrical energy and applicable product data rather than copying an amp-based estimate between systems.
That is a different economic decision from selecting an alternative during a required replacement. Early replacement must account for the additional installation event and the remaining useful value of the installed unit. Use the correct baseline and a supported benefit estimate; a favourable replacement-time premium does not automatically justify early fleet-wide replacement.
Only describe the example with its original conditions and attribution; do not turn it into a customer-specific guarantee. A customer's duty cycle, configuration, fuel cost, and installation may differ. If savings are part of the commercial offer, define the method, assumptions, and responsibilities explicitly instead of repeating an isolated headline percentage.
For an Elecdura heavy-duty alternator enquiry, provide the approved reference or application, required output conditions, quantity, and delivery market. If efficiency is part of the purchasing decision, include the operating points and documentation you need rather than asking only for a “fuel-saving” model.
The strongest offer is not necessarily the one with the largest printed percentage. It is the one that meets the electrical job, provides comparable performance evidence, and supports a price premium under assumptions your fleet can defend.
