Top DAVCO Duplex Fuel-Filter Options for Continuous-Duty Generators in the USA

US generator buyers comparing DAVCO duplex fuel filters should size the service condition before comparing the headline flow. The Industrial Pro 682 Short Duplex is described for up to 300 GPH with one side isolated and 600 GPH in dual operation; the 692 Tall Duplex is described for 600 and 1,200 GPH respectively. If the remaining active side cannot support the required fuel supply, a two-housing assembly has not solved the continuous-service problem. Choose between these documented configurations only after the generator's fuel-system requirements, restriction allowance, installation envelope and permitted servicing state have been confirmed.

The intended buyer is a US generator packager, industrial maintenance planner, rental-fleet engineer or specialist distributor preparing a configuration decision. "Top" denotes a bounded comparison of useful documented options, not a ranking of filtration efficiency or a promise of uninterrupted facility power. The Elecdura fuel-filter category is an aftermarket parts enquiry route. It does not establish that Elecdura designs generator fuel systems, supplies these particular assemblies or represents DAVCO.

The purchase problem is a filter that remains serviceable during the required duty

A filter can have enough capacity for normal operation and still be unsuitable for the way the owner intends to maintain it. With both housings available, the system may have a comfortable published flow rating. During service, however, one housing is removed from the active flow path. The remaining path must meet the requirement that still exists at that time. The comparison therefore has to consider at least two operating states, not one product maximum.

DAVCO supplies a concrete US context in its Industrial Pro customer stories. An unnamed data center in the southeastern United States, using a Cummins QSK60 Tier 2 engine, reportedly changed to a Tall Duplex arrangement so a filter could be isolated for servicing while the other side remained available. This is manufacturer-reported application evidence. It does not identify every part of the installation or approve the same retrofit on all engines carrying that family name.

The case matters because it identifies an operational problem more specific than a desire for cleaner fuel. The owner needed to avoid stopping that generator for the particular filter service. It would be misleading to reduce the lesson to buying a larger separator. A larger single housing can still require interruption when it is opened. Equally, a dual arrangement without the relevant isolation provisions does not establish the same service capability merely because two filters are visible.

Define what the facility actually requires during the service window. Does the generator have to remain at its full required load, operate at a reduced load permitted by the site, or remain available while another source carries the load? Those situations lead to different constraints. The answer belongs to the generator owner and responsible engineering team; a filter seller cannot infer it from the phrase data center, emergency generator or continuous duty.

Keep generator operation separate from facility availability. A duplex filter is one component within a larger power and fuel arrangement. It does not certify the performance of the switchgear, controls, fuel storage, other generators or the site's operating procedures. Selecting a serviceable filter assembly can address a defined maintenance limitation, but it must not become a claim that the whole facility cannot lose power.

Short Duplex and Tall Duplex are different capacity choices

The current Industrial Pro 682 Short Duplex page explicitly separates its isolated and dual operating rates. It identifies up to 300 GPH when one side is isolated and up to 600 GPH with the dual path available. Its summary specification table presents 300 GPH without the same narrative context. Read the mode description with the number; copying only the product headline or only the summary table loses part of the selection information.

The current Industrial Pro 692 Tall Duplex page makes the corresponding distinction at up to 600 GPH isolated and 1,200 GPH dual. These published values provide an initial comparison, not a guarantee of delivery at every fuel temperature, restriction level or installation condition. They do establish that the dual-mode maximum must not be presented as the capacity available during single-side service.

For a buyer whose required service-state flow is above the short unit's isolated rating, choosing the short assembly because its dual number looks sufficient is the wrong comparison. The tall assembly may become the relevant candidate, subject to the rest of the application review. If required flow exceeds the tall unit's isolated rating, neither of these two published configurations has passed the intended isolated-side duty on the evidence stated here.

That conclusion is deliberately different from declaring one model better. A short assembly may suit a supported lower-flow installation and a constrained height envelope. A tall assembly may offer a more suitable isolated-flow range for another installation. The decision is controlled by the operating requirement and the installation, not by assuming that a larger model always gives a worthwhile advantage.

Keep the complete configuration name on the comparison. DAVCO also lists single, dual and triple products in the broader Industrial Pro family. They help explain the range, but should not be added as equivalent continuous-service candidates without their own documented isolation capability. The Industrial Pro family hub is a starting map. Its broad maximum-flow headline refers to the series, not the operating capacity of every listed product.

A two-option shortlist is sufficient when those are the documented configurations being evaluated. There is no benefit in adding a marine filter, a valve-only component or a higher-flow parallel assembly simply to produce a longer list. Such products may solve legitimate but different engineering tasks. They require their own application evidence instead of being treated as interchangeable alternatives in this generator selection.

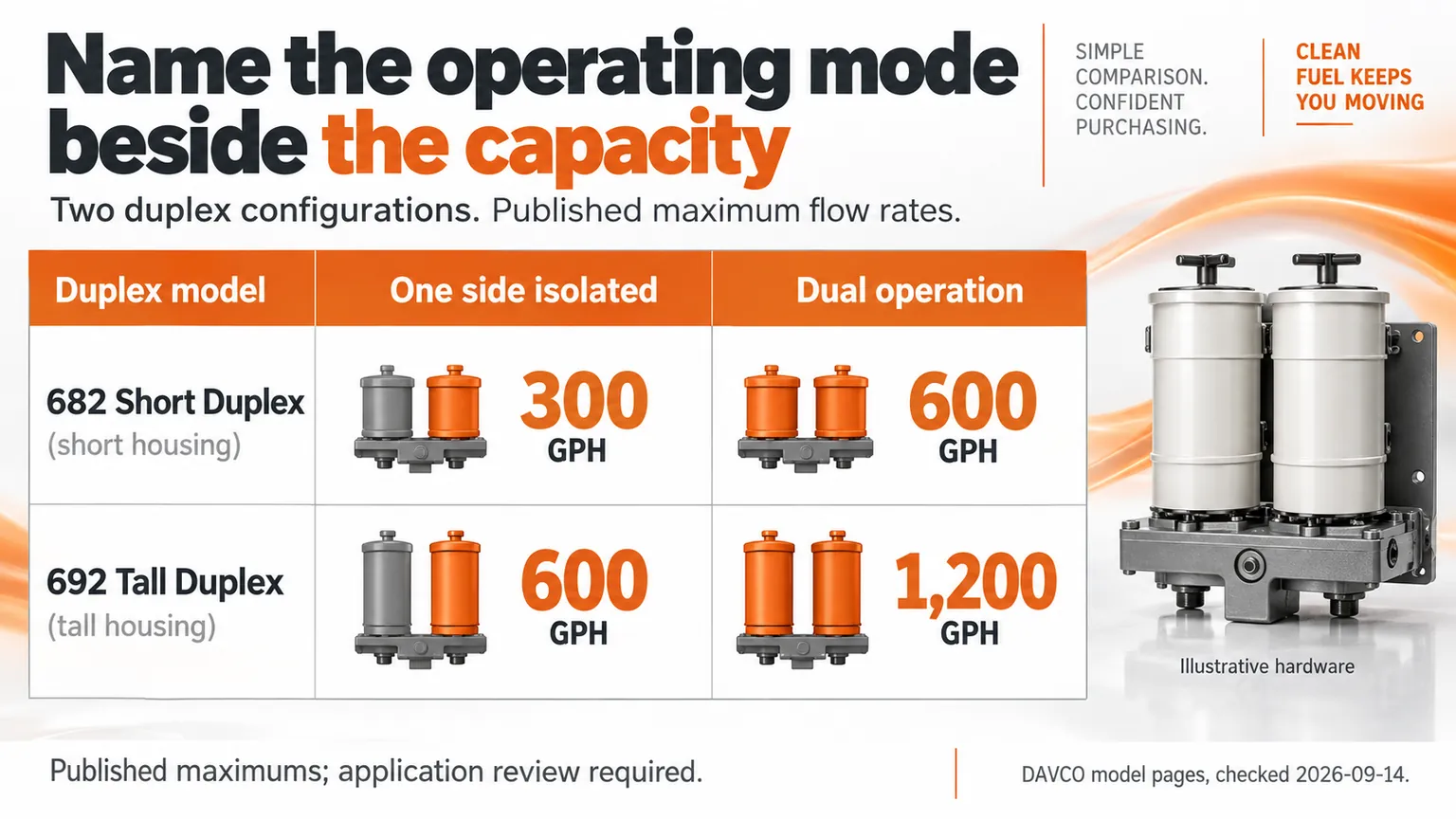

Figure — Compare the published flow for the operating state required during service, not only the dual-path maximum.

Establish fuel supply demand before using an engine-size shortcut

Start with the generator and engine maker's applicable fuel-system data for the actual installation. The number required for this decision is the supply duty that the selected filter path must support under the defined operating conditions. It is not automatically the amount of fuel burned over an hour. Where the engine's system circulates and returns fuel, consumption and supply through the upstream filter describe different quantities.

An engine displacement or rated generator output is therefore an identification clue, not a substitute for the relevant fuel-flow requirement. Two installations associated with the same engine family can have different arrangements, revisions or operating conditions that require confirmation. Retain the engine identity and generator package information together so the application-responsible party can provide the correct requirement rather than selecting from a generic engine-size column.

Ask which operating point controls the filter choice. The normal running condition, a required high-load condition and the state permitted during servicing may not be identical. If the project relies on reducing load during service, that reduction has to be an accepted operational condition, not an assumption made to fit a smaller filter. The owner needs to know what the system can support while that condition is in effect.

Keep units and measurement positions explicit. A fuel-consumption figure, a pump-capacity figure and a measured line flow should not be entered into the same comparison column without explanation. Neither should US gallons and litres be mixed merely because the numbers look similar. Record what the value describes, where it applies and which operating state supports it. This prevents a precise-looking capacity comparison from being built on incompatible inputs.

A requirement that remains unknown should stay unknown. Do not reverse-engineer an acceptable number from the filter the team prefers to purchase. If the engine documentation is unavailable, the supplier or generator specialist should identify what evidence is needed to establish the correct duty. The public data-center case is not a replacement for that work, even when the buyer's engine belongs to the same broad family.

Once the supply duty is established, compare it against each relevant configuration in both states. The dual-mode comparison tests normal operation with the intended paths available. The isolated-mode comparison tests the agreed service condition. Keep both results, including any qualified operating restriction, so a later operator cannot mistake a normal-running approval for unrestricted service-state capability.

Capacity and restriction must be considered together

A published maximum flow does not describe the entire hydraulic condition at the engine's fuel inlet. Fuel has to pass through the actual lines, fittings, valves and filter media in the selected arrangement. The fuel system must remain within its applicable pressure and restriction limits. A suitable nominal flow range is therefore an initial screening result, not proof that the assembled installation preserves the required supply conditions.

Isolation changes the available flow path. When one housing is unavailable, the active path has to carry the duty assigned to that state. Do not assume that the pressure loss observed with both paths available will remain unchanged after isolation. The supplier should support the assessment with the relevant assembly performance information and conditions. A family brochure alone is not a complete pressure-loss curve for a configured installation.

Consider the service condition of the filter that remains active. Continuous-service planning should not quietly assume that the other element is always new and clean when one side needs attention. Contamination can affect both paths, and the remaining side still has to operate within the approved limits. The operating plan needs to define when servicing occurs and what condition makes continued operation unacceptable, using the manufacturer's applicable information.

Fuel properties belong with the performance evidence. A result obtained under one set of conditions should not be applied without review to a different fuel or temperature range. This article does not supply a universal viscosity correction or restriction allowance. Ask the application-responsible party which conditions are represented by its performance data and which conditions must be checked for the proposed generator duty.

The distinction between filtration stages remains important but is not the main comparison here. Retain the engine manufacturer's required downstream protection rather than assuming the duplex assembly replaces every other filter. The primary and secondary filtration guide explains stage roles. The present decision adds a different question: whether the selected service-state path can maintain the required supply while one housing is isolated.

A strong application response should connect three items: the specified engine demand, the configured assembly's performance basis, and the accepted limits for normal and servicing states. If a reply provides only a larger headline-flow number, the restriction question remains unanswered. If it provides only an efficiency claim, the delivery-capacity question remains unanswered. Neither should be hidden by a favourable description of the filter media.

The installation envelope includes the space needed to service the unit

Package dimensions affect more than whether an assembly can be bolted into an available gap. The filter must also remain accessible for its permitted service and inspection activities. A layout that accommodates the assembled unit but leaves no usable access above the housing has not met the reason for choosing a duplex arrangement. Maintenance capability should be reviewed at the layout stage, not discovered after surrounding equipment is installed.

The current linked Industrial Pro technical manual distinguishes short and tall service-clearance requirements and prohibits mounting the assembly directly on the engine. It also warns against removing or relocating duplex manifolding. These are significant selection boundaries. They do not authorize the buyer to redesign the support, alter the manifold or substitute a convenient mounting location.

Obtain the drawing for the actual quoted configuration. Overall height, width, depth, supporting brackets, access around valves and the space needed for filter removal should be treated as separate layout inputs. Optional equipment can add interfaces or access needs even when the core housing appears unchanged. A generic product photograph cannot resolve these details, particularly where the supplier is quoting a package with additional equipment.

Weight information also needs a defined basis. Dry and operating conditions are not the same, and a retailer's shipping field may not describe either accurately. The structural review should use the applicable assembly information, not whichever number is easiest to find in a search result. Keep supporting structure and vibration-related installation requirements with the responsible generator or system designer rather than inferring them from the filter's visible size.

DAVCO's manufacturer-reported rental-fleet story includes a custom arrangement using two short single units to meet a package-space constraint. That is evidence that a particular engineered project used a different layout. It is not an invitation to duplicate that arrangement from photographs. A custom duplex system needs its own isolation, flow and installation review; it should not be represented as automatically equivalent to a standard 682 assembly.

The procurement consequence is straightforward: if a standard candidate cannot meet the documented envelope, either change the supported package design through the responsible engineering process or reject that candidate. Do not preserve the desired catalogue choice by hiding an access problem in the installation team's work scope. The ability to perform the intended service is part of the product-selection decision.

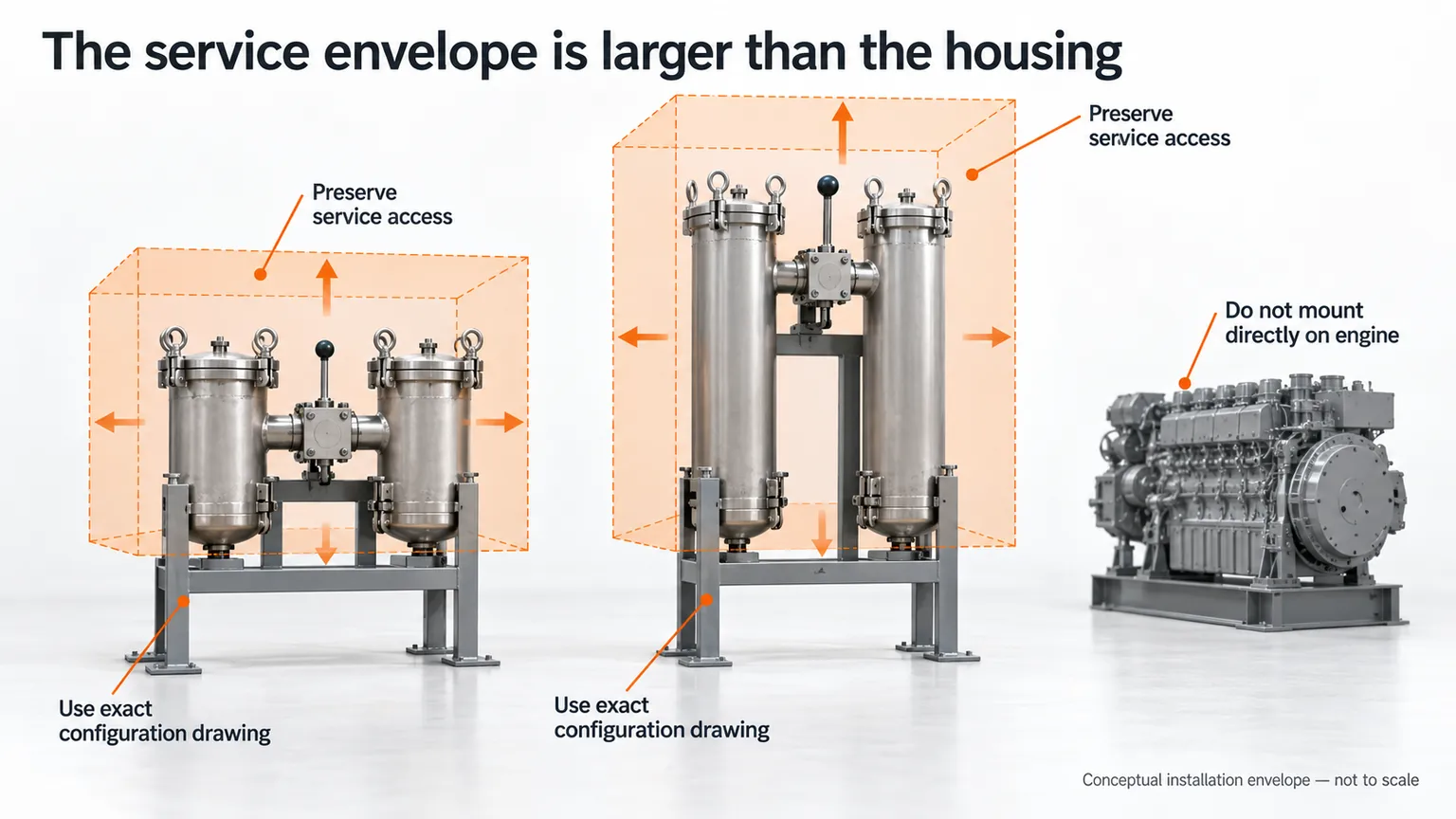

Figure — Layout approval must include the applicable removal clearance and access, not only the assembled body dimensions.

Separate the assembly architecture from its optional equipment

The current short and tall duplex pages offer configuration choices such as water-in-fuel sensing, priming equipment, heating and clear-bowl arrangements. They also show different filter-rating choices. These options should be resolved after the architecture and operating duty have been identified. An optional sensor or heater does not turn an otherwise unsuitable isolated-flow configuration into a suitable one.

Define the selected filter element as part of the assembly requirement. A nominal micron label is not a complete description of efficiency, restriction or water-management performance. Nor should a buyer assume that every optional element shown on a family page is approved for the intended engine. The responsible application source must connect the element and housing configuration to the required stage function and operating conditions.

Keep sensing and physical isolation distinct. A water-in-fuel indication can support the system's monitoring strategy, but it does not prove which flow path is isolated or that an active housing may be opened. Likewise, a clear bowl provides an observation feature, not a universal cleanliness result. These functions contribute different information and should not be collapsed into a single claim that the system monitors itself.

For priming equipment, determine what the selected package includes and which procedure governs its use. The presence of a pump does not eliminate the need for the correct servicing process, and this guide does not provide a priming sequence. If the quote depends on separately supplied hoses, fittings, controls or electrical items, identify that scope before comparing it with another seller's complete package description.

Heating must follow the actual fuel and operating environment, not a general assumption attached to the purchasing location. Obtain the approved arrangement for that specific duty. The fuel-water separator guide addresses broader sensing, drainage and prime-retention questions. For jobs dominated by water sensing or priming faults, resolve those diagnostic questions before treating a different housing size as the solution.

Online service has prerequisites that a headline cannot remove

The value of duplex isolation is that one path can remain available while the other is serviced under the applicable conditions. It is not permission to open a housing that is still active. The manufacturer's technical manual includes explicit isolation and operating-state requirements for servicing. The responsible technician must follow the correct procedure for the installed configuration, including its safety precautions.

For selection purposes, the important question is whether the required service state is compatible with the owner's operating obligation. A manufacturer procedure that requires a particular engine state must be reviewed against that obligation before the system is chosen. Do not advertise full-load service solely because a product page says continuous runtime. If the site cannot accommodate the approved conditions, the proposed assembly and service strategy have not yet met the project requirement.

There is an important difference between a designed isolation function and an operator improvising a bypass. This article compares documented duplex assemblies; it does not recommend bypassing filtration, altering manifolds or changing valve arrangements. A modification that appears to keep fuel moving can change the protection and operating conditions of the system. Such a change is outside the selection evidence established here.

Ask how the owner will know the remaining path is suitable for continued operation and how it will handle an unexpected adverse condition. That response should follow the approved equipment and site procedures rather than a universal rule invented for the article. The point is to make the operating dependency visible before purchase, particularly where the commercial justification assumes that filter service will never require a planned interruption.

Do not convert the manufacturer's reported service-time or interval benefits into acceptance limits for a new installation. Time spent on a particular service event depends on the approved process and the installation's access and condition. Filter life also depends on the duty and contamination exposure. A documented case can motivate the investigation; it cannot justify extending the new owner's maintenance interval without the relevant approval.

Read current documents critically when fields disagree

A configuration decision can fail even when every document came from a legitimate source. Family summaries, individual model pages, older technical manuals and retailer records may describe different revisions or omit the context behind a number. Preserve the document identity and the exact field that matters instead of merging the most convenient values into a new specification table.

DAVCO's currently linked F3331 RevE summary sheet, marked updated in February 2026, pairs a short-duplex US-gallon figure with a litre figure that is not numerically consistent. That is a reason to request clarification, not evidence that the whole product is unsuitable. For preliminary comparison, keep the explicitly stated operating-mode figures and do not silently present a corrected conversion as a manufacturer-approved specification.

The same discipline applies to the difference between a short model's narrative and an unlabeled maximum-flow table. The narrative identifies isolated and dual rates; the table alone does not carry all of that meaning. Retain both the mode and the source when preparing the comparison. A supplier can then answer the precise question rather than receiving an unexplained dispute about which number is right.

In JME's Tall Duplex offer, the detailed specification separates 600 GPH duplex and 1,200 GPH dual operation, while other summary fields are not fully consistent with the detailed values. This is a useful US sales route, not an engineering drawing. Ask the seller to identify the quoted configuration and supply the applicable current technical information before final installation review.

Maintain unresolved fields explicitly. If the body dimensions, wet weight, fuel compatibility or included equipment are material to the job and the publications disagree, the offer is incomplete until the responsible source resolves them. A retailer's statement that a product is intended for diesel equipment does not resolve every fuel blend or installation condition. Do not choose whichever wording creates the broadest apparent compatibility.

Three capacity scenarios lead to three different purchasing outcomes

The following examples are hypothetical screening exercises, not installed customer cases or approved designs. Suppose a generator's confirmed servicing-state requirement is below the short duplex unit's published isolated-flow ceiling. The 682 can remain a candidate, but only if its performance basis, restriction allowance and configured installation also satisfy the application. The lower flow requirement does not resolve mounting access, element selection or the approved operating state during servicing.

In that first scenario, a larger assembly should not be justified solely by its higher headline capacity. It may still be appropriate for a documented reason, but the buyer should be able to state that reason: a supported duty requirement, a relevant package condition or a confirmed operational need. More capacity on a brochure is not automatically a better answer to an already defined and adequately supported service condition.

For a second example, assume the confirmed required flow while one housing is isolated lies above the short unit's published isolated ceiling but below the tall unit's isolated ceiling. The short unit's dual rating might still appear sufficient at first glance. It fails the intended screening because that rating describes the wrong state. The 692 becomes the candidate for further review, not an automatically approved purchase.

This second example is where a mode-labeled comparison prevents the most consequential misunderstanding. The installed assembly may run normally with both paths available and reveal its limitation only when one path is taken out of service. If the project was purchased specifically to avoid that interruption, a normal-running demonstration alone would not validate the business case. The servicing-state requirement must be part of the acceptance basis from the beginning.

In a third example, the required isolated-state flow is above the tall duplex unit's published isolated ceiling, or the owner's operating obligation conflicts with the permitted service conditions. Neither standard option has passed this comparison. The responsible engineering team must review a different supported arrangement or operating strategy. Combining catalogue maxima, inventing a bypass or assuming that reduced load will be acceptable does not close the gap.

These outcomes show why this is a selection guide rather than a size ranking. A candidate can pass a preliminary capacity screen and fail the installation review. It can meet normal duty and fail service duty. It can also have the right technical capacity but require an operating condition the facility cannot accept. Recording the reason for each outcome gives the owner a usable decision rather than a list of attractive product descriptions.

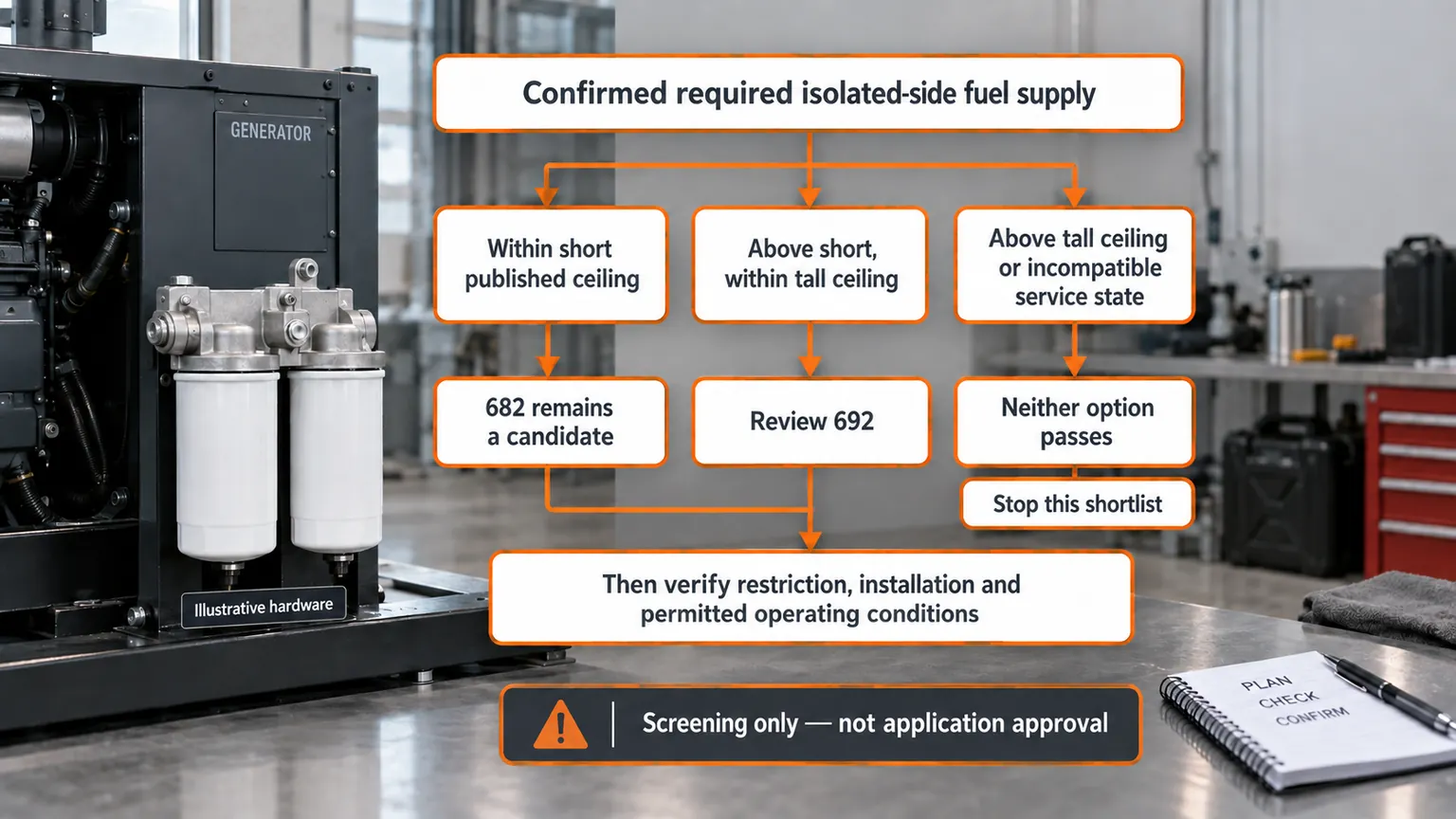

Figure — Published isolated-flow capacity can retain a candidate or reject it; it cannot by itself approve the installed system.

Define what the order and the installed system must demonstrate

Request a configuration response that names the selected assembly, its operating modes, the assumed engine supply duty, the relevant performance information and the accepted service condition. Attach the package-space requirements and unresolved source discrepancies. This is more useful than a broad request for a high-flow generator filter because it asks the supplier to answer the actual short-versus-tall decision.

At delivery, verify the complete assembly and declared options against that approved response. A similar-looking parallel unit must not be accepted as a duplex substitute without its own supported isolation arrangement. The same applies to a changed element, missing priming equipment or an unexplained revision. Receiving personnel need the agreed configuration, not just a family name and a photograph.

Installed acceptance belongs to the responsible technicians and engineering team using the applicable equipment and site procedures. It should establish the required performance in the states that justified the purchase, without improvising operating tests or disregarding safety restrictions. A successful normal run is not a substitute for evaluating the agreed service-state capability, and a completed filter change is not a certification of overall facility availability.

Keep storage-tank treatment outside this approval. The bulk-fuel control-point guide concerns delivery, breathing and dispensing protection. A generator-supply duplex assembly does not automatically remediate contaminated storage or replace those controls. Conversely, cleaner delivered fuel does not remove the engine's specified filtration and maintenance requirements.

For an Elecdura aftermarket filter enquiry, use the parts enquiry email to provide the identified engine-side requirement and installed assembly references. If the project involves designing or modifying a duplex generator fuel system, identify that as separate specialist engineering work. The final decision should preserve the capacity available during the actual service condition, not merely reproduce the largest number visible on the product page.
