Views: 0 Author: Elecdura Publish Time: 2026-09-15 Origin: Site
For rebuilders in Canada, D&V's ST-116, ST-24B, and ST-64G2 provide different starting points for a starter-test-equipment enquiry. The ST-116 emphasizes production-line handling and automation; the ST-24B offers a production-testing configuration with a higher published starter-power-supply capacity; and the ST-64G2 emphasizes laboratory analysis and flexible validation. This is a selected shortlist within one manufacturer's range, not a ranking of Canada's test-equipment suppliers. Choose against the actual starters, test methods, throughput, and data you need. Confirm the quoted tooling and options before treating any platform as suitable for a heavy-duty rebuilding program.
D&V's official contact page identifies its head office in Woodbridge, Ontario, and provides sales and support routes. That creates a clear manufacturer contact for a Canadian equipment enquiry. It does not establish local stock, a fixed delivery time, or an on-site service commitment for a particular order.
There is also a documented Canadian production example. Dixie Electric's own quality-and-testing page, which identifies its Concord, Ontario address, describes using D&V ST-24 and ST-116 testers in production. This supports their use in a real rebuilding and manufacturing environment. It is not evidence that Dixie uses the current ST-24B or the ST-64G2, and it does not make Dixie a test-equipment supplier.
The procurement question is therefore not whether a recognizable machine appears in another factory. It is whether a quoted platform can test your product mix, fit the way your operation works, and provide the measurements needed for your acceptance requirements. A well-known user is useful context, not approval for a different facility.
Platform | Reason to investigate it | Question to settle before choosing |
|---|---|---|
ST-116 | Repeat production testing where connections, loading, and changeover affect workflow. | Which required starter families can use the quoted tooling and automation? |
ST-24B | Production testing where the published supply configuration deserves comparison with the load requirement. | Does the complete machine configuration, not just its current rating, cover the required test? |
ST-64G2 | Laboratory analysis, development, and flexible low-volume validation. | Which analysis functions, measurement channels, and heavy-duty options are included? |
These are not simple entry-level, intermediate, and advanced grades. The production platforms already have substantial measurement functions. The laboratory platform is intended for a different balance of flexibility and workflow. Buying the most elaborate specification does not necessarily solve a production bottleneck, while buying a fast production machine may leave a development team without the measurement access it needs.
The official ST-116 page describes high-volume end-of-line testing, manual or automatic connection tooling, programmable procedures, and flexible positioning. It lists a 1500 A starter supply and a 120 A solenoid supply. The 200 V and 400 V classes stated on that page concern the testing machine's supply configuration, not the nominal voltage of the starter being tested.
For a rebuilding line, investigate how a completed unit reaches the fixture, how the operator identifies the correct setup, and what changes between the product families you actually process. Ask for a demonstration using representative units rather than accepting an easy-to-load example as proof of the entire range.

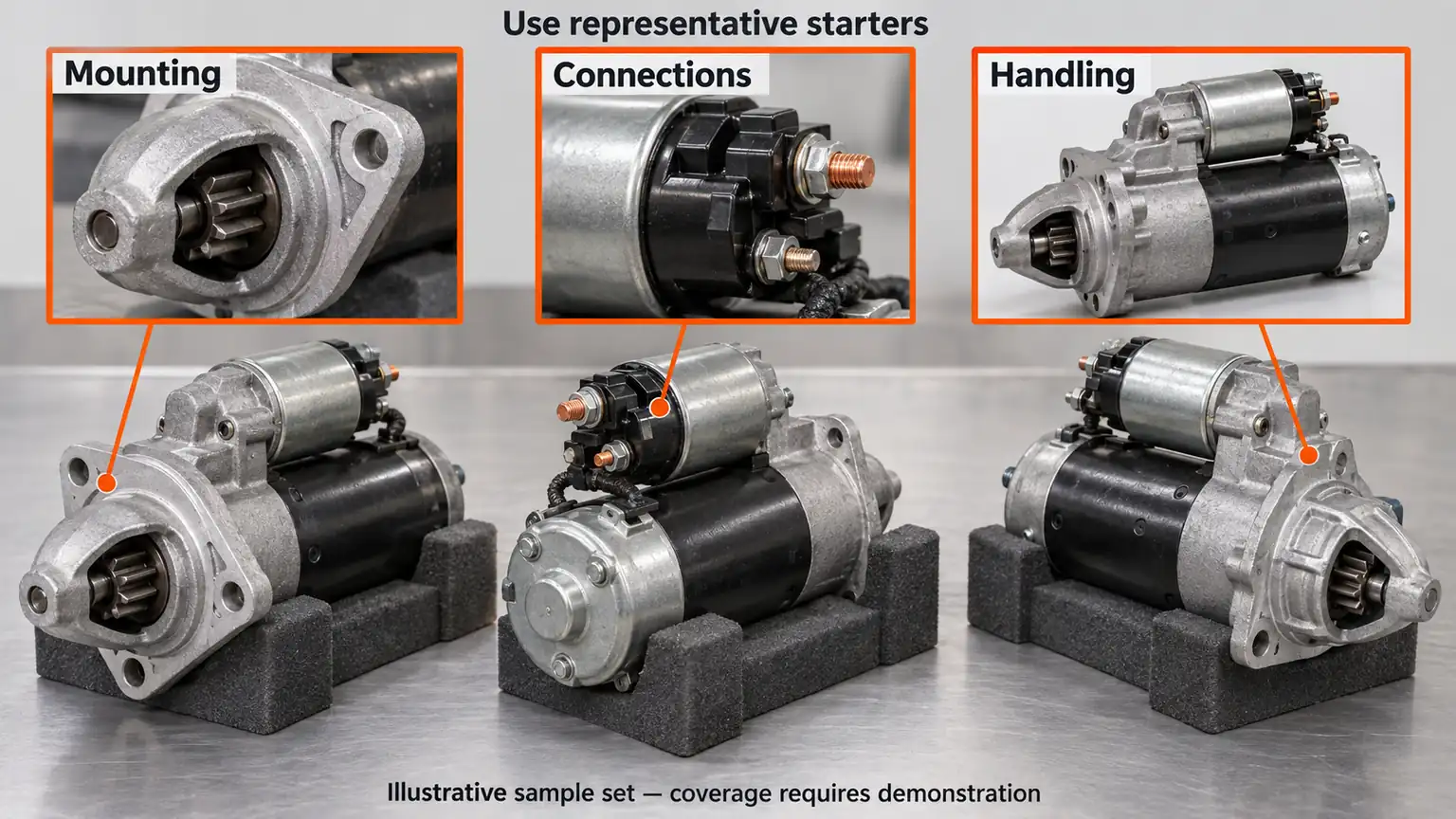

Illustrative disconnected starter samples identify mounting, connection and handling questions for an equipment demonstration. They are not documented D&V coverage examples or approved fixture arrangements; use representative units from the actual rebuilding programme.
D&V also describes tooling recognition, configurable reports, and rejection-related functions. Establish which features and tooling are included in the offer. A production plan should not depend on an optional connection head that was absent from the accepted quotation.
The useful outcome is a documented operating sequence for your approved families. Record any unit that needs manual connections or a different fixture so its handling time and limitations are visible before committing to a production target.
The ST-24B production-testing page lists a programmable 3000 A starter supply and 300 A solenoid supply. It describes load conditions set by speed, torque, or current, along with performance curves, timing measurements, and waveform analysis.
The larger published supply capacity is a reason to ask a detailed coverage question, not a reason to assume universal heavy-duty compatibility. A usable test configuration must also accommodate the unit's mechanical interface, the intended load method, relevant speed and torque requirements, and the requested measurements.
Separate the starter's nominal operating voltage from the test machine's incoming electrical supply and from simulated battery conditions. Have the equipment supplier state each one clearly in the quotation. A procurement sheet containing one unexplained “voltage” field is vulnerable to costly misunderstanding.
Compare the ST-24B and ST-116 against the same product list and required test sequence. If both can perform the job, differences in handling, tooling, configuration, and support scope may matter more than a single headline rating. If only one covers the required configuration, document that limit rather than describing the other machine as generally inferior.
D&V positions the ST-64G2 for analysis, development, laboratory work, and low-volume validation. Its published features include programmable tests, expanded measurements, and detailed performance data. The page specifically associates heavy-duty validation up to 10 kW with a high-torque option; that qualification must remain attached to the number.
For an engineering or quality laboratory, write the questions the machine must answer. Do you need additional measurements during a disputed failure investigation, repeatable comparison of design variants, or access to detailed data for an approved validation method? Convert each question into an acceptance demonstration and a defined data output.
The official page lists supply and measurement options. Request a configuration-specific offer rather than assuming every listed capability is part of a base machine. Clarify the required channels, sensors, software functions, fixtures, and data export before comparing prices.
Illustrative purchasing states using generic starter imagery, not actual D&V quotations, test results or a claim of coverage. Define tooling, measurements and options in the offer; the ST-64G2 up-to-10 kW statement remains conditional on its high-torque option.
Do not describe a performance-analysis platform as a durability test system merely because it is used in validation. A performance curve is not a starter-life result. If repeated-cycle endurance is the requirement, identify the appropriate method and equipment separately with the supplier.
Use the starters your operation expects to process, not an abstract description such as “all heavy-duty models.” Include the references and configurations that present different fixture or testing demands. Ask the equipment supplier to identify which are covered, which need additional tooling, and which are outside the proposal.
Include representative difficult cases, not only the highest-volume easy case. If the business plan depends on adding a new product family, include it explicitly as proposed coverage. Do not treat future expansion as included merely because the equipment is described as flexible.
A practical coverage list connects four things: the starter reference, the required test, the machine configuration and tooling, and the evidence that will demonstrate coverage. This creates a common basis for engineering and purchasing to review the offer.
The heavy-duty starter bench-test guide explains the limits of an individual pre-installation test. The equipment purchase has a different purpose: to establish which defined tests the facility will be capable of carrying out reliably, with the approved product-specific procedure.
A published test duration is only one part of the station cycle. Your operation also has identification, movement, clamping, connection, result handling, unloading, and changeover. Some activities may overlap; others may hold up the next unit. Observe the complete sequence that matters to the proposed line.

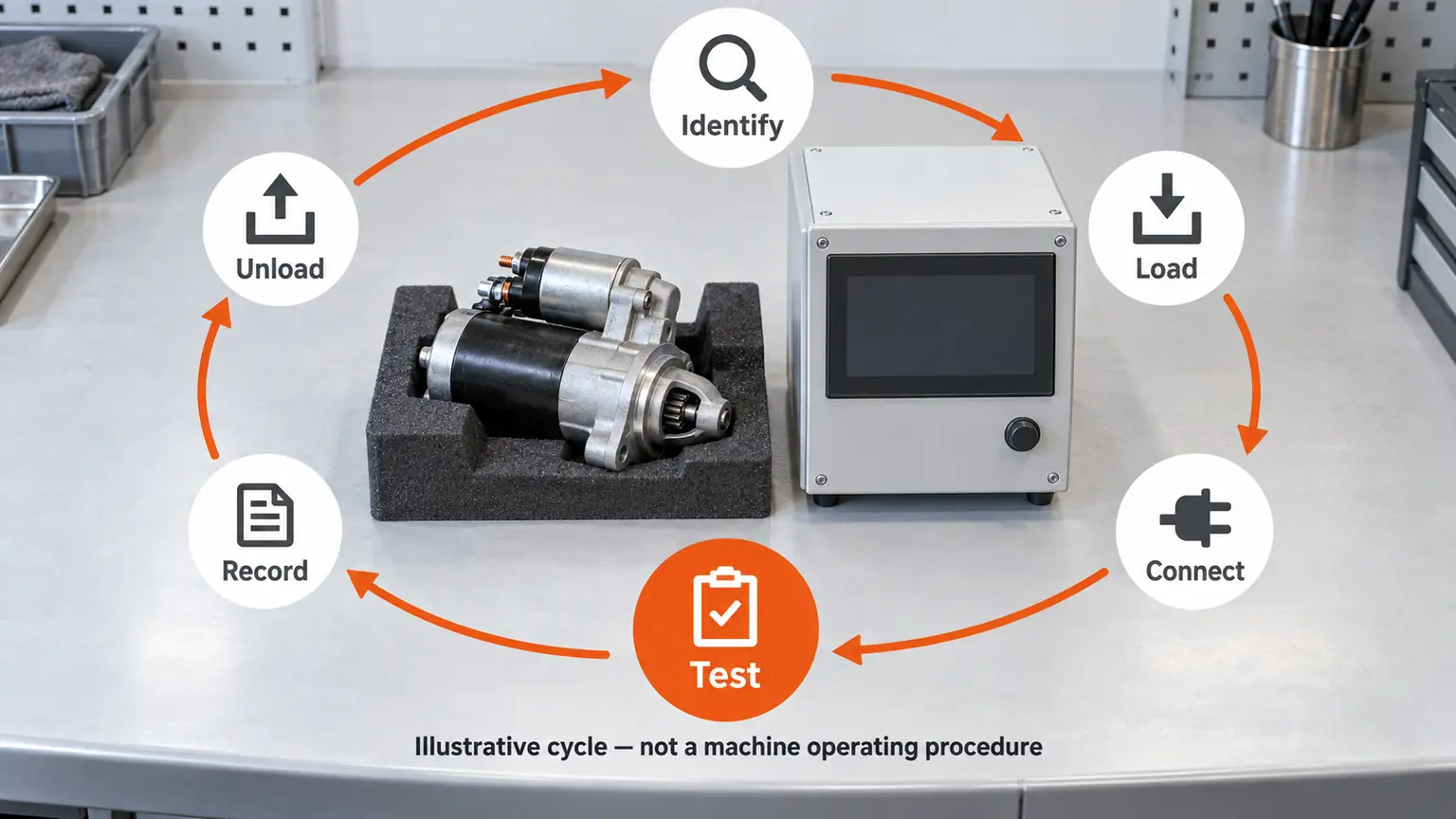

Illustrative station-cycle map, not a D&V operating procedure or timing study. The generic inactive equipment and starter do not show an approved test setup. Observe handling, connection, testing, recording, unloading and changeover in the actual agreed process.
Do not divide an hour by a brochure test time and present the result as guaranteed hourly production. Ask for the test sequence and conditions behind the published figure, then evaluate a representative production mix. Include the effect of exceptions and approved repeat testing in the proposed operating plan.
If two platforms publish different times, do not assume that the figures represent identical tests. A fair comparison uses the same required outputs and accepted conditions. The decision should show whether one configuration improves the workflow that is actually constraining the facility.
Itemize the machine, tooling sets, connection equipment, and options needed for the agreed coverage. Confirm the site requirements with D&V and the responsible facility personnel. Do not purchase against an assumed electrical supply, air connection, footprint, or handling arrangement.
For a Canadian facility, identify where commissioning and service will take place and who is responsible for transport and site preparation. The manufacturer's Canadian address is a useful contact point, but it is not a contractual promise that every service activity will occur at your site or within a specified time.
Clarify who supplies and approves the product-specific test procedures and limits. The ability to program a limit is not evidence that the chosen value is appropriate for a starter. Keep responsibility for technical acceptance criteria explicit.
Request example outputs showing the identifiers, measurements, conditions, and result fields you need. If production records must be exported or connected to another system, have that function demonstrated. State any software, licence, or access requirement in the order instead of discovering it after delivery.
Include the agreed training, calibration arrangements, maintenance documentation, and support contact. These are items to confirm with the equipment supplier, not standard benefits that should be assumed from a product-page description.
Before placing the final order, agree which representative units and approved procedures will demonstrate the contracted scope. Check fixture compatibility, safe operation, required measurements, result identification, and data retrieval. Use agreed criteria; do not improvise pass limits to make a demonstration succeed.
Document exceptions and decide whether they are acceptable before signing off. A missing fixture for one low-volume family may be commercially tolerable if it is clearly excluded. The same omission is unacceptable when that family is essential to the proposed production program.
Keep the equipment acceptance separate from product acceptance. Demonstrating that a tester performs the agreed measurement does not approve every starter subsequently tested on it. The facility must still apply the correct procedure, maintain the equipment, and preserve the unit's identity in its production records.
No. It is a use-based shortlist of three D&V platforms supported by their official descriptions. It does not compare the whole Canadian market or claim independent superiority. Another platform may be more suitable if your product range or test requirement falls outside these configurations.
No. The machine's capability is only part of the process. Product-specific procedures, appropriate limits, maintenance, operator practices, and traceable results still matter. A photograph of a tester is not a substitute for evidence concerning the actual starter supplied to a buyer.
No. Dixie's page identifies ST-24 equipment. Its statement is evidence of the model it names, not confirmation of a different current model or configuration. Use the ST-24B manufacturer's page and an actual quotation to establish what is being offered now.
No. Identify its serial number, configuration, included tooling and software, condition, service history, and available support. A used unit may not include the features shown for a current offer. Ask the equipment supplier to clarify the actual machine before applying current-page capabilities to it.
This guide does not claim that Elecdura sells, owns, operates, or represents D&V equipment. Direct equipment enquiries to D&V. For a heavy-duty starter supply enquiry with Elecdura, provide the approved references, application, quantity, delivery market, and the product-test documentation your purchasing specification requires.
The right platform is the one whose contracted configuration matches the facility's actual work. Keep machine selection, product testing, and starter sourcing connected through clear requirements, while leaving each approval with the party responsible for it.
