Top Two-Speed Fan-Clutch Conversion Options for Vocational Trucks in the USA

For a US vocational truck with an eligible single-speed Horton DriveMaster, the useful two-speed comparison is between a supported Horton conversion path and the correctly configured Kit Masters GoldTop kit. Select from the installed drive's service identity, bearing arrangement and fan clearance before comparing quotations. A dual-pilot kit does not make every conversion acceptable, and a shared cross-reference does not make different bearing packages interchangeable. Two-speed operation is worth investigating when the truck's duty creates a useful role for lower-speed airflow, but neither manufacturer name proves a fuel-saving result for an unidentified truck.

This guide is for vocational-fleet maintenance planners, independent truck workshops and US parts distributors deciding whether a particular drive should remain single-speed or move to a documented two-speed configuration. It is not a ranking of manufacturers, a complete-drive interchange catalogue or a rebuild procedure. The Elecdura fan-clutch category can support an aftermarket identification enquiry; it does not establish that the named genuine or branded kits are available through Elecdura.

Start with the operating change, not the word upgrade

A two-speed conversion changes what the fan does between periods of maximum cooling demand. In its current DM Advantage Two-Speed description, Horton identifies an eddy-current lower-speed mode and spring-actuated lockup at full input speed. That is a different operating arrangement from treating the fan as either fully driven or effectively released. It is not an electronically commanded, continuously variable drive, and it should not be evaluated as though it offered any requested fan speed across an unrestricted range.

The practical question is whether the lower-speed state has useful work to do on the actual truck. Consider the difference between a vehicle spending substantial time moving through a jobsite and one spending most of its operating hours at road speed. Their exposure to vehicle-generated airflow, auxiliary cooling demand and repeated changes in engine load can differ. Those observations justify different investigations; they do not establish that every slow-moving vehicle benefits or that every highway vehicle should be excluded.

Describe the duty in operating periods rather than a single annual mileage figure. Separate travel to the worksite, stationary work, low-speed manoeuvring, loaded operation and return travel. Record which periods generate the complaint or motivate the proposed change. A fleet concerned about repeated loud fan engagement is asking a different question from one attempting to recover cooling capacity after a damaged clutch. The first may be a conversion evaluation; the second initially remains a fault and replacement decision.

Do not promise that lower fan speed always means lower total fuel consumption. The relevant comparison includes the time spent in each state, the cooling demand that still has to be met, and whether full engagement remains necessary. A quieter observed interval is not a fuel-consumption measurement. Nor does a change in engagement frequency, by itself, establish lower annual cost. Give any proposed benefit a defined observation method and avoid turning a manufacturer's general advantage statement into a guaranteed return on this purchase.

Kit Masters specifically discusses vocational vehicles with a high proportion of idle time in its GoldTop application FAQ. That makes US vocational duty a credible buying context for this comparison. It does not remove the need to identify the installed drive. A documented use case and a compatible mechanical conversion are separate requirements: the operating case may be attractive while the particular truck's geometry prevents the intended installation.

There are two program paths, but several different things to buy

The Horton path begins with the installed Horton service number and its current application record. The GoldTop path begins with the same installed identity but follows Kit Masters' approved kit and configuration information. Both routes can lead to a real two-speed product. They need not supply the same collection of components, use identical bearing arrangements or preserve every existing item in the same way. This is why a comparison should begin with the scope of the supplied assembly, not just its box price.

Distinguish a complete fan drive from a repair kit and from a clutch-pack component. A complete assembly may resolve damaged retained hardware that a kit does not replace. A kit can be appropriate where the relevant supporting hardware remains serviceable, but its name does not promise a new bracket, pulley and shaft. A clutch pack is a still narrower supply scope. If a quotation silently moves between these scopes, its price cannot be compared as though the alternatives were equivalent.

The distinction also separates restoring an existing two-speed drive from converting a single-speed unit. An established two-speed installation provides evidence about the architecture already on the truck. A single-speed conversion proposes a changed configuration that needs its own eligibility check. The fact that the same current service-kit family appears in both types of discussion does not mean that the two jobs have identical prerequisites.

For Horton, the current 995582 catalogue entry identifies that legacy conversion kit as replaced by 2S-DP. Preserve that relationship when discussing an older stock description. It explains why a supplier may return a different current number; it does not allow the buyer to skip the installed application's restrictions. Supersession of a kit and approval to convert a particular drive answer different questions.

Kit Masters' 24-256 product page presents a real GoldTop two-speed rebuild kit and lists relevant Horton references, including 995582 and 2S-DP. Use that as a documented route into the manufacturer's application review. Do not flatten its long number list into a universal equivalence table. A page connecting several service references to a product may require configuration-dependent supporting parts or exclusions that are not visible in a shortened distributor description.

For the US purchasing team, ask each route to define the work it is quoting: a conversion for the named installed drive, a rebuild of an existing two-speed installation, or a complete replacement assembly. The returned description should make that distinction readable without opening a second email. This is not an administrative preference. It determines whether the workshop has the hardware, information and acceptable retained components needed to complete the job.

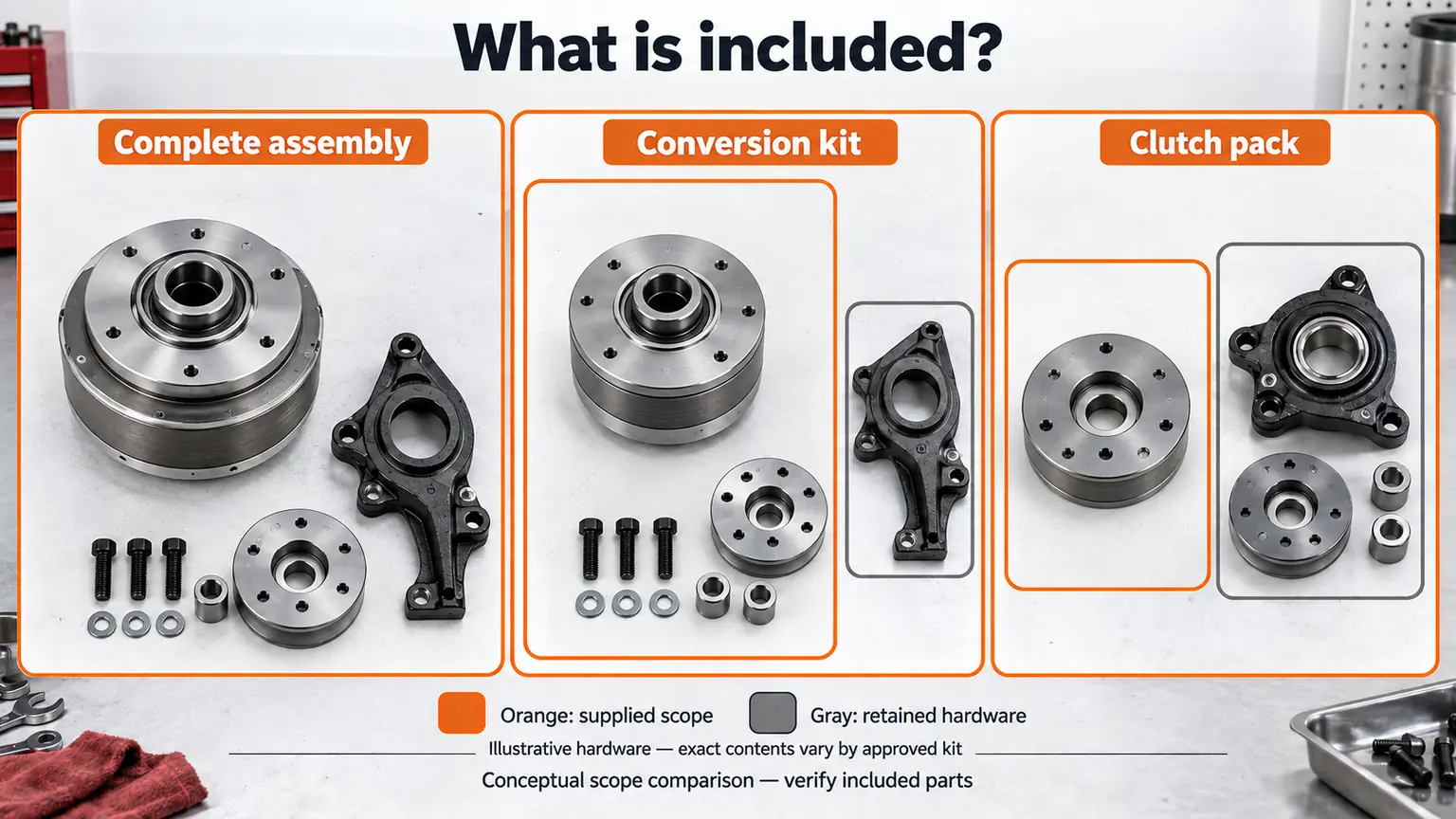

Figure — A kit, clutch pack and complete drive can leave different parts of the installed assembly in service.

The bearing package is a physical selection boundary

Horton's current 2S-DP catalogue record specifies a configuration with a 39 mm sheave or pulley bearing and directs units with a 61 mm bearing to 2S-DP-L. Both descriptions can appear alongside the same broad dual-pilot wording. The shared pilot feature therefore cannot be used to decide the bearing package. Preserve the measurement description exactly; a bearing-configuration designation is not a fan-pilot diameter.

The GoldTop selection has its own important distinction. Kit Masters identifies two 6209 bearings in 24-256 and one 3209 bearing in 24-256-1, and expressly says these bearing arrangements are not interchangeable. That is not a minor packaging difference. The supported arrangement belongs to the assembled mechanical system. Buying the shorter-looking or cheaper kit and expecting the workshop to make it fit would turn a replacement job into an unsupported redesign.

Think about the bearings as part of a load path rather than loose consumables. The fan and drive transmit loads through the rotating assembly into the supporting shaft and bracket. The assembled locations of bearing seats, races and spacers determine how the original structure is supported. Parts that look similar on a bench can put their locating surfaces in different positions once assembled. A broad cross-reference cannot show that these positions agree with the particular retained hardware.

When a seller's listing and the installed unit appear to disagree, first check whether the seller is describing the same level of assembly. It may be advertising a complete conversion arrangement, a kit requiring a particular original bearing configuration, or a component intended to be combined with a separate bearing kit. These possibilities call for clarification, not for choosing whichever catalogue number appears most often in search results.

Keep the old assembly's identity and bearing arrangement together during assessment. Where disassembly is needed to establish that arrangement, the work belongs to a qualified technician following the applicable procedure. Do not ask a buyer to identify internal hardware from an indistinct exterior photograph, and do not infer the arrangement solely from the truck model. The maintenance record should state whether the configuration was observed, confirmed from an authoritative service reference or still unresolved.

Separate uncertainty from damage. An unreadable bearing marking creates an identification problem; a worn shaft creates a condition problem. Solving one does not solve the other. A technician might establish the correct kit number and still reject kit repair because the supporting surface is unsuitable. Conversely, apparently sound hardware cannot be released while the required bearing package remains unknown. Both decisions need to be visible before parts are ordered.

A dual pilot does not settle the fan's position

A fan pilot helps locate the fan relative to the drive. Horton's current 2S-DP record identifies support for 2.56-inch and 5-inch fan pilots and lists adapter and stud components. GoldTop also documents its dual-pilot arrangement. These facts reduce one identification uncertainty, but they do not resolve every geometric relationship between the fan, drive, pulley, cooling stack and shroud. A correct centring diameter is only one feature of the assembled installation.

Axial position matters independently of centring. A fan can be centred correctly while sitting too far forward or rearward for the surrounding space. Likewise, a suitable pilot does not prove that the supplied stud arrangement provides the required mounting relationship. Treat the blade's installed position and the mounting hardware as separate questions. Do not describe an adapter ring as a general clearance solution when the source only identifies its pilot function.

Horton's application-specific service tables include restrictions against conversion and entries with fan-related conditions. Those records are an important counterweight to generic conversion marketing. A supplier should return the relevant row for the installed service identity and explain any attached condition. A blank or shortened retail description must not overrule an explicit manufacturer restriction.

Use measurements to answer the unanswered geometric question, not to replace the manufacturer's application decision. If the concern is axial clearance, a photograph that only shows the fan face does not resolve it. If the concern is the original mounting arrangement, a truck-level photograph may omit the relevant interface. Ask the technician to capture the dimension or relationship specified by the responsible manufacturer, with its datum and measurement state identified.

Static clearance is also not permission to ignore the operating installation. The selection review should account for the conditions the vehicle and drive manufacturer require, including the actual fan, shroud and supporting structure. This article supplies no universal clearance allowance. A measured gap cannot be called acceptable unless the applicable limit and operating assumptions are known. An apparently generous gap is still only an observation without that reference.

Do not solve an uncertain conversion by improvising spacers, changing studs or moving the fan until the assembly appears comfortable. Those actions can affect relationships beyond the visible interference point. If the approved route requires a different fan or supporting component, compare the complete documented change. If no approved combination is available, retain a supported single-speed repair or investigate a separately engineered complete replacement instead of treating the original conversion choice as mandatory.

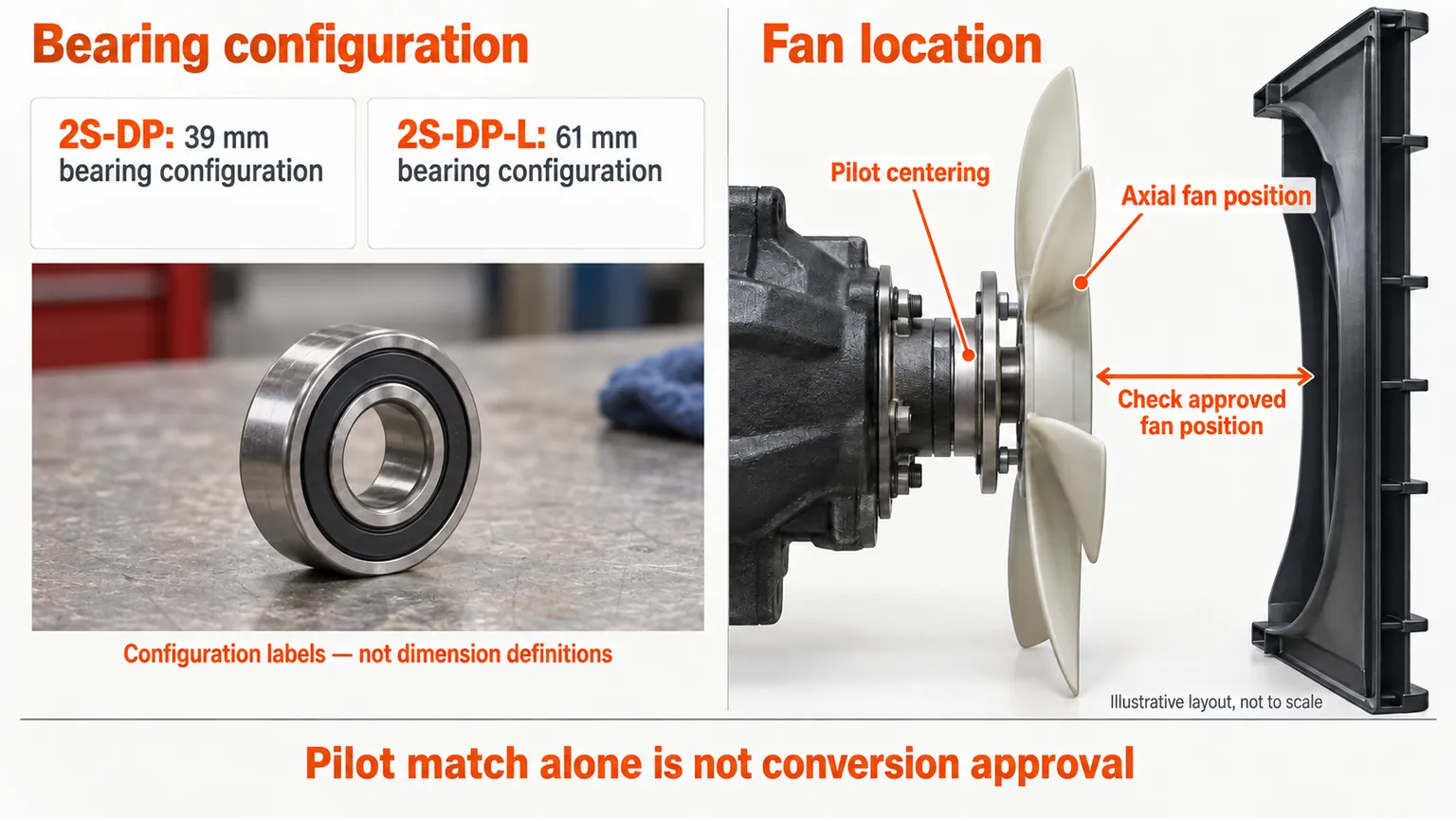

Figure — Bearing configuration, pilot centering and axial fan position answer different fit questions.

Keep control behaviour separate from a mechanical fit check

A two-speed drive's physical fit is not evidence that the truck will command it correctly. The control review must establish the installed architecture, how the demand reaches the drive, and the behaviour expected when cooling demand changes. Begin with the applicable vehicle and drive information. Do not assume that every fan clutch using an air connection shares the same engagement logic or can use the same conversion parts.

This matters particularly when a search result mixes DriveMaster, HT/S, Kysor-style and Cool Logic products. They are not simply alternative brand spellings. Kit Masters excludes HT/S from the GoldTop kit rebuild discussed here, even though other complete-conversion possibilities may be available through manufacturer support. A separate conversion route is a different engineering question. It should not be added to the shortlist merely to make the list longer.

Confirm the air requirement at the correct system location using the qualified technician's applicable test method. The manufacturer's drive requirement and the air-compressor gauge are not interchangeable observations. A healthy-looking supply reading elsewhere does not establish the condition reaching the clutch when it is commanded. This article does not prescribe a test connection, instruct anyone to bypass controls or authorize work near a rotating fan.

Describe the expected lower-speed and lockup states before evaluating the finished work. A rotating fan in the lower-speed state is not automatically a failure to release; that interpretation would import single-speed expectations into a different architecture. Equally, the presence of fan rotation is not proof that useful cooling capacity is being delivered. The final assessment must connect the expected drive behaviour with the vehicle's actual cooling demand.

A conversion must not conceal a pre-existing control fault. If the original complaint involves unexplained continuous engagement, resolve whether the cause lies in the drive, air supply, command or another cooling-system demand before attributing it to the absence of two-speed operation. The fan-clutch replacement guide covers the wider complaint and replacement context. Here, the narrower question is whether a documented conversion is appropriate after those basic uncertainties have been separated.

Use the correct speed reference when assessing the change

Full input speed means the speed entering the fan drive; it is not automatically the engine speed shown on the dashboard. The installed drive arrangement establishes the relationship between those locations. A purchasing comparison that treats engine revolutions and fan-drive input revolutions as identical can misinterpret the intended operating range. Request the relevant drive information before using an observed engine speed to support a fan-selection conclusion.

The lower-speed state also should not be represented as one universal fan speed. Horton's family description identifies the operating mechanism, not a fixed speed that applies to every fan and duty. The actual assessment needs the selected assembly and its operating conditions. Avoid creating an unsupported percentage chart merely because two-speed sounds like two constant numerical settings. Such a chart could look precise while concealing the very application dependence the buyer needs to resolve.

For the acceptance record, preserve which speed was observed, where it was obtained and which operating state it describes. The service team should use its approved measurement method; nobody should approach a rotating fan to obtain an improvised reading. If an earlier fleet report records only engine speed, label it accordingly instead of retrospectively treating it as measured fan speed. Correctly named observations allow the responsible manufacturer to evaluate a concern without first untangling incompatible measurements.

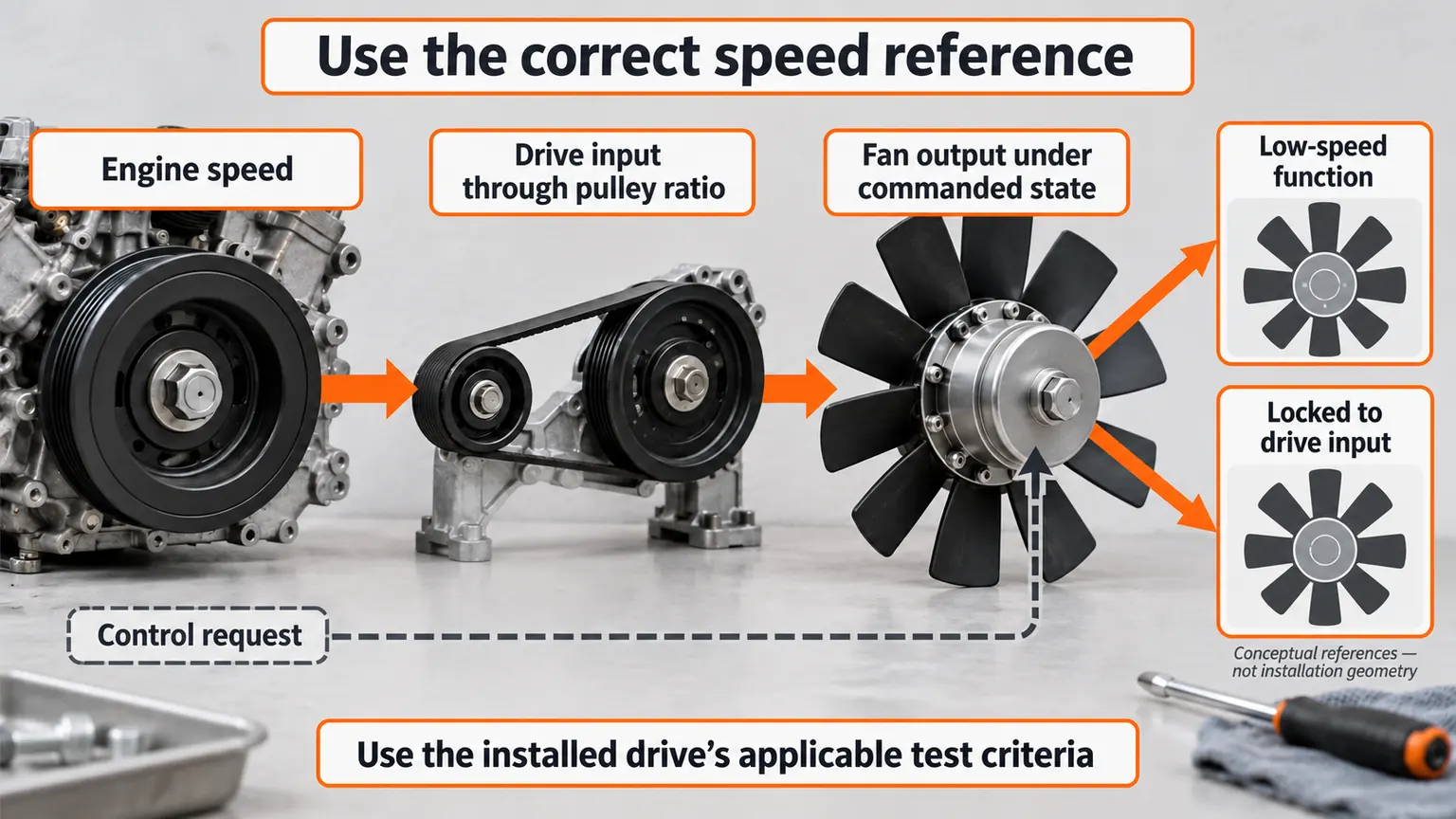

Figure — Engine speed, drive-input speed and fan-output speed must not be treated as the same measurement.

Judge the retained structure before committing to a kit

A kit-based option relies on the condition of components that remain with the vehicle or original drive. The supplier's inclusion list should identify what is new and what is retained, but the workshop must assess the retained structure. A catalogue can specify an intended combination; it cannot inspect the truck's old pulley, bracket or shaft. Treat the condition assessment as a prerequisite to choosing a kit rather than an unpleasant discovery after delivery.

Kit Masters identifies damage to supporting hardware as a reason that a clutch may not be suitable for rebuilding. The purchasing consequence is to obtain the assessment before assuming that a kit and a complete unit are equivalent alternatives. If a component outside the kit is unusable, either the approved repair scope must include its supported replacement or the purchase must move to a different complete-assembly route.

Do not treat cosmetic cleanliness as structural evidence. A cleaned part can remain worn or cracked, and an untidy but undamaged exterior may not be the limiting issue. Request the technician's relevant finding and its consequence, not a vague statement that the old unit looks good. Where the condition cannot be assessed reliably, retain that uncertainty in the selection rather than pricing the least expensive theoretical repair.

There is also a sequencing issue. If the truck must return to service before the retained hardware can be assessed, the buyer should compare the operational implications of that uncertainty. A kit order may be contingent on later inspection. A separately confirmed complete assembly may have a different job scope. Neither choice is automatically superior; the important point is that a conditional kit repair should not be sold internally as a fully determined parts requirement.

If the decision is still whether to use a repair kit or a remanufactured complete assembly, the Horton repair, reman and PolarExtreme program comparison can help resolve that service scope first. Only then evaluate whether a two-speed configuration is permitted and useful. Moving to two-speed operation does not, by itself, require replacement of every sound supporting part, and retaining those parts still requires an assessment of their actual condition.

Use the US sales channel to resolve the exact package

US parts pages make the current-versus-legacy distinction commercially relevant. A buyer can encounter an old PolarForce conversion description, a current DM Advantage quick kit and a GoldTop kit in the same search. They are identifiable products, but the names do not establish identical supply scope. Current manufacturer records should resolve the technical identity; the seller's written offer should resolve what will actually be delivered.

For example, Ross Airworks' 2S-DP listing describes the bearing-dependent current kit, while JIT's 995582 page retains a legacy product reference. These are seller routes, not additional manufacturers to rank. A listed page also does not establish current stock for the required quantity or a promised delivery date. Confirm those commercial details against the selected, application-supported order.

The first useful supplier response is a short configuration answer, not another undifferentiated cross-reference list. Ask it to identify the proposed conversion or rebuild scope, the installed drive it has reviewed, the required bearing and pilot arrangement, any fan or adapter condition, and the current instructions governing that combination. If the response relies on the workshop retaining a particular item, that dependency should be explicit.

Only then compare the contents and commercial obligations. A lower price may exclude a bearing kit, adapter, supporting component or part of the approved change. Conversely, a higher-priced package may include items the documented job does not need. Normalize the supported scope without assuming that more included pieces necessarily make a better purchase. The technical answer determines which differences are relevant.

For repeat stocking, preserve the boundary that made the original choice valid. A bin labelled only two-speed fan clutch loses the distinction between kit configurations and complete units. A more useful internal record links the selected product to its supported application group and retains any exclusion. This allows another buyer to reject a look-alike replenishment without needing to reconstruct the original engineering discussion from memory.

Three hypothetical jobs show why the shortlist can end differently

Consider a vocational truck whose installed service identity has been confirmed, whose supporting hardware has passed the workshop's assessment, and whose manufacturer record permits the intended conversion without an unresolved fan condition. The fleet has also defined a repeatable low-speed duty that motivates investigating two-speed operation. This job can proceed to a like-for-like Horton and GoldTop package comparison, provided each route confirms the applicable bearing and mounting arrangement. Eligibility does not establish which route is cheaper or performs better.

In that first example, the initial purchase decision is deliberately narrower than fleet-wide adoption. The selected truck provides a controlled installation and operating evaluation for its own confirmed configuration. If the fleet later considers additional vehicles, it should determine whether their drive identities, cooling packages and duties belong to the same supported group. A successful conversion on one truck is useful evidence, but not permission to bypass those differences.

Now consider a second truck with a matching-looking fan pilot but a service record containing an explicit conversion restriction related to the fan installation. The workshop can measure the apparent space, but has not obtained an approved alternative combination. This job should not be released merely because a kit page lists the old reference or because the adapter centres the fan. The unresolved condition concerns the assembled installation, not the ability to place one part against another.

The second job may legitimately finish with a supported single-speed repair. Alternatively, the responsible manufacturer may identify a different complete arrangement with its own requirements. Either outcome is more useful than forcing the original two-speed purchase through an improvised spacer change. An engineering restriction is a reason to change the decision, not a challenge for the purchasing team to overcome by finding a more permissive retailer description.

In a third hypothetical job, the application appears eligible but the retained shaft or pulley is found unsuitable during assessment. That finding removes the original kit-only assumption. It does not prove that two-speed operation is unsuitable for the vehicle; it shows that the proposed supply scope is incomplete. Reopen the comparison around the supported repair or complete assembly, with the condition finding attached so that suppliers address the same actual job.

These examples produce different outcomes because they test different constraints: operating purpose, application permission and physical condition. None supplies a universal ranking. They also show why a useful comparison can conclude with a hold or a single supported route. The value of the shortlist is its ability to reject the wrong purchase before installation, not its ability to keep every initially attractive option alive.

Close the conversion decision with a configuration-specific acceptance plan

Before releasing the order, the workshop and buyer should agree what evidence will close the job. Separate delivery acceptance from conversion acceptance. Delivery acceptance verifies that the selected kit, declared configuration and included items arrived. Conversion acceptance verifies that the qualified installation follows the supported combination and behaves as expected under the relevant vehicle conditions. A correct carton does not establish the second result.

Capture the final drive identity and any approved change to the fan, adapter or supporting parts in the vehicle record. Preserve the current instructions used rather than relying on an old saved product advertisement. If the received package contains an unexplained revision or substitution, resolve it before fitting. The supplier may have a legitimate supersession, but the changed package still needs to be connected to the approved application.

The operating review should be proportionate to the reason for conversion. Confirm required cooling response and absence of unacceptable interference or abnormal behaviour through the applicable service process. If reduced noise or a change in duty-cycle engagement motivated the project, record observations under comparable conditions. Do not close a claimed economy improvement with a subjective listening test, and do not extrapolate a short successful run into a durability claim.

This recommendation does not apply to an unidentified drive, an unresolved cooling fault, a prohibited application, unsuitable retained hardware or an architecture-changing conversion lacking its own approved documentation. It does not authorize changes to engine controls, air-system safeguards, fan geometry or manufacturer service limits. Those boundaries are part of the selection, not disclaimers to be removed after the preferred product has been chosen.
