A new alternator that does not charge is not automatically defective. Heavy-duty charging systems depend on battery condition, isolation sequence, B+ and ground integrity, excitation or ignition input, remote-sense location, connector pinout, fusing, belt speed, and regulator compatibility.
Remote-sense systems are particularly vulnerable to installation mistakes because the sensing lead carries little current but controls the voltage decision. Confusing R, I, and sense terminals or energizing a lead in the wrong sequence can create a no-charge complaint or internal damage. Buyers can use the Elecdurauto alternator category to organize reference and application research; final selection still depends on the measured application record.
The audit below preserves the installation state, measures each circuit under load, and separates vehicle-side faults from an incorrect or failed replacement.
Record old and new references, voltage and current rating, mount, pulley, connector, regulator, remote-sense provision, installation sequence, battery state, and every transferred lead. Before testing, the technical buyer ties old and new identity to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire post-replacement charging case.
Establish old and new identity first, then compare terminal photographs while the original complaint is reproduced. Use installation sequence to challenge the first interpretation and retain battery baseline as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why old and new identity represents the starting state and how terminal photographs changes when the suspected failure appears. If evidence from installation sequence points elsewhere, the diagnosis stays open. Battery baseline becomes the reference used to compare the removed unit, approved sample, and later production lot.
old and new identity: capture the initial value and the exact operating condition.
terminal photographs: compare the response before and during the complaint.
installation sequence: use an independent observation to test the first theory.
battery baseline: preserve the reference with date, instrument, and reviewer.
A post-replacement fault must be compared with the exact change that preceded it. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded alternator behavior describe the same event.
Document old and new identity against the complaint, alternator identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Measure alternator-to-battery voltage, fuse or fusible-link continuity under load, cable drop, housing-to-battery-negative drop, connection torque, and heat. This stage converts the initial observation into a controlled test route. The warranty analyst prepares B+ path, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure protection device at the first defined point, then recheck positive drop after the alternator reaches the second condition. Ground drop should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The post-replacement charging controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
B+ path: define the pre-test state and preparation method.
protection device: log the first controlled response with its unit and tolerance.
positive drop: repeat at the second condition without changing unrelated variables.
ground drop: note the deciding observation and any remaining ambiguity.
The alternator cannot charge a battery through an open or resistive path. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled post-replacement charging test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.
Heavy-duty alternator belt alignment, pulley ratio and operating-speed inspection after replacement. This image supports the drive inspection step in the article's evidence-based workflow.
Map the vehicle connector, verify key-on and running states, measure terminal voltage, and distinguish excitation, indicator, phase, and control signals. The purpose here is pattern recognition rather than collection of isolated numbers. The fleet electrician aligns pin map, key-on state, running state, and lamp or controller response on one timeline so the sequence of the alternator response remains visible.
Interpret pin map together with key-on state; either item alone can support several causes. Compare their timing with running state, then use lamp or controller response to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong post-replacement charging report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
pin map: retain the unedited trace, image, or measured sequence.
key-on state: mark the feature that changes with the complaint.
running state: compare the same feature under a control condition.
lamp or controller response: state which cause the combined pattern supports or excludes.
A missing enable signal can make a healthy alternator appear dead. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the alternator behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the post-replacement charging evidence. Contradictory traces remain attached as open evidence.
Identify the true sense terminal from documentation, verify its fuse and battery-side connection, compare sensed voltage with B+ and battery-post voltage, and inspect open-circuit or misrouting risk. This module examines how the alternator behaves after time, heat, load, or contamination has had an opportunity to act. The bench technician defines the exposure interval and tracks sense-terminal identity before, during, and after that interval.
Correlate sense fuse with voltage comparison rather than treating either value as a universal limit. Add route integrity to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The post-replacement charging stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
sense-terminal identity: establish the pre-exposure reference.
sense fuse: capture the peak or worst-case behavior.
voltage comparison: compare the response at a fixed elapsed time.
route integrity: document recovery and any permanent change.
R and I terminals are not substitutes for the remote-sense connection. A result outside the limit requires the surrounding system to be checked before the alternator is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the post-replacement charging stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the post-replacement charging investigation, the alternator product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

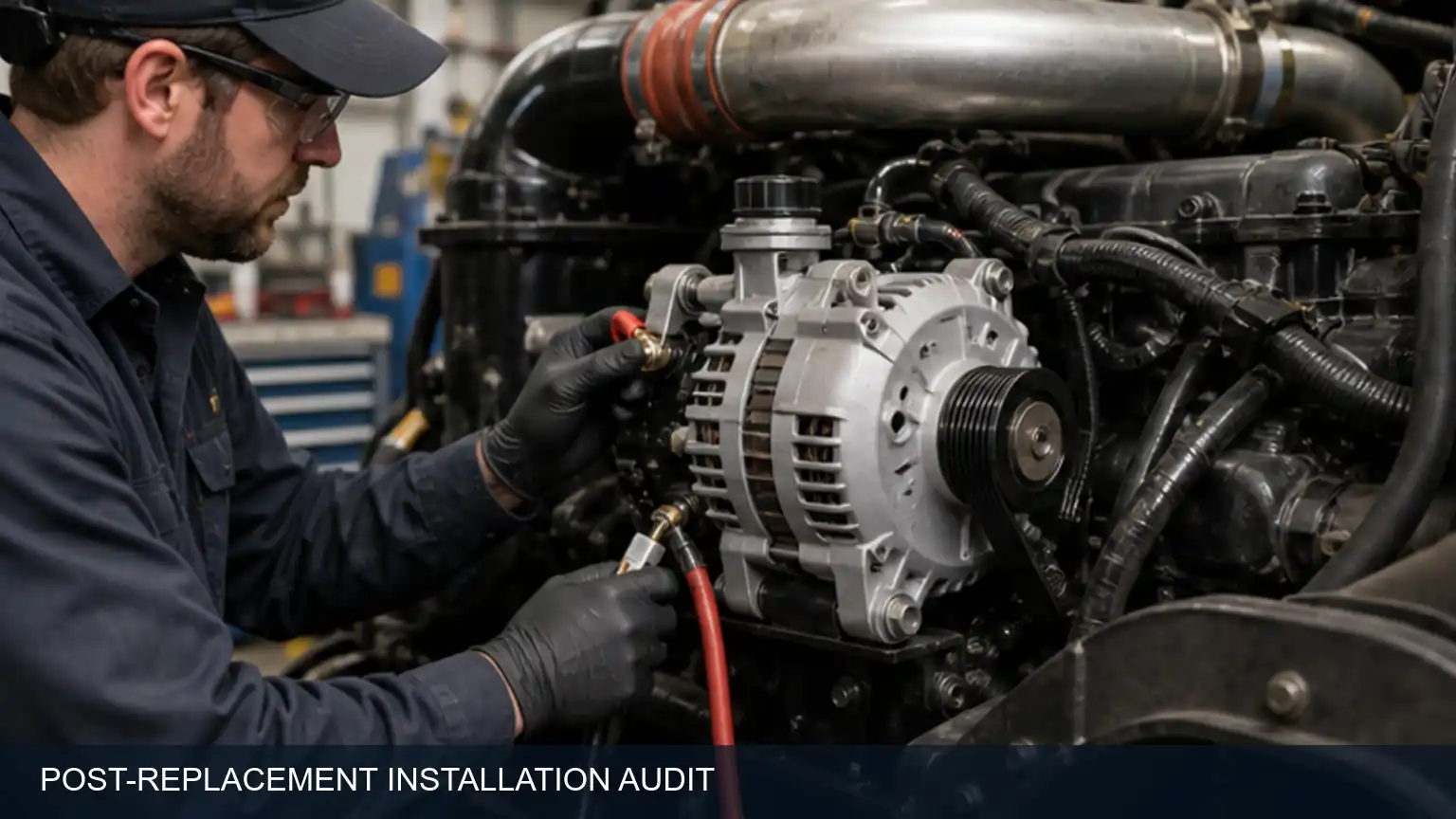

Post-replacement heavy-duty alternator installation audit covering cables, mounts, belt and connectors. This image supports the installation audit step in the article's evidence-based workflow.
Compare pulley diameter, belt grooves, alignment, tensioner travel, slip evidence, engine idle, shaft speed, and hot output at the real duty point. Bench inspection now tests the internal or component-level theory developed on the machine. The receiving inspector preserves the removed condition, cleans only what the method requires, and records pulley ratio before disassembly can erase useful evidence.
Quantify belt alignment with equipment suited to its expected range, verify shaft speed through a second method where practical, and photograph hot output beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact post-replacement charging case under review.
pulley ratio: preserve the as-removed condition and reference marks.
belt alignment: record calibrated measurement and environmental correction.
shaft speed: confirm the suspected mechanism with a second observation.
hot output: connect visible condition with the measured failure path.
A correct electrical installation can still undercharge when the alternator turns too slowly or the belt slips. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the post-replacement charging bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Compare setpoint, control protocol, polarity, field behavior, ripple, load response, thermal derating, and diagnostic codes with the declared replacement specification. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The technical buyer compares the evidence for regulator strategy with the evidence for field response under the same demand before changing any component.
Use ripple to test the alternative explanation, then inspect thermal load result for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original alternator failure.
A cause map for the post-replacement charging decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
regulator strategy: define what this result would mean for the primary theory.
field response: compare the alternative component or system response.
ripple: run the discriminating check that separates both paths.
thermal load result: inspect the interface where one fault could imitate another.
Vehicle and alternator control strategies must agree before the unit is condemned. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the post-replacement charging cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

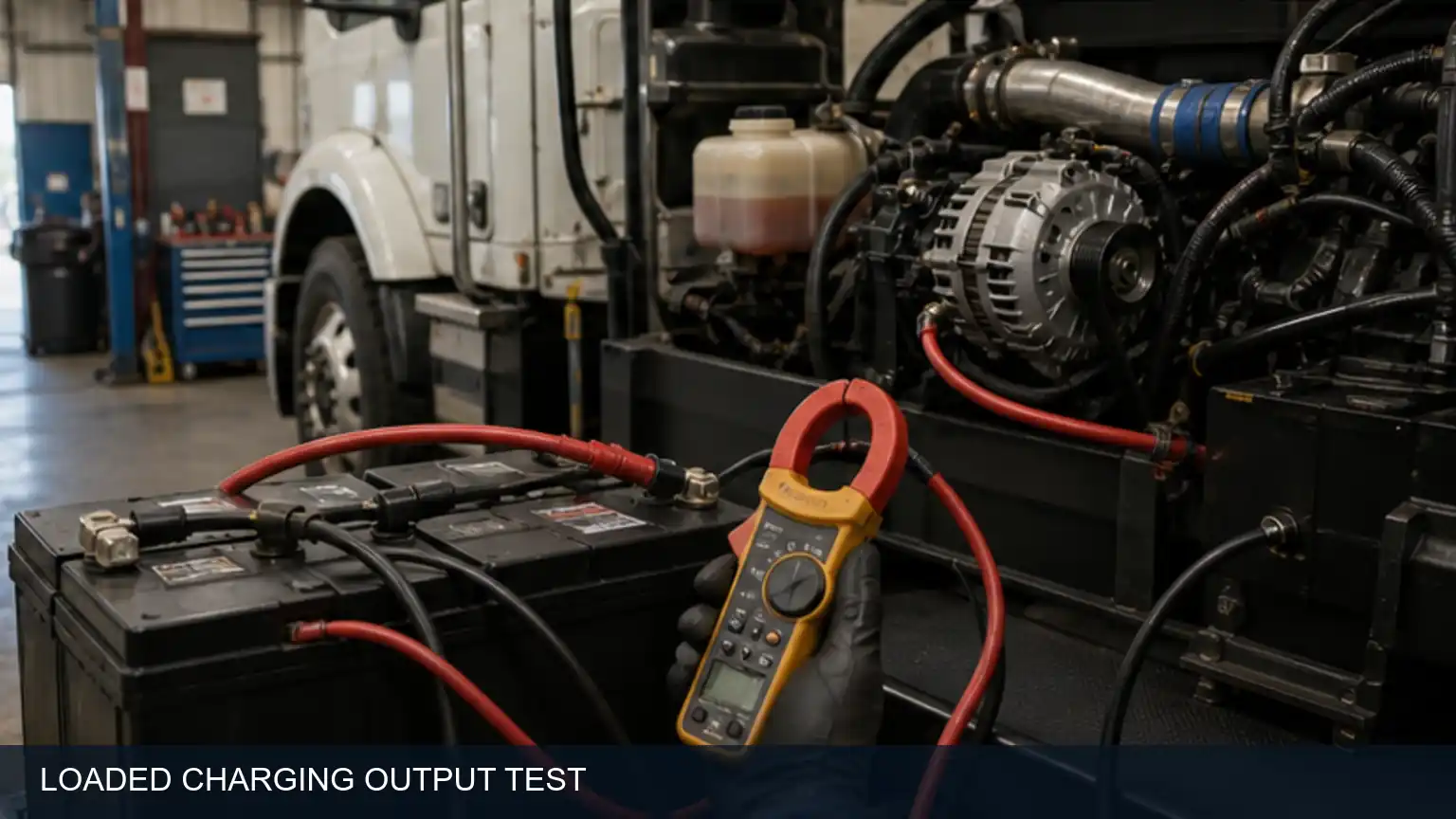

Loaded heavy-duty alternator output test with current clamp, voltage meter and controlled electrical demand. This image supports the loaded output test step in the article's evidence-based workflow.
Retain photographs, terminal map, pre- and post-repair voltages, current, ripple, temperature, belt observations, fault codes, part serial, and corrective action. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The warranty analyst defines how the approved sample and production units will be compared using installation record and measured results.
Add serial trace to expose changes that a label or catalogue cross-reference cannot show. Use corrective action to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The post-replacement charging acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
installation record: define the release value and sampling method.
measured results: compare sample evidence with the incoming lot.
serial trace: retain the technical record that exposes configuration drift.
corrective action: trace approval, deviation, and claim decisions to one identity.
Evidence protects both the fleet and supplier from an unsupported parts return. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory alternator acceptance field.
Authorize post-replacement charging production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

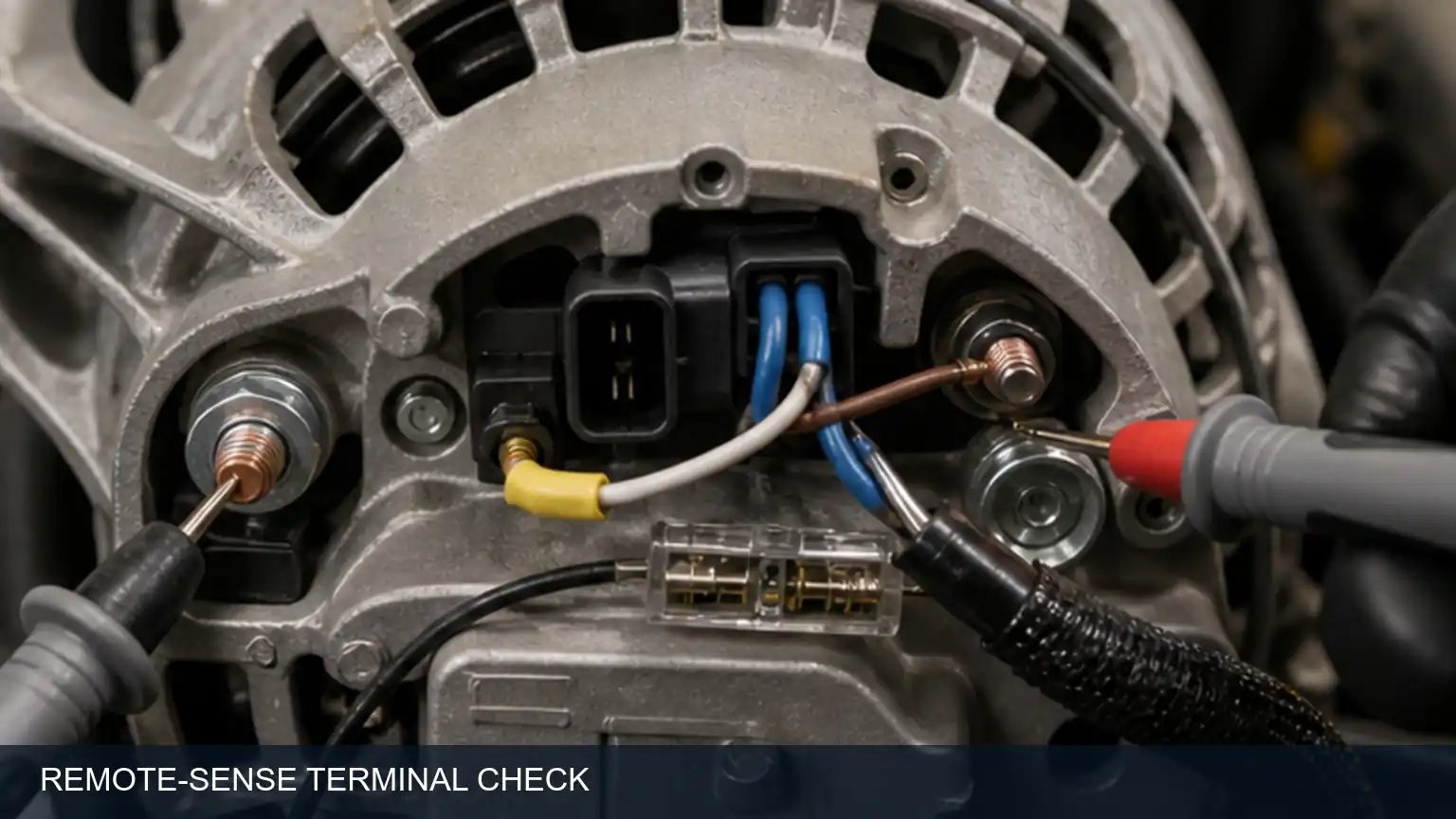

Remote-sense alternator terminal and fuse-circuit check at the battery and regulator connection. This image supports the remote-sense check step in the article's evidence-based workflow.
Identify the alternator, host vehicle or machine, duty cycle, and original complaint for the post-replacement charging investigation.
Attach the pre- and post-installation voltage, current, ripple, sense-line, and belt observations without altering the original readings.
Name the person who accepted each post-replacement charging limit and the person who owns each open question.
Relate the approved alternator sample to the installation record, purchase order, supplier lot, and incoming charging-system inspection.
State whether the requested alternator for the post-replacement charging application is new aftermarket, remanufactured, or another declared condition.
List the mandatory interfaces relevant to this post-replacement charging case and identify the evidence for each one.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.
This post-replacement charging workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
A post-replacement charging file should compare battery-post voltage, B+ and ground drop, excitation, remote-sense voltage, pulley speed, ripple, and hot output. Repeat the measurements at idle and at the declared operating speed, first with a controlled electrical load and then after the unit reaches a stable temperature. Record the exact meter points and battery-isolation state. This sequence prevents an installation or vehicle-circuit fault from being misreported as a defective alternator.
