Direct answer: An M11 starter decision requires two separate proofs. First, match the starter assembly to the exact engine and installation: system voltage, rotation, mounting flange and pilot, pinion teeth and position, solenoid clocking, terminals, and surrounding clearance. Second, diagnose the loaded cranking circuit so weak batteries, cable resistance, grounds, control voltage, or excessive engine load are not mislabelled as starter failure. Use the complete engine serial and current Cummins service information as the catalog path, preserve the removed unit as installed evidence, and approve a sample when those sources conflict.
This guide serves fleet electricians, rebuilders, equipment dealers, and distributors. Candidate families can be reviewed through Elecdura's heavy-duty starter motor category, but neither appearance nor an engine-model-only search closes the match.
File | Required evidence | Question answered |
|---|---|---|
Fitment file | Engine identity, flange, pilot, pinion, voltage, rotation, terminals, clearance | Can this assembly install and engage correctly? |
Cranking file | Battery state, loaded voltage drop, control command, speed, temperature, engine load | Why does the system crank slowly or not at all? |

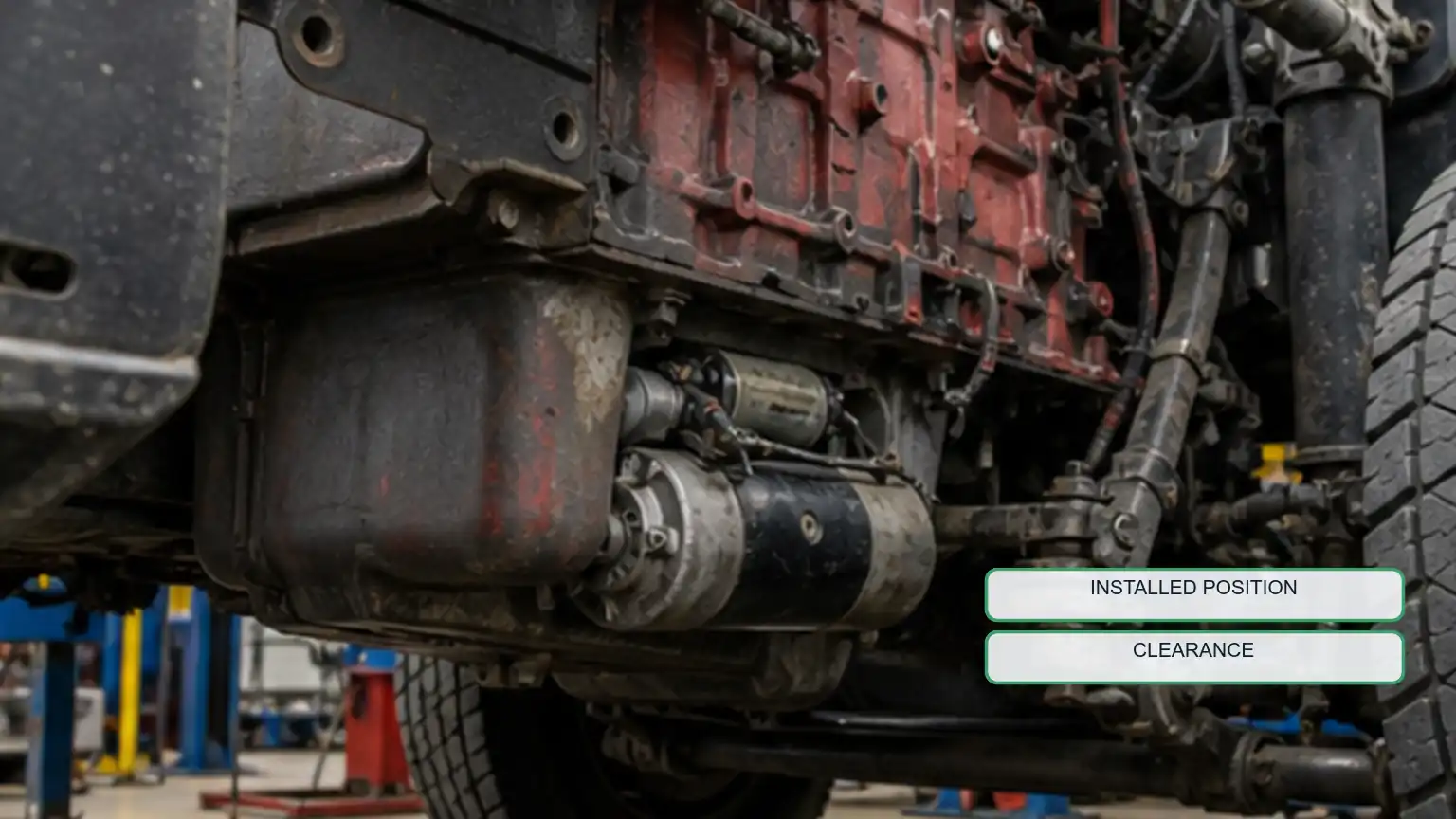

Large heavy-duty starter mounted low on an inline-six diesel engine with frame, cables, and surrounding clearance visible.
Retrieve the service path from the complete engine serial in Cummins QuickServe or the current authorized information. Record the host vehicle or machine, system voltage, flywheel-housing context, and any overhaul or repower history. Photograph the starter in place before cables, spacers, heat shields, and brackets are disturbed.
Include the exhaust, frame, oil pan, steering, and harness areas around the starter. Record whether the solenoid and B+ terminal can be serviced without contact, whether the cables reach without tension, and whether a ground path is intentionally insulated or case-grounded. These details may separate candidates that share a similar mounting nose.

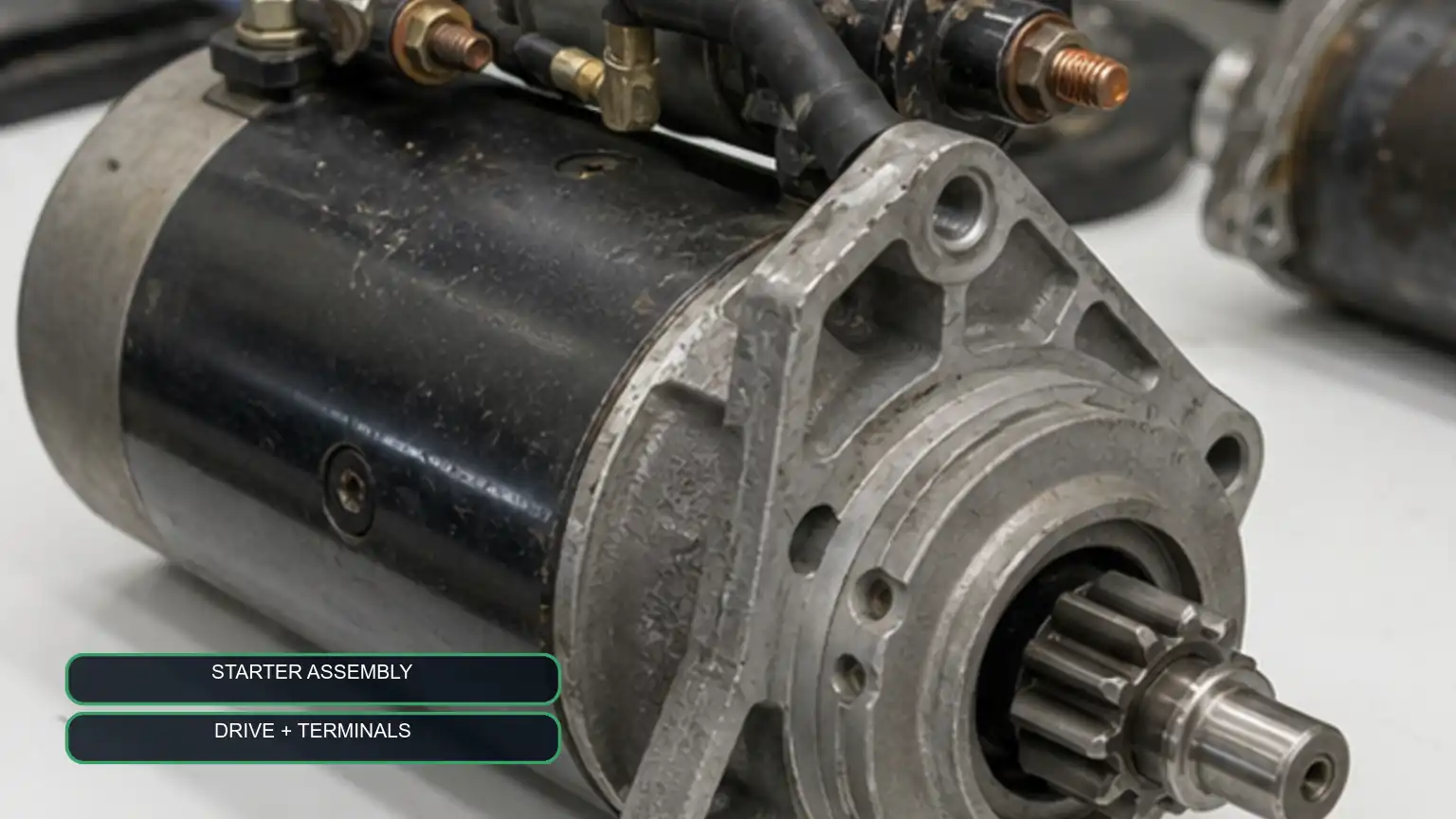

Removed heavy-duty starter motor on a bench with drive-end housing, pinion, solenoid, and power terminals fully visible.
Photograph the full label, drive end, flange, solenoid, terminal end, and any spacers. Transcribe the complete assembly number, voltage, and other declared fields exactly. Treat raised numbers on the nose or motor body as component evidence unless current manufacturer documentation defines them as finished-unit references.
Record mounting-hole pattern, pilot diameter, flange thickness, register depth, pinion tooth count and outside diameter, pinion rest position, and the distance from the mounting datum to the drive. Use a defined datum and show the gauge in the photograph. Do not declare universal tolerances; compare the specified service assembly and the measured installation.

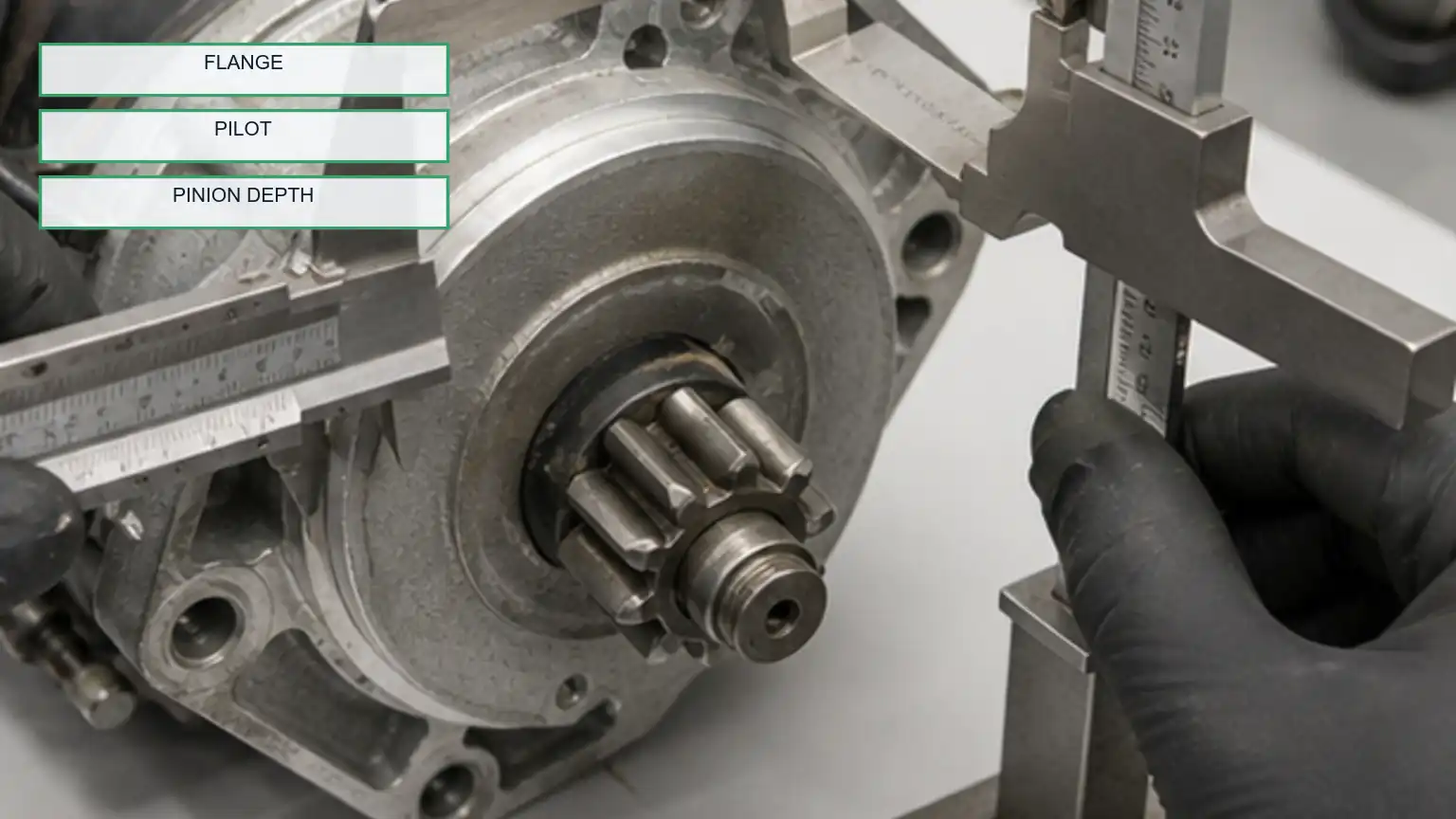

Heavy-duty starter mounting flange, pilot, and pinion position measured with calipers and a depth gauge.
Begin with battery condition, state of charge, cable size and integrity, terminals, master switches, grounds, and the control path. Measure voltage drop across the defined positive, negative, and control segments while the circuit is loaded and record cranking speed and temperature. A resistance that is invisible with an ohmmeter can become decisive at starter current.

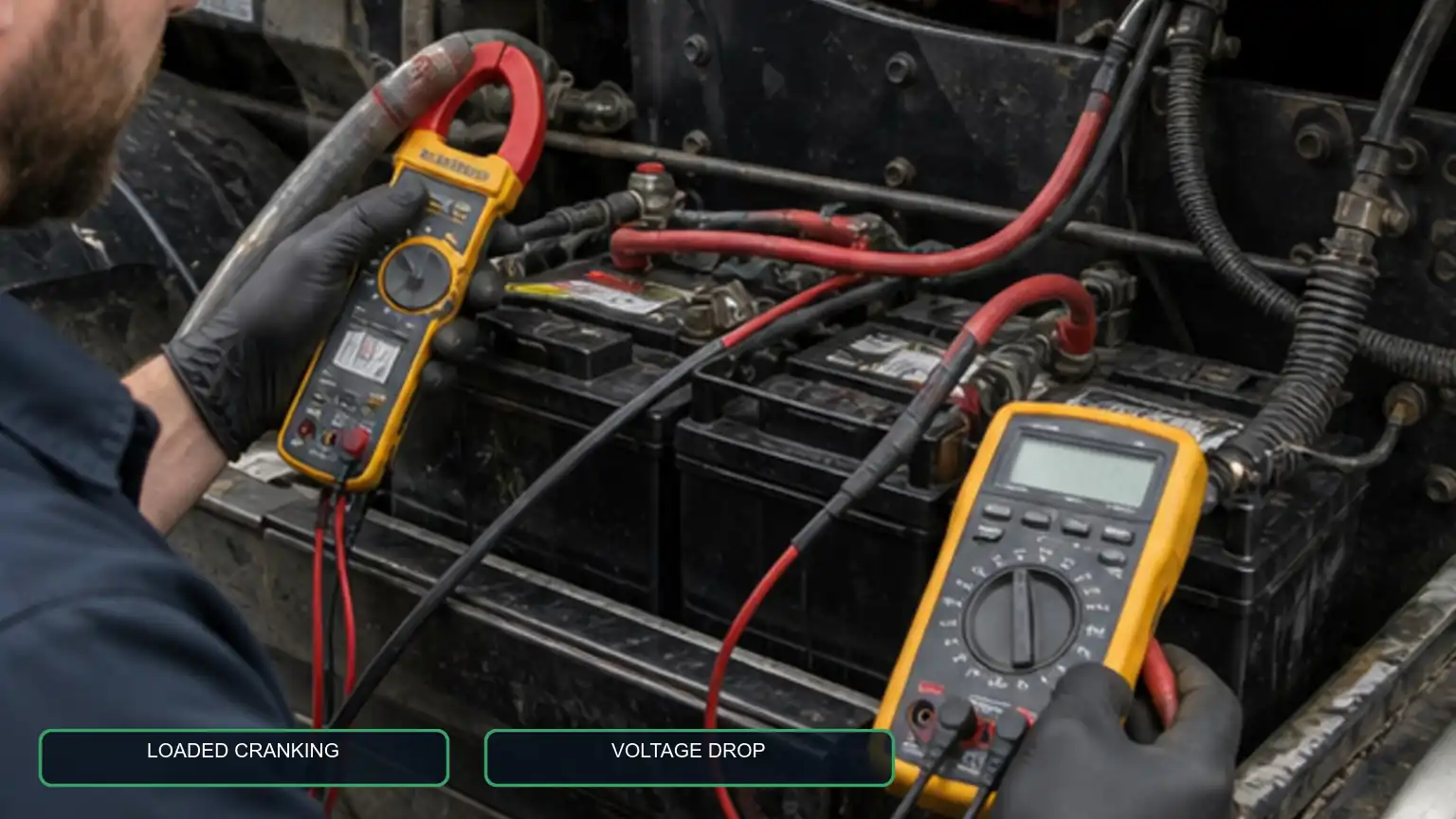

Technician using a clamp meter and multimeter on a heavy-truck battery bank during a controlled cranking test.
Cummins CFP11E operating guidance warns against extended starter engagement and specifies a pause between attempts for that application. Use the exact procedure for the M11 installation in front of you rather than importing those times as universal M11 limits. The principle is still important: repeated long cranking can heat the starter and distort the evidence you are trying to collect.
If batteries and voltage-drop paths satisfy the service procedure but cranking remains abnormal, keep mechanical engine load, fluid condition, accessory drag, and temperature in the diagnostic scope. A current draw value without speed, voltage, temperature, and engine condition is incomplete.
Compare the candidate to the approved fitment record before installation. Check the drive protection, flange, pilot, pinion, terminals, voltage, rotation, and solenoid orientation. Follow the service procedure for installation and any required inspection of ring-gear teeth. Stop if the unit needs forced alignment, improvised washers, cable stretching, or housing contact.
After installation, record cranking voltage, speed, sound, engagement and disengagement, cable temperature, and any follow-up inspection required by the fleet. A quiet first start is encouraging, but it is not a substitute for the evidence packet.
Use the current Cummins and vehicle maker's controlled diagnostic and parts procedures when they specify the exact starter and tests. This guide does not approve a voltage conversion, flywheel or bellhousing change, pinion modification, or bypass of starter protection. Those changes are system redesigns requiring separate engineering approval.
Complete engine serial and host application
System voltage, battery arrangement, and control-terminal map
Removed starter label and all-side photographs
Flange, pilot, pinion, rotation, clocking, and clearance evidence
Loaded voltage-drop and cranking-condition record
Quantity, destination, condition requirement, and sample gate
Use the Elecdura starter RFQ to send the fitment and cranking files together. The quotation can then distinguish the assembly match from the electrical or mechanical cause of the complaint.
No. The model narrows the engine family, while the complete engine serial and current Cummins parts information define the service path. Starter voltage, mounting nose, rotation, pinion, solenoid clocking, terminals, and application packaging can vary. Record the removed unit and bellhousing interface as well. If the engine record and installed starter disagree, investigate a repower, flywheel-housing change, or earlier repair before ordering a bulk quantity.
Fitment evidence asks whether the candidate can mount, engage, connect, and clear the installation correctly. Cranking evidence asks whether the batteries, cables, grounds, control circuit, starter, and engine load produce acceptable behavior under the defined test. A starter can be the correct part but crank slowly because of voltage drop or weak batteries. Conversely, good cable voltage does not prove the nose, pinion, rotation, or terminal layout is compatible. Close both files independently.
Resistance faults often become visible only when starter current is flowing. An unloaded continuity check or battery voltage at rest can miss corroded connections, damaged cables, weak grounds, or contact resistance that collapses voltage during cranking. Follow the vehicle or engine service procedure, place the meter across the defined segment, and record cranking speed, battery state, temperature, and the reading together. Do not use one universal limit when the controlled service information specifies the method and threshold.
A bench spin can support basic rotation and solenoid movement under the fixture's stated voltage and load, but it cannot prove pinion engagement with the installed ring gear, bellhousing clearance, cable performance, hot cranking, control-circuit behavior, or the engine's mechanical cranking load. Treat it as one component observation. Installation approval still needs the mechanical interface record, electrical match, controlled cranking test, and follow-up inspection for abnormal noise or tooth contact.
Keep the full engine identity, removed and installed starter numbers, flange and pinion measurements, voltage and rotation, terminal map, installed-clearance photographs, supplier reference, and controlled cranking results. Record any approved spacer, bracket, or harness condition rather than hiding it. If the first unit succeeded only after an undocumented modification, it is not a stable repeat-order standard. A retained sample or complete photo-and-measurement packet gives receiving inspectors something more reliable than an old invoice.
