Direct answer: Do not condemn DT466 HEUI injectors from a hard-start, no-start, rough-run, or low-power symptom alone. First prove base engine-oil level and condition, cranking speed and battery support, fuel supply, and the high-pressure oil system's ability to build and control pressure under the applicable service test. Then use electrical checks and cylinder-specific contribution evidence to identify whether one unit, several units, or a shared system is responsible. If injectors are removed, preserve each one by cylinder in a clean bag and keep the diagnostic record attached to it.
The decision matters to fleets, diesel workshops, rebuilders, and distributors because a shared HEUI actuation problem can look like multiple bad injectors. The Elecdura diesel fuel injector category is a sourcing path only after the system and exact service identity have been established.
Write down exactly when the complaint occurs: overnight cold start, hot restart, extended crank, idle only, loaded acceleration, or an intermittent shutdown. Record ambient, oil, and coolant temperature where available. A symptom that changes with oil temperature or cranking speed should keep the high-pressure oil and electrical branches open.
Observation | Diagnostic direction | Premature conclusion to avoid |
|---|---|---|
All cylinders affected during cranking | Base oil, high-pressure oil, fuel supply, command, cranking speed | Six injectors failed together |
One repeatable weak cylinder | Harness, connector, compression, oil actuation, injector | The injector alone is proven |
Cold/hot behavior changes | Temperature-sensitive leakage or electrical condition | A room-temperature inspection closes the fault |

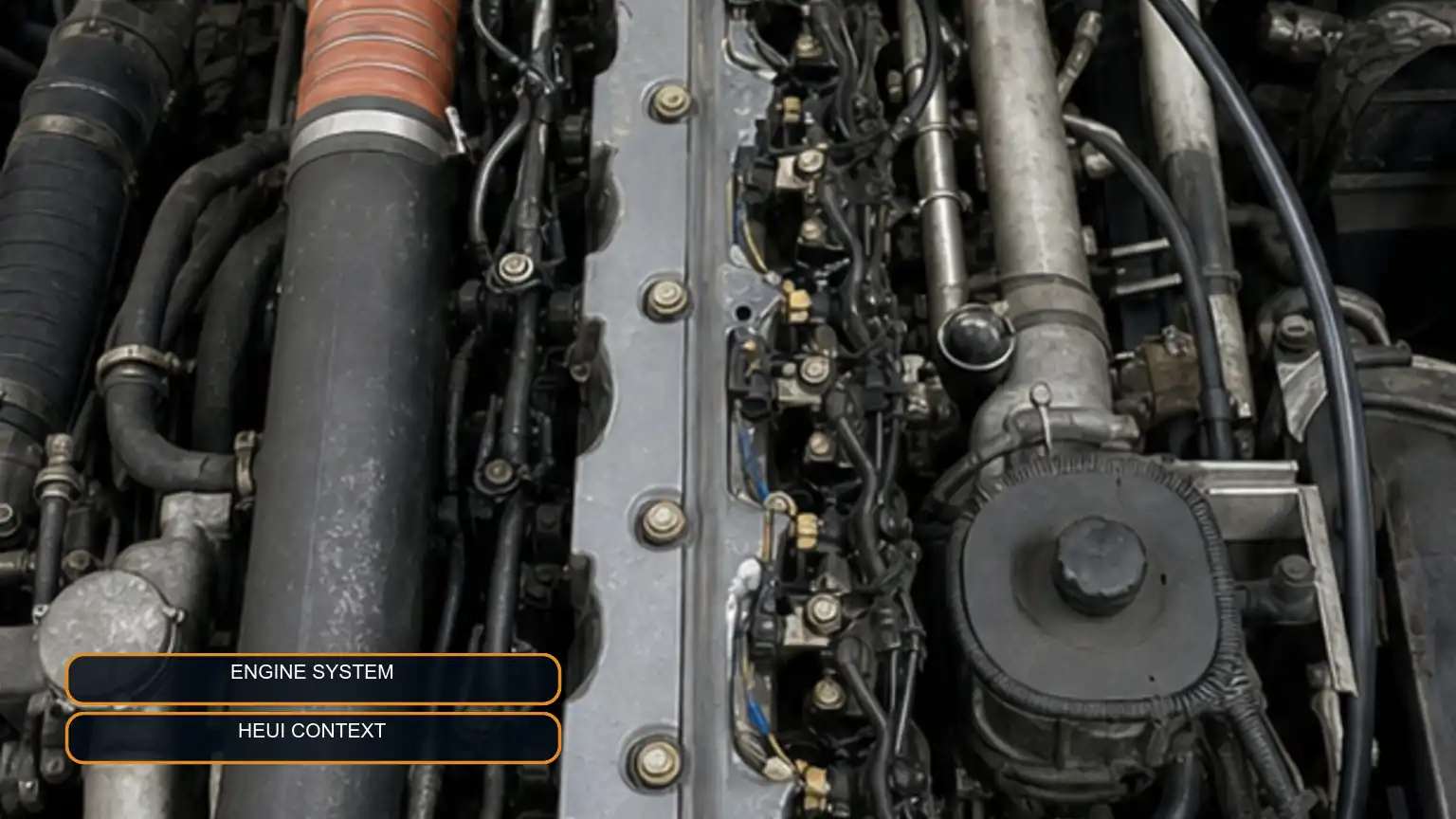

Inline-six medium-duty diesel engine viewed from above with the injector and high-pressure oil system area exposed for diagnosis.
Use the current International service information for the exact engine generation. Confirm oil level and appropriate condition, battery state, cable integrity, and cranking speed before interpreting pressure. Check the low-pressure fuel supply and air intrusion through the applicable procedure. A weak electrical supply or missing oil feed can suppress the whole system.
Record the relevant sensor and control data during the actual failure condition, not only after the engine starts. Inspect the pressure-control circuit, harness, connectors, oil leaks, and components identified by the service fault tree. Use approved gauges, adapters, and safety practices. Do not substitute a generic pressure target or randomly replace a control valve because one scan value appears low.

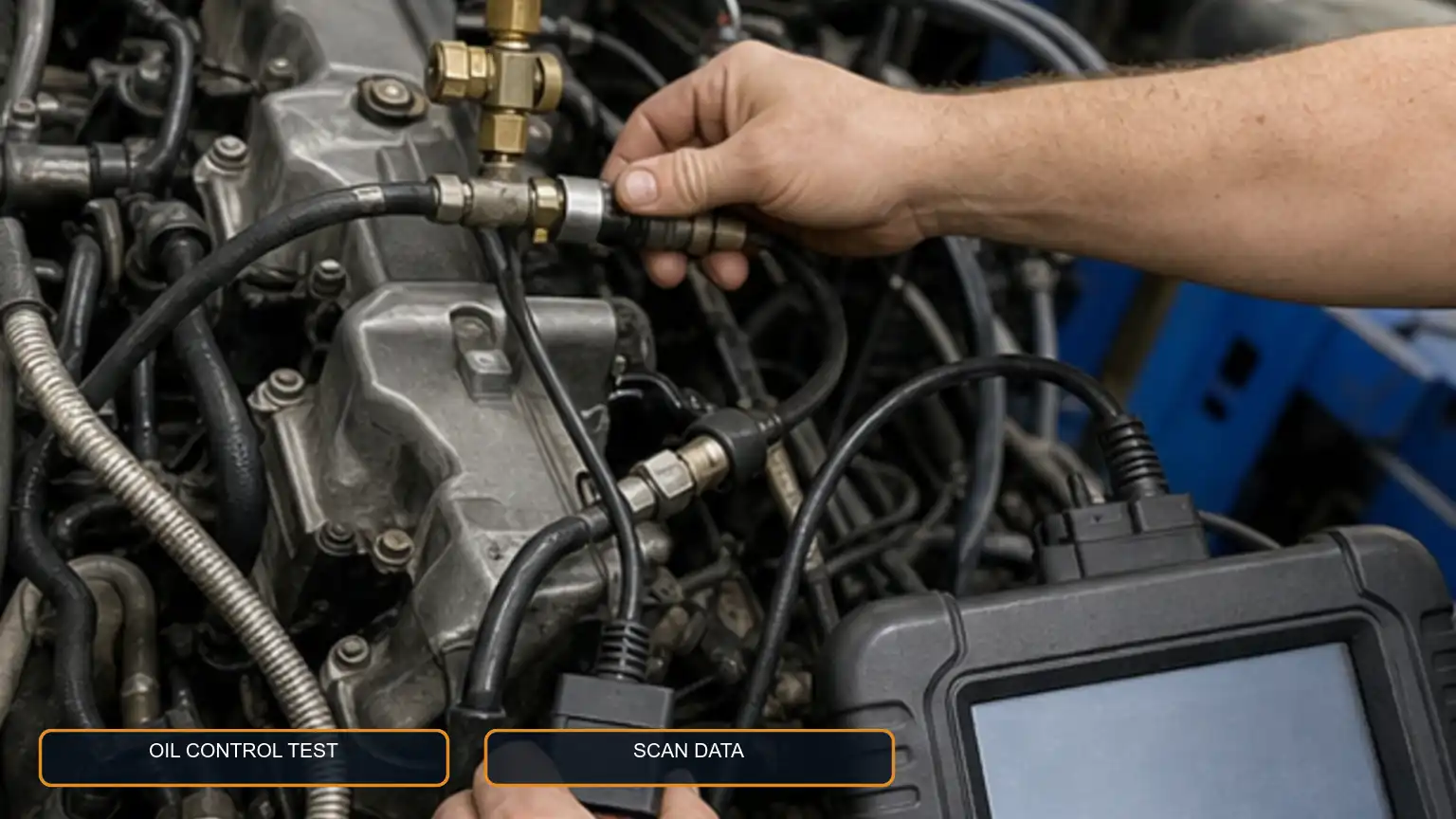

Technician connecting a pressure gauge and diagnostic scan tool while testing a medium-duty diesel high-pressure oil circuit.
Once the shared oil, fuel, electrical, and control conditions satisfy the service procedure, use repeatable cylinder contribution, cutout, balance, or other specified tests to rank suspect cylinders. Run the same method under the same temperature and operating state when comparing results.
Inspect the under-cover harness and connector contact without damaging terminals. Review compression or mechanical evidence when the service path calls for it. A weak contribution can come from an injector, but also from compression, valve, harness, oil delivery, or other cylinder conditions. Require at least two compatible evidence streams before ordering a quantity larger than the proven need.

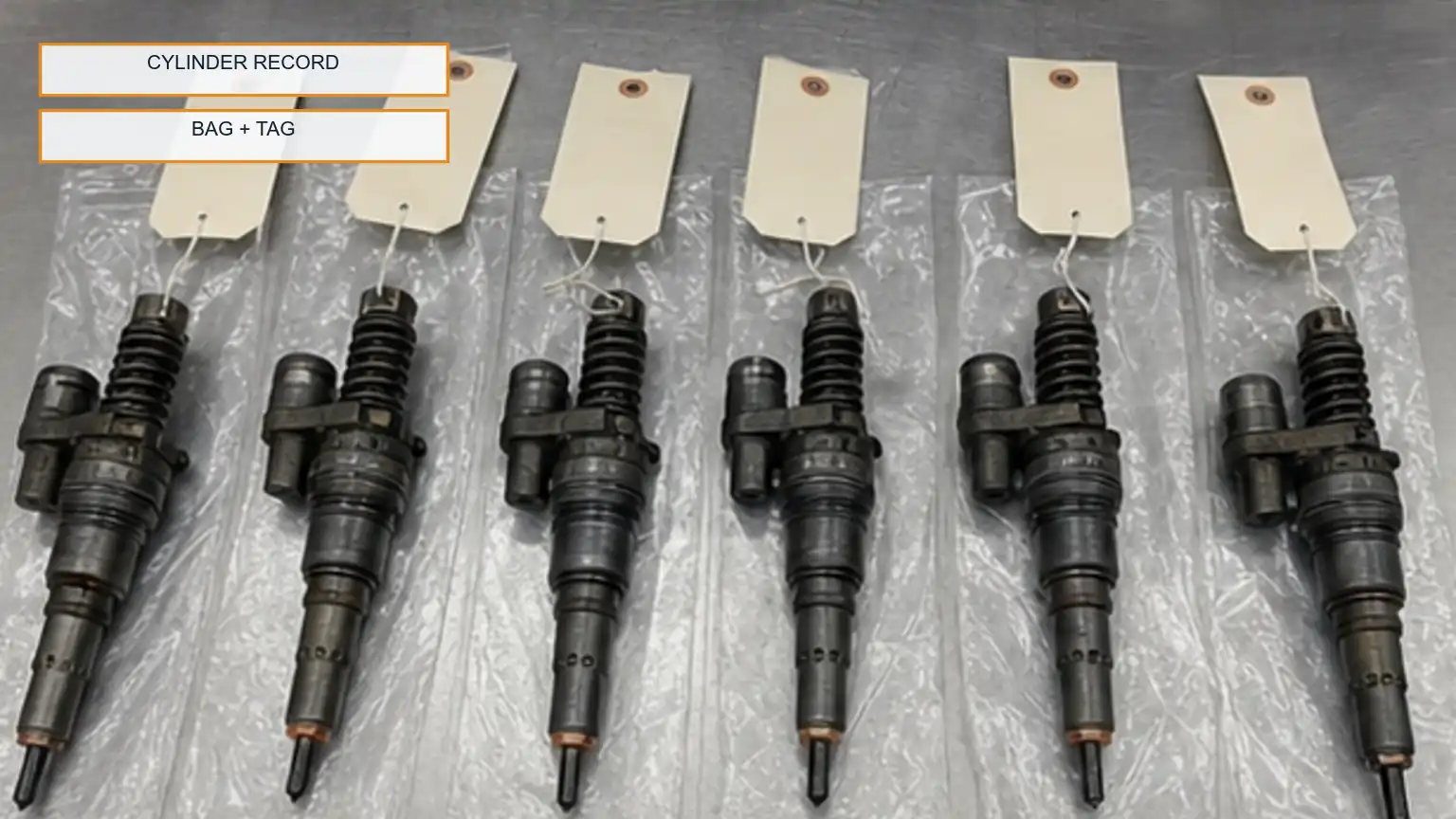

Six removed HEUI-style injectors isolated by cylinder on a clean bench for traceable diagnosis and contamination control.
International's current injector-tool page describes moving to a bag-and-tag cleanliness method. Place each removed unit into a new, clean, separate bag and identify its cylinder position immediately. Photograph deposits, seals, connector, hold-down contact, and tip condition before cleaning. Record which seals and hardware were removed from which bore.
Do not line six injectors together without cylinder identity. Mixing them removes the ability to correlate a later bench result or visible condition with the original engine behavior. Protect open bores and oil or fuel passages according to the service procedure.

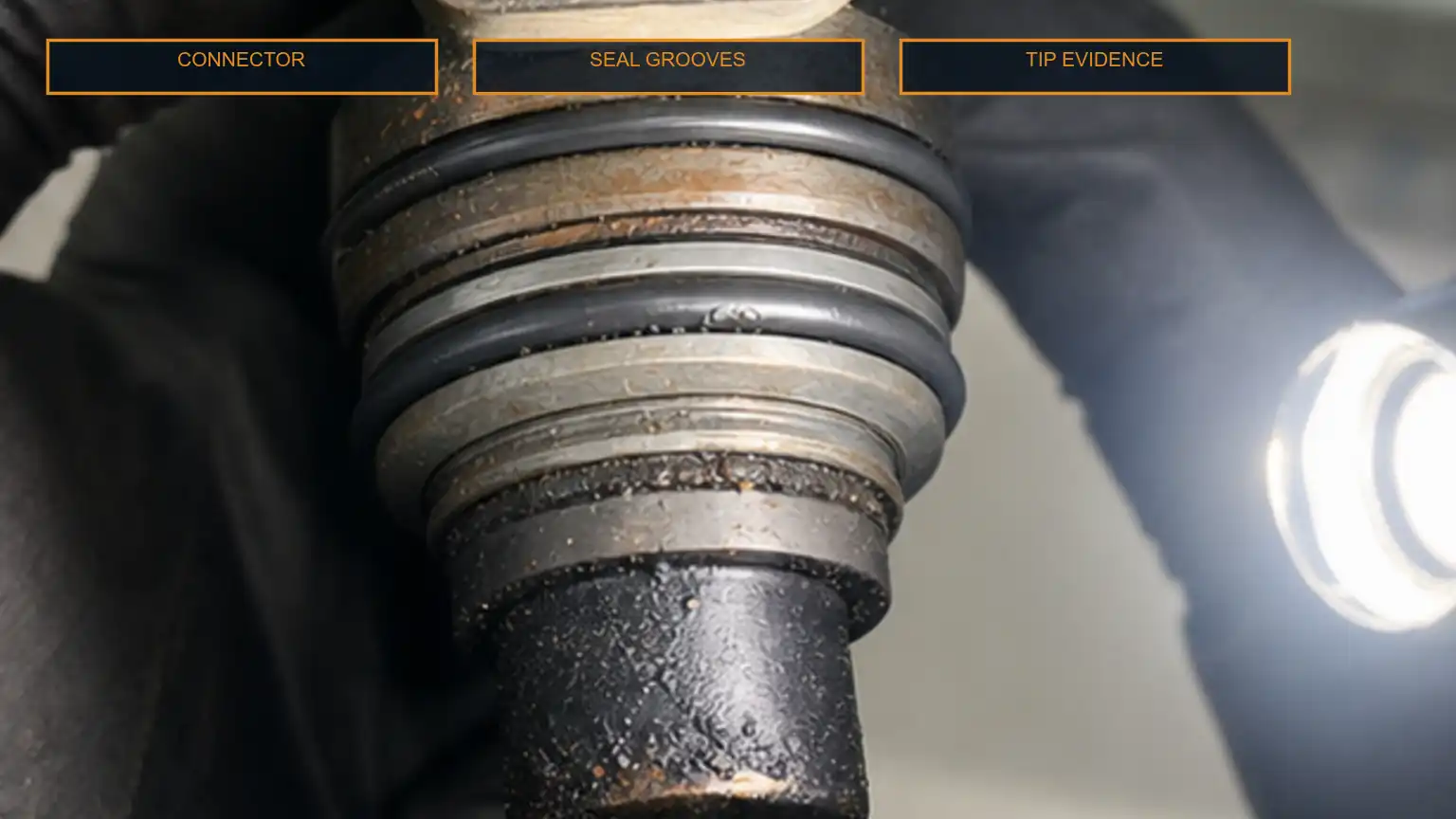

Macro inspection of a HEUI-style injector electrical connector, upper seal grooves, and tip condition under controlled lighting.
Confirm the complete injector service number, supersession status, electrical connector, body and hold-down interfaces, seal arrangement, nozzle or tip configuration, and declared condition. An off-engine report should name the equipment, test plan, limits, temperature, fluid, and results for the exact unit. Bosch's test-equipment documentation illustrates why database-driven test values and injector-specific information matter; a generic pass stamp is not enough.
Separate three questions in the purchase file: Does the unit fit this engine and calibration? Did the stated test find a component fault? Does the lot match the approved service identity and condition? One answer cannot substitute for the others.
Follow the exact International diagnostic procedure whenever a current service fault code, campaign, or engine-specific test directs a different sequence. This article does not provide universal pressure limits, authorize opening a high-pressure system unsafely, or replace engine-side compression and electrical diagnosis. It also does not turn a visual tip inspection into a performance test.
Engine serial, build year, calibration or service context
Cold and hot symptom record with cranking condition
Base-oil, high-pressure oil, fuel, and electrical test results
Cylinder contribution and independent mechanical or harness evidence
Exact removed-injector numbers and cylinder positions
Required quantity, declared condition, destination, and test-report expectations
Send Elecdura the engine identity, cylinder-by-cylinder record, exact injector numbers, test evidence, quantity, and destination through the injector RFQ page. A defensible quotation should preserve service identity and explain any proposed supersession.
Yes. HEUI operation depends on engine oil being supplied, pressurized, controlled, and delivered to the injectors. A leak, supply problem, control-valve problem, sensor or wiring issue, or temperature-sensitive loss can affect all cylinders and create hard-start, no-start, or weak-power symptoms. Record the applicable service-test results before removing injectors. If the shared actuation system cannot meet the required condition, replacing individual units first destroys useful evidence and may leave the original complaint unchanged.
Oil viscosity, internal leakage, electrical resistance, and connector behavior can change substantially with temperature. A truck that starts cold but not hot may follow a different diagnostic branch from one that fails after an overnight soak. Record oil and coolant temperature, cranking speed, battery condition, pressure behavior, command and sensor data, and cylinder symptoms at the time of failure. A room-temperature bench observation cannot be treated as proof of the same behavior inside a hot engine.
A contribution or cutout result shows how engine speed or smoothness responds when a cylinder is disabled under the stated operating condition. It helps rank cylinders, but it does not identify the injector as the sole cause. Compression, valve condition, harness faults, connector contact, oil actuation, fuel supply, and mechanical problems can produce a weak response. Correlate the result with service diagnostics and repeat it under a controlled condition before converting one data point into a replacement quantity.
Keep each injector tied to its cylinder position from the moment it is removed. International now describes a bag-and-tag cleanliness method: place each unit in a new clean separate bag and identify the cylinder. Protect the tip, seals, and connector; do not mix units on a dirty bench or clean away useful deposits before photographs. Record why each unit was removed and which tests led to that decision so a later inspection can be interpreted in context.
No. A test is meaningful only when the injector identity, test plan, fluid, temperature, equipment, limits, and calibration context are defined. Different injector generations and service numbers may require different procedures. A report can support leakage, delivery, or electrical conclusions under its stated method, but it cannot prove correct engine fitment or eliminate engine-side oil, harness, compression, and control faults. Verify the exact service number and current application before using the result for a bulk purchase.
