An electronically controlled viscous fan clutch can remain partly engaged, fail to reach commanded speed, respond slowly, or report an incorrect speed signal. The resulting complaint may be overheating, excessive noise, fuel use, weak A/C cooling, or an intermittent fault code, yet the clutch is only one part of the control loop.
A useful test compares desired fan speed, PWM command, actual speed, engine speed, coolant and charge-air temperatures, harness condition, and mechanical drag under a stabilized load. Command percentage alone is not a pass because different systems use different signal polarity, frequency, and fail-safe logic. Buyers can use the Elecdurauto fan clutch category to organize reference and application research while the workshop keeps measured evidence in control of the final decision.
This guide helps fleet workshops and parts buyers test the complete command-and-feedback path, understand response delay, verify cooling capacity, and release the correct fan clutch reference.
Identify clutch type, system voltage, PWM or discrete command, signal polarity, expected frequency, speed sensor, connector pinout, ECU strategy, and mechanical fan specification. Before testing, the warranty analyst ties command type to a named vehicle, engine, or bench configuration. That baseline gives control architecture, pwm waveform, speed feedback, viscous response lag, fail-safe behavior, cooling load, and commissioning evidence a measurable starting point and prevents a convenient no-load observation from defining the entire fan clutch case.
Establish command type first, then compare PWM frequency and polarity while the original complaint is reproduced. Use speed-feedback circuit to challenge the first interpretation and retain fan and clutch reference as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why command type represents the starting state and how PWM frequency and polarity changes when the suspected failure appears. If speed-feedback circuit points elsewhere, the diagnosis stays open. fan and clutch reference becomes the reference used to compare the removed unit, approved sample, and later production lot.
command type: capture the initial value and the exact operating condition.
PWM frequency and polarity: compare the response before and during the complaint.
speed-feedback circuit: use an independent observation to test the first theory.
fan and clutch reference: preserve the reference with date, instrument, and reviewer.
A reversed-duty interpretation can make a healthy clutch appear failed or cause an unsafe full-speed command. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded fan clutch behavior describe the same event.
Sign the map the fan-drive control architecture baseline against the complaint, fan clutch identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Inspect fan blades, shroud, hub, bearing, clutch leakage, mounting, wiring clearance, cold drag, interference, and evidence of overheating or impact. This stage converts the initial observation into a controlled test route. The fleet electrician prepares blade and shroud clearance, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure bearing condition at the first defined point, then recheck silicone leakage after the fan clutch reaches the second condition. cold drag should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
For verify mechanical condition before active commands, the test sheet should let a second technician rebuild the same arrangement. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
blade and shroud clearance: define the pre-test state and preparation method.
bearing condition: log the first controlled response with its unit and tolerance.
silicone leakage: repeat at the second condition without changing unrelated variables.
cold drag: note the deciding observation and any remaining ambiguity.
Electrical commands should not be applied to a cracked fan, loose hub, rubbing shroud, or mechanically unsafe drive. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close verify mechanical condition before active commands only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

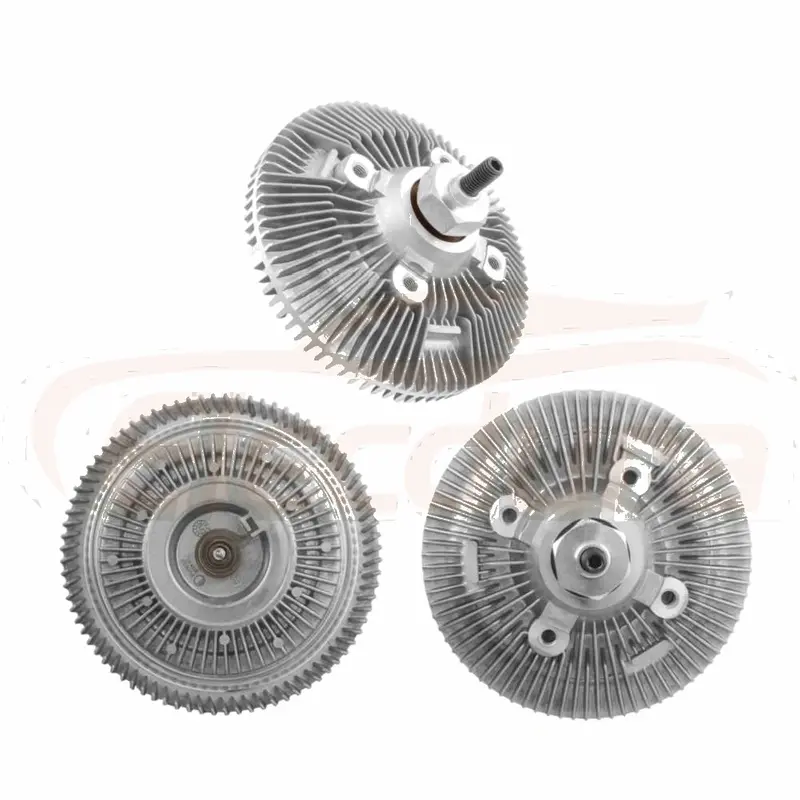

0002006823 Fan Clutch Wholesale Supplier 800 800 provides a physical reference for the opening application discussion.
Back-probe safely and record supply, ground, PWM amplitude, frequency, duty cycle, connector tension, and voltage drop while comparing scan-tool desired speed. The purpose here is pattern recognition rather than collection of isolated numbers. The bench technician aligns signal amplitude, duty cycle, loaded supply voltage, and desired fan speed on one time line so the sequence of the fan clutch response remains visible.
Interpret signal amplitude together with duty cycle; either item alone can support several causes. Compare their timing with loaded supply voltage, then use desired fan speed to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong capture pwm command and supply integrity report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
signal amplitude: retain the unedited trace, image, or measured sequence.
duty cycle: mark the feature that changes with the complaint.
loaded supply voltage: compare the same feature under a control condition.
desired fan speed: state which cause the combined pattern supports or excludes.
A valid ECU request at the module does not prove that the same waveform reaches the clutch through a damaged harness. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the fan clutch changed.
Release capture pwm command and supply integrity when the saved pattern and control condition support one interpretation of the fan clutch behavior. Contradictory traces remain attached as open evidence.
Measure feedback frequency or scan data, calculate fan-to-engine ratio, check missing pulses and noise, and compare commanded steps after allowing the specified response time. This module examines how the fan clutch behaves after time, heat, load, or contamination has had an opportunity to act. The receiving inspector defines the exposure interval and tracks actual fan rpm before, during, and after that interval.
Correlate fan-to-engine ratio with feedback waveform rather than treating either value as a universal limit. Add response delay to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The compare actual fan speed with engine speed worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
actual fan rpm: establish the pre-exposure reference.
fan-to-engine ratio: capture the peak or worst-case behavior.
feedback waveform: compare the response at a fixed elapsed time.
response delay: document recovery and any permanent change.
Viscous engagement is not instantaneous, so the acceptance window must allow the exact system time to reach equilibrium without hiding a slow or weak response. A result outside the limit requires the surrounding system to be checked before the fan clutch is condemned. Approval waits until the stress route and recovery evidence agree.
Approve compare actual fan speed with engine speed after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference, the fan clutch product example can help a buyer compare visible interfaces and application clues. Product photography supports compare actual fan speed with engine speed, but it cannot replace the controlled readings and documented limits required by this section.

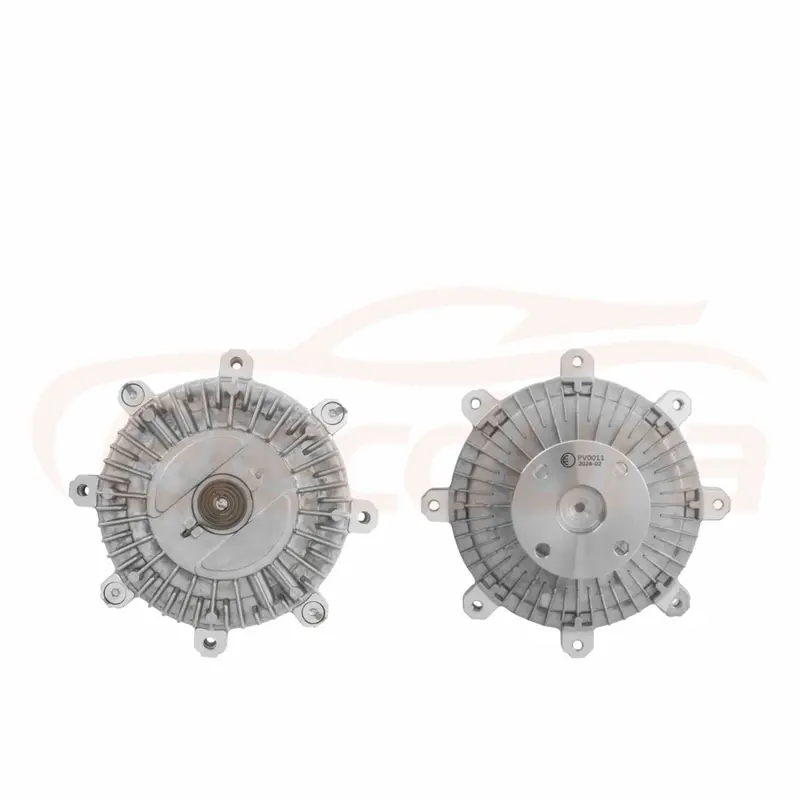

H10HE828 Fan Clutch Wholesale Supplier 800 800 supports the first technical inspection module.
Follow approved procedures to evaluate open-circuit or fault response, then load the cooling system through controlled temperature, A/C, grade, or dynamometer conditions while monitoring protection limits. Bench inspection now tests the internal or component-level theory developed on the machine. The technical buyer preserves the removed condition, cleans only what the method requires, and records fail-safe command before disassembly can erase useful evidence.
Quantify coolant temperature with equipment suited to its expected range, verify A/C head pressure through a second method where practical, and photograph load response beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact fan clutch family under review.
fail-safe command: preserve the as-removed condition and reference marks.
coolant temperature: record calibrated measurement and environmental correction.
A/C head pressure: confirm the suspected mechanism with a second observation.
load response: connect visible condition with the measured failure path.
A clutch that follows a stationary command may still lack torque or fluid control when the vehicle requires maximum cooling. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept test fail-safe and thermal-load behavior when as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Check coolant, intake, refrigerant, and pressure sensor plausibility, radiator and condenser restriction, shroud sealing, fan direction, belt or gear drive, and ECU protection logic. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The warranty analyst compares sensor plausibility and heat-exchanger restriction under the same demand before changing any component.
Use airflow direction to test the alternative explanation, then inspect control inhibit for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original fan clutch failure.
A cause map for separate clutch faults from sensors and airflow problems lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
sensor plausibility: define what this result would mean for the primary theory.
heat-exchanger restriction: compare the alternative component or system response.
airflow direction: run the discriminating check that separates both paths.
control inhibit: inspect the interface where one fault could imitate another.
The clutch should be condemned only after the requested speed and cooling demand are both valid and the airflow path can use the fan output. Replace the fan clutch only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass separate clutch faults from sensors and airflow problems after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

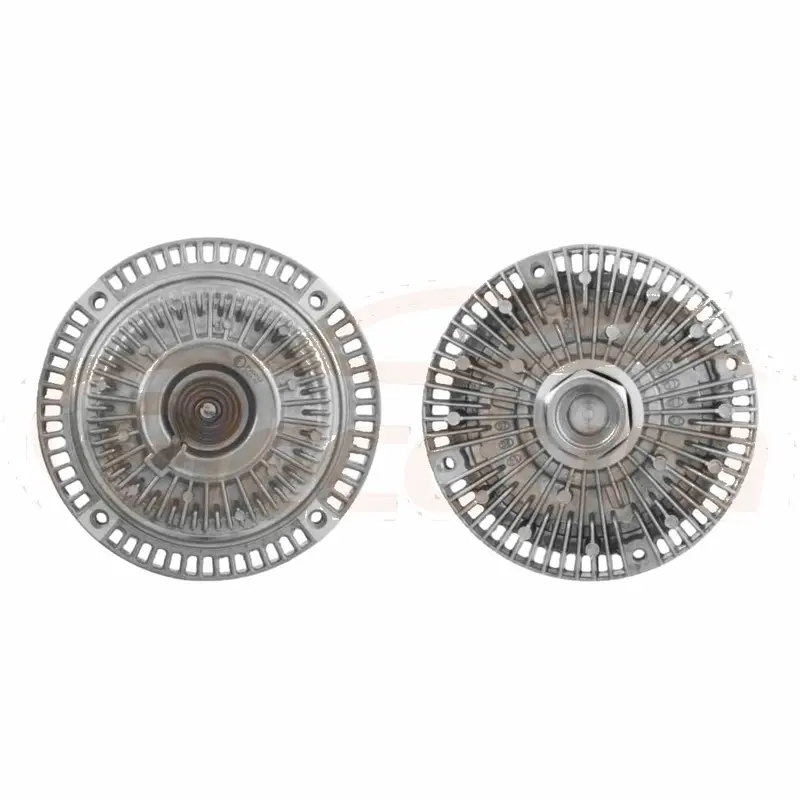

6C118C617CC Fan Clutch Wholesale Supplier 800 800 illustrates a mid-article fitment or test-control point.
Verify pilot, bolt pattern, offset, connector, fan compatibility, rotation, control strategy, then repeat step commands and real-load cooling checks with recorded temperatures and speeds. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The fleet electrician defines how mount and offset and connector match will be compared between the approved sample and production units.
Add command-response trace to expose changes that a label or catalogue cross-reference cannot show. Use fleet release record to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty duty cycle rather than an unspecified generic test.
The acceptance sheet for commission the replacement and preserve fleet evidence identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
mount and offset: define the release value and sampling method.
connector match: compare sample evidence with the incoming lot.
command-response trace: retain the technical record that exposes configuration drift.
fleet release record: trace approval, deviation, and claim decisions to one identity.
The accepted sample should define the physical and electronic reference used for later batch orders, receiving checks, and warranty review. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory fan clutch acceptance field.
Authorize commission the replacement and preserve fleet evidence through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.
Technical diagnosis becomes commercially useful when an RFQ carries the same identity and limits. A fan clutch inquiry should include the original reference, engine or vehicle, photographs, measured interfaces, operating symptoms, tested conditions, required quantity, destination, and expected reorder frequency. This prevents a broad catalogue match from replacing the evidence developed above.
State whether the requested fan clutch is new aftermarket, remanufactured, or another declared condition.
List mandatory electrical, hydraulic, air-path, or mechanical interfaces relevant to this fan clutch case.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.

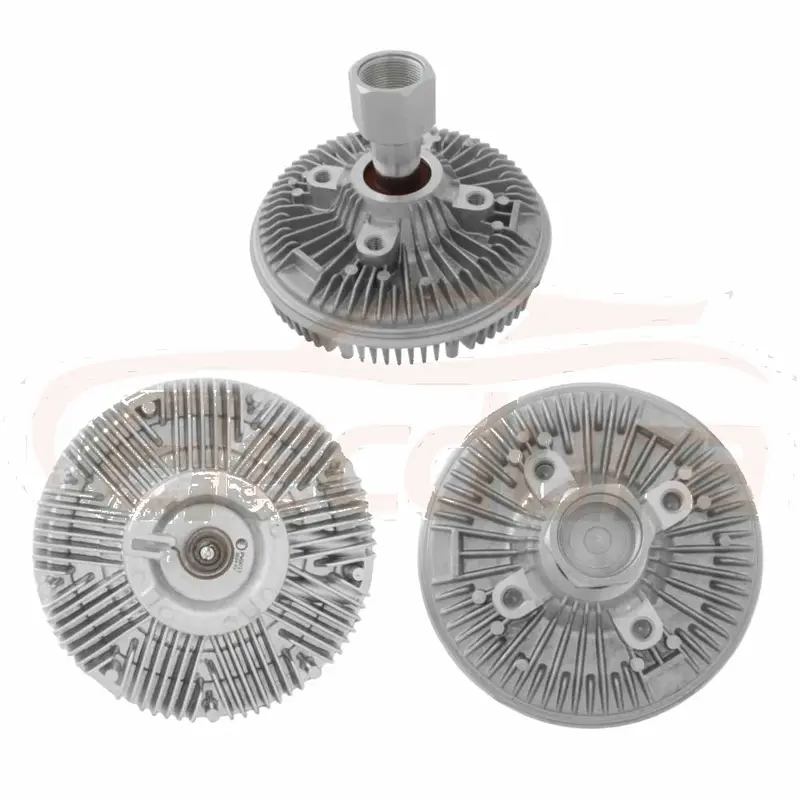

52123271 Fan Clutch Wholesale Supplier 800 800 supports the sourcing evidence and comparison discussion.
The approved fan clutch sample is useful only when its measurable configuration follows the purchase order into later shipments. Receiving should compare markings, connectors, mounting, visible construction, packaging, selected functional readings, and any promised documents. A changed configuration returns to technical review instead of entering fleet stock by habit.
Retain the approved fan clutch sample or a complete photo and measurement record.
Trace each incoming lot to the supplier declaration and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Feed field failures back into the same evidence route used for initial approval.

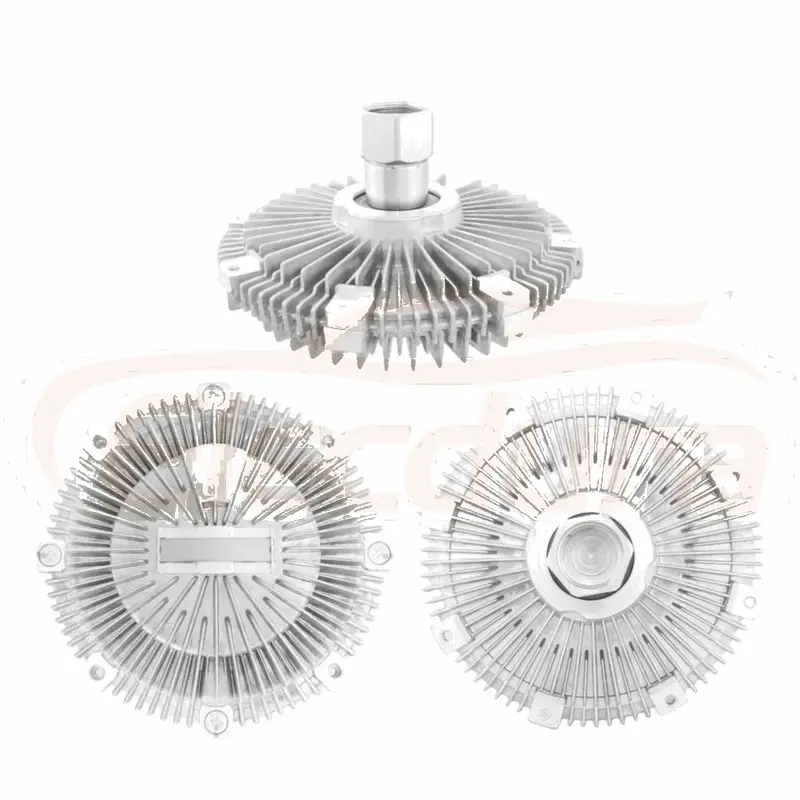

94716850 Fan Clutch Wholesale Supplier 800 800 provides a late-stage receiving or repeat-order reference.
A defensible fan clutch case file links the complaint, operating duty, removed-part markings, test setup, raw readings, photographs, interpretation, and unresolved questions. For this diagnostic workflow, that record should also identify which evidence came from the vehicle, the bench, the supplier, and the receiving team so later decisions do not mix unlike sources.
Identify the fan clutch, host vehicle or machine, duty cycle, and original complaint.
Attach measurements that support the investigation described above without rewriting raw results.
Name the person who accepted each fan clutch limit and the person who owns each open question.
Connect the approved sample, purchase order, supplier lot, and incoming inspection record.
Heavy-Duty Fan Clutch PWM Command and Speed-Feedback Testing works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
Importers and fleet buyers can review Elecdurauto company information, send the completed evidence through the B2B contact page, and use the Elecdurauto heavy-duty parts catalogue to connect the case with the appropriate product family. The quotation should answer the documented application rather than imply an unverified genuine or OE status.
