A diesel fuel filter can look clean and still restrict flow under full load. Conversely, a new filter can coincide with hard starting because a seal, check valve, drain, water sensor, hose, or priming step allowed air into the suction side.
The diagnostic distinction matters for common-rail systems: starvation reduces rail-pressure capability, while uncontrolled air entry can create unstable supply and repeated cranking. A replacement filter should not be condemned until restriction is measured at a defined flow and the complete low-pressure circuit is checked. Buyers can use the Elecdurauto component category to organize reference and application research; final selection still depends on the measured application record.
This workflow uses vacuum, differential pressure, transparent-line observations where approved, priming behavior, and controlled substitution to separate media loading from plumbing and service faults.
Restriction readings become more useful when the service team records the filter age and fuel history. A sudden rise after one refueling may indicate contamination, microbial debris, waxing, or tank disturbance; a slow rise over a normal interval may indicate expected media loading. The cause affects both corrective work and replacement inventory.
After priming, the technician should separate trapped service air from recurring ingress. A system that becomes solid and retains prime behaves differently from one that repeatedly produces bubbles, loses gauge pressure, or requires excessive cranking after every shutdown.
Record tank position, primary and secondary filters, water separator, lift pump, check valves, heater, sensor, return routing, hose sizes, and the manufacturer-approved restriction location. Before testing, the receiving inspector ties system diagram to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire fuel filter case.
Establish system diagram first, then compare filter stages while the original complaint is reproduced. Use pump location to challenge the first interpretation and retain test-port position as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why system diagram represents the starting state and how filter stages changes when the suspected failure appears. If evidence from pump location points elsewhere, the diagnosis stays open. Test-port position becomes the reference used to compare the removed unit, approved sample, and later production lot.
System diagram: Capture the initial value and the exact operating condition.
Filter stages: Compare the response before and during the complaint.
Pump location: Use an independent observation to test the first theory.
Test-port position: Preserve the reference with date, instrument, and reviewer.
The same gauge reading means different things upstream and downstream of the transfer pump. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded component behavior describe the same event.
Document system diagram against the complaint, component identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Zero the gauge, record clean baseline, engine speed, load, temperature, fuel level, vacuum or differential pressure, rail-pressure response, and the engine-maker limit. This stage converts the initial observation into a controlled test route. The technical buyer prepares baseline reading, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure full-load reading at the first defined point, then recheck fuel temperature after the component reaches the second condition. Published limit should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The fuel filter controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
Baseline reading: Define the pre-test state and preparation method.
Full-load reading: Log the first controlled response with its unit and tolerance.
Fuel temperature: Repeat at the second condition without changing unrelated variables.
Published limit: Note the deciding observation and any remaining ambiguity.
Restriction must be measured at the condition where the complaint occurs. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled fuel filter test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

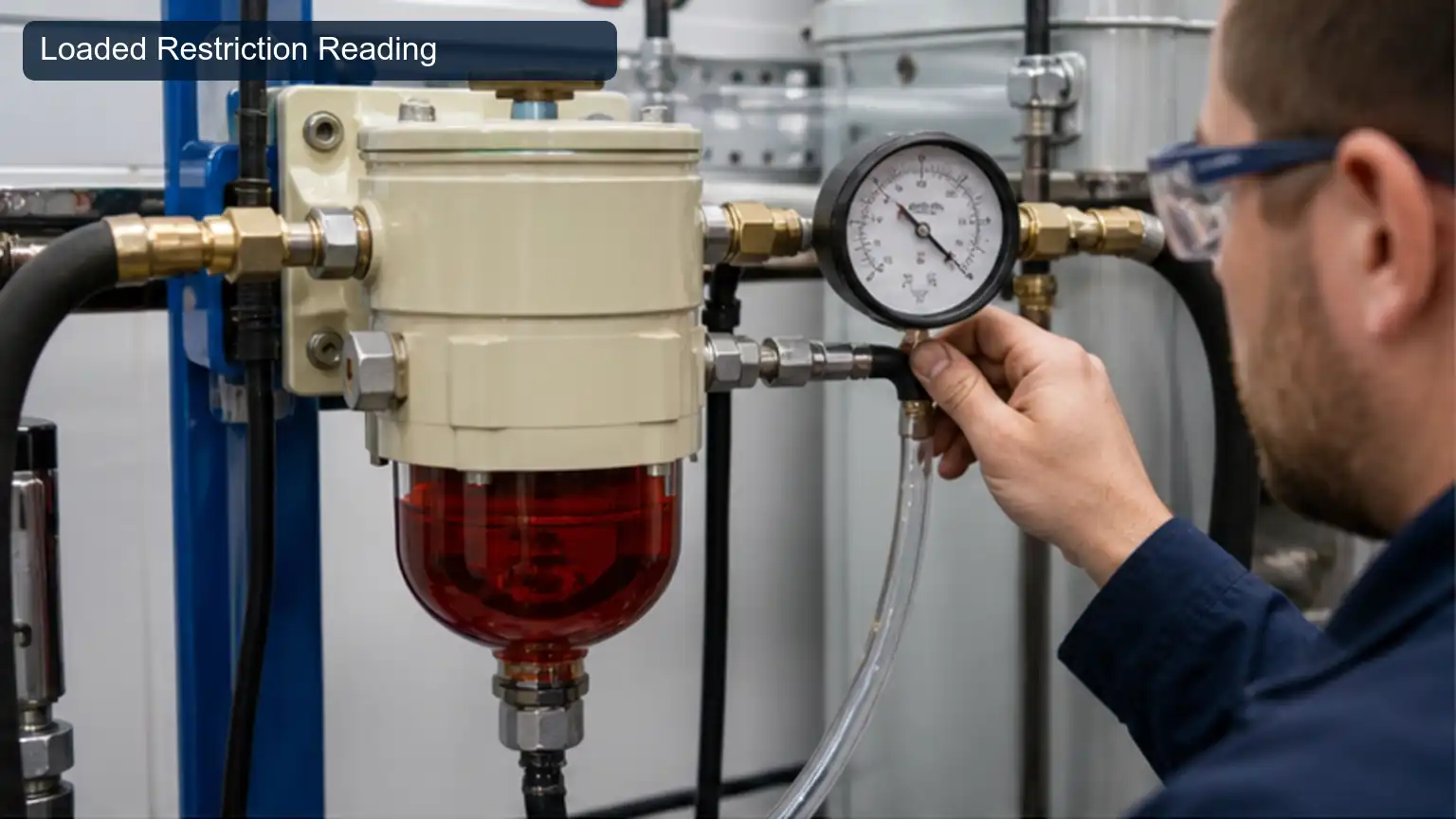

Loaded Restriction Reading documents the article's opening system context with a realistic component or workshop reference.
Check tank venting, pickup, hose collapse, sharp bends, debris, shutoff position, fittings, head cracks, seal lands, drains, sensors, and check-valve direction. The purpose here is pattern recognition rather than collection of isolated numbers. The warranty analyst aligns tank and pickup, hose integrity, filter-head seals, and valve orientation on one timeline so the sequence of the component response remains visible.
Interpret tank and pickup together with hose integrity; either item alone can support several causes. Compare their timing with filter-head seals, then use valve orientation to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong fuel filter report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
Tank and pickup: Retain the unedited trace, image, or measured sequence.
Hose integrity: Mark the feature that changes with the complaint.
Filter-head seals: Compare the same feature under a control condition.
Valve orientation: State which cause the combined pattern supports or excludes.
A clean element cannot overcome a blocked or air-leaking supply path. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the component behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the fuel filter evidence. Contradictory traces remain attached as open evidence.
Compare thread, gasket, standpipe, flow direction, micron and efficiency evidence, rated flow, water-separation function, sensor or drain, and declared application. This module examines how the component behaves after time, heat, load, or contamination has had an opportunity to act. The fleet electrician defines the exposure interval and tracks physical interface before, during, and after that interval.
Correlate media evidence with flow rating rather than treating either value as a universal limit. Add sensor and drain to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The fuel filter stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
Physical interface: Establish the pre-exposure reference.
Media evidence: Capture the peak or worst-case behavior.
Flow rating: Compare the response at a fixed elapsed time.
Sensor and drain: Document recovery and any permanent change.
A filter that installs may still create restriction or fail to seal the intended circuit. A result outside the limit requires the surrounding system to be checked before the component is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the fuel filter stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the fuel filter investigation, the component product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

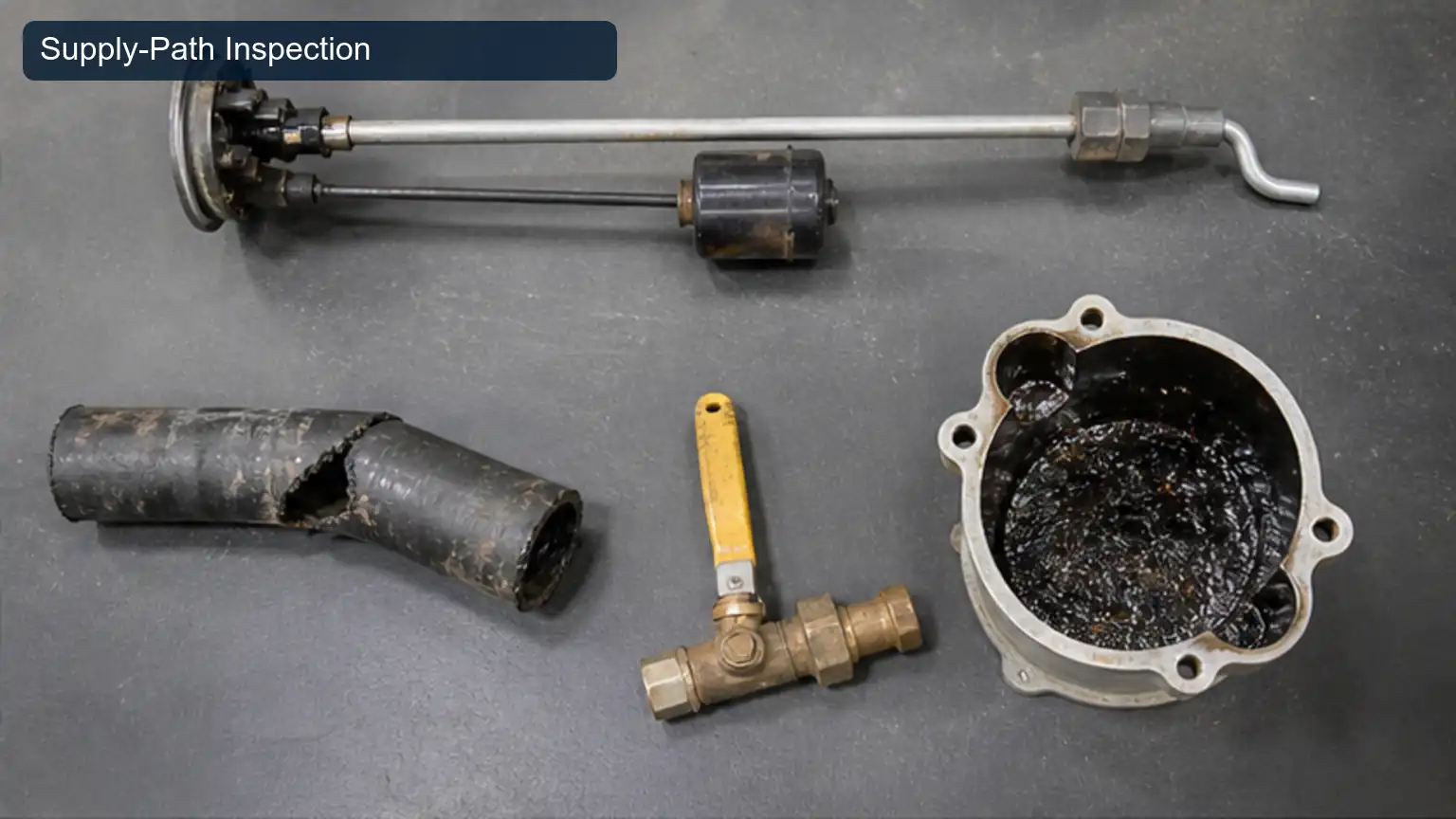

Supply-Path Inspection documents the article's first diagnostic or inspection module with a realistic component or workshop reference.
Use clean fuel or the specified hand or electric primer, vent only at approved points, preserve cleanliness, count strokes or time, and monitor whether pressure holds after priming. Bench inspection now tests the internal or component-level theory developed on the machine. The bench technician preserves the removed condition, cleans only what the method requires, and records approved priming route before disassembly can erase useful evidence.
Quantify cleanliness control with equipment suited to its expected range, verify hold pressure through a second method where practical, and photograph air recurrence beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact fuel filter case under review.
Approved priming route: Preserve the as-removed condition and reference marks.
Cleanliness control: Record calibrated measurement and environmental correction.
Hold pressure: Confirm the suspected mechanism with a second observation.
Air recurrence: Connect visible condition with the measured failure path.
Repeated loss of prime points to leakage or check-valve behavior rather than normal service air alone. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the fuel filter bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Repeat restriction and rail-pressure tests after correcting the circuit or fitting the approved filter, then check leaks, power recovery, hot restart, and overnight prime retention. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The receiving inspector compares the evidence for post-service restriction with the evidence for rail-pressure recovery under the same demand before changing any component.
Use leak check to test the alternative explanation, then inspect prime retention for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original component failure.
A cause map for the fuel filter decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
Post-service restriction: Define what this result would mean for the primary theory.
Rail-pressure recovery: Compare the alternative component or system response.
Leak check: Run the discriminating check that separates both paths.
Prime retention: Inspect the interface where one fault could imitate another.
The repair is valid only when both flow and starting behavior recover. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the fuel filter cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

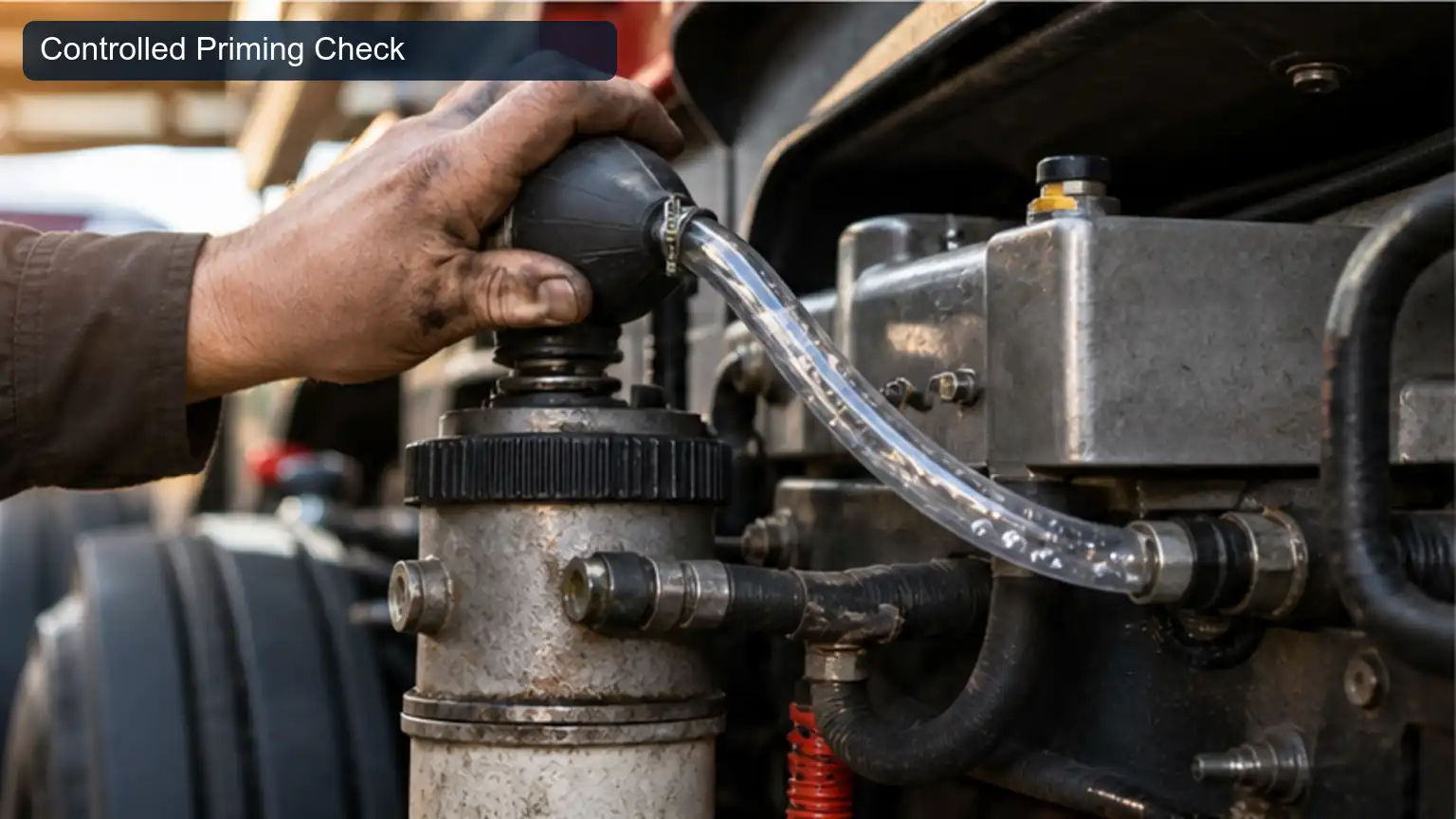

Controlled Priming Check documents the article's mid-article evidence module with a realistic component or workshop reference.
Retain the approved sample, dimensions, seal details, test evidence, packaging, caps, lot code, incoming sampling, and a quarantine trigger for changed construction. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The technical buyer defines how the approved sample and production units will be compared using approved sample and lot trace.
Add incoming check to expose changes that a label or catalogue cross-reference cannot show. Use change notification to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The fuel filter acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
Approved sample: Define the release value and sampling method.
Lot trace: Compare sample evidence with the incoming lot.
Incoming check: Retain the technical record that exposes configuration drift.
Change notification: Trace approval, deviation, and claim decisions to one identity.
Repeat orders must preserve the configuration that passed the vehicle test. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory component acceptance field.
Authorize fuel filter production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

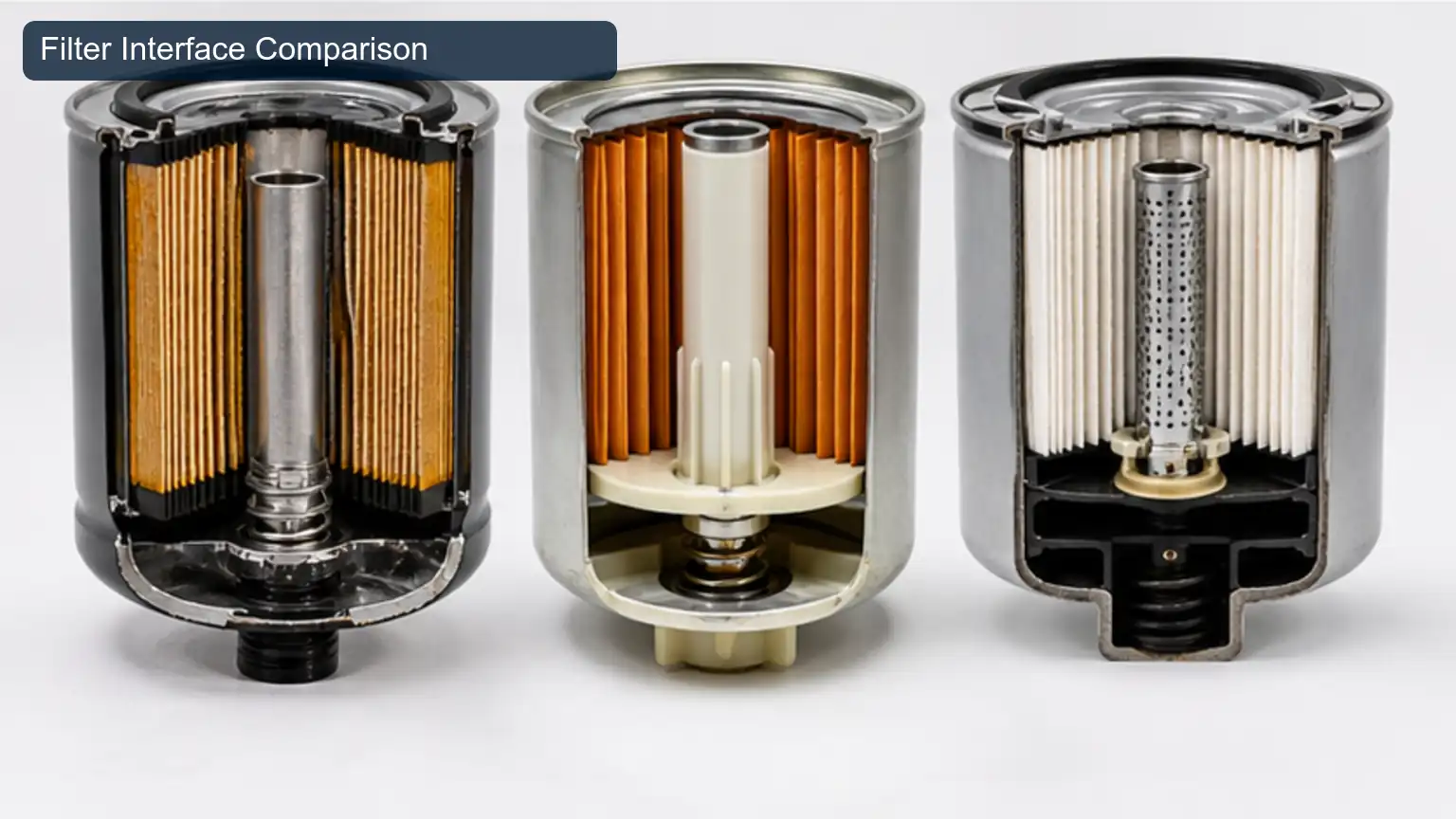

Filter Interface Comparison documents the article's final validation or release module with a realistic component or workshop reference.
Retain the approved component sample or a complete photo and measurement record for the fuel filter release.
Trace each incoming fuel-supply restriction lot to its supplier declaration, approved sample, and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Return each fuel-supply restriction field failure to the same measurements and acceptance route used for initial approval.
Identify the component, host vehicle or machine, duty cycle, and original complaint for the fuel filter investigation.
Attach the original fuel-supply restriction measurements, instrument settings, and operating conditions without rewriting the raw results.
Name the person who accepted each fuel filter limit and the person who owns each open question.
Connect the approved fuel-supply restriction sample with its purchase order, supplier lot, and incoming inspection record.
This fuel filter workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
Retain the fuel-system layout, approved test point, loaded restriction reading, filter identity, air-ingress evidence, controlled priming result, and post-service verification. These facts separate filter loading from a plumbing, seal, valve, or supply-pump fault.
