Starter overheating is usually the final symptom of an operating condition, not an isolated temperature problem. Long crank attempts, short recovery intervals, low battery voltage, excessive cable resistance, difficult engine rotation, incorrect voltage, pinion drag, and bypassed protection all convert electrical energy into damaging heat.
Heavy-duty replacement decisions become expensive when a burnt unit is exchanged without preserving the duty history and protection architecture. The new starter then enters the same uncontrolled cycle and may fail before the original warranty investigation closes. Buyers can use the Elecdurauto starter category to organize reference and application research; final selection still depends on the measured application record.
This audit combines timed crank evidence, voltage and current traces, external and internal heat patterns, OCP or intelligent protection behavior, engine-side checks, and repeat-order controls.
Capture attempt length, number of attempts, recovery time, ambient temperature, engine temperature, recent fuel or control faults, operator actions, and whether the starter released after each request. Before testing, the receiving inspector ties crank duration to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire starter thermal-damage case.
Establish crank duration first, then compare attempt count while the original complaint is reproduced. Use cool-down interval to challenge the first interpretation and retain release behavior as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why crank duration represents the starting state and how attempt count changes when the suspected failure appears. If evidence from cool-down interval points elsewhere, the diagnosis stays open. Release behavior becomes the reference used to compare the removed unit, approved sample, and later production lot.
crank duration: capture the initial value and the exact operating condition.
attempt count: compare the response before and during the complaint.
cool-down interval: use an independent observation to test the first theory.
release behavior: preserve the reference with date, instrument, and reviewer.
Thermal damage cannot be interpreted without the time history that created it. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded starter behavior describe the same event.
Document crank duration against the complaint, starter identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Load-test the battery bank and measure positive and ground drops while recording starter current and crank speed at the same time. This stage converts the initial observation into a controlled test route. The technical buyer prepares loaded battery voltage, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure cable drop at the first defined point, then recheck current after the starter reaches the second condition. Crank speed should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The starter thermal-damage controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
loaded battery voltage: define the pre-test state and preparation method.
cable drop: log the first controlled response with its unit and tolerance.
current: repeat at the second condition without changing unrelated variables.
crank speed: note the deciding observation and any remaining ambiguity.
Low delivered voltage can extend crank time and concentrate heat even when current readings appear confusing. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled starter thermal-damage test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

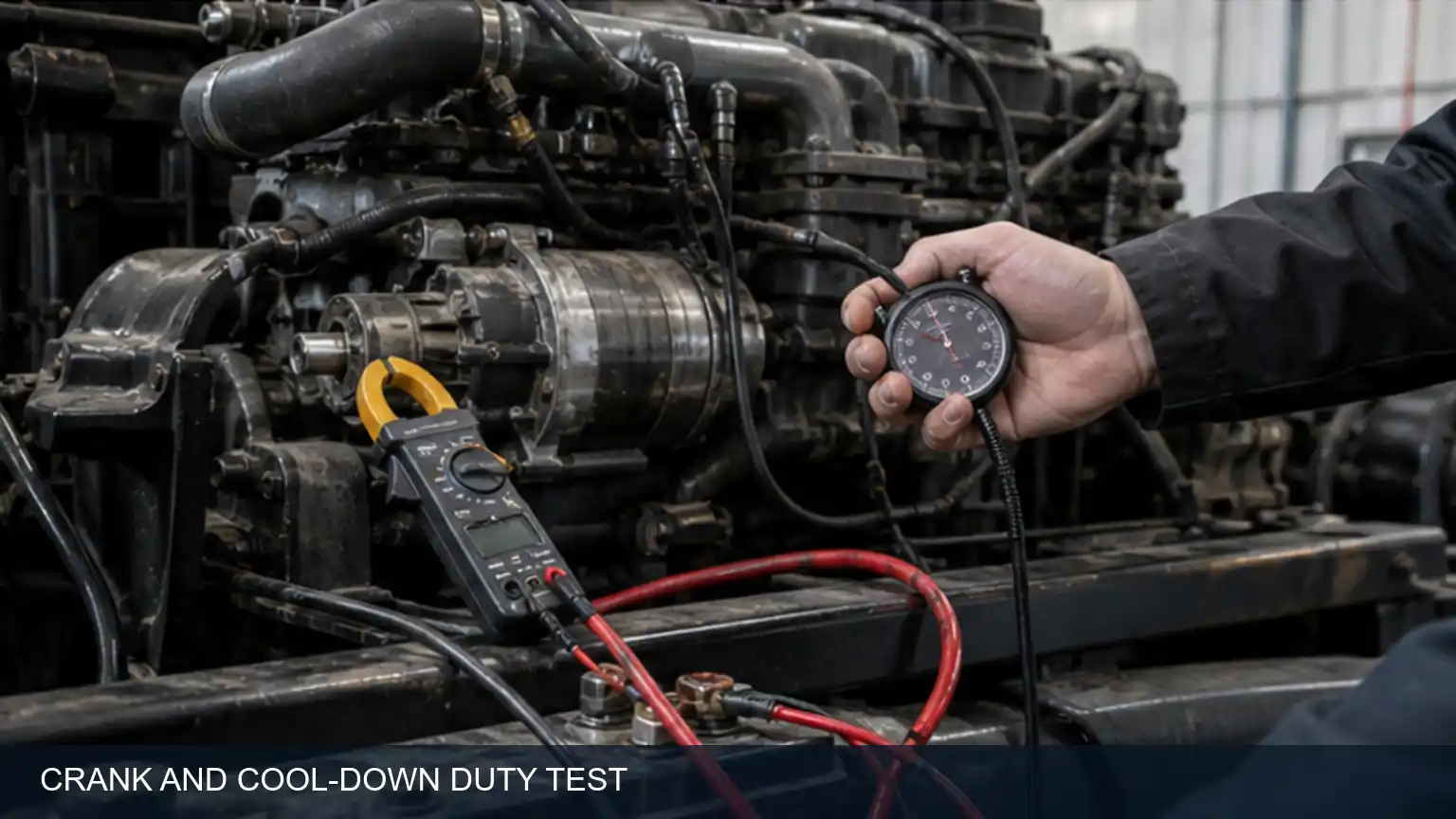

Heavy-duty starter crank-and-cooldown duty-cycle test with timed temperature monitoring. This image supports the duty-cycle test step in the article's evidence-based workflow.
Verify oil grade and temperature, engine rotation, hydrolock risk, accessory seizure, compression or fuel-related no-start causes, and ring-gear freedom. The purpose here is pattern recognition rather than collection of isolated numbers. The warranty analyst aligns engine turning torque, oil and ambient condition, accessory load, and ring-gear evidence on one timeline so the sequence of the starter response remains visible.
Interpret engine turning torque together with oil and ambient condition; either item alone can support several causes. Compare their timing with accessory load, then use ring-gear evidence to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong starter thermal-damage report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
engine turning torque: retain the unedited trace, image, or measured sequence.
oil and ambient condition: mark the feature that changes with the complaint.
accessory load: compare the same feature under a control condition.
ring-gear evidence: state which cause the combined pattern supports or excludes.
A starter forced against abnormal mechanical resistance is the messenger, not necessarily the root cause. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the starter behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the starter thermal-damage evidence. Contradictory traces remain attached as open evidence.
Document the installed protection type, reset method, sensor or switch location, control wiring, trip timing, restart delay, and any ECU or body-controller inhibit. This module examines how the starter behaves after time, heat, load, or contamination has had an opportunity to act. The fleet electrician defines the exposure interval and tracks protection type before, during, and after that interval.
Correlate wiring requirement with trip and reset rather than treating either value as a universal limit. Add controller interaction to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The starter thermal-damage stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
protection type: establish the pre-exposure reference.
wiring requirement: capture the peak or worst-case behavior.
trip and reset: compare the response at a fixed elapsed time.
controller interaction: document recovery and any permanent change.
A replacement must preserve the protection strategy expected by the vehicle. A result outside the limit requires the surrounding system to be checked before the starter is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the starter thermal-damage stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the starter thermal-damage investigation, the starter product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

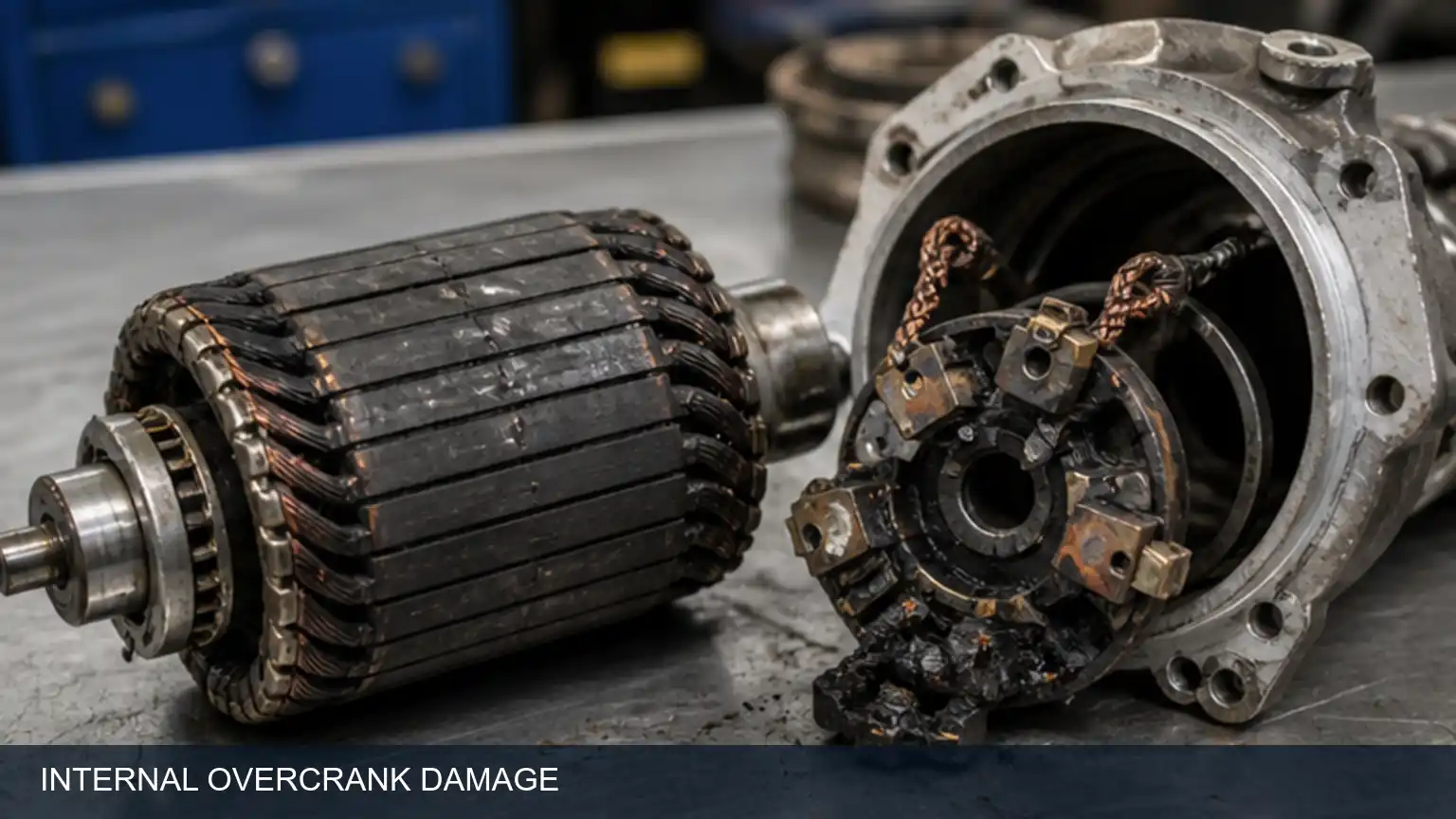

Disassembled heavy-duty starter showing internal heat damage caused by repeated overcranking. This image supports the thermal damage inspection step in the article's evidence-based workflow.
Inspect insulation color, odor, solder, commutator, brushes, contact disc, plunger, leads, terminals, housing paint, pinion, and lubricant to distinguish overcrank heat, connection resistance, and mechanical drag. Bench inspection now tests the internal or component-level theory developed on the machine. The bench technician preserves the removed condition, cleans only what the method requires, and records winding evidence before disassembly can erase useful evidence.
Quantify contact evidence with equipment suited to its expected range, verify terminal hotspot through a second method where practical, and photograph drive-end damage beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact starter thermal-damage case under review.
winding evidence: preserve the as-removed condition and reference marks.
contact evidence: record calibrated measurement and environmental correction.
terminal hotspot: confirm the suspected mechanism with a second observation.
drive-end damage: connect visible condition with the measured failure path.
The damage map should agree with the electrical and duty-cycle evidence. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the starter thermal-damage bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Match voltage, power, rotation, pinion, mount, terminal arrangement, protection feature, cable capacity, and control integration, then document any harness or operator change. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The receiving inspector compares the evidence for starter configuration with the evidence for protection compatibility under the same demand before changing any component.
Use cable correction to test the alternative explanation, then inspect operating-control change for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original starter failure.
A cause map for the starter thermal-damage decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
starter configuration: define what this result would mean for the primary theory.
protection compatibility: compare the alternative component or system response.
cable correction: run the discriminating check that separates both paths.
operating-control change: inspect the interface where one fault could imitate another.
Part selection and system correction must be released together. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the starter thermal-damage cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

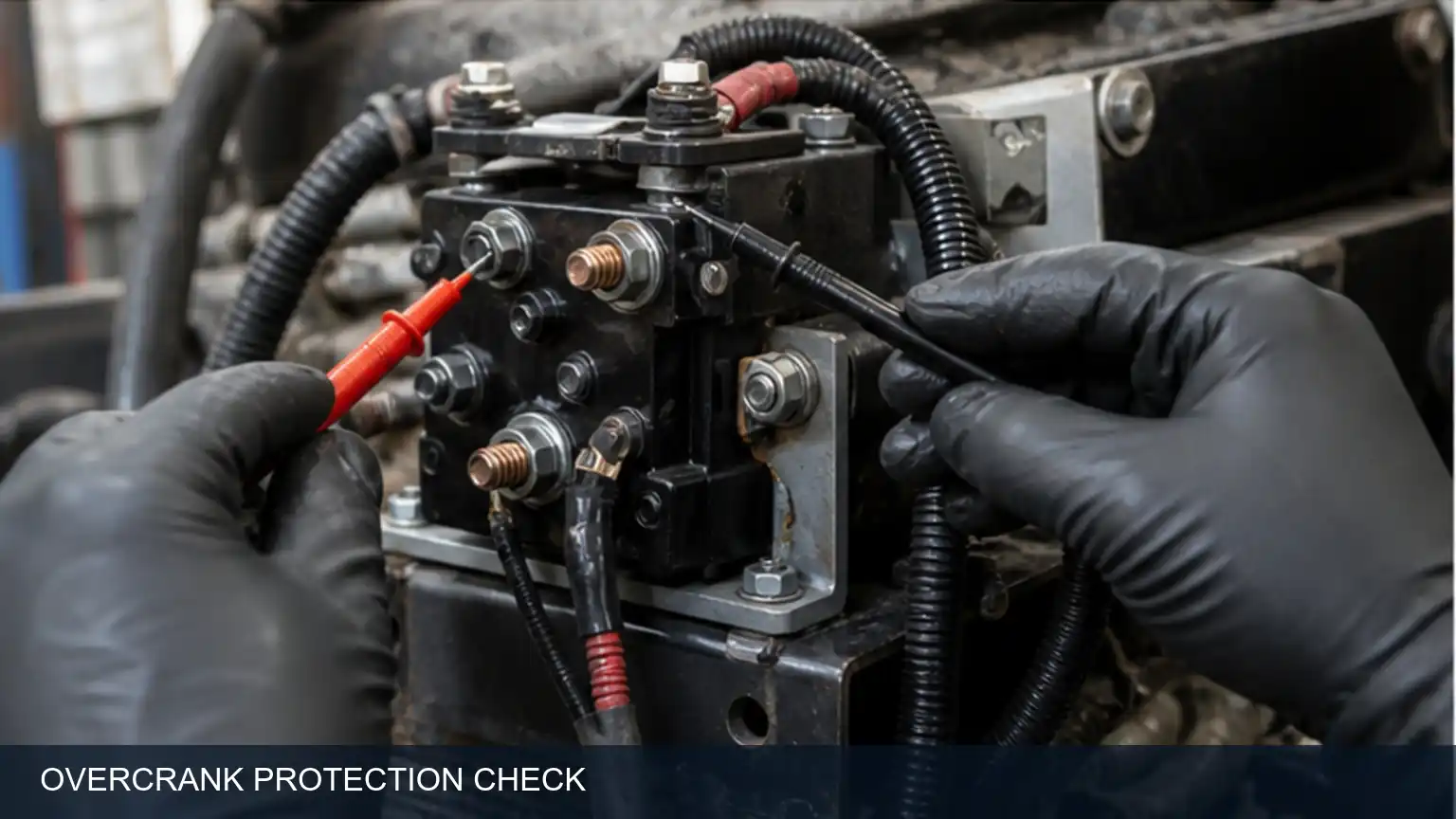

Heavy-duty starter overcrank protection check showing the thermal protection and control connections. This image supports the protection-circuit check step in the article's evidence-based workflow.
Set crank and recovery limits, escalation rules, battery maintenance, diagnostic ownership, retained failed-part evidence, and hot-cycle acceptance for pilot and repeat lots. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The technical buyer defines how the approved sample and production units will be compared using operator limit and maintenance trigger.
Add failure-analysis record to expose changes that a label or catalogue cross-reference cannot show. Use repeat-lot gate to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The starter thermal-damage acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
operator limit: define the release value and sampling method.
maintenance trigger: compare sample evidence with the incoming lot.
failure-analysis record: retain the technical record that exposes configuration drift.
repeat-lot gate: trace approval, deviation, and claim decisions to one identity.
A controlled process prevents the next starter from becoming the same thermal casualty. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory starter acceptance field.
Authorize starter thermal-damage production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

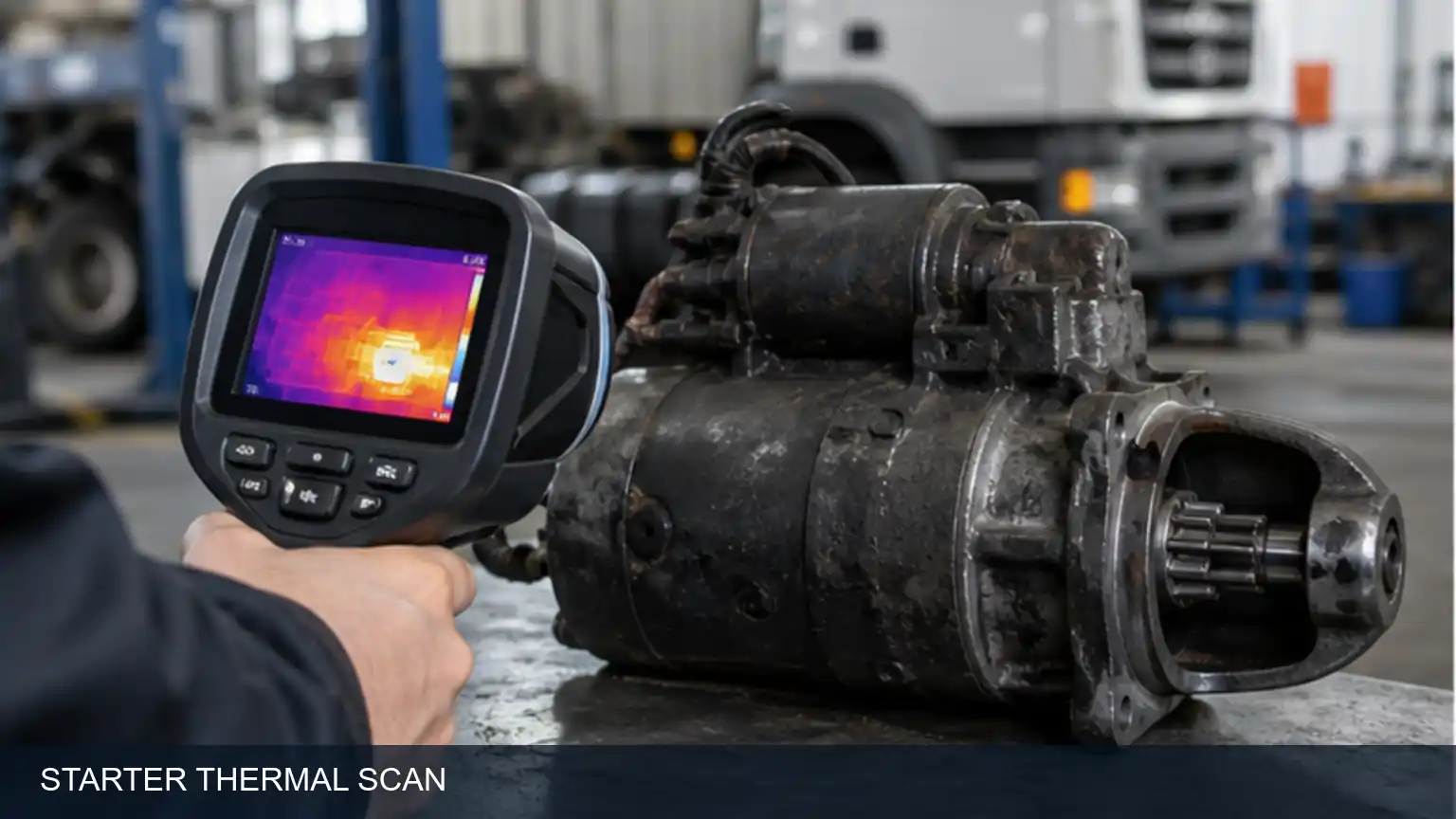

Infrared thermal scan of a heavy-duty starter after a controlled cranking test. This image supports the thermal scan step in the article's evidence-based workflow.
Retain the approved starter sample or a complete photo and measurement record for the starter thermal-damage release.
Trace each starter lot to the declared OCP or iOCP configuration and the purchase-order revision that approved it.
Quarantine a changed interface, label, internal reference, or test result.
Route every thermal field failure back through the same duty-cycle, temperature, protection, and damage evidence used for approval.
Identify the starter, host vehicle or machine, duty cycle, and original complaint for the starter thermal-damage investigation.
Attach the crank-duration, current, voltage, temperature, and cooldown measurements exactly as they were recorded.
Name the person who accepted each starter thermal-damage limit and the person who owns each open question.
Connect the thermally approved starter sample with its purchase order, supplier lot, protection configuration, and receiving record.
This starter thermal-damage workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
A thermal case should retain crank duration, cooldown intervals, current, delivered voltage, temperature progression, protection behavior, and the internal damage map. Together, these facts show whether the starter failed or was repeatedly driven beyond its declared duty.
Heavy-duty starter importers can review Elecdurauto company information, send the completed evidence through the B2B contact page, and use the Elecdurauto heavy-duty parts catalogue to connect the case with the appropriate product family. The quotation should answer the documented application rather than imply an unverified genuine or OE status.
