Direct answer: Match a John Deere 4045 alternator to the complete machine and engine record, not to “4045” or voltage alone. Confirm the current Deere service number, system voltage, rated output, regulator and excitation arrangement, mounting ears and adjustment arc, pulley grooves and offset, terminals, fan and shaft layout, belt plane, and installed clearance. Diagnose the charging circuit under controlled load before condemning the alternator. If the service record, removed unit, or bracket and pulley geometry disagree, preserve the conflict and approve one documented sample before purchasing a lot.
This process is for equipment dealers, agricultural and industrial fleets, rebuilders, and distributors. Elecdura's heavy-duty alternator category supports candidate review after the machine-specific fields are known.
The 4045 engine appears in multiple applications, and the host machine can determine brackets, belt drive, electrical load, warning circuit, and service alternator. Record the machine model and serial, full engine identity, build context, system voltage, installed electrical loads, and any repower or harness modification. Use the current Deere catalog or service source that corresponds to that identity.

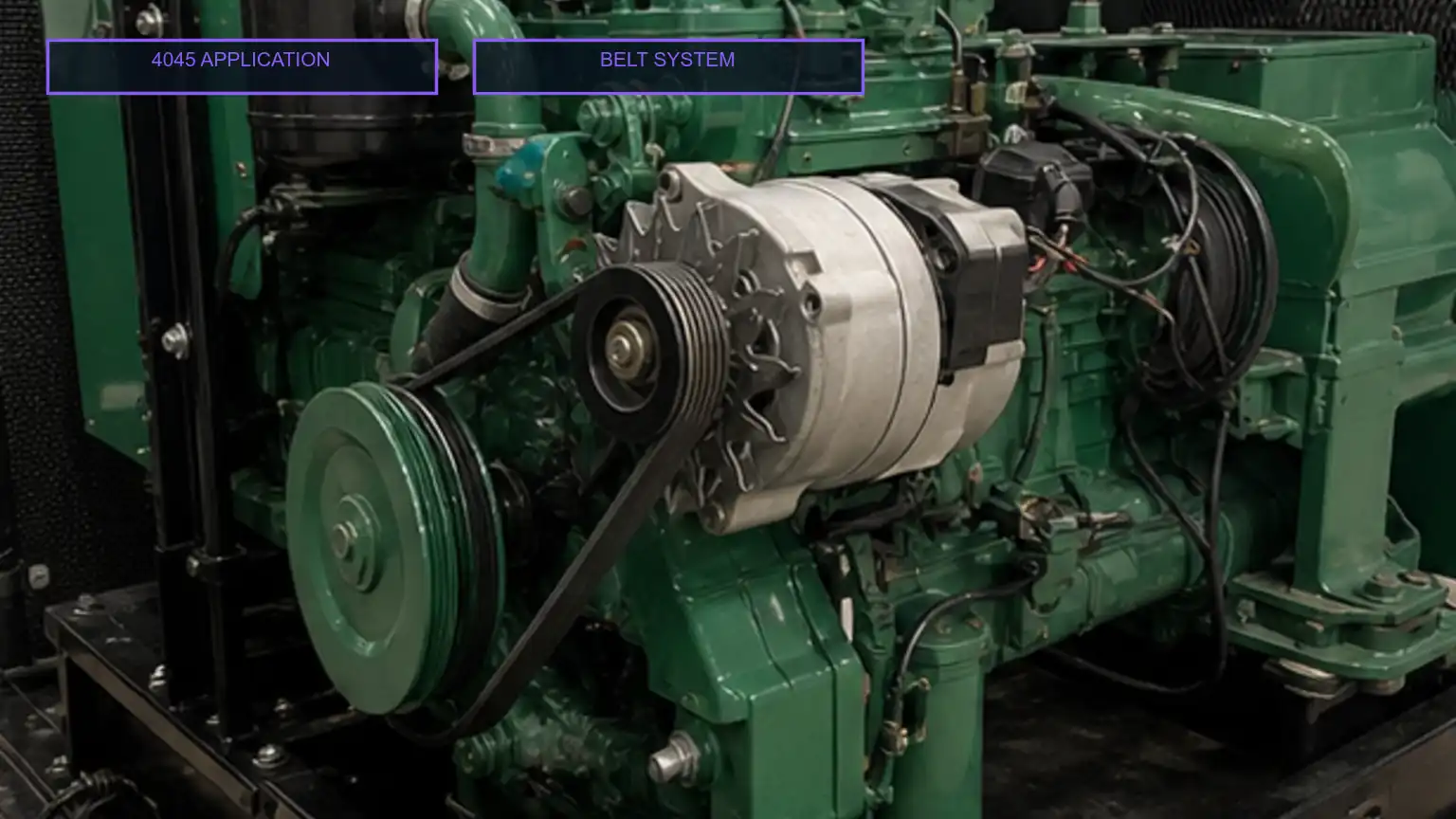

Industrial four-cylinder diesel engine with alternator, brackets, belt path, and cooling package visible in installed context.
Photograph the alternator, brackets, belt, tensioner, nearby frame and cooling components before removal. Transcribe the complete label and terminal markings. If the catalog number differs from the installed number, do not choose one silently. The engine may have been repowered, the alternator may have been superseded, or an earlier repair may have introduced an incorrect unit.
Field | Why it matters | Receiving evidence |
|---|---|---|
Voltage, output, regulator | Charging-system and control compatibility | Label, catalog path, terminal map |
Mount and adjuster geometry | Secure installation and belt tension | Straight-on photos and datum measurements |
Pulley grooves, diameter, offset | Belt match, speed, and alignment | Gauge photos from a fixed mounting plane |
Terminals and excitation | Harness and warning-circuit function | Marked connector views and wiring source |

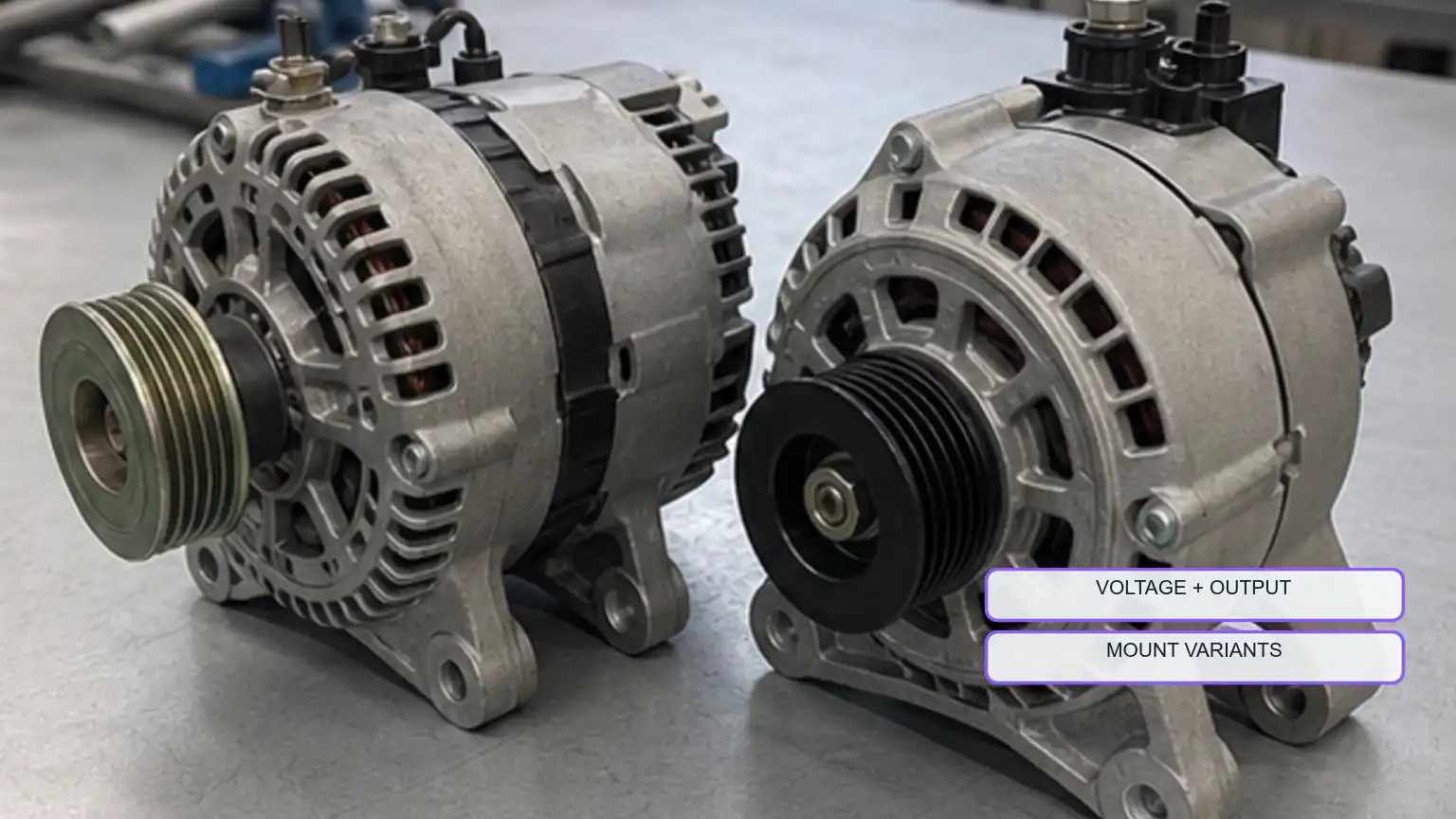

Two visibly different heavy-duty alternators compared on a workshop bench for pulley, mounting, and terminal differences.
Compare finished assemblies rather than casting resemblance. Record pivot and adjuster ear spacing, hole and pilot sizes, front-to-rear offset, pulley specification, fan orientation, shaft protrusion, B+ stud position, ground method, and every signal terminal. A shared housing family does not guarantee a shared regulator or pulley.
Install the sample only under the applicable machine procedure. Use a fixed datum and an approved alignment method to compare the crank, driven accessories, and alternator pulley planes. Check bracket seating, spacer positions, fastener engagement, tensioner travel, belt width, and clearance through the full adjustment range.

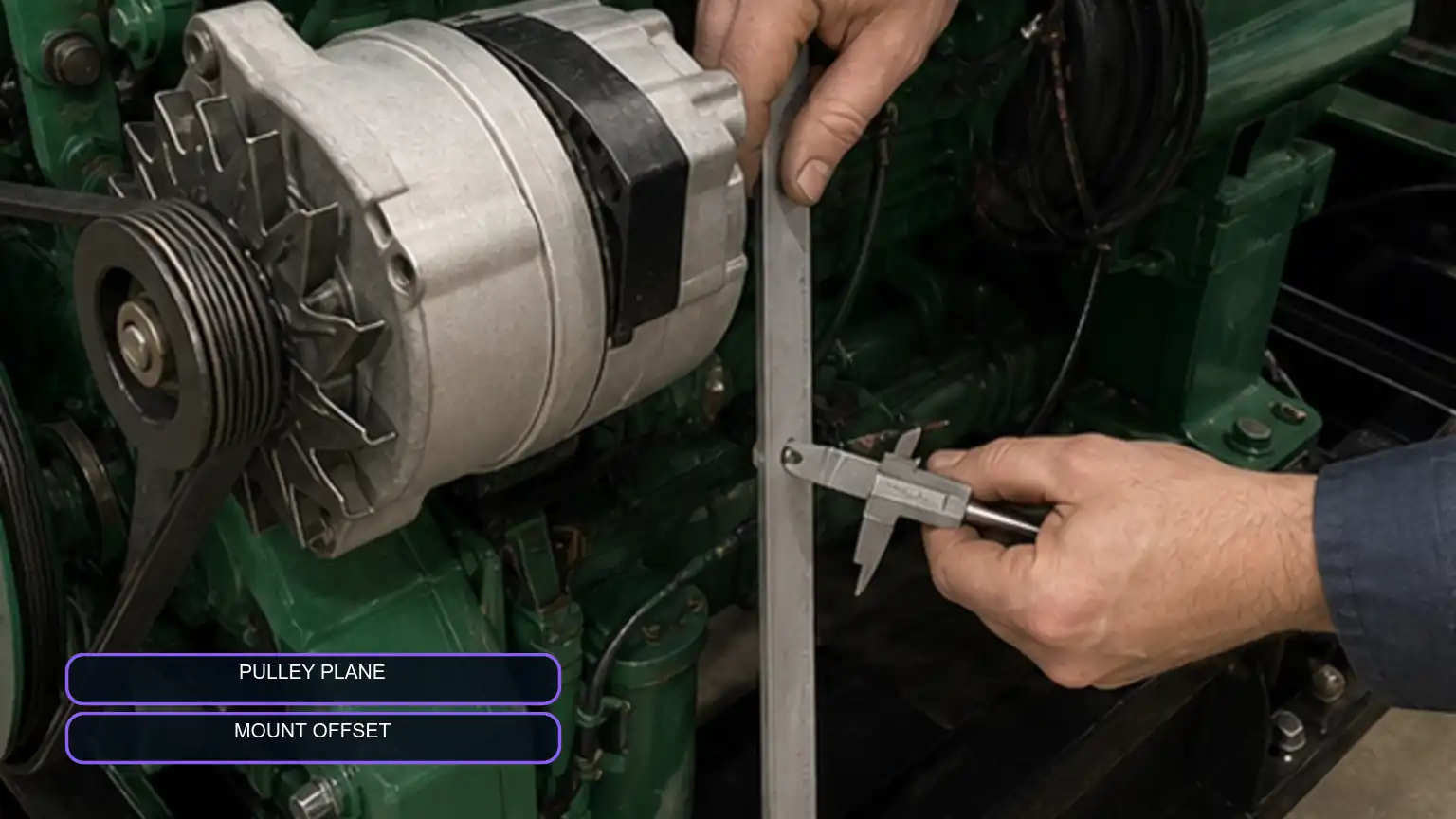

Technician measuring an industrial-engine alternator mounting position and pulley plane with a straightedge and caliper.
Reject forced alignment, improvised washers, a belt riding on an edge, or terminals that approach a grounded structure. A unit that bolts into the bracket but shifts the belt plane can damage the belt, bearings, tensioner, or other accessories.
Before replacement, document battery condition, connections, grounds, belt condition and tension, warning-circuit behavior, and voltage drop in the charging path. After an approved installation, follow the machine's controlled procedure and record engine speed, load, voltage, current, temperature, and instrument locations. Compare the result with the service specification for that machine and alternator.

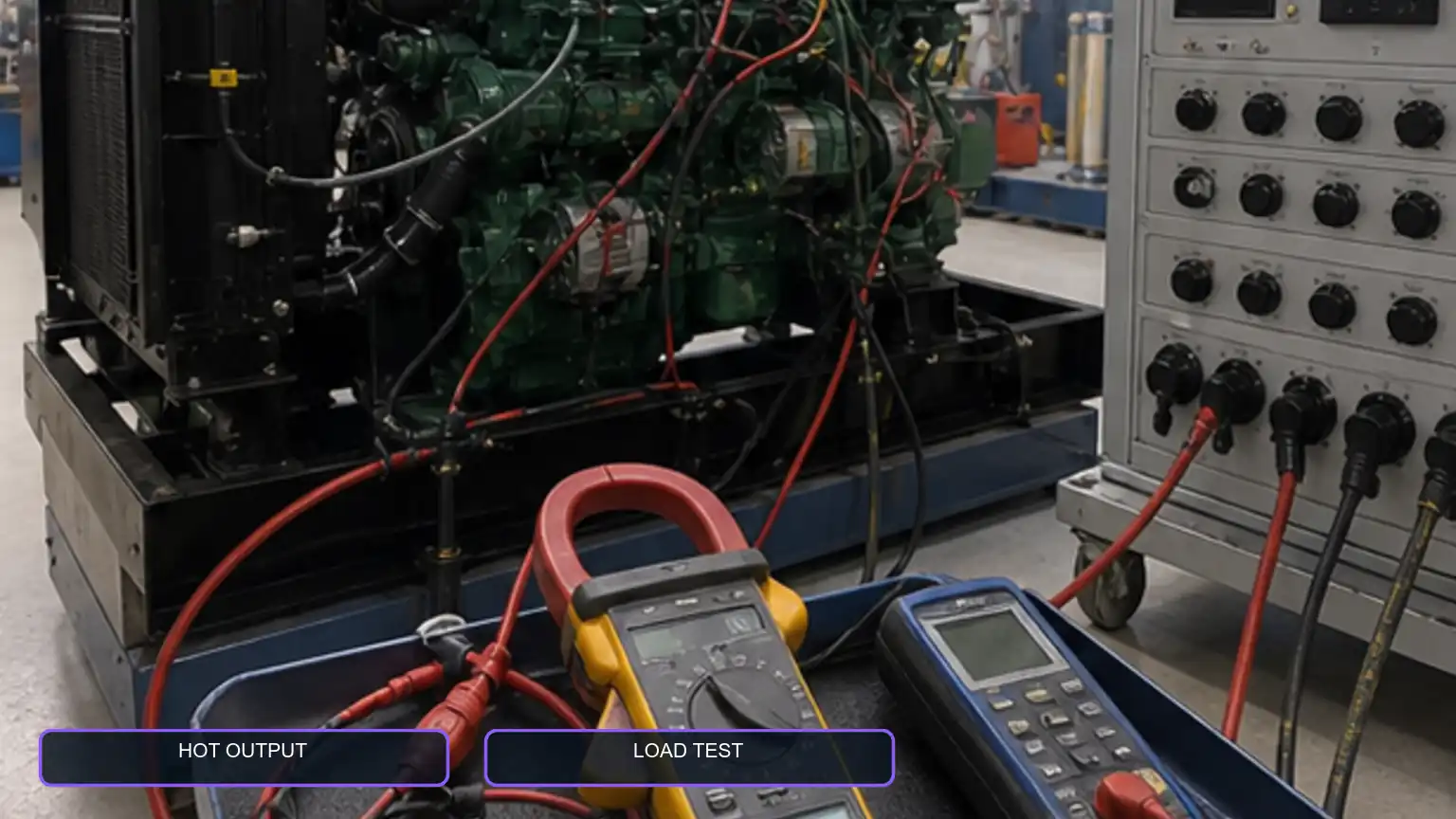

Industrial diesel engine connected to electrical test instruments and a load bank for a controlled alternator output check.
A stable no-load voltage cannot prove rated output. Likewise, a low battery voltage does not by itself identify the alternator; excessive resistance, a weak battery, belt slip, control faults, or an unsuitable test condition can lead to the same observation. Keep fitment approval and performance diagnosis as linked but separate records.
Follow a current John Deere procedure or authorized supersession instruction when it explicitly identifies the service alternator and required installation hardware. This guide does not authorize converting system voltage, increasing output without checking the wiring and protection, changing pulley ratio, bypassing a controller, or modifying brackets. Those are system-level changes.
Machine model, serial, engine identity, and application
Current service-number path and any supersession record
Removed-unit label, terminals, mounting, pulley, and installed photos
Voltage, rated output, regulation, excitation, and ground method
Pulley plane, bracket, belt, tensioner, and clearance measurements
Loaded charging evidence, quantity, destination, and sample owner
Send the packet through the Elecdura alternator RFQ. The requested response should identify the proposed finished assembly and explain any supersession, pulley, terminal, or output difference.
Voltage is only one specification. The rated output, regulator and excitation strategy, mounting ears, pivot and adjuster geometry, pulley type and groove count, shaft and fan arrangement, terminal functions, rotation or cooling design, and installed clearance may differ. Start with the engine and machine serial information, then compare the removed unit and the current Deere parts path. A 12-volt label or a familiar housing cannot prove that the belt will align or that the machine controller will communicate with the replacement.
Mount the candidate without forcing the brackets, then use the same fixed pulley reference and a straightedge or other approved alignment method to compare belt planes. Record pulley groove count, effective diameter, offset from the mounting datum, belt width, tensioning range, fan clearance, and any spacer or washer position. Rotate the assembly by hand under a safe service procedure. If the belt must be twisted, the adjuster reaches its limit, or the pulley plane differs, stop; electrical output cannot cure a mechanical mismatch.
No. A no-load voltage confirms only one operating point and may conceal weak output, poor connections, regulation instability, belt slip, battery condition, or temperature-related faults. Follow the machine service procedure and record battery state, engine speed, voltage at defined points, current under a controlled load, warning-circuit behavior, temperature, and voltage drop in the charging path. The result applies to that test condition; it does not prove full-life durability or correct fitment for another 4045-powered machine.
Request the superseding service number and the official path that links it to the exact machine serial range, not merely a marketplace interchange list. Ask what changed in mounting, pulley, terminal, regulator, harness, fan, and output specification, and whether additional hardware or instructions are required. Compare the new unit to the removed assembly and installed belt plane. If the supplier cannot explain a visible interface difference, hold the order until the current Deere source or an authorized service document resolves it.
Keep the machine model and serial, complete engine identity, removed and approved alternator numbers, all-side photographs, mounting and pulley measurements, terminal map, voltage and rated-output fields, belt and bracket condition, controlled load-test results, supplier reference, and any approved installation hardware. Record ambient and operating conditions for the test. A purchase invoice alone cannot show which pulley, regulator, or terminal arrangement actually passed, so it is too weak to govern a mixed fleet or a later incoming lot.
