A solenoid valve that opens on a bench can still overload a controller, chatter at low voltage, overheat during continuous duty, release too slowly with the wrong suppression device, or fail to shift against system pressure. Coil resistance alone cannot show the complete electrical and mechanical response.
Inrush and hold behavior also depends on architecture. AC coils often reduce current after the magnetic circuit closes, while a basic DC coil follows its resistance and inductance unless a driver uses peak-and-hold control. A flyback diode, TVS device, resistor, or unsuppressed circuit changes turn-off voltage and release time. Buyers can use the Elecdurauto solenoid valve category to organize reference and application research while the workshop keeps measured evidence in control of the final decision.
This guide creates a safe compatibility test for heavy-duty hydraulic, pneumatic, fuel, cooling, and control valves before sample approval, controller connection, or repeat wholesale ordering.
Record AC or DC supply, nominal voltage, power, connector, polarity, suppression, duty rating, valve function, pressure, temperature, and control-driver type. Before testing, the technical buyer ties coil voltage and power to a named vehicle, engine, or bench configuration. That baseline gives ac versus dc coil behavior, current waveform, plunger movement, duty rating, suppression polarity, driver protection, and batch control a measurable starting point and prevents a convenient no-load observation from defining the entire solenoid valve case.
Establish coil voltage and power first, then compare AC or DC architecture while the original complaint is reproduced. Use suppression type to challenge the first interpretation and retain duty-cycle rating as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why coil voltage and power represents the starting state and how AC or DC architecture changes when the suspected failure appears. If suppression type points elsewhere, the diagnosis stays open. duty-cycle rating becomes the reference used to compare the removed unit, approved sample, and later production lot.
coil voltage and power: capture the initial value and the exact operating condition.
AC or DC architecture: compare the response before and during the complaint.
suppression type: use an independent observation to test the first theory.
duty-cycle rating: preserve the reference with date, instrument, and reviewer.
The test plan changes when the coil includes electronics, a diode, a peak-and-hold driver, or an AC shading arrangement. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded solenoid valve behavior describe the same event.
Sign the identify coil architecture and valve duty baseline against the complaint, solenoid valve identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Use a current probe or shunt with suitable bandwidth, regulated supply, voltage measurement at the coil, protected switching, pressure control, and a defined energization limit. This stage converts the initial observation into a controlled test route. The warranty analyst prepares current measurement, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure coil-terminal voltage at the first defined point, then recheck switch protection after the solenoid valve reaches the second condition. maximum on-time should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
For establish a safe current-waveform test, the test sheet should let a second technician rebuild the same arrangement. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
current measurement: define the pre-test state and preparation method.
coil-terminal voltage: log the first controlled response with its unit and tolerance.
switch protection: repeat at the second condition without changing unrelated variables.
maximum on-time: note the deciding observation and any remaining ambiguity.
Direct connection to an unknown driver can damage the control output before the valve function is understood. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close establish a safe current-waveform test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

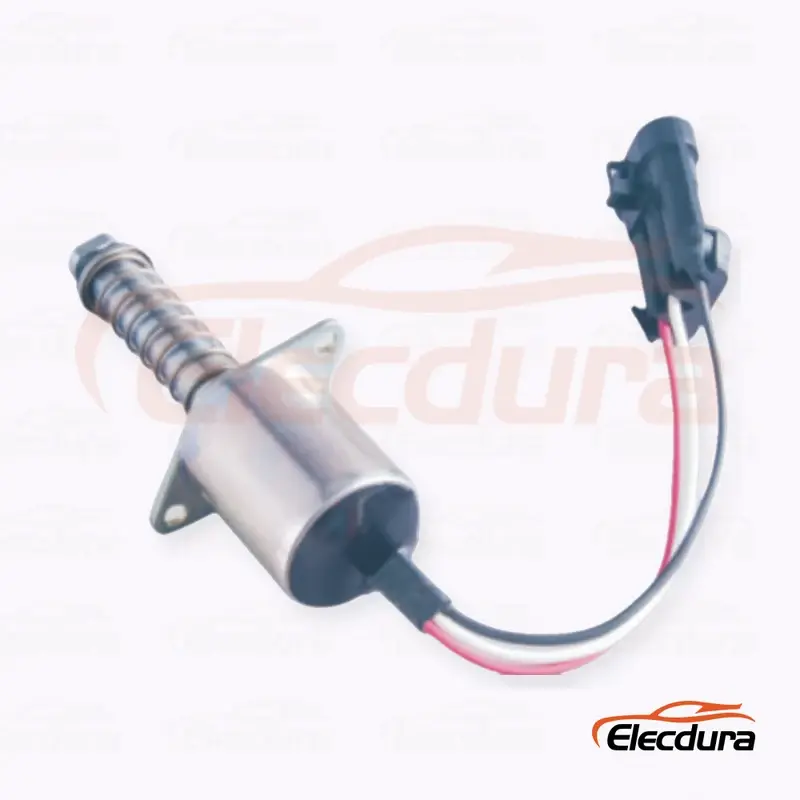

MXL 1296 solenoid valve elecdura 800 800 provides a physical reference for the opening application discussion.
Capture the current and voltage from command through plunger movement and steady state, then compare pull-in time, current change, chatter, and mechanical response at specified pressure. The purpose here is pattern recognition rather than collection of isolated numbers. The fleet electrician aligns pull-in peak, hold current, plunger closure, and pressure load on one time line so the sequence of the solenoid valve response remains visible.
Interpret pull-in peak together with hold current; either item alone can support several causes. Compare their timing with plunger closure, then use pressure load to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong separate pull-in current from hold current report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
pull-in peak: retain the unedited trace, image, or measured sequence.
hold current: mark the feature that changes with the complaint.
plunger closure: compare the same feature under a control condition.
pressure load: state which cause the combined pattern supports or excludes.
A current change without confirmed valve movement may reflect electrical behavior rather than complete hydraulic or pneumatic shifting. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the solenoid valve changed.
Release separate pull-in current from hold current when the saved pattern and control condition support one interpretation of the solenoid valve behavior. Contradictory traces remain attached as open evidence.
Repeat the test across approved supply limits and operating temperature while measuring harness, connector, switch, ground, and driver losses under actual coil current. This module examines how the solenoid valve behaves after time, heat, load, or contamination has had an opportunity to act. The bench technician defines the exposure interval and tracks minimum supply voltage before, during, and after that interval.
Correlate harness voltage drop with connector heat rather than treating either value as a universal limit. Add driver saturation to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The verify voltage margin and loaded wiring drop worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
minimum supply voltage: establish the pre-exposure reference.
harness voltage drop: capture the peak or worst-case behavior.
connector heat: compare the response at a fixed elapsed time.
driver saturation: document recovery and any permanent change.
A correct coil may fail in the machine when cable loss leaves too little magnetic force at hot temperature and maximum pressure. A result outside the limit requires the surrounding system to be checked before the solenoid valve is condemned. Approval waits until the stress route and recovery evidence agree.
Approve verify voltage margin and loaded wiring drop after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference, the solenoid valve product example can help a buyer compare visible interfaces and application clues. Product photography supports verify voltage margin and loaded wiring drop, but it cannot replace the controlled readings and documented limits required by this section.

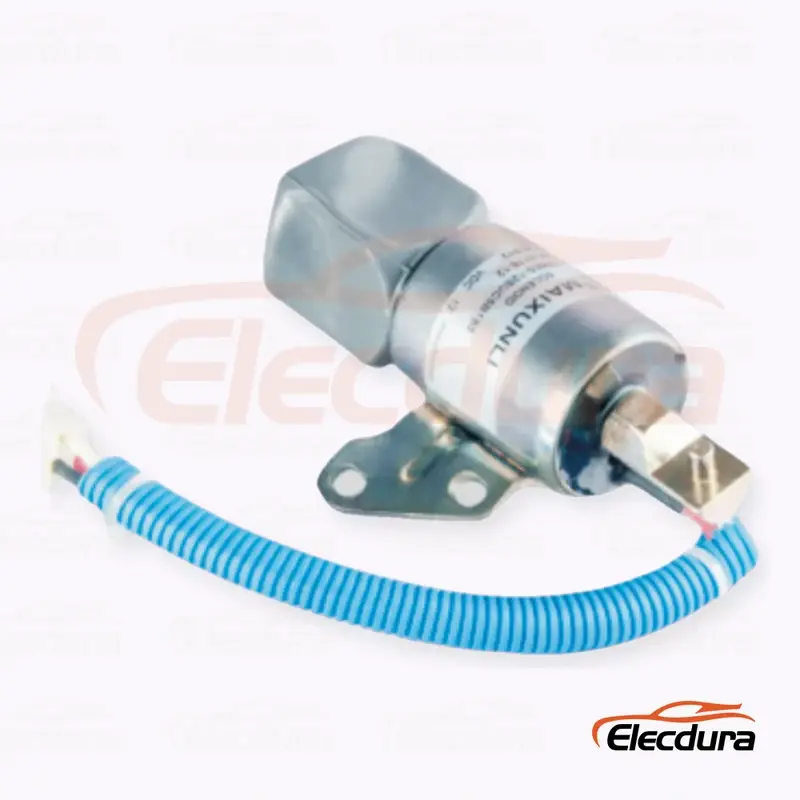

MXL 1294 solenoid valve elecdura 800 800 supports the first technical inspection module.
Observe turn-off voltage with the approved oscilloscope setup, identify diode or other suppression, verify polarity, and relate the decay curve to valve release and controller limits. Bench inspection now tests the internal or component-level theory developed on the machine. The receiving inspector preserves the removed condition, cleans only what the method requires, and records turn-off voltage before disassembly can erase useful evidence.
Quantify current decay with equipment suited to its expected range, verify release delay through a second method where practical, and photograph suppression polarity beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact solenoid valve family under review.
turn-off voltage: preserve the as-removed condition and reference marks.
current decay: record calibrated measurement and environmental correction.
release delay: confirm the suspected mechanism with a second observation.
suppression polarity: connect visible condition with the measured failure path.
Strong clamping can protect electronics yet slow release, while insufficient suppression can expose the driver and nearby circuits to damaging transients. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept measure flyback voltage and release time when as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Run the coil only within its rating, record ambient and winding-temperature indicators, supply stability, current drift, insulation condition, and valve leakage through the full duty cycle. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The technical buyer compares thermal rise and continuous duty under the same demand before changing any component.
Use current drift to test the alternative explanation, then inspect insulation condition for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original solenoid valve failure.
A cause map for control temperature rise and continuous-duty risk lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
thermal rise: define what this result would mean for the primary theory.
continuous duty: compare the alternative component or system response.
current drift: run the discriminating check that separates both paths.
insulation condition: inspect the interface where one fault could imitate another.
A short functional pulse is not evidence that the coil can survive a long heavy-duty work cycle near an engine or hydraulic manifold. Replace the solenoid valve only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass control temperature rise and continuous-duty risk after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

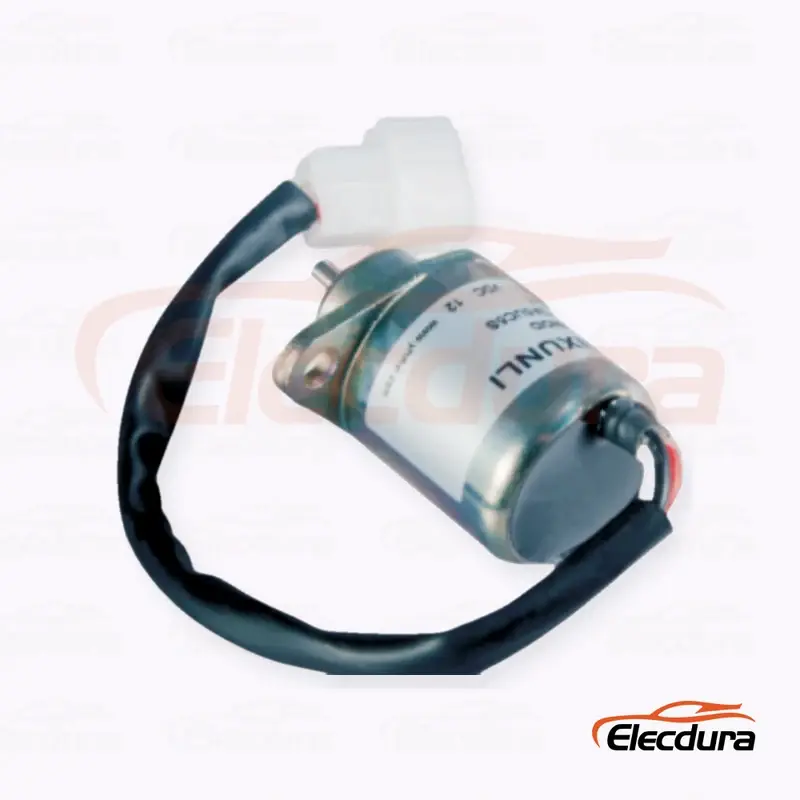

MXL 1460 solenoid valve elecdura 800 800 illustrates a mid-article fitment or test-control point.
Define coil voltage, connector, polarity, suppression, power, duty cycle, valve ports, seals, pressure, flow, response, label, and batch-test evidence for the accepted sample. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The warranty analyst defines how electrical specification and valve interface will be compared between the approved sample and production units.
Add response limit to expose changes that a label or catalogue cross-reference cannot show. Use batch traceability to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty duty cycle rather than an unspecified generic test.
The acceptance sheet for translate the electrical record into a purchase specification identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
electrical specification: define the release value and sampling method.
valve interface: compare sample evidence with the incoming lot.
response limit: retain the technical record that exposes configuration drift.
batch traceability: trace approval, deviation, and claim decisions to one identity.
Repeat orders should preserve both the valve geometry and the electrical behavior that the machine controller was approved to drive. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory solenoid valve acceptance field.
Authorize translate the electrical record into a purchase specification through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.
A defensible solenoid valve case file links the complaint, operating duty, removed-part markings, test setup, raw readings, photographs, interpretation, and unresolved questions. For this diagnostic workflow, that record should also identify which evidence came from the vehicle, the bench, the supplier, and the receiving team so later decisions do not mix unlike sources.
Identify the solenoid valve, host vehicle or machine, duty cycle, and original complaint.
Attach measurements that support the investigation described above without rewriting raw results.
Name the person who accepted each solenoid valve limit and the person who owns each open question.
Connect the approved sample, purchase order, supplier lot, and incoming inspection record.

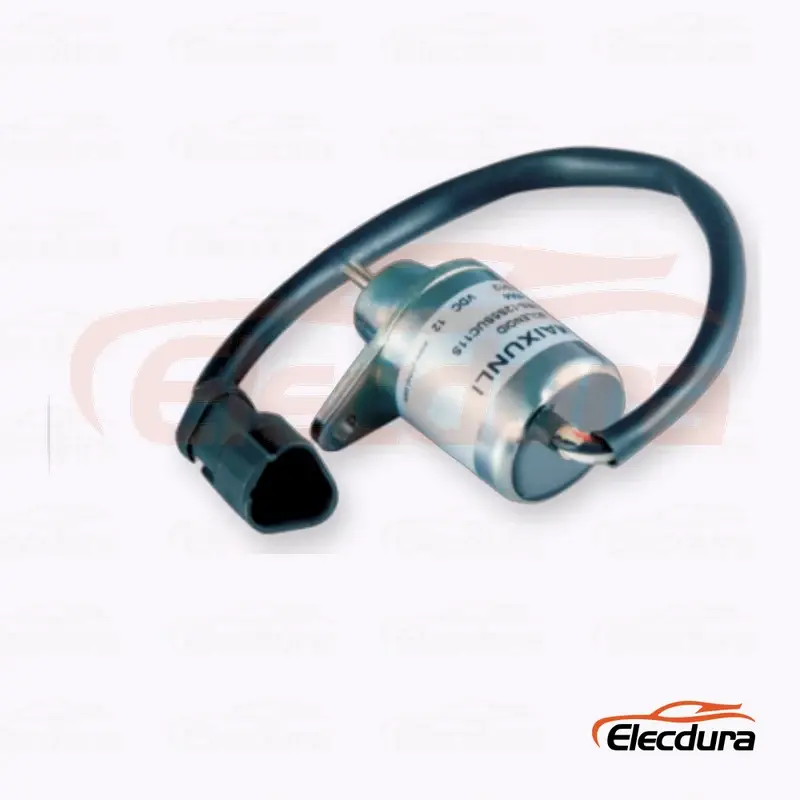

MXL 1470 solenoid valve elecdura 800 800 supports the sourcing evidence and comparison discussion.
Technical diagnosis becomes commercially useful when an RFQ carries the same identity and limits. A solenoid valve inquiry should include the original reference, engine or vehicle, photographs, measured interfaces, operating symptoms, tested conditions, required quantity, destination, and expected reorder frequency. This prevents a broad catalogue match from replacing the evidence developed above.
State whether the requested solenoid valve is new aftermarket, remanufactured, or another declared condition.
List mandatory electrical, hydraulic, air-path, or mechanical interfaces relevant to this solenoid valve case.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.

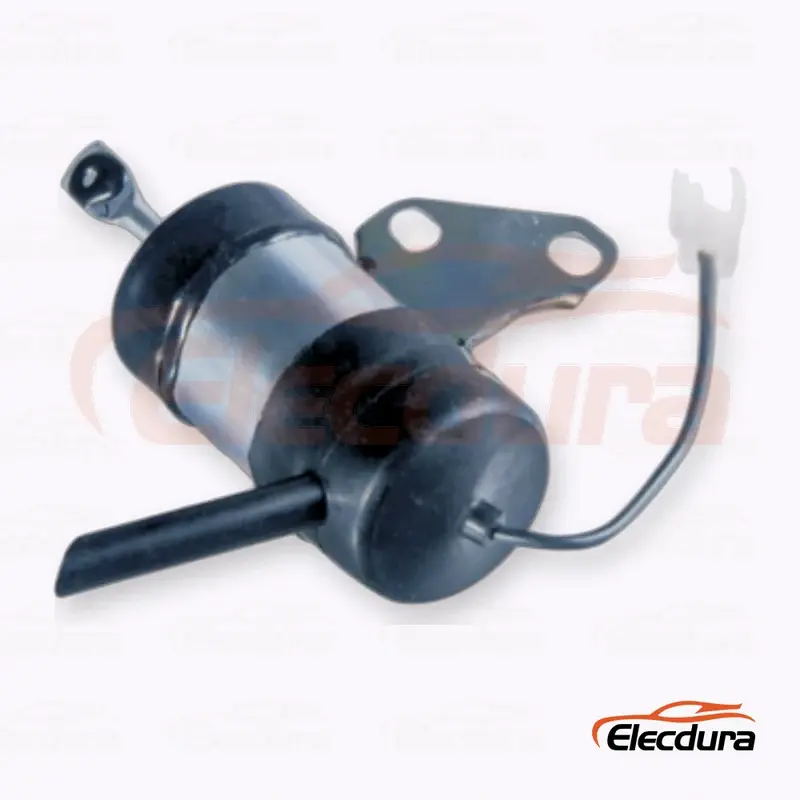

MXL 1492 solenoid valve elecdura 800 800 provides a late-stage receiving or repeat-order reference.
The approved solenoid valve sample is useful only when its measurable configuration follows the purchase order into later shipments. Receiving should compare markings, connectors, mounting, visible construction, packaging, selected functional readings, and any promised documents. A changed configuration returns to technical review instead of entering fleet stock by habit.
Retain the approved solenoid valve sample or a complete photo and measurement record.
Trace each incoming lot to the supplier declaration and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Feed field failures back into the same evidence route used for initial approval.
Solenoid Valve Coil Inrush, Hold Current, and Flyback Testing works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
