Starter Drain Holes and Wet Housings: Check the Variant Before Reclocking

A starter with a drainage problem does not necessarily need a different mounting angle; it may be the wrong housing variant for the application. Establish the starter's exact identity, its intended drain arrangement and the environment at the flywheel or clutch housing before approving reclocking or replacement. A dry-application unit does not become suitable for a wet housing because someone plugs a hole. Equally, a wet-application description does not by itself approve immersion or pressure washing. For heavy-equipment buyers and return reviewers, these are separate compatibility questions. This guide explains how to separate them without modifying the starter or guessing from a product photograph.

Separate the Starter Drain, the Engine Housing and External Exposure

The word “wet” can describe different things in a service report. It may mean an oil-exposed application at the starter mounting interface, water observed after washing, or simply moisture found in a returned unit. Those descriptions are not interchangeable specifications.

Identify the environment where the starter actually interfaces with the machine. A vehicle described as having a wet clutch does not automatically establish the lubrication environment at every adjacent component. Obtain the engine or equipment arrangement and the applicable starter reference instead of relying on the transmission description alone.

Object being discussed: The starter's drain or vent feature

• Evidence needed: Exact product documentation identifying the feature and its installed orientation requirements.

• Incorrect shortcut: Every visible opening must be a drain.

Object being discussed: The flywheel or clutch housing at the starter interface

• Evidence needed: The actual equipment arrangement and the starter variant approved for that environment.

• Incorrect shortcut: A family name or a wet-clutch label proves this individual starter is suitable.

Object being discussed: External water, cleaning or other exposure

• Evidence needed: The event and the exact product's relevant environmental approval.

• Incorrect shortcut: A wet-application claim also approves pressure washing or submersion.

This separation prevents a procurement error from being treated as a simple installation correction. It also prevents an external exposure complaint from being answered solely by checking the engine-side housing.

A Documented Dry-Only Variant Cannot Be Approved by Plugging Its Drain

Delco Remy's drainage technical tip gives a useful specific counterexample: certain 42MT applications have a drain in the lever housing, and the article identifies those starters as dry-clutch-only. It does not say that every 42MT shares that restriction. The decision belongs to the identified design, not the family label.

Compare that with the 50MT product discussion in Delco Remy's June 2025 newsletter, which describes sealing for wet applications. This establishes that wet-application capability is a designed product characteristic. It is not a recommendation to replace an arbitrary 42MT with a 50MT, nor approval of every 50MT part number for a particular machine.

If a supplied starter is documented as dry-only and the actual application requires an approved wet variant, stop that pairing. Request the correct application-approved configuration. Do not propose plugging, drilling or enlarging a drain to convert an unapproved product into a suitable one.

There may be specific manufacturer service instructions for a particular product. The point is not that no manufacturer could ever prescribe a modification; it is that this article and a generic cross-reference do not provide that authorization. Any proposed exception needs the actual applicable instruction.

Drainage Can Reject an Otherwise Convenient Mounting Position

A housing position can clear the frame or cable route and still fail the starter's drainage requirement. On documented rotatable-flange products, the review must therefore include the drainage feature, not merely the bolt pattern and access space.

The Delco Remy 39MT clocking article considers the solenoid, an integrated magnetic switch where applicable, and drainage together. It describes rotatable-flange models, not an unrestricted right to rotate any starter carrying a 39MT family description. The purchasing implication is that clearance approval and drainage approval must be compatible.

Another shortcut is to say that the solenoid must always face upward. Delco Remy installation sheet 10511650, revision 8 explicitly notes exceptions with inverted solenoid and drain arrangements among its covered products. The actual variant determines how the general instruction applies.

The PowerEdge heavy-duty starter installation instructions likewise specify a drainage orientation for the products they cover. That is not a universal angle for all DENSO products or other brands. This guide deliberately does not combine those documents into one cross-brand installation recipe.

Ask the workshop to compare the permissible configuration with the actual installation. If drainage and clearance cannot both be satisfied within the approved arrangement, the next step is technical clarification or the correct variant, not forcing the assembly into whichever position permits the fasteners to be reached.

Record the Installed Position Before Treating the Removed Unit as a Pattern

An old starter on a workbench does not preserve its relationship to gravity or the machine's mounting face unless that relationship has been recorded. It may also have been incorrectly installed or modified earlier. Treat the old unit as identification evidence, not automatic proof of the correct configuration.

Useful photographs show the complete reference, the installed starter relative to fixed machine features, and the specific opening or feature being questioned. The technical provider can then relate the photographs to the correct drawing. Do not label an unidentified casting opening as a drain simply to make a comparison sheet look complete.

Liquid in a Returned Starter Is a Finding, Not Yet a Cause

Record where liquid, residue or corrosion was found and what is known about the exposure. Keep a distinction between the finding and the explanation proposed for it. An oily surface does not by itself prove that oil came through the flywheel housing, and a water-marked component does not establish when the water entered.

The return investigation should connect the supplied variant, installed configuration and actual operating environment. Ask whether any plug, opening, cover or housing position was changed after delivery. That history may change which configuration is being evaluated; it should not be omitted merely because the returned part number matches the invoice.

Finding established by the investigation: The installed orientation did not meet the identified product's drainage requirement.

• Next decision: Have the responsible workshop determine the permitted correction and assess resulting damage.

• What it does not yet prove: That changing the angle alone will restore an already damaged starter.

Finding established by the investigation: The variant is not approved for the confirmed housing environment.

• Next decision: Stop repeat supply of that pairing and resolve the correct variant.

• What it does not yet prove: That adding sealant or closing an opening produces an approved replacement.

Finding established by the investigation: A pressure-washing or immersion event occurred.

• Next decision: Compare that exposure with the exact product's stated approval and obtain technical assessment.

• What it does not yet prove: That a general wet-application description covers the event.

Finding established by the investigation: Liquid or corrosion is present but its source and the installed configuration are uncertain.

• Next decision: Preserve the evidence and obtain the missing application and inspection findings.

• What it does not yet prove: A supplier defect, installer fault or automatic warranty rejection.

These are investigation routes, not a manufacturer warranty policy. Commercial responsibility depends on the actual findings and agreed terms. Avoid replacing an uncertain cause with a confident label such as “waterproofing failure” before establishing what the delivered product was approved to do.

Make the Next Quotation Resolve the Original Mismatch

A replacement request should state the confirmed equipment and starter identities, the environment at the mounting interface, and the unresolved configuration issue. “Same as the returned one” is not enough when the returned item may have been the wrong variant.

If only an orientation correction is proposed, obtain the exact instruction that permits it for the supplied product. If the required environment changes the product choice, identify the approved replacement reference and any associated supply requirements. Keep those two routes separate on the quote so that a configuration correction is not misrepresented as a different starter's environmental capability.

The site's 39MT application and fitment guide covers the broader matching task. This drainage review adds an environmental boundary; it does not replace the electrical, drive and mounting approvals already needed for a starter replacement.

Questions That Need a Separate Answer

Can a New Gasket Alone Establish Wet-Housing Compatibility?

Not by itself. A gasket may be one specified component of an approved assembly, but its presence does not establish the complete starter's environmental qualification. Ask which exact assembly and application the supplied gasket belongs to.

What If a Remanufactured Starter Uses a Different Housing From the Returned Core?

Request the rebuilder's final product identification and application documentation. A core-family description does not fully identify the delivered assembly. Resolve the final housing and configuration rather than transferring the old core's assumed approval to the rebuilt product.

Can Catalogue Photos Be Compared to Decide Which Way Is Down?

Not reliably without an orientation reference. Catalogue images may be rotated for presentation. Use the installed relationship to the machine and the relevant drawing; a photograph's lower edge is not a technical datum.

Should Dry- and Wet-Application Variants Share One Internal Stock Code?

If approved configurations differ, do not make them indistinguishable in receiving and picking. Use distinct stock identities or a controlled variant field tied to the exact manufacturer references and approved applications. A family-only bin label loses the distinction the purchase order was intended to preserve.

Should a Returned Unit Be Cleaned Before the Cause Is Reviewed?

Agree the inspection and return process with the responsible party before altering the evidence. Preserve photographs and the original observations. Cleaning, dismantling or changing plugs before that agreement can make the original condition harder to assess; this is not permission to store or transport a leaking unit unsafely.

Request the Right Starter Variant, Not an Improvised Conversion

Use Elecdura's heavy-duty starter range to begin an application-specific enquiry. Provide the complete reference, machine information and the relevant housing or drainage question, then confirm the available supply scope. The Delco Remy and PowerEdge examples explain documentation boundaries; they do not establish Elecdura stock, brand authorization, wet-application testing or interchangeability for the illustrated families.

Include a complete-unit photograph and a separate rear/terminal-end photograph of the actual starter in the identity packet. The catalogue views below illustrate those two photo tasks, not an approved drainage or wet-housing configuration.

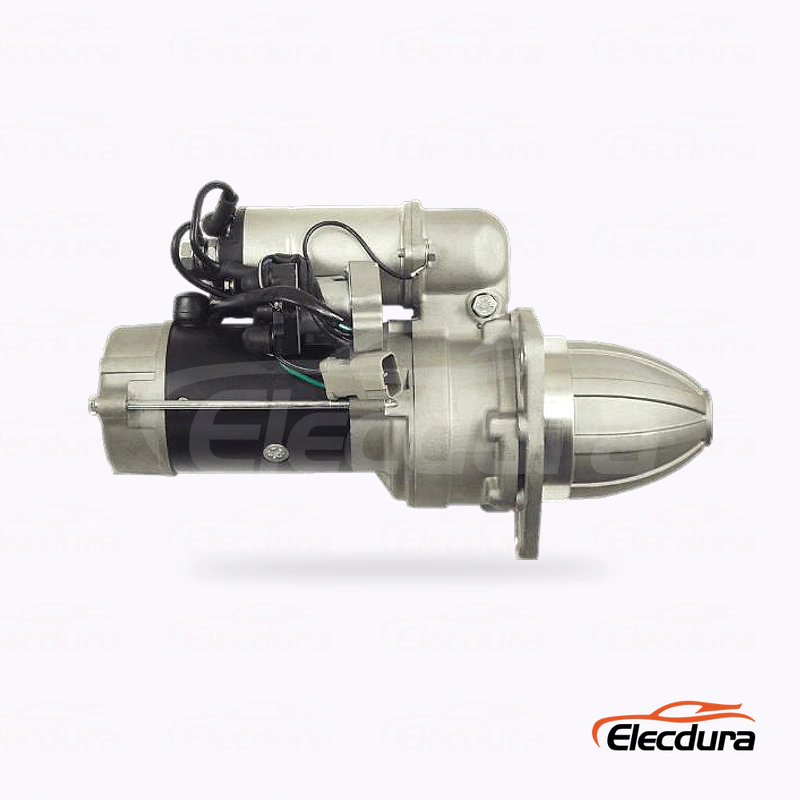

Whole-unit catalogue view for the identification packet. This photograph does not identify an approved wet-housing variant or establish a permitted drain orientation.

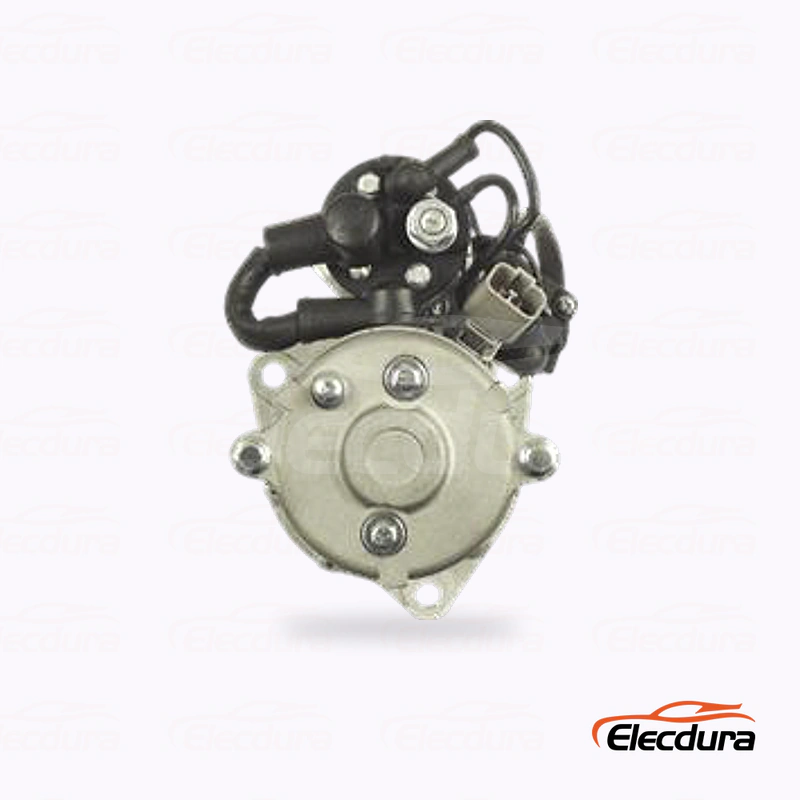

A second external angle helps distinguish the terminal end from the whole-unit silhouette. It is not a wiring diagram, drain-location map or evidence of immersion protection.
