6008133380 Komatsu PC200-3 Starter Motor Wholesale

6008133380 Komatsu PC200-3 Starter Supply for Excavator Dealers

PC200-3 enquiries can include 6008133380, 3390, 4120 or a Nikko 023000 reference. Linking those numbers to the 6D105 engine, 5.5kW output and a specific triangular face gives dealers a practical replenishment item.

The 13T pinion is shared with some earlier PC200 products, but the output and axial dimensions differ. Compare the 53 mm and 73 mm positions, Ø100 locating area, three holes and wiring before choosing a substitute.

6008133380 5.5kW Ratings and 6D105 Mounting Drawing

This version uses 24V, 5.5kW, 13T, module 3 and clockwise rotation. The 5.5kW rating keeps it distinct from the 7.5kW PC200-1 line even when both appear under 6D105 search terms.

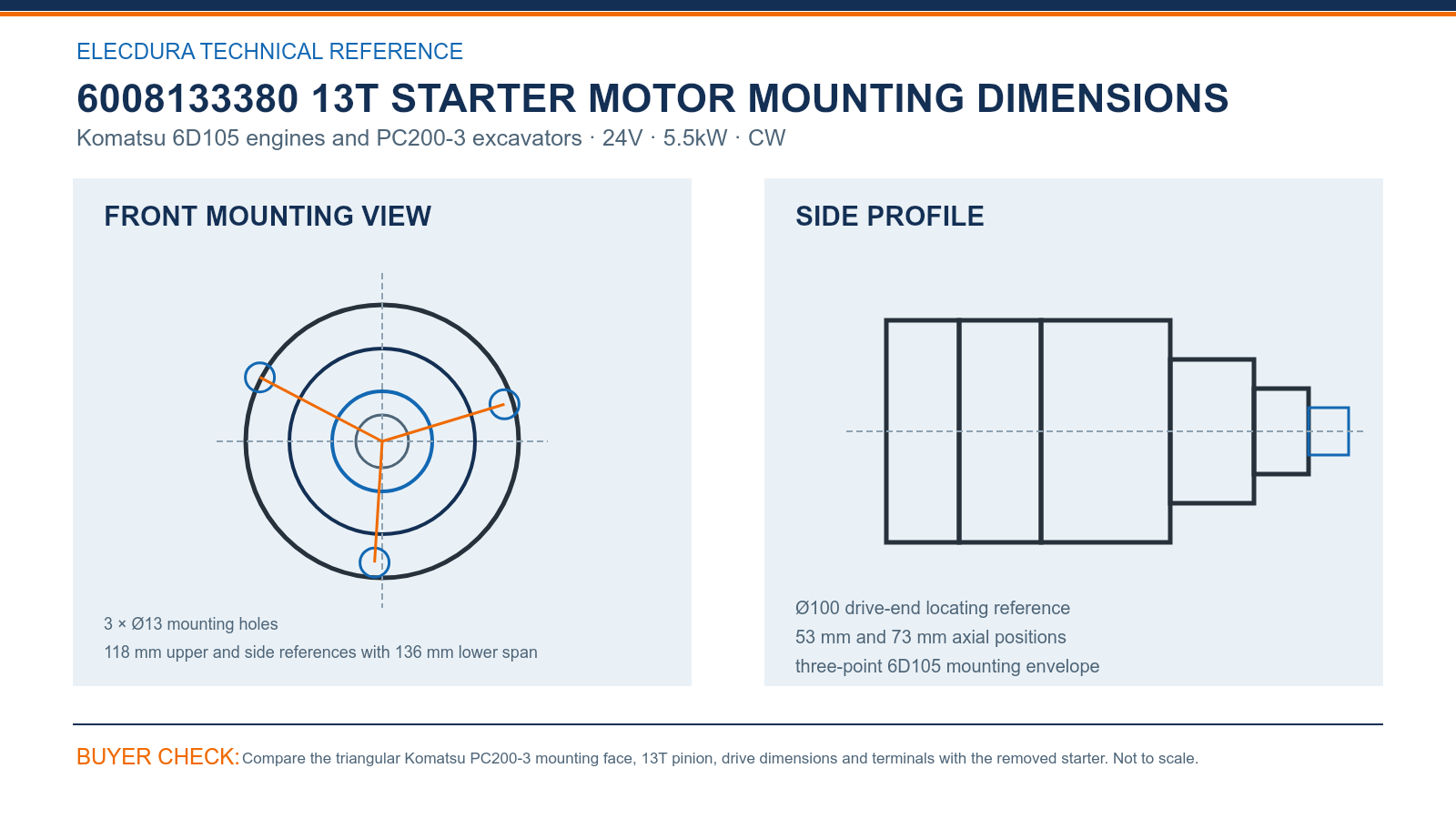

6008133380 Komatsu PC200-3 Starter Dimensions for Excavator Buyers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to check the Ø100 locating reference, 53 mm and 73 mm axial positions, three Ø13 holes, paired 118 mm dimensions and 136 mm lower span.

6008133380 Reference Separation for PC200-3 Parts Orders

6008133380, 3390, 4120, 4121, 4652 and the 023000123x/257x numbers support search. Keep PC200-3, 6D105 and the accepted face with that list to prevent cross-generation picking.

Dealers can maintain this line for confirmed PC200-3 and 6D105 demand. A PC200-1, PC220 or another S6D105 request should be screened separately by power, mounting and machine record.

6008133380 Branch Stock Planning and Factory Testing Video

Inspect the 13T pinion, three-hole face, long nose cone, cable loom, terminal protection and label on sampled cartons. Bin labels should show PC200-3 and 5.5kW, not only a broad Komatsu number.

The Elecdura video introduces assembly and electrical testing for wholesale starters. Equipment dealers can review supplier capability while setting 6008133380-specific inspection, carton labeling and branch replenishment rules.

6008133380 Starter Motor FAQs for Komatsu PC200-3 Buyers

How should buyers distinguish PC200-3 from PC200-1 starter demand?

For dimensional review, start with Komatsu 6D105 engines and PC200-3 excavators, the complete 6008133380 marking and clear photographs of the removed starter from matching angles. Pair the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine with the 24V, 5.5kW, 13T, module 3 and CW rotation set in purchasing and receiving records.

Why is the 5.5kW rating important with a 13T pinion?

For inventory identification, the stated power and pinion data belong together because they define both cranking output and the gear interface expected by the application. This checks the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine while preserving the 24V, 5.5kW, 13T, module 3 and CW rotation definition for the buyer.

What do the 118 mm and 136 mm mounting references confirm?

For reference review, compare the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. For 6008133380, physical evidence must support the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine and the 24V, 5.5kW, 13T, module 3 and CW rotation combination.

Can 6008134120 or 0230001231 support the product search?

For electrical diagnosis, yes, 6008134120 and 0230001231 can support the Komatsu 6D105 engines and PC200-3 excavators parts search, but the numbers do not prove interchangeability by themselves. Keep 6008133380, the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine and 24V, 5.5kW, 13T, module 3 and CW rotation together from enquiry through receiving.

Should a PC220 reference be accepted without physical comparison?

For incoming inspection, compare the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. Compare the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine, then carry 24V, 5.5kW, 13T, module 3 and CW rotation into the purchase order and stock description.

Which features should be sampled on incoming 6008133380 stock?

For delivery planning, for Komatsu 6D105 engines and PC200-3 excavators, sample several cartons from the first lot and compare the rating label, pinion, mounting face, housing and terminals with the accepted product details. A dependable 6008133380 match combines the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine with 24V, 5.5kW, 13T, module 3 and CW rotation, not one visible feature.

How should branches label the 5.5kW PC200-3 line?

For quotation preparation, label each bin and carton for Komatsu 6D105 engines and PC200-3 excavators with 6008133380, the electrical rating, pinion and housing version instead of a broad engine-family name. This ties the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine to 24V, 5.5kW, 13T, module 3 and CW rotation when the item moves into branch stock.

What machine and commercial details should accompany an enquiry?

For application screening, include the engine or machine model, old-starter numbers, mounting photographs, the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine, quantity, packing request and destination. Confirm the 118/136 mm triangular face, Ø100 locating area, 13T drive and PC200-3 machine and keep the 24V, 5.5kW, 13T, module 3 and CW rotation values visible on the quotation.

Request 6008133380 Komatsu PC200-3 Starter Wholesale Pricing

Send the Komatsu PC200-3 model and serial, 6D105 engine plate, all readable starter numbers, straight front, side and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review 6008133380 and quote.
