Lishide A/C Compressors

Lishide Compressor Sourcing from a Specific Excavator Record

This category supports a defined 10PA15C configuration for a Lishide excavator application. It serves importers and distributors who need a searchable Lishide path while keeping the compatibility claim tied to the exact machine and removed unit.

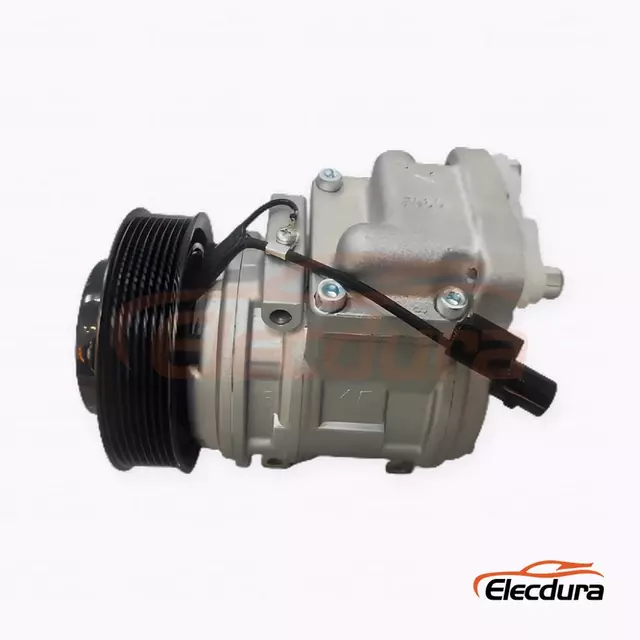

The available configuration uses a 24V clutch, eight-rib pulley around 135 mm, direct mounting and an R134a-style port description. These attributes should stay together as one technical identity.

Protect the Eight-Rib Pulley Requirement

A four-rib 10PA15C with the same voltage or general application is not an automatic alternative. Record all eight ribs, measured diameter and pulley offset, then compare the belt path on the machine.

Use a straight-on pulley photograph and installed view. This evidence helps prevent a familiar 10PA15C housing from overriding the actual drive requirement.

Check the R134a Port Head and Direct Mount

Photograph both hose connections, rear head and mounting ears. Confirm the system refrigerant and service specification from the equipment documentation rather than relying only on a port-style description.

Measure mount spacing and note any bracket or hose modification. A previous repair may have changed the current installation.

Create a Focused Lishide RFQ

Provide excavator model, serial data, original label, family, 24V clutch marking, PV8 pulley, diameter, direct-mount dimensions, port views, refrigerant and quantity. Add destination and delivery timing.

If the application description also references related equipment, keep the Lishide request linked to its own machine evidence. Do not turn a shared supplier description into a universal cross-brand interchange.

Lishide A/C Compressor FAQ

Which compressor family supports this page?

The represented Lishide configuration uses a 10PA15C configuration.

What is the recorded drive?

It is a 24V, eight-rib pulley configuration around 135 mm.

Can a four-rib 10PA15C be substituted?

No automatic substitution should be made; the belt drive and mounting evidence must agree.

Why verify refrigerant separately?

Port style is a useful clue, but the machine system specification controls refrigerant service.

What if the excavator has modified hoses?

Send installed photographs and current port orientation so the altered routing can be assessed.

Can a buyer request multiple Lishide machines?

Yes, with model and compressor evidence kept separate for each technical version.

Submit a Lishide Compressor Inquiry

Send the machine and original-unit details for configuration review. Elecdurauto will quote the aftermarket Lishide A/C compressor requirement only when the PV8 drive, mount and port evidence support the match.

For purchasing teams, the practical stock identity is the complete PV8, 135 mm, 24V, direct-mount and port-head combination. Keep those attributes on the warehouse label and require a receiving photo that shows all eight ribs and the rear head. If a later inquiry presents a four-rib compressor or another voltage, open a new technical comparison instead of attaching it to the established Lishide line.

Request protective caps, clutch-face protection and an outer label that repeats the eight-rib, 135 mm and 24V identity. Those simple packing controls help an importer preserve the verified configuration from supplier dispatch through branch delivery. Include the approved port-head photo with the receiving checklist.
