XGMA A/C Compressors

What XGMA A/C compressor coverage is available for sourcing?

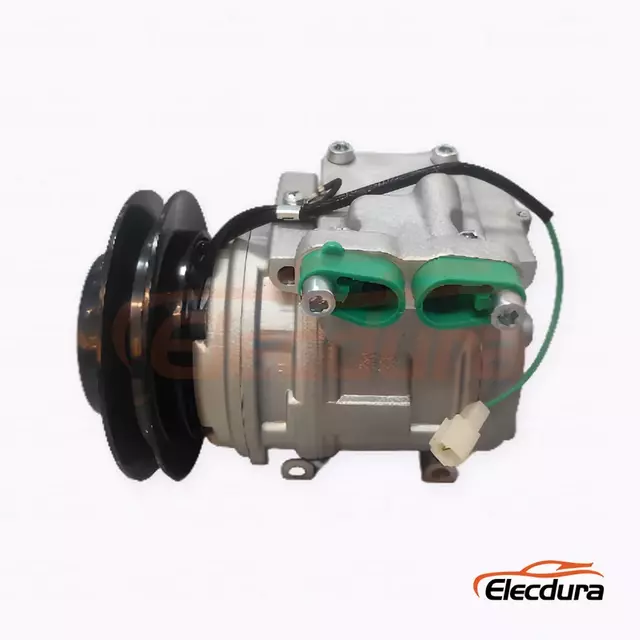

This category gives importers and construction-parts distributors a focused route to aftermarket compressor supply for XGMA equipment. Current catalog coverage includes an XG822 application built around a 10PA15C compressor, a single B-section clutch near 142 mm and a 24V coil. Those details define the current buying scope; additional XGMA machines require separate confirmation before quotation.

Which application details should an RFQ identify?

Send the machine model, old compressor label, system voltage, belt section, pulley diameter and clear photographs of the mounting ears and hose head. A serial-range or parts-book reference helps resolve XG822 variations.

Why is belt section a critical XGMA matching point?

A single-B drive is not interchangeable with a single-A or multi-rib clutch simply because the compressor body looks similar. Groove profile controls belt seating, alignment and effective drive ratio. A near-match can damage the belt, load the clutch incorrectly or leave the pulley out of line with the engine accessory drive.

How should buyers confirm the pulley?

Measure the outside diameter, identify the belt section and compare the pulley offset from the mounting face. Include a side photograph with a ruler when the removed unit has no readable clutch marking.

What mounting checks reduce XGMA installation problems?

Construction equipment can use compact brackets with little tolerance for ear width, bolt spacing and rear clearance. Compare the number and position of mounting ears, pivot dimensions, body length and the location of the clutch connector. Check whether a protective cover or sleeve changes the space needed behind the compressor.

Can a familiar 10PA15C family name prove fitment?

No. The family identifies a useful starting point, but the mounting casting, head, clutch and voltage must all agree with the removed XGMA compressor before a sample is approved.

How should the hose head and ports be verified?

Port direction affects whether original hoses reach without twisting or contacting hot and moving parts. Record the suction and discharge locations, sealing type, port size and head clocking. Photos taken square to the head are more useful than an angled marketplace image when a distributor must compare several offers.

What should remain separate in warehouse records?

Keep a different head orientation, sealing style or clutch package under its own stock identity. Do not combine visually similar XGMA and non-XGMA construction applications in one pick bin without documented equivalence.

What should wholesale buyers request before ordering?

A useful supplier response should state the offered compressor family, voltage, clutch configuration, mounting, port layout, product condition, packing method, sample availability, quantity break, lead time and claim procedure. Request current product photographs rather than accepting a generic family image. Missing dimensions should be marked for sample validation, not silently assumed.

How can an importer control the first batch?

Approve one traceable sample against the removed unit, install it in a known machine and retain photographs, measurements and label data as the receiving standard for repeat orders.

How can Elecdurauto support an XGMA compressor RFQ?

Elecdurauto can organize an aftermarket quotation around the buyer’s XGMA application evidence and required quantity. The objective is to identify the correct configuration before discussing bulk supply, not to claim universal XGMA compatibility. Share the old-unit details and destination so the supplier response can address fitment, packing and replenishment needs.

What information speeds up the quotation?

Provide machine model, compressor label, voltage, belt and pulley measurements, port photos, required quantity, delivery country and any packaging or labeling requirement used by your distribution network.
