Lonking A/C Compressors

Lonking Compressor Range Includes Distinct Families

Lonking excavator compressor demand cannot be reduced to one 142 mm single-A unit. The available selection includes 10S15C and 10PA15C families and both 12V and 24V electrical versions. Importers and distributors should preserve these distinctions from RFQ through receiving.

Applications include Lonking excavators and 55/60-class equipment. R12-style port descriptions appear on the 10PA15C variants, so the hose-head connection must be checked as carefully as the drive.

Separate 10S15C from 10PA15C

Two compressor families can share brand, pulley section and approximate diameter while differing internally and at the mount or rear head. Do not substitute by appearance. Record the family marking before removal.

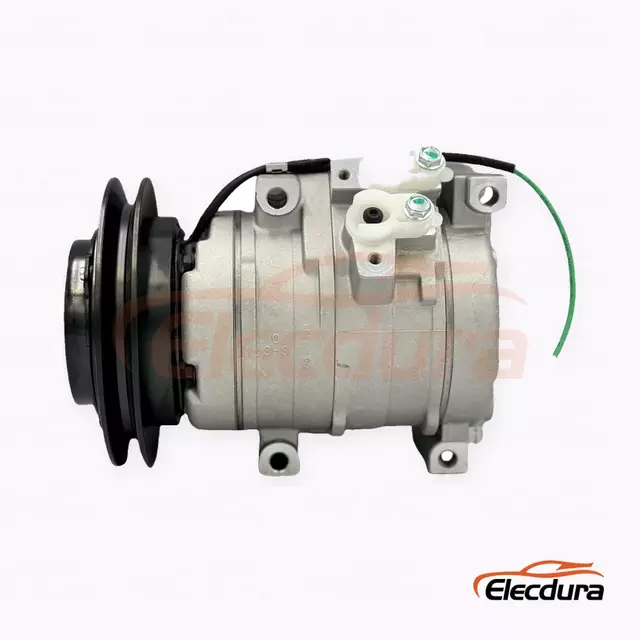

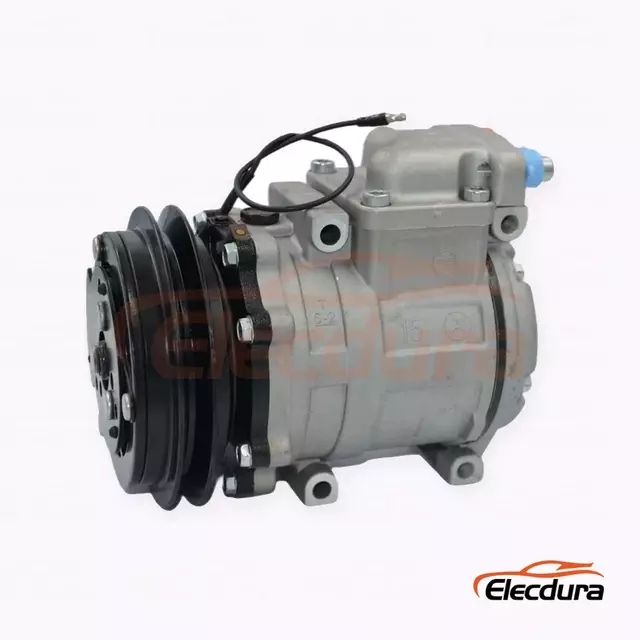

The 10S15C record uses a 24V single-A drive around 142 mm. The 10PA15C 55/60 records include both 12V and 24V versions with the same general single-A description.

Use Voltage and Port Type as Stock Boundaries

Read the clutch marking and connector to keep 12V and 24V inventory separate. Photograph the service ports and hose fittings, especially where R12-style terminology is used. Similar product angles can hide an electrical or port difference.

For receiving, check family, voltage, connector, pulley, mount and port head against the purchase line before shelving.

Lonking RFQ Details for Wholesale Buyers

Send the exact excavator model, serial range, compressor label, family, voltage, pulley profile and diameter, mount measurements, port views, refrigerant and quantity. Add destination and delivery timing.

If one fleet contains different 55/60 builds, keep every original compressor as a separate evidence set until equivalence is proven.

Lonking A/C Compressor FAQ

Which families are covered by the current range?

The available selection includes 10S15C and 10PA15C Lonking excavator configurations.

Are all Lonking 55/60 units 24V?

No. The represented 10PA15C options include both 12V and 24V 10PA15C versions.

Why must the port head be photographed?

R12-style and other hose connections can differ even when the pulley and body look similar.

Can a 10S15C replace a 10PA15C?

Do not assume interchange; family, mount, drive and system requirements must agree.

What should be printed on the stock label?

Use machine group, family, voltage, pulley, port type and verified product reference.

Can mixed voltages be quoted together?

Yes, but put 12V and 24V configurations on separate RFQ lines with separate quantities.

Request a Lonking Compressor Cross-Check

Send the excavator and original-compressor evidence for each version. Elecdurauto will organize the aftermarket Lonking A/C compressor quotation by family, voltage and port configuration.

When building wholesale inventory, separate 10S15C and 10PA15C stock first, then divide the 10PA15C group by 12V and 24V. Add the port-head description to the carton and warehouse record so a picker does not rely on the brand and pulley alone. For repeat orders, retain the original machine group and approved rear-head photograph as part of the purchasing reference.

For export packing, request capped ports and carton labels that show family, voltage and port version. This makes it easier for a regional warehouse to split the 12V and 24V products immediately and prevents a picker from opening several visually similar cartons during an urgent excavator repair.
