SDLG A/C Compressors

SDLG Compressor Sourcing Depends on Port Configuration

SDLG excavator records in the current range share 12V electrical demand but differ in compressor family, pulley size and service-port description. This page supports importers, distributors and fleet workshops that need an aftermarket SDLG A/C compressor identified beyond the machine brand.

The range includes a compact 10S15C application with a single-A pulley around 133 mm and an adapter, plus 10PA15C units for SDLG 660/665F equipment around 142 mm.

Keep the Adapter with the Compact 10S15C Identity

The smaller SDLG record includes a reverse-port or adapter description. Photograph the adapter, rear head and hose direction before disassembly. An omitted adapter can turn an otherwise close compressor match into an installation problem.

Compare the 12V connector, pulley offset and mount spacing with the original unit. Do not transfer the 133 mm details to the larger 10PA15C group.

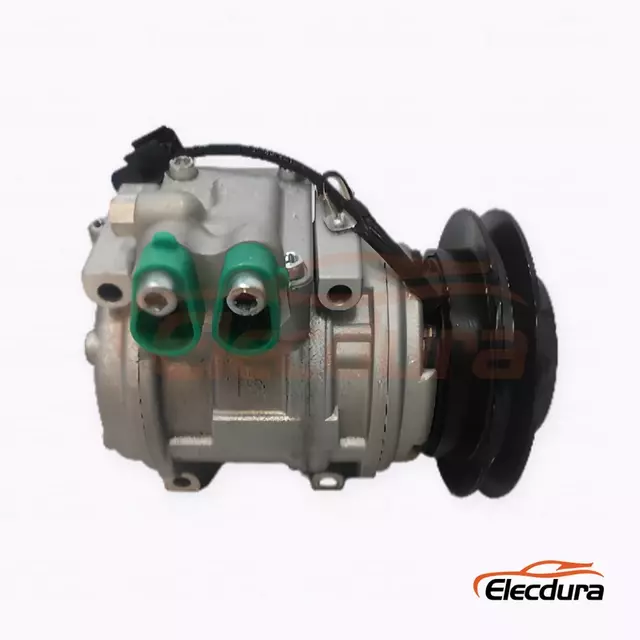

Separate R134a-Style and R12-Style 660/665F Ports

The two 10PA15C records share a single-A pulley around 142 mm and 12V clutch, but their port descriptions differ. This is an important receiving and hose-connection boundary.

Record the system refrigerant from the equipment specification and photograph the actual fittings. Port terminology alone should not replace system-level confirmation.

Build a Traceable SDLG Purchase Request

Send machine model, serial data, compressor family, voltage, pulley, adapter details, mount dimensions, port photographs, refrigerant and quantity. Include the destination and required date.

Assign a separate line to the compact 10S15C and to each 10PA15C port version. That structure helps distributors avoid consolidating units that share voltage and brand but not the connection head.

SDLG A/C Compressor FAQ

Which machine group appears in the 10PA15C records?

The current range identifies SDLG 660/665F excavator applications.

Are both 10PA15C products the same?

No. Their port descriptions differ and must be checked against the original hose connection.

Why is the adapter important?

The compact 10S15C record includes an adapter-related installation detail that affects hose routing.

Does 12V confirm compatibility?

No. Family, pulley, mount, adapter and port head must also match.

What images should accompany the RFQ?

Include label, pulley, adapter, mounting ears, connector, rear head, both ports and an installed view.

How should distributor stock be separated?

Label by family, pulley size, port type and adapter requirement rather than by SDLG brand alone.

Submit an SDLG Compressor RFQ

Provide the machine identity and complete connection evidence. Elecdurauto will review the available aftermarket SDLG A/C compressor versions and quote the configuration supported by the port and mounting details.

Port protection is particularly important for SDLG distributor stock because connection differences may be difficult to see through packaging. Require capped ports, a visible family and voltage label, and a receiving photograph of the adapter or rear head. Before dispatch, match the 133 mm compact unit or the 142 mm 660/665F version to the exact purchase line rather than choosing from a shared 12V shelf.

For repeat orders, keep a photo of the approved adapter or rear head with the supplier quotation and packing list. The warehouse can use that view to check the connection version before allocating stock to an SDLG 660 or 665F service request.
