Daewoo / Doosan A/C Compressors

Daewoo and Doosan Compressor Procurement by Excavator Model

Daewoo and Doosan excavator applications can share a 10PA15C family while retaining visible cover, pulley and mounting differences. This category helps heavy-equipment importers, distributors and service fleets source aftermarket compressors without collapsing related machines into one stock identity.

The present range includes DH220-5 long-cover and short-cover versions, plus a DH80-J configuration. All must be checked from the original product rather than the excavator name alone.

Use Cover Length to Separate DH220-5 Stock

The two DH220-5 records use 24V clutches and four-rib pulleys around 130 mm, yet the long and short cover remain different receiving identities. Photograph the front cover side by side with the pulley and mount.

Do not assume that matching model, family, voltage and pulley makes the covers interchangeable. Clearance and bracket geometry must be verified.

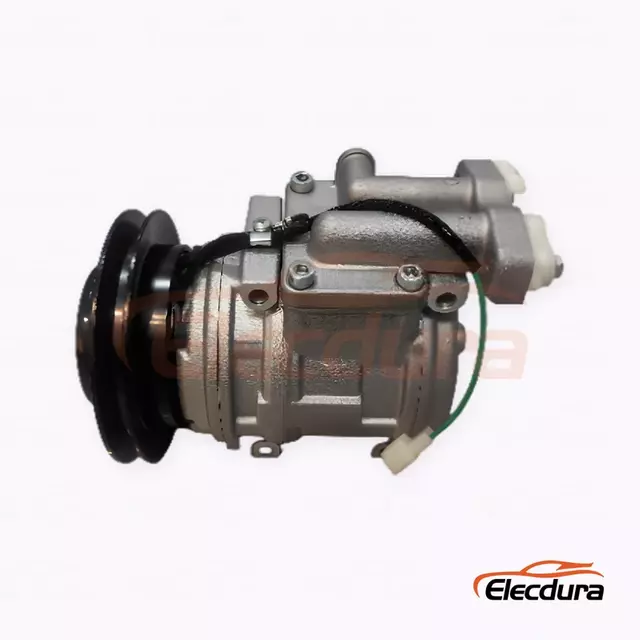

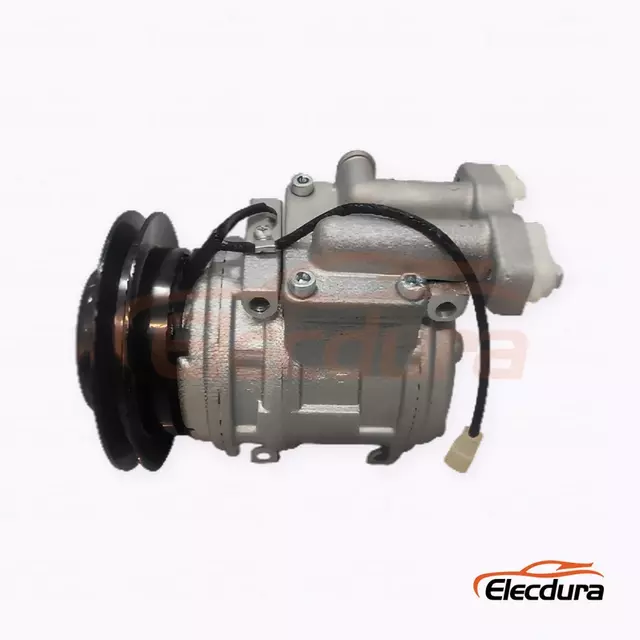

Keep DH80-J Drive Details Independent

The DH80-J record uses a 24V, single-A configuration around 142 mm rather than the four-rib DH220-5 drive. This gives procurement teams a clear boundary for inquiry and stocking.

Compare connector, mounting ears, rear head and hose ports. If the machine has a prior replacement, use current installed measurements as part of the evidence.

RFQ Structure for Excavator Parts Distributors

Send excavator model, serial range, compressor label, cover style, family, voltage, pulley, mount dimensions, port views, refrigerant and quantity. State destination and whether the order is a repair or stock project.

List long-cover, short-cover and DH80-J units separately. A supplier can then price confirmed lines without spreading a cover assumption across the order.

Daewoo Doosan A/C Compressor FAQ

Why are there two DH220-5 product identities?

The current range distinguishes long-cover and short-cover configurations despite shared family, voltage and pulley data.

Can cover length be ignored if the mount looks similar?

No. Verify clearance, bracket geometry and the complete original unit.

Does DH80-J use the same four-rib drive?

The current DH80-J record uses a single-A 24V configuration around 142 mm.

Are all products in this category genuine branded units?

This page supports aftermarket replacement sourcing; any branded status must be documented on the individual product.

What should receiving staff check first?

Confirm excavator model, cover style, pulley, voltage, mount and ports against the approved line.

Can several excavator models share one order?

Yes, with separate technical lines and quantities for every verified version.

Request a Daewoo Doosan Compressor Review

Submit the excavator identity and cover-specific compressor evidence. Elecdurauto will review the available aftermarket Daewoo and Doosan A/C compressor configurations and prepare a wholesale quotation.

For wholesale receiving, record the cover version on both the carton and internal stock label. A front-view photograph should show the four-rib or single-A drive, while a side view should show cover length and mounting geometry. This is especially useful for service branches that support several Daewoo or Doosan excavator generations and need to prevent a DH220-5 unit from being picked for a DH80-J repair.

Export buyers should also request capped ports and a carton label that identifies the machine group, cover length, pulley and voltage. These details support faster warehouse allocation when an urgent excavator repair cannot wait for the wrong version to be returned.
