Yuchai A/C Compressors

Yuchai Excavator Compressor Sourcing

Yuchai excavator cab A/C parts should be selected from machine identity and original-unit geometry. This category supports wholesalers, importers and service-parts buyers looking for an aftermarket Yuchai A/C compressor with enough technical detail to prevent a similar-looking substitute.

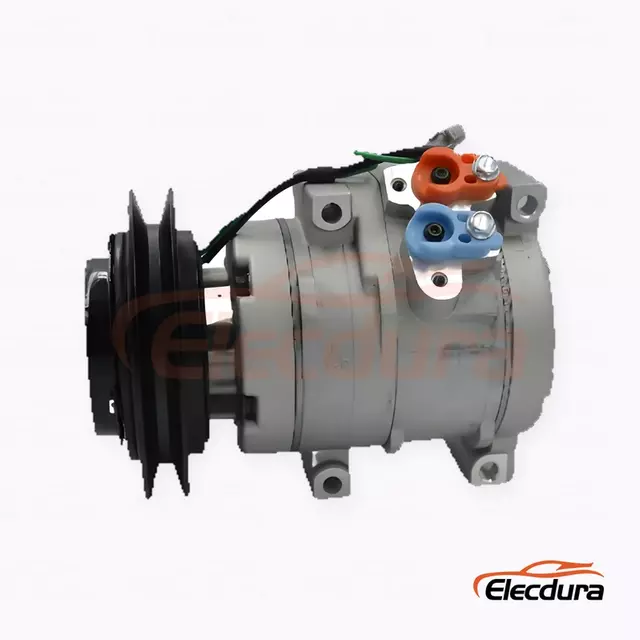

The represented Yuchai excavator configuration uses a 10S15L family, 24V clutch and single-B pulley around 142 mm. The B-section drive is a defining procurement detail rather than a minor description.

Record the Excavator Before the Compressor Leaves the Machine

Capture the Yuchai model, serial range and data plate, then photograph the compressor in its installed position. The installed view shows belt approach, bracket position, connector access and hose direction.

If the label is dirty or damaged, clean only enough to reveal markings and keep all partial numbers. Do not invent an OE reference when no public OE reference is available on the removed unit.

Protect the Single-B Drive Specification

A B-section pulley cannot be replaced from an A-section or multi-rib listing without an approved drive change. Confirm diameter, offset and belt alignment, then measure the mounting ears. Read the clutch marking to verify 24V.

The 10S15L family may also appear with another pulley style in other equipment. Treat compressor family and pulley as two separate matching gates.

Wholesale Evidence and Stock Control

For quotation, provide equipment identity, compressor family, voltage, pulley profile and diameter, mounting measurements, connector, ports, refrigerant and quantity. Include destination and delivery timing.

Distributors should store the single-B description with the product record and receiving photos. This helps prevent a 142 mm unit with the wrong belt section from being accepted into the same bin.

Yuchai A/C Compressor FAQ

Which compressor family is represented?

The verified Yuchai configuration uses a 10S15L configuration.

Why is the B-section pulley important?

It defines the belt profile and alignment; a similar diameter with another section is not the same drive.

Can I order from the Yuchai name alone?

No. Provide excavator model, serial data and original-compressor evidence.

Should I assume every excavator uses 24V?

No. Confirm the machine electrical system and the actual clutch marking.

What if no OE number is visible?

Use exact machine data, family marking, measurements and complete photographs for comparison.

Can this page cover a Yuchai engine in another truck brand?

No automatic application is implied; this category is limited to a verified Yuchai excavator configuration.

Request a Yuchai Compressor Quote

Submit the excavator identity and single-B drive evidence. Elecdurauto will review the available aftermarket Yuchai A/C compressor configuration and price the verified requirement for wholesale supply.

For branch stock, identify this requirement as a Yuchai excavator single-B drive rather than placing it in a general 24V compressor bin. Receiving staff should measure the belt section and pulley diameter, compare mounting-ear spacing and confirm that the connector and hose ports match the approved images. This controlled description reduces field returns caused by an A-section unit with a similar housing.

When arranging international delivery, request protected hose ports and a readable outer label showing the Yuchai excavator, 10S15L, 24V and single-B identity. That information helps the receiving branch recognize the correct stock before opening every carton.
