Shifeng Truck A/C Compressors

Shifeng Fengshun Compressor Procurement

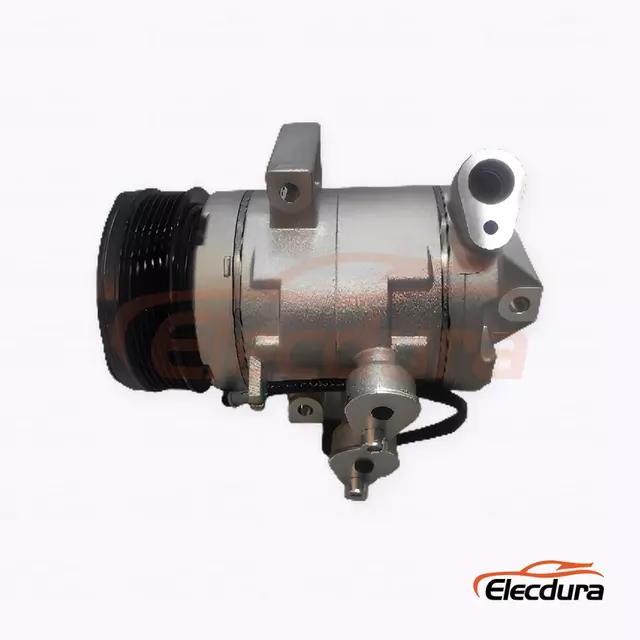

Shifeng light-truck buyers need a dedicated category for vehicle-led search, but the final compressor decision still depends on the removed unit. The Fengshun application represented here uses a 10S15C family, 24V clutch and six-rib pulley around 110 mm. This combination gives importers, distributors and fleet workshops a focused starting point for an aftermarket quotation.

The truck model, belt drive and electrical demand should remain together throughout inquiry, order confirmation and receiving.

Verify the PV6 110 mm Belt Drive

Count all six pulley ribs and measure the diameter and offset. A larger six-rib compressor or a similar 10S15C housing can place the belt outside the correct plane. Include a straight-on pulley photograph and an installed belt-path view.

Check clutch engagement voltage from the marking rather than the vehicle name alone. The 24V circuit, connector shape and wire position are separate acceptance points for the Fengshun configuration.

Compare Mounting and Hose Orientation

Measure the mounting ears and show the bracket contact surfaces. Photograph the rear head, both hose ports and the space around the compressor before removal. These details help distinguish another 10S15C truck unit that shares family and pulley count but uses a different head or foot pattern.

If the truck has a modified bracket or repaired hoses, state that clearly and provide the current installed dimensions.

Prepare a Shifeng Distributor RFQ

Provide the full Fengshun model, year, engine, chassis information, compressor label, family, 24V clutch, PV6 pulley, diameter, mount spacing, connector, port orientation, refrigerant and quantity. Add destination and delivery requirement.

Buyers building stock should keep the Shifeng line separate from FAW or other light-truck compressors. A common family name does not prove the same connector, pulley position or vehicle-side mounting.

Shifeng Truck A/C Compressor FAQ

Which Shifeng application is represented?

The category supports the verified Shifeng Fengshun light-truck configuration.

What is the key drive specification?

The represented unit uses a six-rib pulley around 110 mm with a 24V clutch.

Can another 10S15C truck compressor be substituted?

No automatic interchange should be assumed; pulley offset, mount, connector and hose head must agree.

Why photograph the installed belt path?

It shows pulley alignment, bracket position and clearance that may not be clear after removal.

What if the original label is unreadable?

Send complete vehicle data, accurate measurements and clear images of every matching feature.

What should receiving staff verify?

Check vehicle line, family, voltage, six-rib pulley, mount, connector and ports against the approved RFQ.

Request a Shifeng Fengshun Quote

Submit the truck identity and original-compressor evidence for review. Elecdurauto will quote the aftermarket Shifeng A/C compressor configuration supported by the PV6 drive, 24V electrical and installation details.

For export supply, ask for capped ports, clutch-face protection and an outer label showing Shifeng Fengshun, 10S15C, 24V and PV6 110 mm. A regional warehouse can then identify the correct light-truck stock before completing the detailed mount and connector inspection. Retain the checked images for future repeat orders.
