Volvo truck A/C compressor inquiries benefit from a dedicated make path, but the make cannot establish the installed unit. This category supports aftermarket replacement sourcing for verified Volvo commercial-truck applications using the original reference, compressor label and physical configuration.
The reviewed supplier PDF provides a focused set of Volvo truck configurations for technical comparison. Each product assignment must still be supported by its own application and compressor record rather than inferred from the category range.

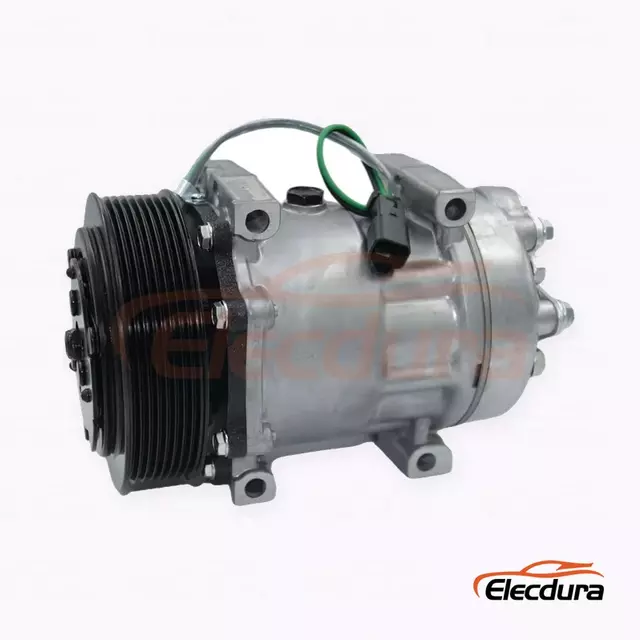

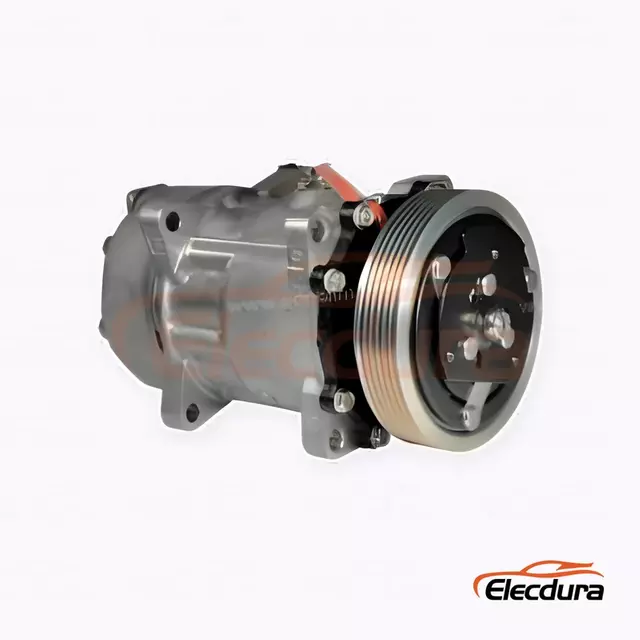

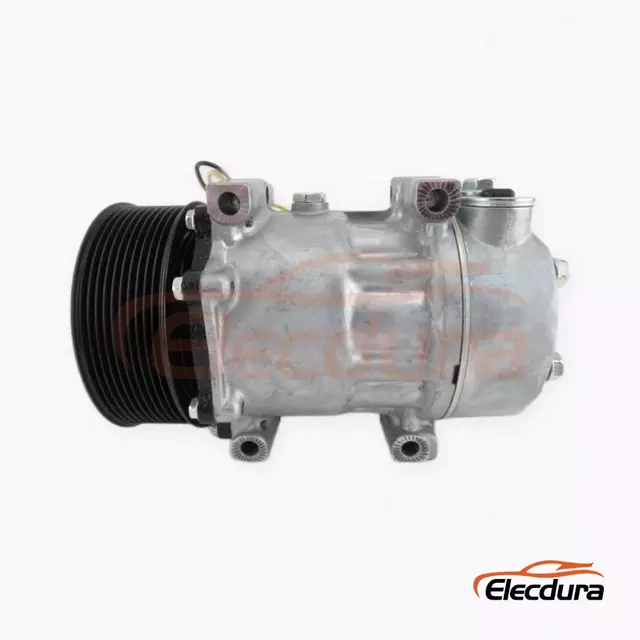

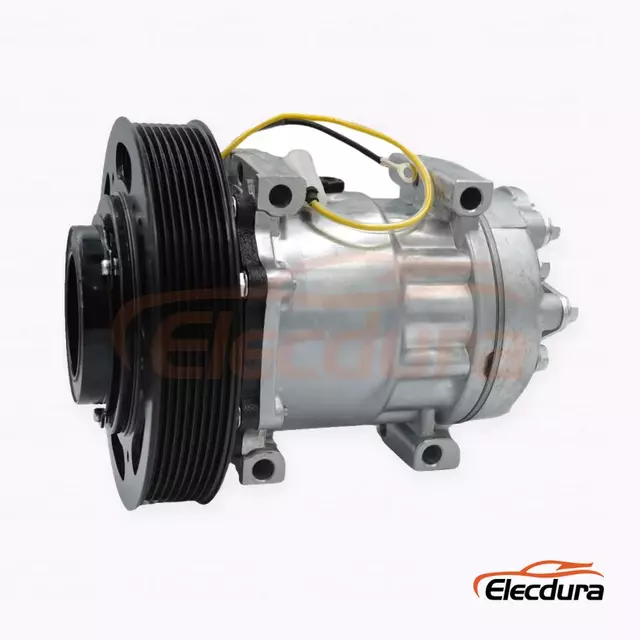

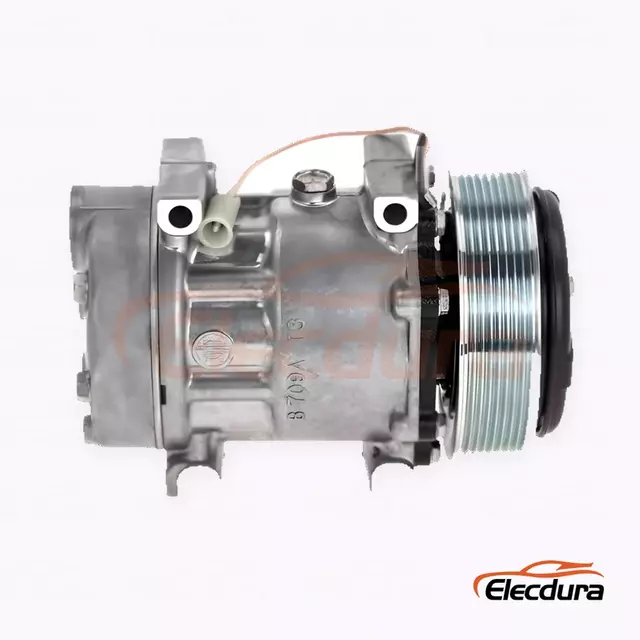

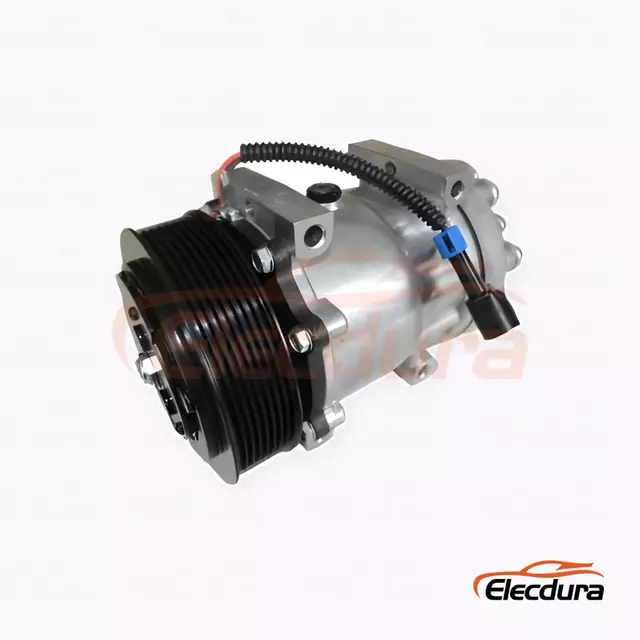

The Volvo source range centers on the 7H15 family. It includes both 12V and 24V clutch versions, A2 and multi-rib pulley descriptions, and recorded diameters from approximately 124 to 176 mm.
A shared 7H15 designation does not mean the eight configurations are interchangeable. Pulley diameter, groove count, mount, rear head and connector must travel with the model and reference in every quotation.
State that the request is for Volvo Trucks and provide the complete commercial model, year, engine and chassis or VIN information. A broad Volvo search can include passenger vehicles and off-highway brands, neither of which should be inferred as part of this truck category.
If the original compressor was changed during an earlier repair, submit the installed reference together with the truck build details. Conflicting evidence should be reviewed rather than resolved by appearance.

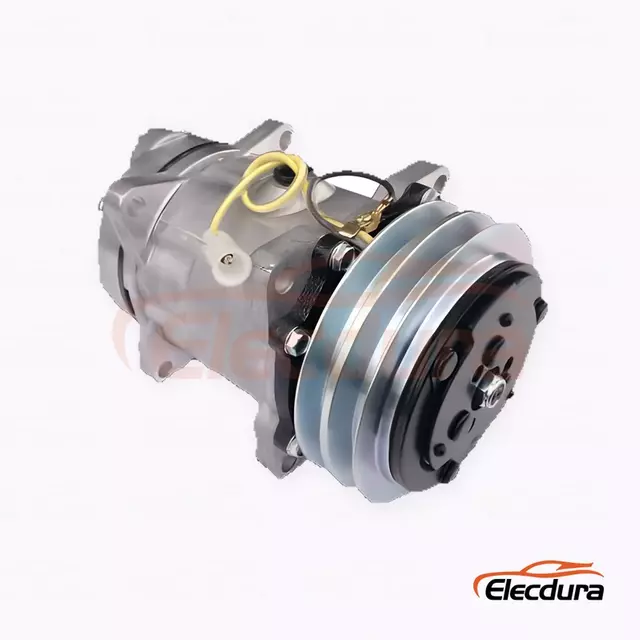

The source shows both clutch voltages, so voltage must be read from the unit. Multi-rib formats include PV6 and PV8, while an A2 V-belt configuration also appears. Diameter variation is substantial enough that groove count alone cannot identify the correct drive.
Confirm R134a or the actual refrigerant, then photograph the mount, connector and hose ports. Pulley offset and rear-head orientation should be compared with the removed compressor before quantity is finalized.
Provide the truck model, production year, engine, chassis or VIN data, OE or compressor numbers and clear label images. Add voltage, pulley profile, grooves, diameter, mounting layout, refrigerant and port direction.
For distributor or fleet lists, place every version on a separate line with quantity and destination. If a current EP product is involved later, its own live edit record and category placement must be verified rather than assumed from the landing-page plan.
The source range reviewed for this page is 7H15-based, with several distinct configurations.
No. The source shows different voltages, pulley profiles, diameters and installation details.
Yes, both appear in the reviewed catalog range; verify the original unit.
No. Include pulley diameter and offset, mount, connector, head and application reference.
Yes. Identify it as a cross reference and include the truck and installed-compressor evidence so the number can be evaluated in context.
Keep the line under review and provide both records plus installation photographs before selecting a replacement.
Submit the Volvo Trucks application and original-compressor configuration. Elecdurauto will compare the available aftermarket 7H15-type options and prepare a wholesale RFQ separated by voltage, pulley and installation geometry.
