This category supports aftermarket A/C compressor inquiries for Isuzu commercial trucks, with source evidence for Giga, Forward, DECA and other truck descriptions. It is intended for distributors, importers and fleet maintenance buyers who can identify the exact vehicle and removed compressor.
The supplier records also include D-MAX pickup and NPR references. D-MAX is not represented as a heavy-duty application on this page. NPR or other medium-duty lines should retain their exact vehicle class and product mapping instead of being treated as interchangeable with Giga or DECA.

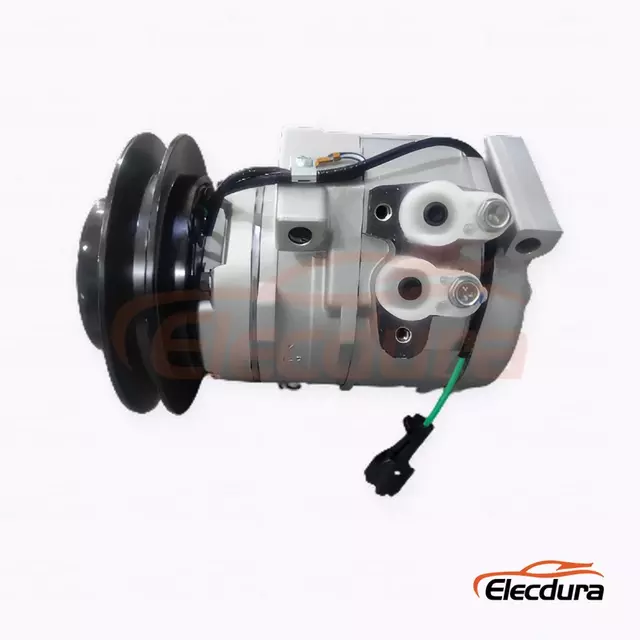

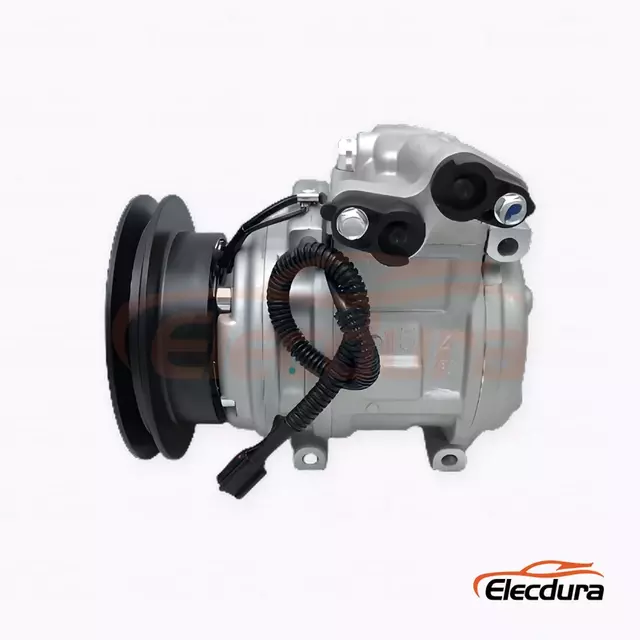

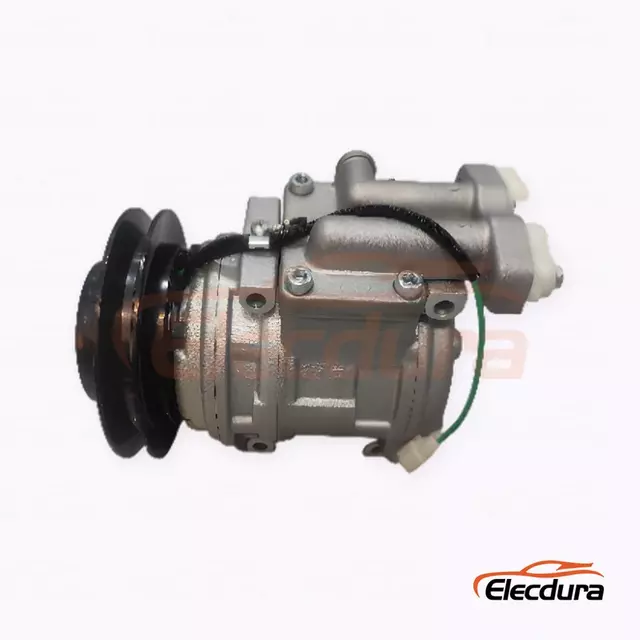

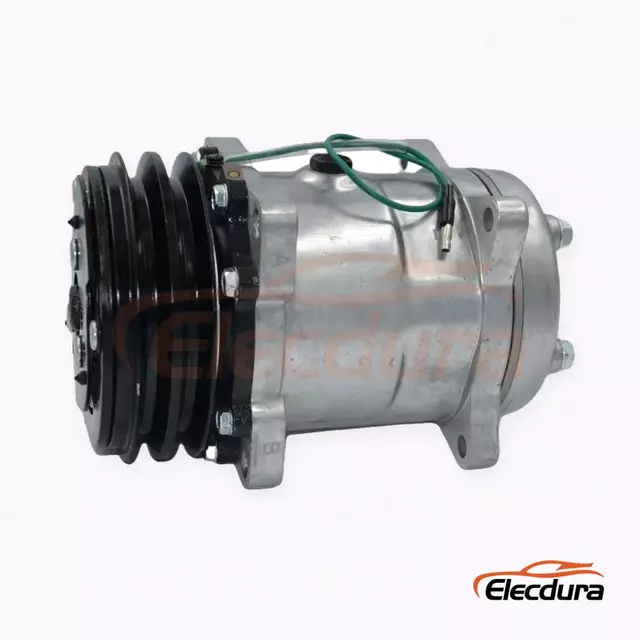

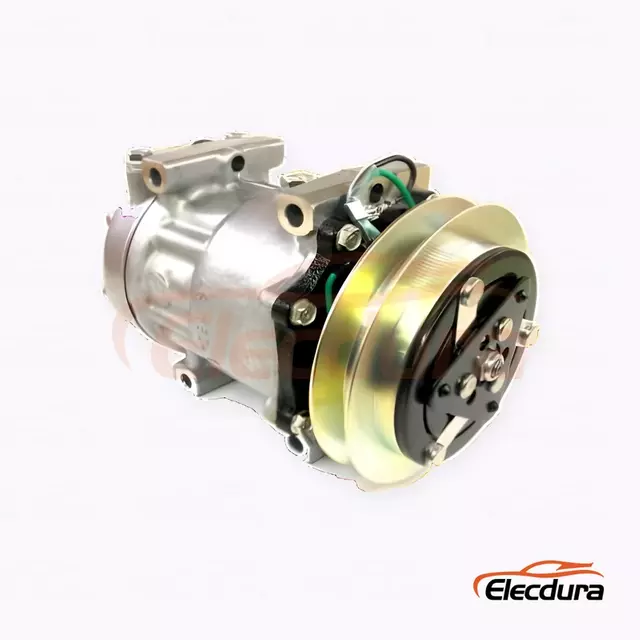

The Isuzu source range is led by 10S15C, followed by 10PA15C, 10K17C and 5S14-style units. The companion catalog adds 7H15 configurations for selected truck applications.
DECA records alone include different A1 positions, while the source also identifies Forward, Giga, mixer-truck and general truck descriptions. Use the complete model, engine and production information to separate these candidates.
The reviewed sources show a 12V D-MAX application beside 24V truck records. That adjacency is a catalog fact, not evidence that the pickup unit belongs under heavy-duty trucks. Product placement should follow the real vehicle class.
When a buyer sends only an Isuzu OE or aftermarket number, ask for the vehicle model before assigning the category. This avoids combining pickup, light-commercial, medium-duty and heavy-truck compressors under one make term.
The full Isuzu range contains both 24V and 12V entries. It displays A1, A2 and B1 pulley forms with diameters from about 125 to 146 mm. These attributes must be evaluated together with compressor family, mount and rear-head layout.
Do not select a unit from voltage or pulley count alone. Photograph the connector and ports, measure the pulley, and confirm R134a or the actual refrigerant from the vehicle and old label.
Provide Giga, Forward, DECA or other exact model information, year, engine, chassis data, OE number and all compressor markings. Include voltage, refrigerant, pulley profile, groove count, diameter, mount dimensions and clear views of the hose connections.
For multi-model wholesale demand, classify pickup and truck lines before submission. Record each confirmed quantity separately and flag cross references that lack an original-unit photograph.
No. D-MAX is a pickup application and is excluded from the heavy-duty truck scope.
No interchange should be assumed. Compare each truck’s original reference and full compressor configuration.
No. The complete supplier sheet contains both 12V and 24V entries across its mixed application set.
It helps describe the pulley or drive arrangement, but diameter, mount, head and application still need confirmation.
Only after its intended medium- or heavy-duty product placement is confirmed; it should not be silently grouped with Giga.
Send the public reference, exact vehicle, original label and photographs of the mechanical and electrical configuration.
Provide the commercial-truck identity and old-compressor evidence. Elecdurauto will review the relevant aftermarket Isuzu truck A/C compressor configurations, exclude pickup mismatches and quote the verified B2B lines.
