Hino truck A/C compressor selection should begin with the vehicle and the original unit, then move to the clutch and mechanical configuration. This category supports global importers, commercial-vehicle parts distributors and fleet service buyers sourcing aftermarket replacements for verified Hino applications.
The reviewed supplier evidence is compact but technically varied. It contains 10S13C and 10S15C-style configurations with several belt arrangements and pulley diameters. That range is suitable for a focused Hino page, but it does not justify treating every Hino truck as one compressor fit.
The Hino source range includes tractor-head and Mega descriptions. The catalog shows A1, B1 and PV6 pulley formats with recorded diameters from approximately 133 to 142 mm.
Provide the complete Hino model, year and engine where available. A translated application description or a general “Hino truck” request can narrow the range, but the original number and compressor label are needed to resolve the version.
The detailed Hino worksheet records are marked 24V. The reviewed PDF range, however, also displays a 12V configuration. This difference reinforces the correct purchasing rule: verify the voltage on the old clutch and vehicle rather than relying on the majority of the catalog.
A 12V and 24V unit can share a similar body. Incorrect coil voltage is not an acceptable substitution and should be resolved before price or availability is discussed.
Pulley notation describes more than the number of grooves. Buyers should compare V-belt or multi-rib profile, diameter, offset and alignment. The Hino source range also uses inline-ear mounting, but mount spacing and hose-port direction still need a physical comparison.
Send front, side, rear and top photographs. Show the electrical connector, cylinder head and both ports. If the compressor has already been replaced, state that the installed unit may be an aftermarket cross reference.
List the truck model, chassis or VIN data, engine, production year, OE number, compressor family and all readable label references. Add clutch voltage, R134a or other confirmed refrigerant, pulley type, diameter, mount and port orientation.
For a fleet or distributor order, keep each configuration and quantity on a separate line. Include the destination and mark any unit that still lacks a clear label or dimension so it can remain in technical review.

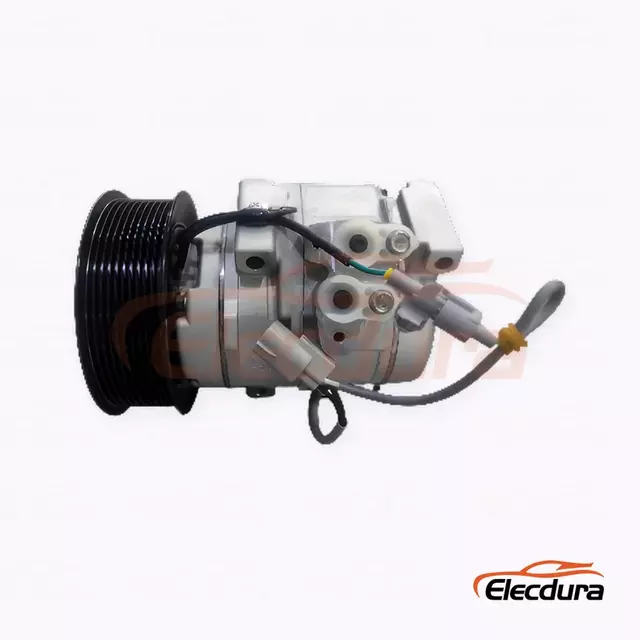

The reviewed records contain 10S13C and 10S15C-style configurations.
No. The detailed worksheet range is 24V, while the companion catalog also shows a 12V configuration.
No. Diameter, offset, mount, head, ports, connector and original reference must also agree.
No direct interchange should be assumed. Match the compressor family and complete vehicle specification.
Provide chassis, engine and label photographs so the application can be cross-checked without relying on a translated name.
Place them on separate hold lines and identify the missing evidence rather than merging them with confirmed quantities.
Send the truck identity and complete compressor configuration. Elecdurauto will review the available aftermarket Hino truck A/C compressor records and prepare a wholesale RFQ for the versions supported by the source evidence.
