600-813-3632-12V-9.0KW-12T-3.175M Komatsu Starter Motor

600-813-3632-12V-9.0KW-12T-3.175M Construction Equipment Starter Motor for KOMATSU S6D125 (PC300 / PC400)

For inventory buyers planning mixed-model inventory, built for KOMATSU S6D125 (PC300 / PC400), this construction equipment starter motor combines 12V operation, 9.0kW rated power and a 12T drive. Elecdura supplies 600-813-3632-12V-9.0KW-12T-3.175M for excavator, loader and off-highway replacement programs, including distributor stock and planned replenishment.

For fleet-parts buyers updating a customer item master, the goal is a repeatable supply line: one agreed product identity, one packaging definition and one set of incoming checks. This is useful for importers building category coverage as well as fleet suppliers replenishing an existing starter reference.

600-813-3632-12V-9.0KW-12T-3.175M Starter Motor Specifications and Technical Drawing

For fleet-parts buyers comparing nearby starter versions, the key version difference is the mounting and housing clocking. Compare 65°, 3×120° spacing and 3×Ø17 with the removed unit so the pinion alignment and cable access remain correct.

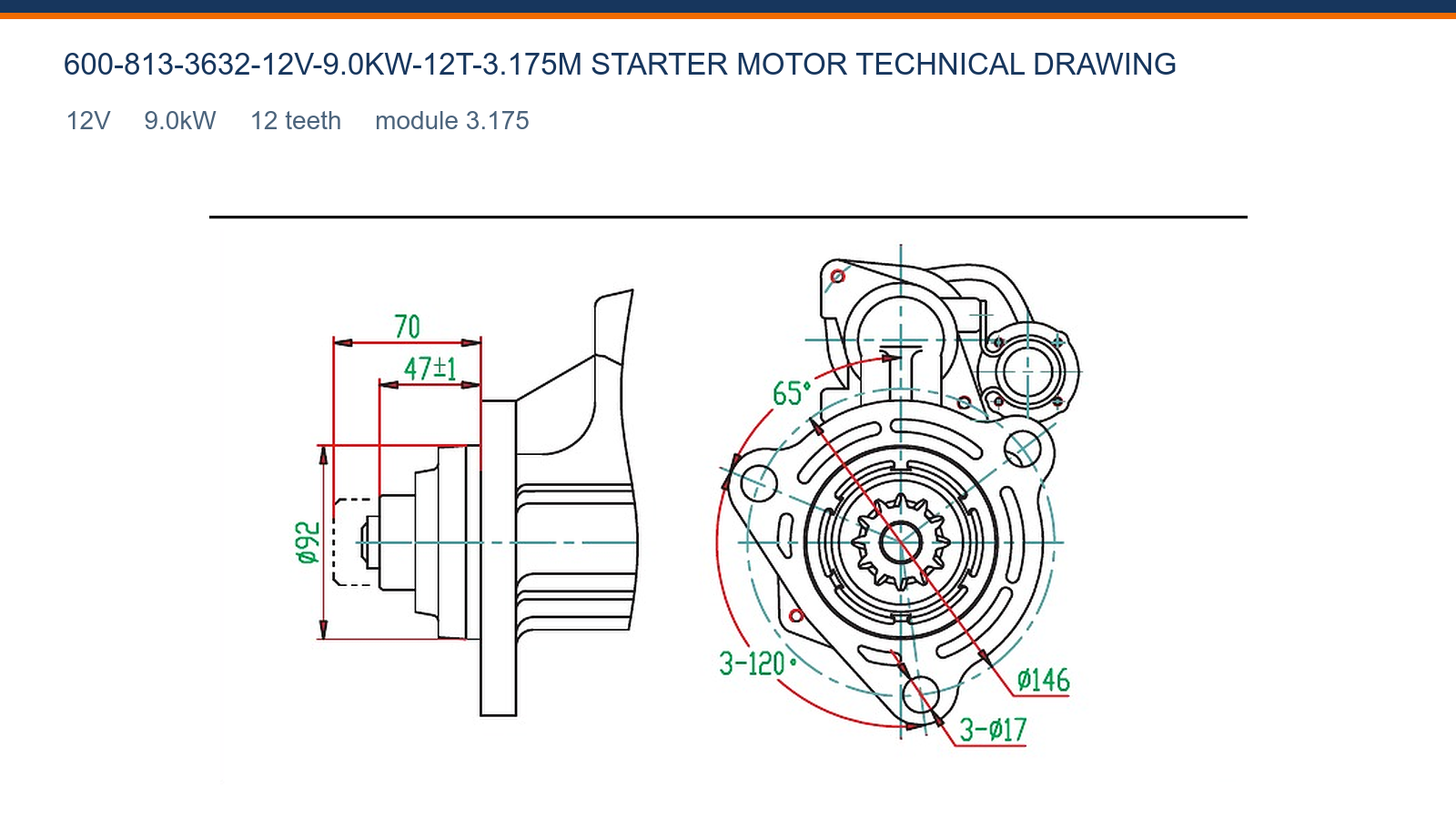

For technical sales teams preparing a technical RFQ, the source-faithful technical drawing records the available mounting information for 600-813-3632-12V-9.0KW-12T-3.175M, including 3×Ø17, Ø146, 47±1 mm, 65°, 3×120° spacing; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

600-813-3632-12V-9.0KW-12T-3.175M Aftermarket Replacement and Application

For equipment-parts dealers checking application evidence, use 600-813-3632-12V-9.0KW-12T-3.175M as the primary product identity for KOMATSU S6D125 (PC300 / PC400). The cross-reference group 600-813-3632-12V-9.0KW-12T-3.175M, 600-813-3632 supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

For purchasing teams preparing an OE-based quote, the original unit in hand should agree with the approved drive-end, side and rear views. Confirm the 12T pinion and module 3.175, then keep any different flange or terminal layout outside the current quote position.

600-813-3632-12V-9.0KW-12T-3.175M Wholesale Supply for Distributors and Importers

For distributors requesting production pricing, wholesale enquiries for 600-813-3632-12V-9.0KW-12T-3.175M can combine product matching with packaging and inspection planning. Elecdura offers neutral packaging and private-label review for qualified orders, with 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For aftermarket product managers planning replenishment, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

600-813-3632-12V-9.0KW-12T-3.175M Starter Motor Buyer FAQ

How should a distributor confirm 600-813-3632-12V-9.0KW-12T-3.175M solenoid and cable routing for repeatable sourcing?

For service-parts networks preparing an OE-based quote, use the side and rear photographs of 600-813-3632-12V-9.0KW-12T-3.175M to check solenoid position, battery-stud direction and start-terminal access in KOMATSU S6D125 (PC300 / PC400). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

What evidence best identifies 600-813-3632-12V-9.0KW-12T-3.175M inside a mixed starter shipment when preparing a fitment request?

For importers requesting production pricing, give each carton line its own reference, 12V, 9.0kW and 12T marking. The packing list should preserve those same fields. Receiving can then compare labels and drive-end appearance without opening every carton, while any mixed or unclear unit is isolated for review.

What should receiving teams compare on 600-813-3632-12V-9.0KW-12T-3.175M, 600-813-3632 during fitment review?

For product managers matching the starter being replaced, 600-813-3632-12V-9.0KW-12T-3.175M, 600-813-3632 should be treated as one inquiry group only after the real component is compared. Ask the customer for the complete label and clear views of the drive end, flange and terminals. If a suffix, housing shape or terminal clocking differs, keep it as a separate quote position instead of assuming that the shared number guarantees interchangeability.

What should receiving teams compare on 600-813-3632-12V-9.0KW-12T-3.175M technical claim evidence during an application review?

For fleet-parts buyers preparing distributor pricing, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the KOMATSU S6D125 (PC300 / PC400) equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

Which comparison prevents a mismatch for KOMATSU S6D125 (PC300 / PC400) cranking condition during fitment review?

For equipment-parts dealers comparing nearby starter versions, before replacing the starter on KOMATSU S6D125 (PC300 / PC400), test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 12V, 9.0kW starter and make a product enquiry easier to resolve.

What should receiving teams compare on 600-813-3632-12V-9.0KW-12T-3.175M label and suffix for repeatable sourcing?

For purchasing teams preparing a technical RFQ, photograph the complete old-unit label for 600-813-3632-12V-9.0KW-12T-3.175M, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

Which specification deserves priority for 600-813-3632-12V-9.0KW-12T-3.175M side-profile photograph for warehouse identification?

For distributors checking version-defining data, the side profile of 600-813-3632-12V-9.0KW-12T-3.175M shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 47±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which comparison prevents a mismatch for 600-813-3632-12V-9.0KW-12T-3.175M rear-terminal photograph for repeatable sourcing?

For technical buyers comparing the flange and terminals, use the rear view of 600-813-3632-12V-9.0KW-12T-3.175M to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in KOMATSU S6D125 (PC300 / PC400). A correct drive end with an unusable terminal position is not a complete fitment match.

Request a Wholesale Quote for 600-813-3632-12V-9.0KW-12T-3.175M Construction Equipment Starter Motor

For engine-parts specialists preparing distributor pricing, to source 600-813-3632-12V-9.0KW-12T-3.175M for a distributor or importer program, send the OE group, KOMATSU S6D125 (PC300 / PC400), planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
