Top Solenoid Control-Module Options for Diesel Equipment in the USA

A replacement solenoid control module can alter the actuator's behaviour even when the system voltage and solenoid body stay the same. The important distinction between Trombetta S500-A5 and S500-A50 is how each changes from the initial pull phase to the holding phase. One removes the pull winding from the powered circuit; the other reduces the drive applied to the connected coil arrangement. Confirm the supported actuator combination, reset requirements and allowed cycling before treating either approach as a replacement. Treating them as interchangeable black boxes overlooks the reason the control module exists.

For buyers in the USA, these are real documented options within the SMP-Trombetta programme, supported by actual domestic sales and technical-information routes. They are not two competing manufacturers, and this article is not a numerical ranking. The aim is to compare the control approaches and identify when a replacement or application proposal still needs manufacturer confirmation.

The scope is industrial work-solenoid control for supported diesel-equipment applications. It is not a universal engine shutdown design, a common-rail injector driver, a proportional hydraulic controller or a starter-solenoid wiring guide. No live connection, jumper, interlock-bypass or energising procedure is provided. The exact machine's safe-state and operating controls remain authoritative.

Start with the control action, not the number of terminals

The existing Trombetta work-solenoid family guide deals with actuator families and what a complete supply package includes. The separate ETR and ETS matching guide explains machine operating logic. Neither question should be collapsed into the module comparison: the right actuator family and shutdown direction still do not specify how the driver must manage pull, hold and re-triggering.

A work solenoid has to move a mechanical load and then, in some applications, keep it in position. Those are distinct parts of the job. A module that manages electrical drive during those phases is doing more than passing an on command through a connector. Its output can change after a timed interval while the external command remains present.

That distinction matters to a purchasing team because an actuator and its driver form a combination. A replacement actuator with a familiar voltage marking does not establish that its required drive matches the installed module. Likewise, a module sold for the same nominal voltage does not establish that its pull-to-hold strategy matches the actuator already on the machine.

SMP's current industrial-solenoid page lists diesel engines, generators and mobile and stationary equipment among the applications of its industrial programme. It also says its control modules are made for SMP-Trombetta solenoids. This is a compatibility boundary, not permission to apply them to an unrelated brand merely because a connector can be adapted. SMP industrial solenoids and control modules.

The useful opening question is therefore: what does the approved combination require during movement, during sustained holding and after the command is removed? That is narrower and more productive than asking for any twelve- or twenty-four-volt controller. It directs attention to the output behaviour that must be preserved or explicitly changed.

The external machine command and the module's internal drive transition should be described separately. An engine controller may continue to demand an operating state while the module changes how it powers the solenoid. Confusing those two layers can produce a replacement specification that gets the machine command right but the actuator drive wrong.

Terminal count alone cannot resolve this. A similar-looking set of terminals can belong to a different output arrangement, and a different terminal arrangement can implement a related function. The exact module identifier and application document are necessary before anyone judges an old-to-new match. Photographs help identify the hardware, but they do not replace the functional description.

S500-A5 separates the pull winding from the sustained hold path

The manufacturer's S500-A5 sheet describes a dual-winding arrangement. Initial power reaches both the higher-current pull winding and the lower-current hold winding. After approximately 0.4–0.6 seconds, the module removes power from the pull winding and leaves the hold winding energised. This is a timed change in which winding remains powered. Trombetta S500-A5 technical sheet.

The significance is the separation of roles. The initial electrical arrangement supports movement; the remaining winding supports holding. A buyer evaluating this route must therefore know that the solenoid is the appropriate dual-winding configuration and that the installed arrangement is supported. A single statement such as “continuous duty” does not identify which winding carries that continuous duty.

The transition time is also not a promise that every attached mechanism will complete its travel in that interval. It describes the module's electrical sequence. Whether the mechanical load reaches the intended position belongs to the approved actuator-and-linkage application. A timed driver is not evidence that a binding or altered linkage has become acceptable.

This distinction has a practical consequence for repeated parts replacement. If the mechanism does not reach the required position before the drive changes, a new module with the same documented behaviour may reproduce the complaint. That does not mean the module is unsuitable in every application; it means the cause has not been established at the right boundary.

For an existing approved S500-A5 installation, preserving the exact supported combination can be a stronger starting point than selecting a different module from a headline feature list. The driver, coil arrangement and required mechanical movement were selected together. A change to one member should be considered a change proposal, not automatically a routine spare-part substitution.

S500-A50 changes the drive level instead of simply removing a pull winding

The S500-A50 sheet describes initial full drive followed after roughly half a second by an output reduced to thirteen to sixteen percent of the input voltage. The manufacturer describes supported one-section and two-section coil applications. This is a different holding strategy from the A5's removal of the pull winding, even though both programmes address initial movement followed by sustained holding. Trombetta S500-A50 technical sheet.

The phrase “one-section or two-section” must not be expanded into “any solenoid.” It describes a capability within the manufacturer's supported combinations. The actuator's required holding force, electrical design and application still matter. A control approach with wider stated flexibility can offer a useful migration route without making the module universally interchangeable.

In particular, a reduced drive specification should not be converted into an equally reduced coil temperature, current or power claim. Those are different quantities. The published percentage describes the module's stated electrical output relationship. It is not an assurance that the installed actuator will run at a fixed percentage of its previous temperature or consume a fixed percentage of its previous power.

Nor does the brief description identify every detail of the internal switching method or tell the buyer how an ordinary meter will represent the output. The correct response to an unclear waveform requirement is to obtain the applicable technical information, not to invent a switching frequency, regulation method or measurement rule that is absent from the source.

This matters when interpreting an old specification that only says “hold voltage.” That term can conceal whether the design used a separate hold winding, reduced drive to the same winding arrangement, or a different internal device. The replacement review must clarify the intended control architecture before comparing isolated voltage figures.

The strongest reason to investigate the A50 route is therefore its documented behaviour and supported application scope, not an assumed blanket improvement over a relay-style module. A technically acceptable migration needs the manufacturer's combination and connection requirements resolved. Without that, the extra flexibility remains a possibility rather than a completed replacement decision.

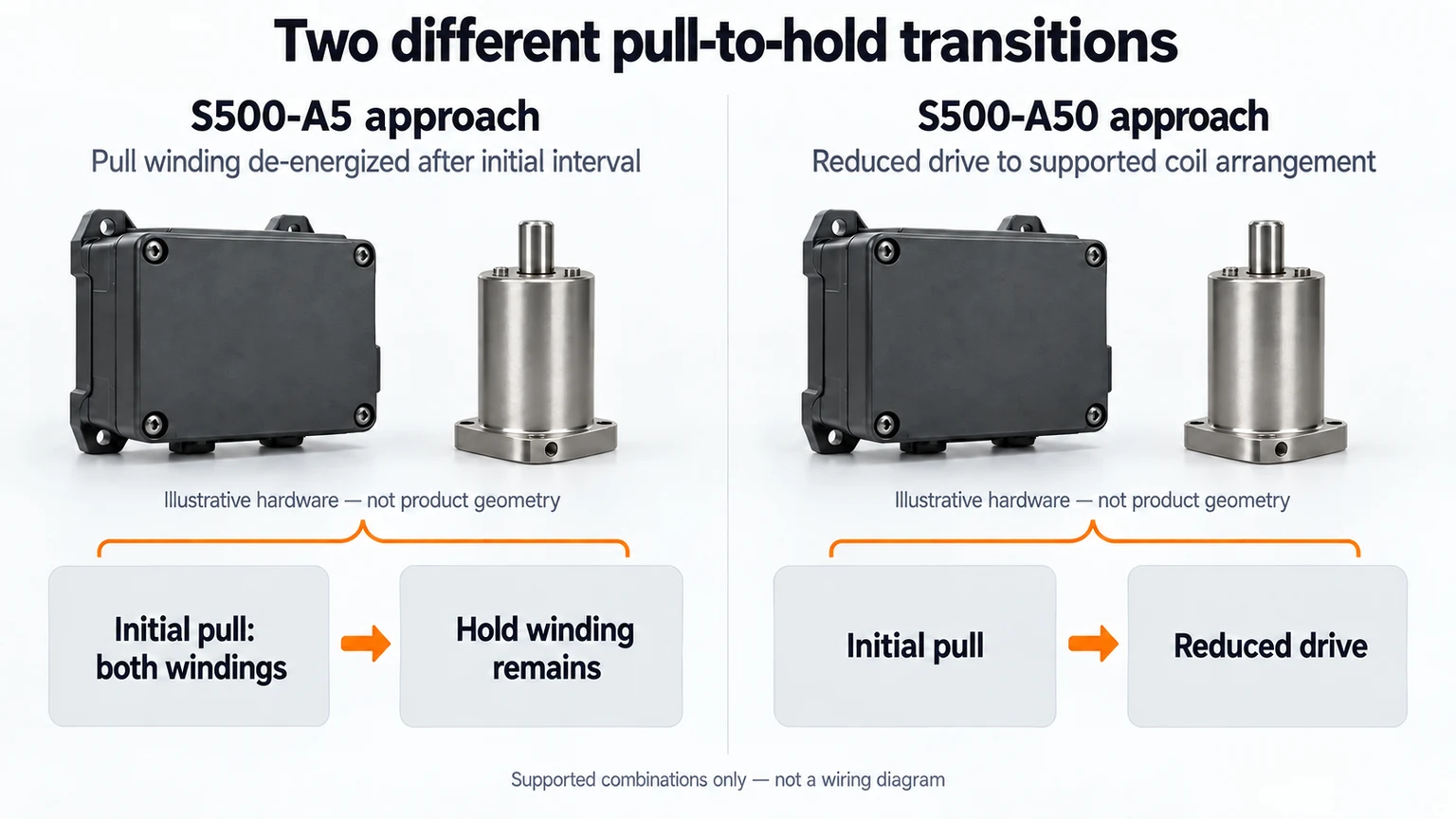

Figure — Compare the control actions: A5 de-energizes the pull winding after the initial interval; A50 reduces the drive applied to its supported coil arrangement.

Use a behaviour comparison before a feature checklist

The table compares methods, not quality grades. A buyer should not interpret the additional contactor in one route as proof of an inferior product or the absence of that contactor in another route as proof of universal suitability. The two arrangements distribute the electrical task differently. Both require an appropriate supported combination.

The contactor difference can nevertheless change the actual scope of a twenty-four-volt application. A module-only quote may leave an essential component outside the order in one arrangement, while a different module handles the task within its own stated limits. The comparison should make that distinction visible without assuming that every existing contactor may be deleted.

Changing the output arrangement can also change which parts of an existing installation may be retained. That is a technical question about the supported configuration, not a purchasing preference. A saved connector, old jumper or familiar wire colour is not evidence that the previous connection arrangement remains valid with the proposed module.

Where a supplier describes the A50 as a replacement for an older relay-style module, read the qualifier with the claim. The manufacturer warns that connections may differ. The replacement wording describes a potential supported route; it does not authorise a pin-for-pin assumption or a live trial to see whether the mechanism moves.

A clear decision records the consequence of the proposed change: unchanged approved combination, manufacturer-supported migration, or unresolved compatibility. This is more informative than ticking “twelve/twenty-four volts” on both rows and declaring the products equivalent. It keeps the key difference attached to the order when a buyer, technician and distributor discuss the same part.

A timed pull interval is not a position confirmation

Both control descriptions include an initial interval followed by a changed drive state. Neither short product description should be read as evidence of independent mechanical position feedback, obstruction detection or a verified completed stroke. A timer reaching its next state and a mechanism reaching its intended position are different events.

For a parts buyer, this prevents an important diagnostic shortcut. If a machine's linkage hesitates or moves only part of the required distance, choosing a module with a familiar interval does not resolve whether the actuator, linkage load or control command is responsible. The application has to be reviewed as a supported mechanical and electrical combination.

Imagine an explicitly hypothetical machine whose approved solenoid moves a lever reliably under its intended load. A later linkage alteration increases the required movement or force. Replacing the module with another product carrying the same nominal voltage does not establish that the altered mechanism is supported. The missing information concerns the changed load and travel, not simply the voltage label.

There is a separate distinction between initial pull capability and sustained holding capability. A mechanism may move initially yet not remain in the required position after the module changes state. That observation alone does not prove which component failed. It identifies a phase of operation that needs application-specific investigation.

The inverse is equally important: an actuator held in position by an external mechanism or manual arrangement does not demonstrate that the driver will produce the required initial movement in normal service. A replacement acceptance decision must preserve both functions without treating one successful phase as proof of the other.

This article does not propose a field energising sequence to investigate those conditions. The equipment's service procedure and manufacturer's application support must govern any testing. The purchasing lesson is to preserve the distinction between commanded electrical sequence and verified mechanical result, so that a symptom is not turned into an unsupported module specification.

Reset and re-trigger requirements are a separate part of the command sequence

The A50 documentation specifies a minimum power-removal interval before its pull timer resets. That statement concerns obtaining the full initial interval on a subsequent command. It should not be confused with an ordinary on/off label or assumed to be a generic debounce, emergency-stop or undervoltage protection function.

A machine controller can produce command patterns that differ from a simple single on transition followed by a long run. It may request repeated operation or respond to an interrupted command. Whether the module interprets those events as a fresh pull request depends on the documented reset behaviour. That is a system-interface boundary the application owner needs to resolve.

A short interruption is therefore not automatically equivalent to a complete new actuation cycle. If a proposed control sequence relies on a fresh initial pulse after every interruption, the supporting module information must establish that the sequence is allowed. The buyer should not infer the behaviour merely because power appears to have disappeared momentarily.

Low supply voltage is a different question again. The manufacturer's stated input range does not describe every possible brownout trajectory, recovery threshold or response to a slowly collapsing supply. A figure for the minimum input associated with the specified pull interval cannot be expanded into an undocumented state machine for voltage loss and recovery.

Keep three questions separate when information is missing

First, is the command intended to be present or absent? Second, is the module receiving an input within the documented range? Third, has the condition required for a fresh pull interval been met? A single nominal battery-voltage entry answers none of those completely. Separating them avoids an inaccurate conclusion that the module must have restarted simply because a controller issued another command.

These are questions for the responsible application engineer, not instructions to deliberately interrupt power on operating equipment. If the machine's required response depends on a behaviour the public data sheet does not define, retain that behaviour as unresolved and request the relevant manufacturer guidance. Do not fill the gap by borrowing the reset logic of another S500 variant.

The same caution applies to safety claims. A module that controls pull and hold power is not thereby an independently qualified safe-shutdown controller. The machine's shutdown direction, interlocks and other protective functions remain separate requirements. A purchasing comparison should not imply that choosing A5 or A50 completes those safety decisions.

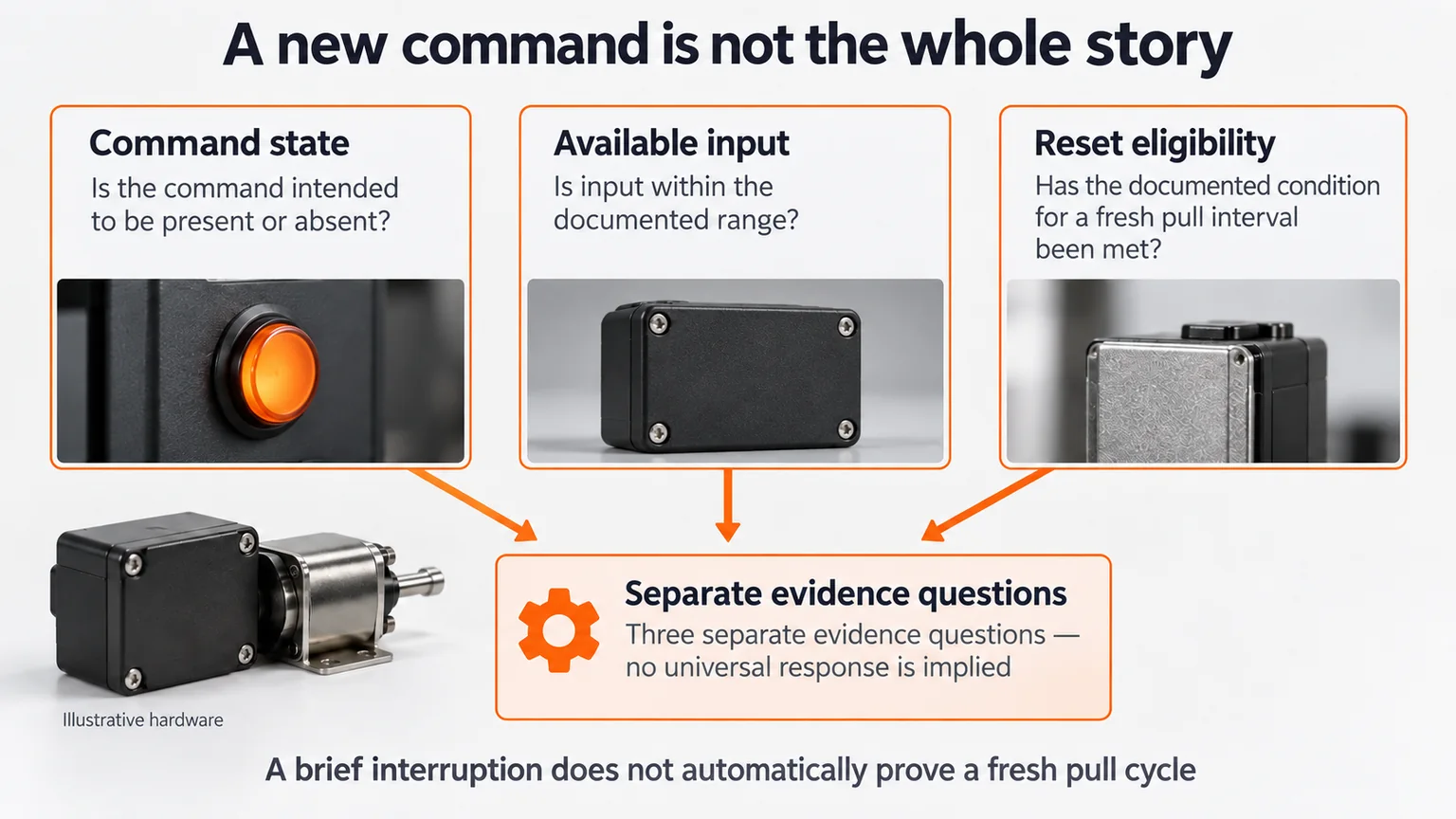

Figure — Separate command state, available input and timer-reset eligibility; a brief interruption is not automatically a documented fresh pull cycle.

Cycling limits and electrical ratings describe different constraints

The manufacturer's cycle-rate notes are particularly easy to misuse. The A5 sheet distinguishes the module's cycling capability from the solenoid's thermal capability. The A50 sheet describes its rapid-cycle figure as a limited burst condition and directs frequent-cycling applications to factory guidance. Neither is a general promise that the complete actuator can repeat indefinitely at the printed rate.

A buyer comparing those entries should preserve the qualification rather than reducing them to a single “cycles per minute” column. One entry may describe what a module can withstand; another may be explicitly limited in duration. A normal equipment work pattern needs to be checked against the intended combination, not against the largest isolated number.

The distinction between a reset interval and an allowed cycling duty is just as important. A timer may be eligible to start its initial phase again, but that does not establish that the module and solenoid can thermally sustain repeated operation at that rate. Reset capability answers a sequencing question; permitted cycling answers a duty question.

Current and power entries should also retain their stated voltage and configuration. A rating associated with one nominal-voltage application cannot be transferred to another simply because the module name is unchanged. For the A5 route, the external-contactor requirement is part of interpreting the twenty-four-volt application rather than a footnote to ignore.

This does not mean the purchasing team should calculate a new actuator design from catalogue limits. The purpose is to recognise when an offer's stated application falls outside the simple description available. A component limit is not a complete approval for a load that happens to be below that number in one observed moment.

Source inconsistencies deserve an explicit hold rather than an invented correction. The A5 sheet's Celsius and Fahrenheit ambient-temperature entries are not fully consistent across the voltage columns. A reader can see that something needs clarification, but should not silently choose the more convenient interpretation and release a temperature-sensitive application on that basis.

Likewise, avoid turning general transient or reverse-polarity wording into a claim that installation faults cannot damage the system. The stated protections have conditions and do not replace the required circuit design. The sensible outcome is a supported application boundary, not an assurance that any connection mistake is harmless.

An admissible input does not establish the delivered pull performance

The A50 sheet qualifies its minimum input in relation to obtaining the stated initial pull interval. That is narrower than proving the actuator will complete its mechanical job at every input within the published range. The module may satisfy its timing requirement while the application still needs a separate actuator-performance determination. Keep the two approvals distinct when a specification uses a broad supply range.

For example, a hypothetical procurement specification might require both an uninterrupted initial interval and movement against the approved load under the machine's lowest supported supply condition. A statement about the timer answers only the first requirement. The second depends on the matched actuator and complete application. Neither an input-range label nor a maximum-current entry should be used to sign off that mechanical requirement without its own supporting evidence.

This distinction prevents a misleading comparison between nominally identical voltage modules. One offer may document only module operation; another may include confirmation for the named actuator combination. The stronger application evidence is not necessarily the same as a more impressive electrical limit. Ask which part of the required behaviour the supplied information actually establishes, then retain the remaining requirement for technical resolution.

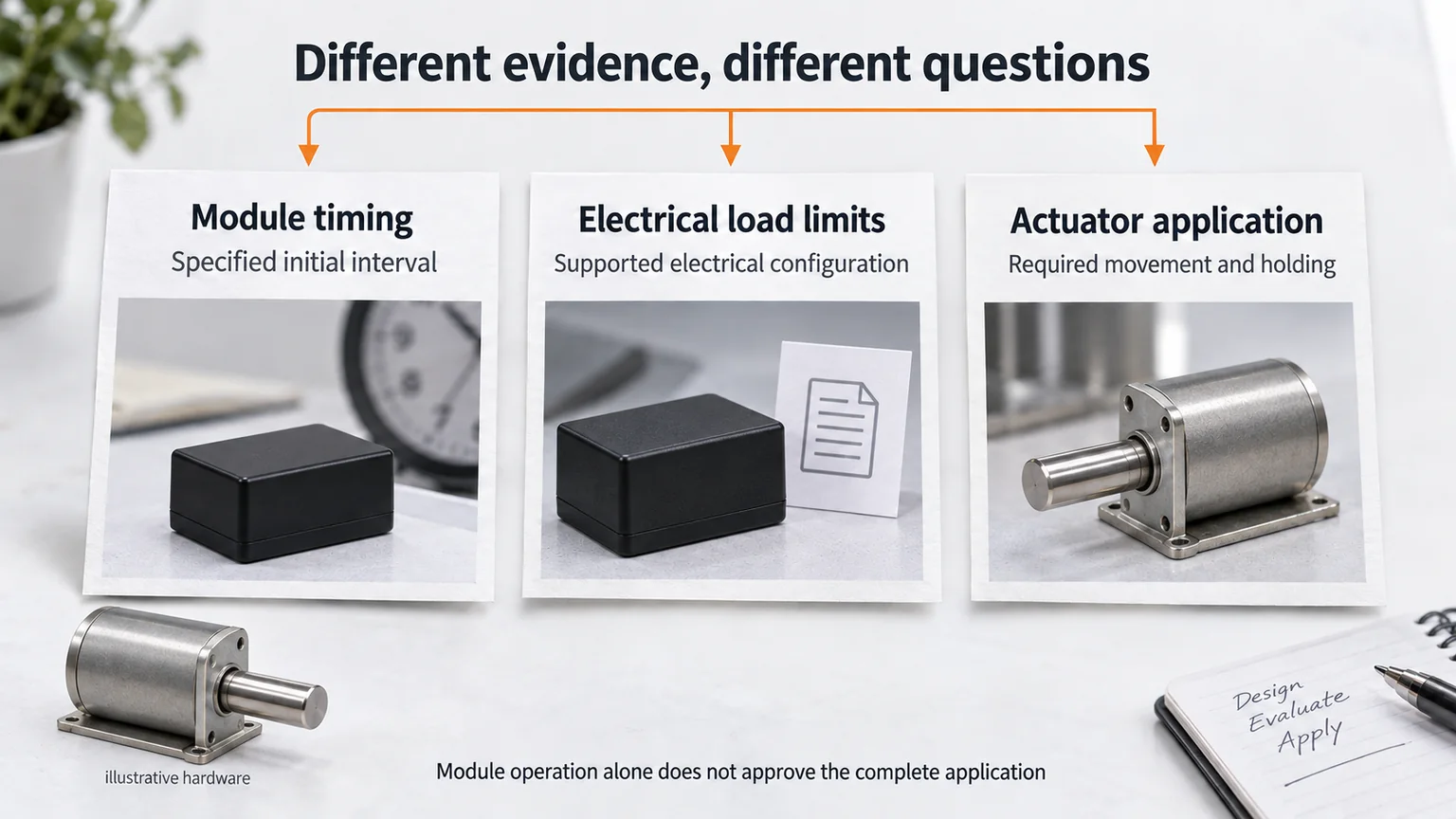

Figure — Read module timing capability, electrical load limits and actuator application performance as separate approvals, not one interchangeable voltage rating.

The American buying routes are real, but their roles are different

MurCal's current S500-A50 product page identifies the module and describes itself as an authorised Trombetta distributor, with application and product support. Its website lists a Palmdale, California address. This provides a real US purchasing and technical-support route. It does not prove that a particular American engine or machine uses the module. MurCal S500-A50 product page.

PJ Power's Trombetta page presents an industrial-solenoid and electronic-controls supply route from Ocala, Florida, including technical-document listings for the S500 family. The page's distributor description is the seller's own representation. It is useful route evidence, not a basis for ranking service quality or independently asserting exclusive rights across every product and territory. PJ Power Trombetta programme page.

SMP-Trombetta is the manufacturer programme being compared. MurCal and PJ Power are sales or support routes, not additional module manufacturers. Listing all three under a heading such as “top manufacturers” would misdescribe their roles and create a false impression of product diversity.

For a straightforward approved replacement, a distributor may help establish the exact current supply item and relevant documentation. For a changed application, manufacturer-level engineering confirmation may be needed. The distinction depends on the unresolved technical question, not on which company appears first in a search result.

An online stock indication can support an immediate availability inquiry, but it should not become a durable article promise. Stock, price and lead time can change. More importantly, availability of a module does not establish suitability for the named application. The two questions should proceed together without allowing urgency to replace compatibility.

The same restraint applies to machine cross-references elsewhere on a distributor's website. A list linking a Trombetta actuator to an engine number is not automatically a list of approved control modules for that actuator. The module relationship must be established explicitly. Product pages for neighbouring families should not be used to invent a missing controller fitment.

Read three replacement situations as different decisions

An unchanged approved module-and-solenoid combination

In an illustrative first situation, the machine documentation identifies the exact A5 module and actuator arrangement, and no relevant application changes are proposed. The purchasing task is to obtain the supported replacement with the correct identity and current documentation. There is no need to turn the order into a competition between fundamentally different drive methods unless the original route is unavailable or a technical reason justifies reconsideration.

The key benefit of a controlled replacement here is continuity of the known behaviour. A lower price or a broader voltage description on another module does not by itself create a useful alternative. If a substitute is proposed, it should be handled as a separate supported migration decision rather than hidden within a routine spare-part order.

A proposed move from relay-style control to reduced-drive holding

In a second hypothetical situation, a supplier proposes A50 for an application previously using relay-style control. The manufacturer's documented migration capability makes the proposal worth evaluating, but the old connection arrangement cannot be assumed valid. The actuator combination, holding strategy and command behaviour need confirmation before the new route can be treated as an approved substitute.

The important difference is not whether the new module can produce an initial movement during a brief demonstration. It is whether the application remains supported through initial movement, sustained holding, command removal and subsequent commands. A proposal that answers only the first of those questions is incomplete even when the solenoid appears to fit unchanged.

A new application with repeated or interrupted commands

In a third hypothetical situation, the intended machine repeatedly commands an actuator during a work sequence or can interrupt the command briefly. The reset and cycling qualifications now become central. A generic voltage match or the fastest printed cycle figure cannot settle the selection. This is the point at which a documented application review is more valuable than a quick module-only quotation.

These situations are deliberately not assigned to specific US machine models. The sources establish real products and domestic buying routes, but not those installations. Keeping the examples hypothetical allows them to explain different decisions without manufacturing field experience or implying an approved application that has not been verified.

Choose a supported behaviour, not a universal controller

The A5 and A50 comparison is useful because it exposes two different ways to support a work solenoid after its initial pull phase. It is not simply a lesson about twelve versus twenty-four volts. The relevant choice is the supported drive method, actuator combination and command sequence for the equipment being supplied.

For US buyers, the strongest result is a defensible module choice with a clearly supported combination. Preserve unresolved behaviour as an engineering question, distinguish manufacturer information from a seller's availability statement, and refuse to treat a similar connector as functional proof. That produces a repeatable technical purchasing decision without pretending that a small control module can replace the machine's entire control and safety architecture.

For an Elecdura parts enquiry, email the exact module and actuator references, the machine identity and whether you need an unchanged replacement or a proposed migration. Include the document that establishes their supported relationship, if available. Ask whether the requested scope can be supplied before making an availability assumption. Brand status, compatibility and any required engineering confirmation remain specific to the quotation; this guide is not a claim of authorised Trombetta distribution.
