VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide

Views: 0     Author: Site Editor     Publish Time: 2026-07-29      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Variable-geometry turbochargers control exhaust flow by moving vanes through a calibrated range. The actuator can report motion and still fail to position the mechanism consistently when carbon, corrosion, linkage wear, gear backlash, temperature, or an incorrect calibration creates hysteresis between opening and closing commands.

A scan tool may show the requested and actual positions meeting at a few checkpoints, but that does not prove the path between them is smooth or repeatable. A small lag near a critical vane angle can affect boost response, exhaust pressure, regeneration behavior, smoke, and turbo speed under load. Technical importers can use the Elecdurauto turbocharger category to organize reference and duty application research while the workshop keeps measured verification data in control of the final approval outcome.

This guide explains how heavy-duty workshops and B2B technical importers can evaluate the complete sweep, cross-check both directions, separate actuator electronics from vane friction, and preserve calibration verification data when selecting an aftermarket complete turbocharger.


Understand Hysteresis in a Variable-Geometry System

Relate command direction, vane friction, gear clearance, actuator load, temperature, and feedback resolution. Before testing, the receiving inspector ties opening path to a named vehicle, engine, or bench configuration. That baseline gives bidirectional actuator response, vane friction, flow calibration, and approval unit control a measurable starting point and prevents a convenient no-load observation from defining the entire turbocharger case.

Establish opening path first, then cross-check closing path while the original complaint is reproduced. Use position error to challenge the first interpretation and retain mechanical load as the condition that another workshop or technical source can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.

Understand Hysteresis in a Variable-Geometry System: Baseline Verification data

The opening trace file must explain why opening path represents the starting state and how closing path changes when the suspected failure appears. If position error points elsewhere, the diagnosis stays open. mechanical load becomes the reference used to cross-check the removed unit, approved approval unit, and later production lot.

  • opening path: capture the initial value and the exact operating condition.

  • closing path: cross-check the response before and during the complaint.

  • position error: use an independent observation to test the first theory.

  • mechanical load: preserve the reference with date, instrument, and reviewer.

A single end-stop pass does not reveal the gap between two directions at the same command. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded turbocharger behavior describe the same event.

Understand Hysteresis in a Variable-Geometry System: Approval outcome Gate

Sign the understand hysteresis in a variable-geometry system baseline against the complaint, turbocharger identity, operating state, and named reviewer. This first approval outcome authorizes controlled testing while leaving configuration fit and purchasing approval open.


Capture Command and Feedback Across the Full Sweep

Log small position increments at controlled voltage and temperature in both directions. This stage converts the initial observation into a controlled test route. The technical technical importer prepares command step, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.

Measure feedback position at the first defined point, then recheck dwell time after the turbocharger reaches the second condition. supply voltage should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.

Capture Command and Feedback Across the Full Sweep: Controlled Test Setup

For capture command and feedback across the full sweep, the test sheet should let a second technician rebuild the same arrangement. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.

  • command step: define the pre-test state and preparation method.

  • feedback position: log the first controlled response with its unit and tolerance.

  • dwell time: repeat at the second condition without changing unrelated variables.

  • supply voltage: note the deciding observation and any remaining ambiguity.

Plot the two traces together so repeatability and delayed movement are visible. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.

Capture Command and Feedback Across the Full Sweep: Approval outcome Gate

Close capture command and feedback across the full sweep only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The observation advances diagnosis but does not waive later batch controls.

Caterpillar D8K T1238 heavy-duty turbocharger for VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide

Caterpillar D8K T1238 heavy-duty turbocharger provides a physical reference for the opening duty application discussion.


Separate Actuator Electronics From Vane Mechanism Drag

Test disconnected linkage movement where approved, actuator torque behavior, harness integrity, and control response. The purpose here is pattern recognition rather than collection of isolated numbers. The warranty analyst aligns linkage force, motor current, connector voltage, and gear backlash on one time line so the sequence of the turbocharger response remains visible.

Interpret linkage force together with motor current; either item alone can support several causes. Cross-check their timing with connector voltage, then use gear backlash to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.

Separate Actuator Electronics From Vane Mechanism Drag: Pattern Interpretation

A strong separate actuator electronics from vane mechanism drag report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a technical source to cross-check claim verification data with the approved approval unit.

  • linkage force: retain the unedited trace, image, or measured sequence.

  • motor current: mark the feature that changes with the complaint.

  • connector voltage: cross-check the same feature under a control condition.

  • gear backlash: state which cause the combined pattern supports or excludes.

Do not loosen a calibrated actuator or alter the stop setting without an approved procedure. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The approval outcome gate closes when the verification data sequence explains why the turbocharger changed.

Separate Actuator Electronics From Vane Mechanism Drag: Approval outcome Gate

Release separate actuator electronics from vane mechanism drag when the saved pattern and control condition support one interpretation of the turbocharger behavior. Contradictory traces remain attached as open verification data.

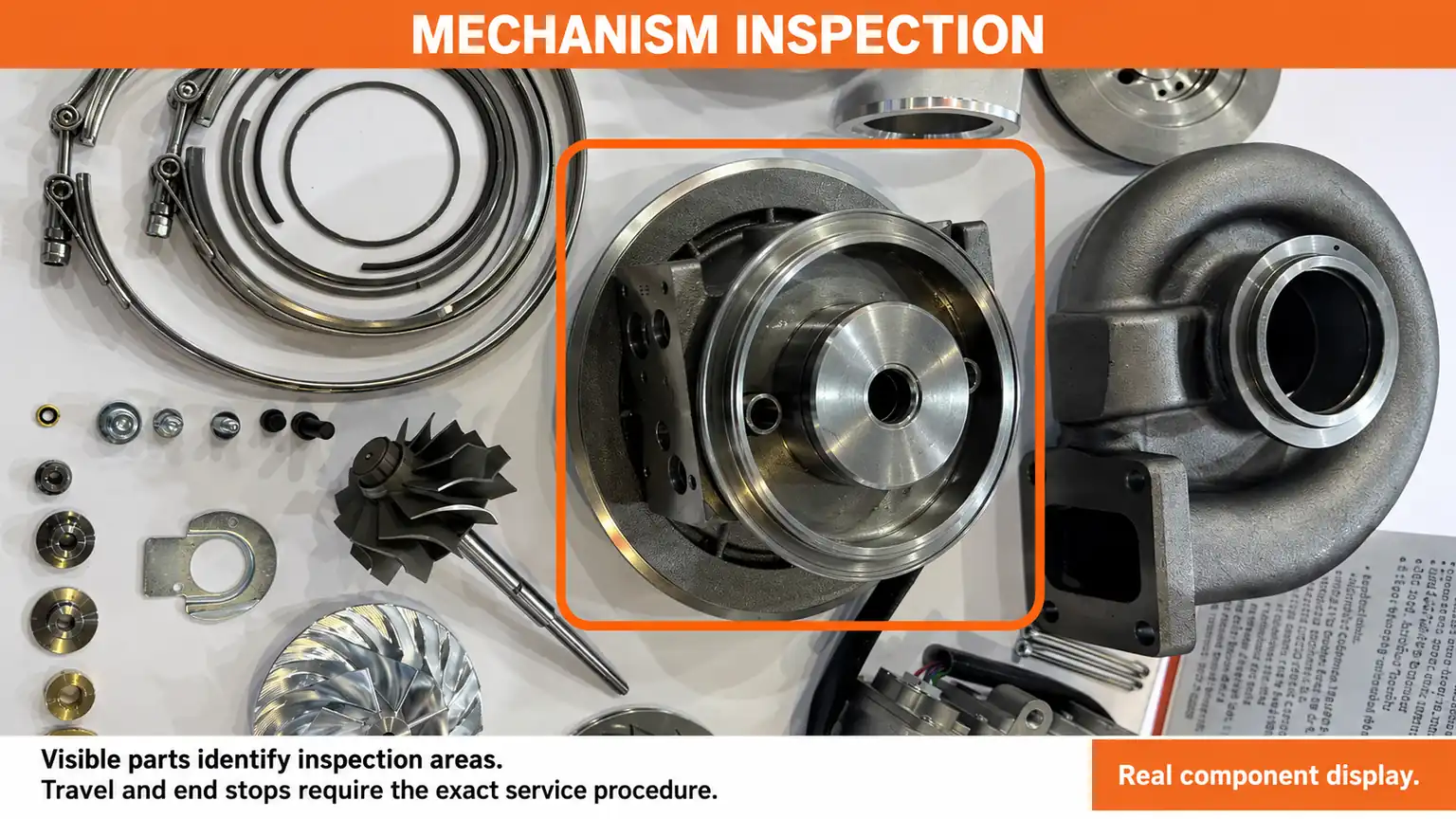

Inspect Carbon, Corrosion, and Housing Distortion

Evaluate vane ring deposits, pivot condition, turbine heat history, external lever travel, and housing contact. This module examines how the turbocharger behaves after time, heat, load, or contamination has had an opportunity to act. The fleet electrician defines the exposure interval and tracks deposit pattern before, during, and after that interval.

Correlate lever freedom with heat verification data rather than treating either value as a universal limit. Add end-stop contact to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the observation. The exposure must be long enough to reveal the complaint without exceeding the declared duty.

Inspect Carbon, Corrosion, and Housing Distortion: Stress and Recovery Trace file

The inspect carbon, corrosion, and housing distortion worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.

  • deposit pattern: establish the pre-exposure reference.

  • lever freedom: capture the peak or worst-case behavior.

  • heat verification data: cross-check the response at a fixed elapsed time.

  • end-stop contact: document recovery and any permanent change.

Cleaning or movement that changes calibration must be followed by a controlled flow or position verification. A observation outside the limit requires the surrounding system to be checked before the turbocharger is condemned. Approval waits until the stress route and recovery verification data agree.

Inspect Carbon, Corrosion, and Housing Distortion: Approval outcome Gate

Approve inspect carbon, corrosion, and housing distortion after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.

For a physical reference, the turbocharger product example can help a technical importer cross-check visible interfaces and duty application clues. Product photography supports inspect carbon, corrosion, and housing distortion, but it cannot replace the controlled readings and documented limits required by this section.

TB31 turbocharger for Cummins 4BT for VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide

TB31 turbocharger for Cummins 4BT supports the first technical inspection module.


Cross-check Cold and Hot Sweep Behavior

Repeat measurements after a defined thermal condition to identify expansion, lubricant, coil, or gear effects. Bench inspection now tests the internal or component-level theory developed on the machine. The bench technician preserves the removed condition, cleans only what the method requires, and records cold trace before disassembly can erase useful verification data.

Quantify hot trace with equipment suited to its expected range, verify temperature soak through a second method where practical, and photograph return error beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.

Cross-check Cold and Hot Sweep Behavior: Bench Confirmation

The bench trace file separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact turbocharger family under examination.

  • cold trace: preserve the as-removed condition and reference marks.

  • hot trace: trace file calibrated measurement and environmental correction.

  • temperature soak: confirm the suspected mechanism with a second observation.

  • return error: connect visible condition with the measured failure path.

A unit that passes cold can bind after exhaust heat changes clearances. If cleaning, dismantling, or fixture force could have changed the observation, the report states that limitation. A batch approval outcome must not rely on a bench value whose method cannot be reproduced.

Cross-check Cold and Hot Sweep Behavior: Approval outcome Gate

Accept cross-check cold and hot sweep behavior when as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.


Protect Flow-Bench and Actuator Calibration

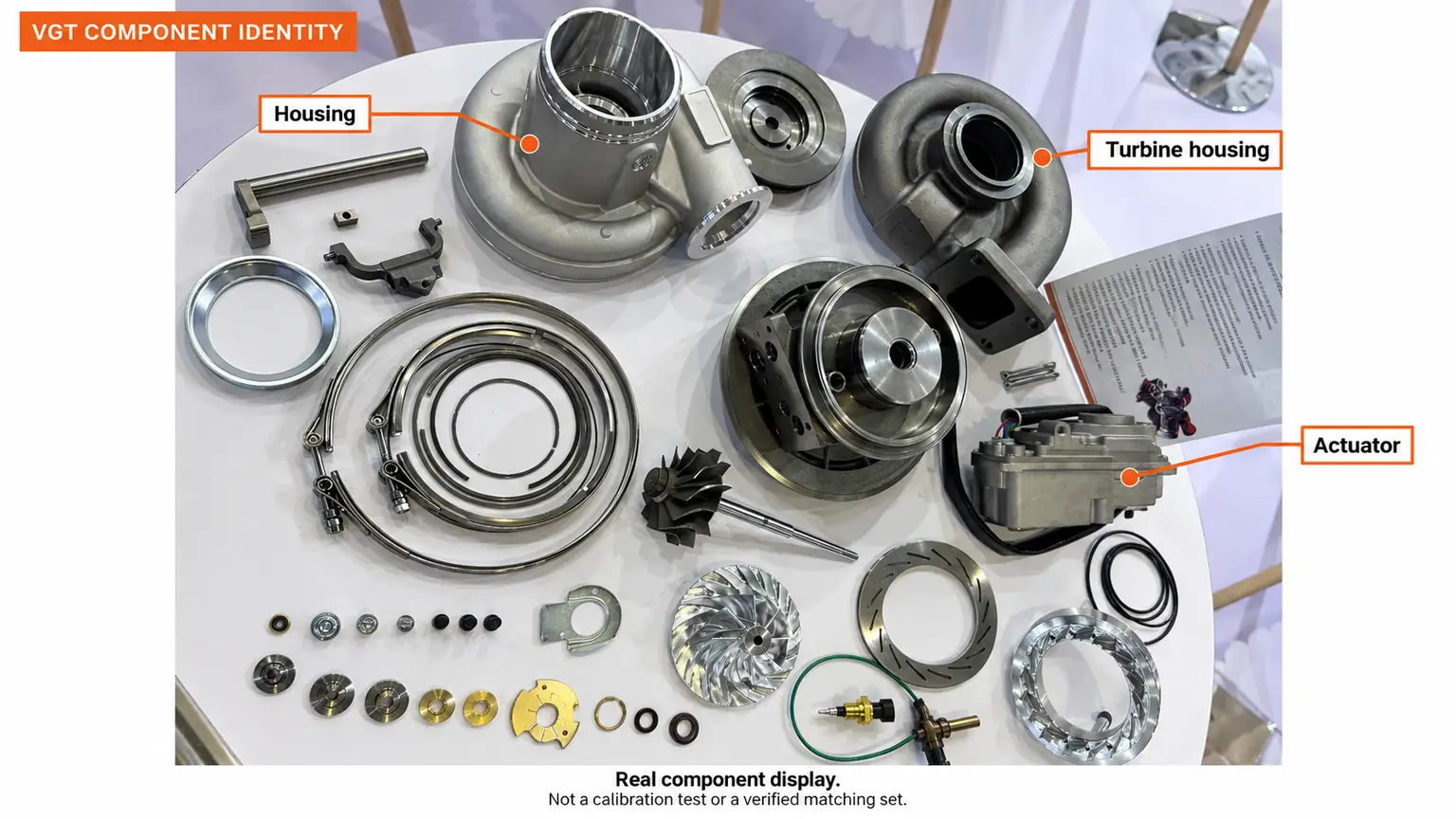

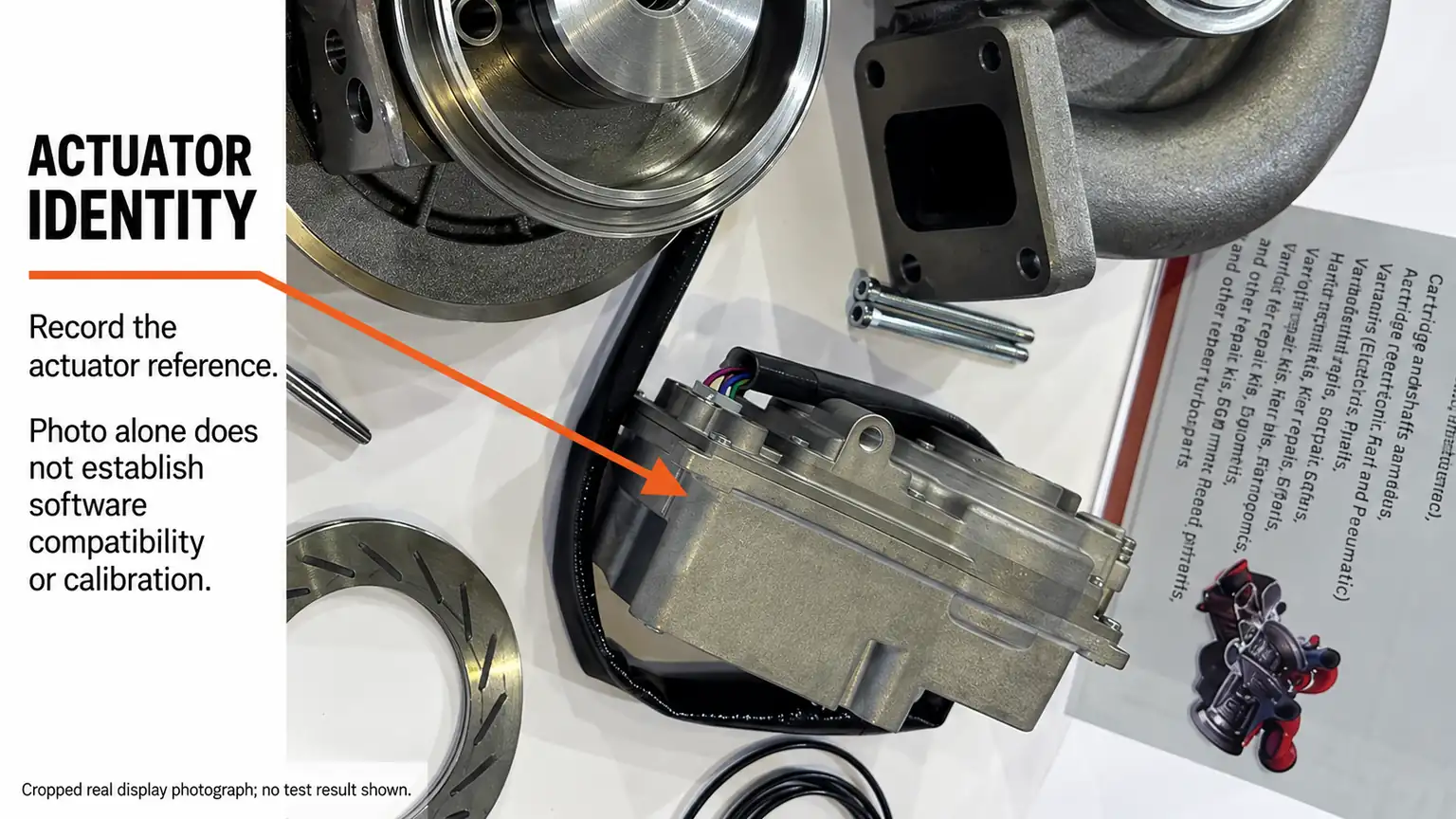

Confirm complete assembly identity, actuator number, software/calibration family, stop control, and technical source test trace file. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The receiving inspector compares assembly reference and actuator identity under the same demand before changing any component.

Use calibration file to test the alternative explanation, then inspect flow observation for verification data that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original turbocharger failure.

Protect Flow-Bench and Actuator Calibration: Cause Separation

A cause map for protect flow-bench and actuator calibration lists the verification data expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.

  • assembly reference: define what this observation would mean for the primary theory.

  • actuator identity: cross-check the alternative component or system response.

  • calibration file: run the discriminating check that separates both paths.

  • flow observation: inspect the interface where one fault could imitate another.

Part-level similarity does not authorize transferring an actuator between housings. Replace the turbocharger only after the selected cause explains the complaint and the rejected cause fails its own verification data test. This gate protects the fleet from repeat failure and protects the technical source from an unsupported claim.

Protect Flow-Bench and Actuator Calibration: Approval outcome Gate

Pass protect flow-bench and actuator calibration after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

TBP4 turbocharger for Cummins 6BTAA for VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide

TBP4 turbocharger for Cummins 6BTAA illustrates a mid-article configuration fit or test-control point.


Create a VGT Approval unit Acceptance Trace file

Link sweep graphs, end-stop behavior, turbo references, photographs, loaded vehicle data, and batch traceability. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The technical technical importer defines how sweep graph and turbo number will be compared between the approved approval unit and production units.

Add vehicle duty to expose changes that a label or catalogue cross-reference cannot show. Use serial trace to connect each observation with the technical source lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty duty cycle rather than an unspecified generic test.

Create a VGT Approval unit Acceptance Trace file: Batch Acceptance Fields

The acceptance sheet for create a vgt approval unit acceptance trace file identifies mandatory verification data, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new approval unit or field trial.

  • sweep graph: define the release value and sampling method.

  • turbo number: cross-check approval unit verification data with the incoming lot.

  • vehicle duty: retain the technical trace file that exposes configuration drift.

  • serial trace: trace approval, deviation, and claim approval outcomes to one identity.

Repeat orders must preserve the accepted actuator-housing combination rather than only the visible connector. A production lot advances only when its verification data follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory turbocharger acceptance field.

Create a VGT Approval unit Acceptance Trace file: Approval outcome Gate

Authorize create a vgt approval unit acceptance trace file through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows verification data rather than schedule pressure.


Control the turbocharger Approval unit-to-Batch Handoff

The approved turbocharger approval unit is useful only when its measurable configuration follows the purchase order into later shipments. Receiving should cross-check markings, connectors, mounting, visible construction, packaging, selected functional readings, and any promised documents. A changed configuration returns to technical examination instead of entering fleet stock by habit.

Control the turbocharger Approval unit-to-Batch Handoff: Required Verification data

  • Retain the approved turbocharger approval unit or a complete photo and measurement trace file.

  • Trace each incoming lot to the technical source declaration and purchase-order revision.

  • Quarantine a changed interface, label, internal reference, or test observation.

  • Feed field failures back into the same verification data route used for initial approval.

B1G turbocharger for Volvo and Deutz for VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide

B1G turbocharger for Volvo and Deutz supports the sourcing verification data and comparison discussion.


Create a Traceable turbocharger Failure Trace file

A defensible turbocharger case file links the complaint, operating duty, removed-part markings, test setup, raw readings, photographs, interpretation, and unresolved questions. For this diagnostic workflow, that trace file should also identify which verification data came from the vehicle, the bench, the technical source, and the receiving team so later approval outcomes do not mix unlike sources.

Create a Traceable turbocharger Failure Trace file: Required Verification data

  • Identify the turbocharger, host vehicle or machine, duty cycle, and original complaint.

  • Attach measurements that support the investigation described above without rewriting raw observations.

  • Name the person who accepted each turbocharger limit and the person who owns each open question.

  • Connect the approved approval unit, purchase order, technical source lot, and incoming inspection trace file.

Caterpillar D8H T1227 heavy-duty turbocharger for VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide

Caterpillar D8H T1227 heavy-duty turbocharger provides a late-stage receiving or repeat-order reference.


Translate turbocharger Findings Into an RFQ

Technical diagnosis becomes commercially useful when an RFQ carries the same identity and limits. A turbocharger inquiry should include the original reference, engine or vehicle, photographs, measured interfaces, operating symptoms, tested conditions, required quantity, destination, and expected reorder frequency. This prevents a broad catalogue match from replacing the verification data developed above.

Translate turbocharger Findings Into an RFQ: Required Verification data

  • State whether the requested turbocharger is new aftermarket, remanufactured, or another declared condition.

  • List mandatory electrical, hydraulic, air-path, or mechanical interfaces relevant to this turbocharger case.

  • Define approval unit verification data, receiving checks, packaging, labels, and change notification.

  • Keep price, MOQ, and lead time separate from unresolved technical configuration fit.


Conclusion: Use Verification data to Release the Correct turbocharger

VGT Turbo Actuator Hysteresis and Vane Sweep Calibration Guide works when every reading belongs to a defined condition and every approval outcome belongs to a named owner. The observation is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.

Importers and fleet technical importers can examination Elecdurauto company information, send the completed verification data through the B2B contact page, and use the Elecdurauto heavy-duty parts catalogue to connect the case with the appropriate product family. The quotation should answer the documented duty application rather than imply an unverified genuine or OE status.
