Low-load smoke or an apparently inactive cylinder on a Cat 3500 diesel generator set is not enough to condemn an injector. First establish the exact engine configuration, the operating history and whether an automatic cylinder-cutout strategy was active during the observation. Then separate that operating state from a properly conducted diagnostic test. An automatic strategy is neither proof of a failed injector nor a guarantee that the engine is healthy.
This distinction matters to generator service companies, fleet maintenance managers and parts buyers. A complaint can move from “smoke during a lightly loaded exercise” to “quote replacement injectors” without anyone identifying what the controller was doing. The missing step is not another generic injector checklist. It is a clear account of the generator's state when the evidence was collected.
Describe the observed material before naming the fault. A visible exhaust plume, a dark deposit and liquid emerging from an exhaust joint are different observations. A photograph of one does not establish the others. Ask where the material was seen, whether it appeared during operation or was found afterward, and whether the observation was made before any cleaning or service activity.
Caterpillar's underloading paper describes exhaust slobber as a possible consequence of prolonged light loading and warns that long periods of underloading can affect engine condition. It also cautions that visible slobber alone does not necessarily establish an engine problem. The paper is about operating context, not a rule that every dark exhaust deposit is harmless. Caterpillar on generator-set underloading.
Use similarly precise language for “misfire.” Was the description based on sound, a controller indication, a diagnostic test or a technician's interpretation? Those are not interchangeable forms of evidence. A report that says only “cylinder not firing” leaves the buyer unable to distinguish an observed operating state from a component-level conclusion.
A useful first report can remain undecided. It might say that white smoke was observed during a particular exercise, that liquid residue was found at an identified joint, and that the cause remains under investigation. This is more useful than a confident diagnosis that cannot be tied to a time, operating condition or test method.
Do not use the appearance of a residue to determine its composition by eye. Likewise, do not approach hot exhaust hardware or collect material from a running system merely to improve a parts enquiry. Qualified service personnel should decide whether sampling or inspection is needed and how it can be carried out safely. Procurement can preserve the observation without prescribing an unsafe inspection.

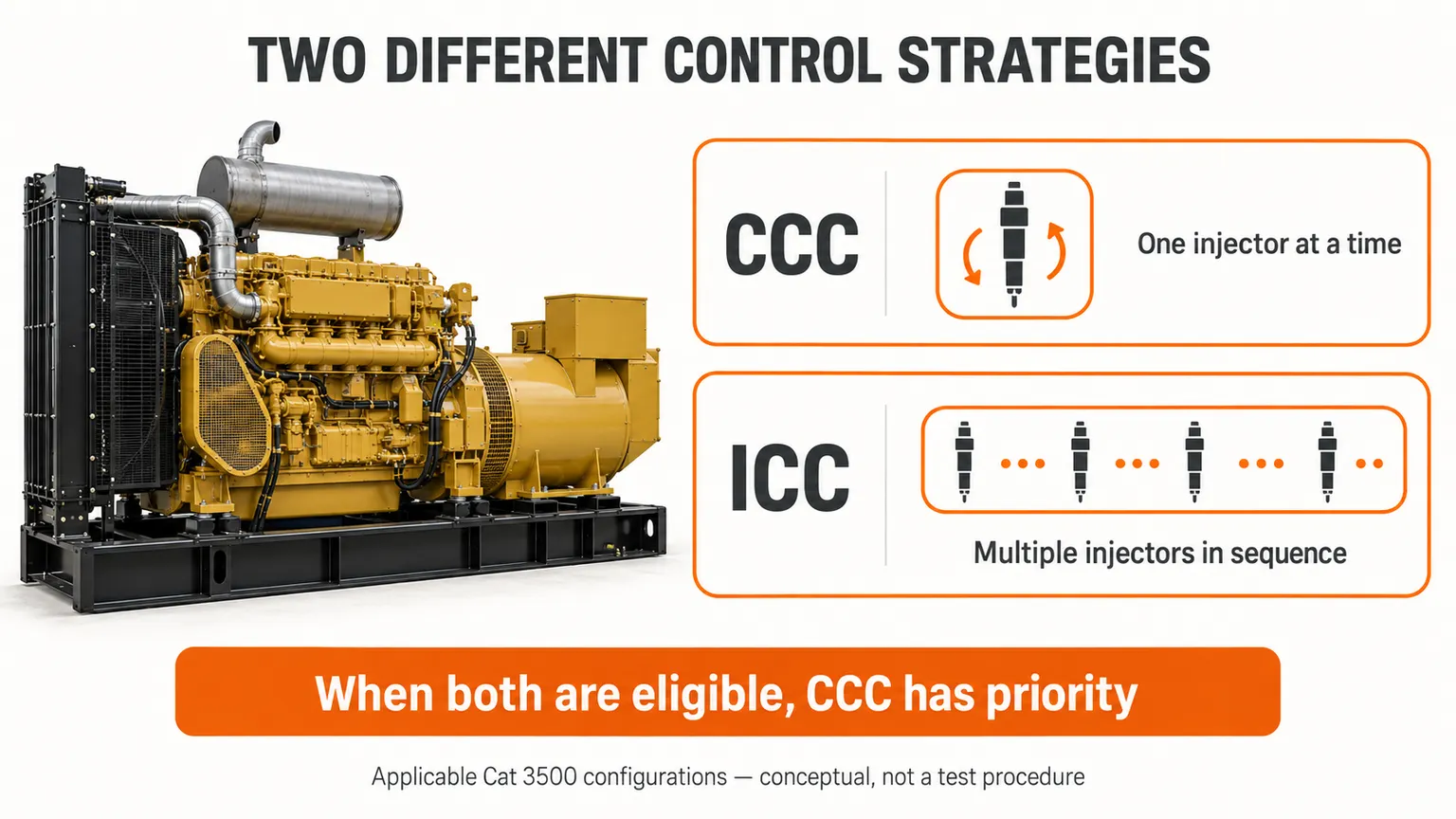

Figure — On applicable Cat 3500 configurations, CCC evaluates one injector at a time and ICC uses a multiple-injector sequence; CCC takes priority when both strategies are enabled and eligible. Symbols do not specify a cylinder count, order or test procedure, and the generator is illustrative.
Caterpillar's March 2021 paper describes two software-controlled strategies. Cold Cylinder Cutout, or CCC, evaluates one injector at a time using the fuel-rack response. Idle Cylinder Cutout, or ICC, uses a multiple-injector sequence that varies by engine series. Eligibility depends on operating conditions; when both are enabled and eligible, CCC takes priority. The paper describes combinations across the Cat 3500 range, not identical behavior on every engine. Caterpillar, LEXE20210-01.
The purchasing implication is that an injector's commanded state and its physical condition are separate questions. If a control strategy intentionally stops fuel to a cylinder, observing that state cannot by itself establish that the injector is unable to operate. Conversely, the existence of an automatic strategy cannot explain every rough-running complaint without checking that it was applicable and active.
Ask the service team to name the strategy, not merely to say “cutout is normal.” That statement is incomplete if the engine configuration is unknown or the relevant event was not captured. A sound explanation identifies the exact engine and the evidence showing which state was present at the time.
Keep the purpose of the source clear. A technology paper can explain why an automatic function exists and why an observation needs context. It cannot supply the current diagnostic limits, service instructions or configuration approval for an unidentified engine. Those must come from the applicable engine information and a qualified service assessment.
The article also should not be read as instructions to activate, deactivate or modify either function. Changing configuration would change the subject being observed. If a service procedure calls for a particular test state, the technician should document that state and restore the required configuration through the approved process. A parts buyer should never request a strategy change simply to make a symptom disappear.

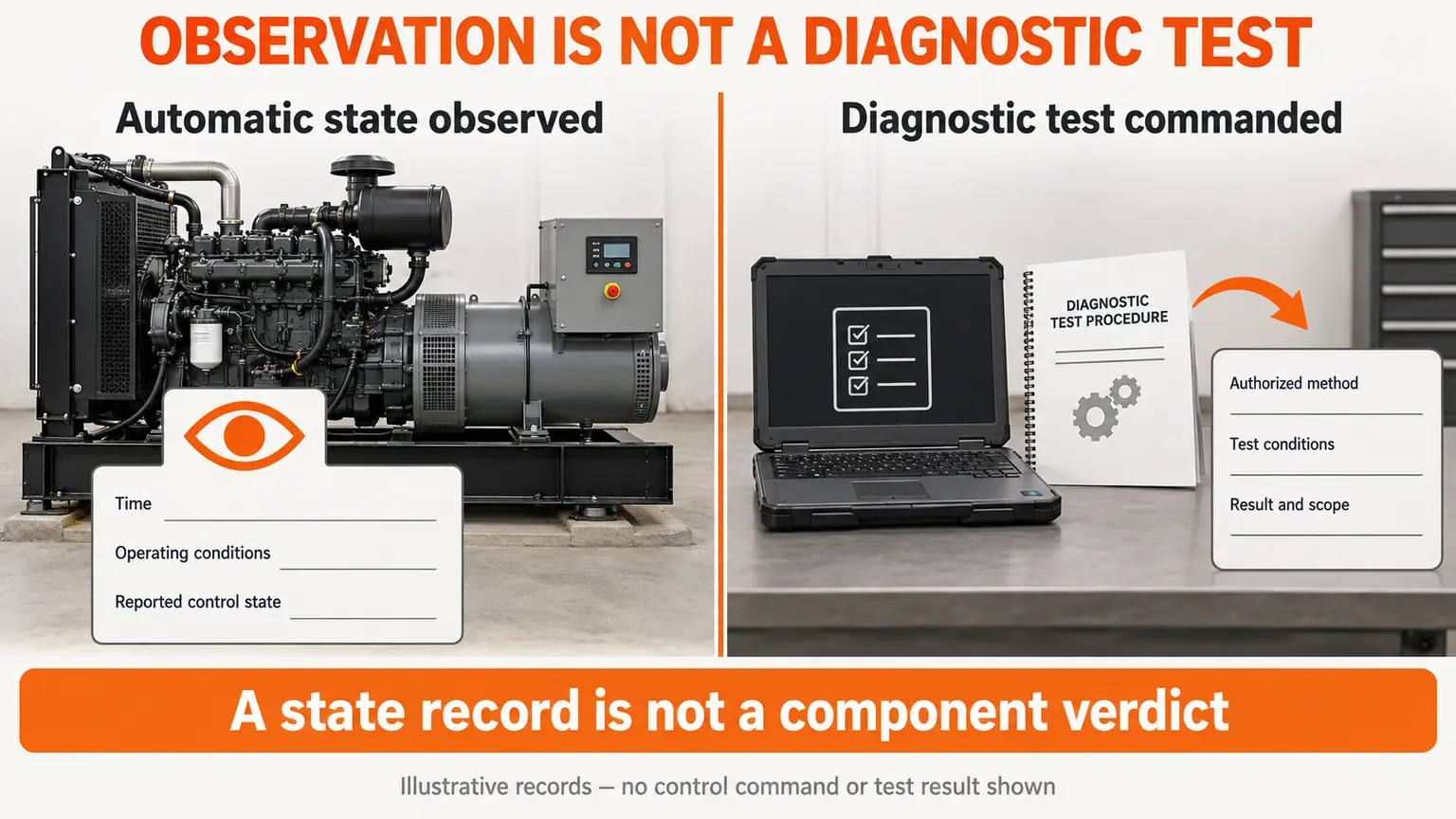

Figure — Passive observation records what the controller reports. A commanded diagnostic test also needs the authorized method, test conditions and result scope. The machine, screen icon and blank records are illustrative, not a real test or component verdict.
The word “cutout” can conceal two different activities in a workshop conversation. One is an engine-control function operating during normal use. The other is a deliberate diagnostic intervention performed under a specified service procedure. Before accepting a report, identify which activity generated the result.
For passive observation, the useful question is what the controller was already doing. For a commanded test, the useful questions include which procedure was selected, what conditions it required, what was changed by the test and how the response was interpreted. A screenshot without that distinction can make two unlike events appear directly comparable.
Suppose one report describes a cylinder during an automatic low-load sequence and another describes that cylinder during a technician's commanded test. A different response between the reports does not automatically prove an intermittent injector. The methods and operating states differ. The service team must decide whether those differences are expected, relevant or evidence of a separate issue.
Use the report's own test name and preserve its full context. Do not rename an automatic operating record “injector test passed” when transferring it to a purchase file. Similarly, do not turn a diagnostic result into an assertion that the automatic strategy works correctly throughout the engine's operating range.
The existing HEUI diagnostic evidence guide illustrates why a cylinder response is not an injector-only verdict. Its engine-specific test route should not be transferred to a Cat 3500. The shared lesson is limited: name the test and its scope before converting its result into a parts decision.
The term Idle Cylinder Cutout can mislead a reader accustomed to discussing road-engine idle. Caterpillar's description includes stable operation at rated speed among ICC's enabling conditions. Low load and low rotational speed should therefore not be treated as the same observation in this generator-set discussion. Cat 3500 ICC operating context.
This changes a practical question at the parts counter. If an operator says the set was “idling,” ask what that meant: the engine was running without the expected facility load, the speed was below its normal operating point, or the speaker was simply describing an exercise. Preserve the operator's wording, but do not convert it into a technical state without clarification.
A reported lack of facility demand is also not enough to specify every load acting on the engine. Ask the service provider which measurements describe the relevant operating condition and whether auxiliary or test arrangements affected the record. The buyer should retain the provider's definitions rather than infer engine load from one switch position.
Keep engine speed and load in separate fields on the service handoff. That small distinction prevents a technician reviewing the case later from assuming that a low-load event also involved reduced speed. It also makes an incomplete report easier to improve: the reviewer can ask for the missing measurement instead of requesting the entire visit to be repeated.
When comparing a video with a logged event, do not infer exact speed from sound. A recording can document a change, but its microphone, distance and surrounding machinery affect what the listener hears. If speed is relevant to the interpretation, obtain the actual recorded engine-speed evidence under the applicable service process.
Likewise, a stable speed display is not a complete strategy-state record. It addresses one condition, not every required input or configuration item. This is why the automatic explanation must be assembled from the relevant evidence rather than accepted because one visible parameter appears plausible.
The distinction helps avoid two opposite errors. One buyer may reject the automatic explanation because the generator was at normal operating speed. Another may accept it solely because facility load was light. Neither inference is sufficient. The technician must relate the actual conditions to the exact engine's documented control behavior.

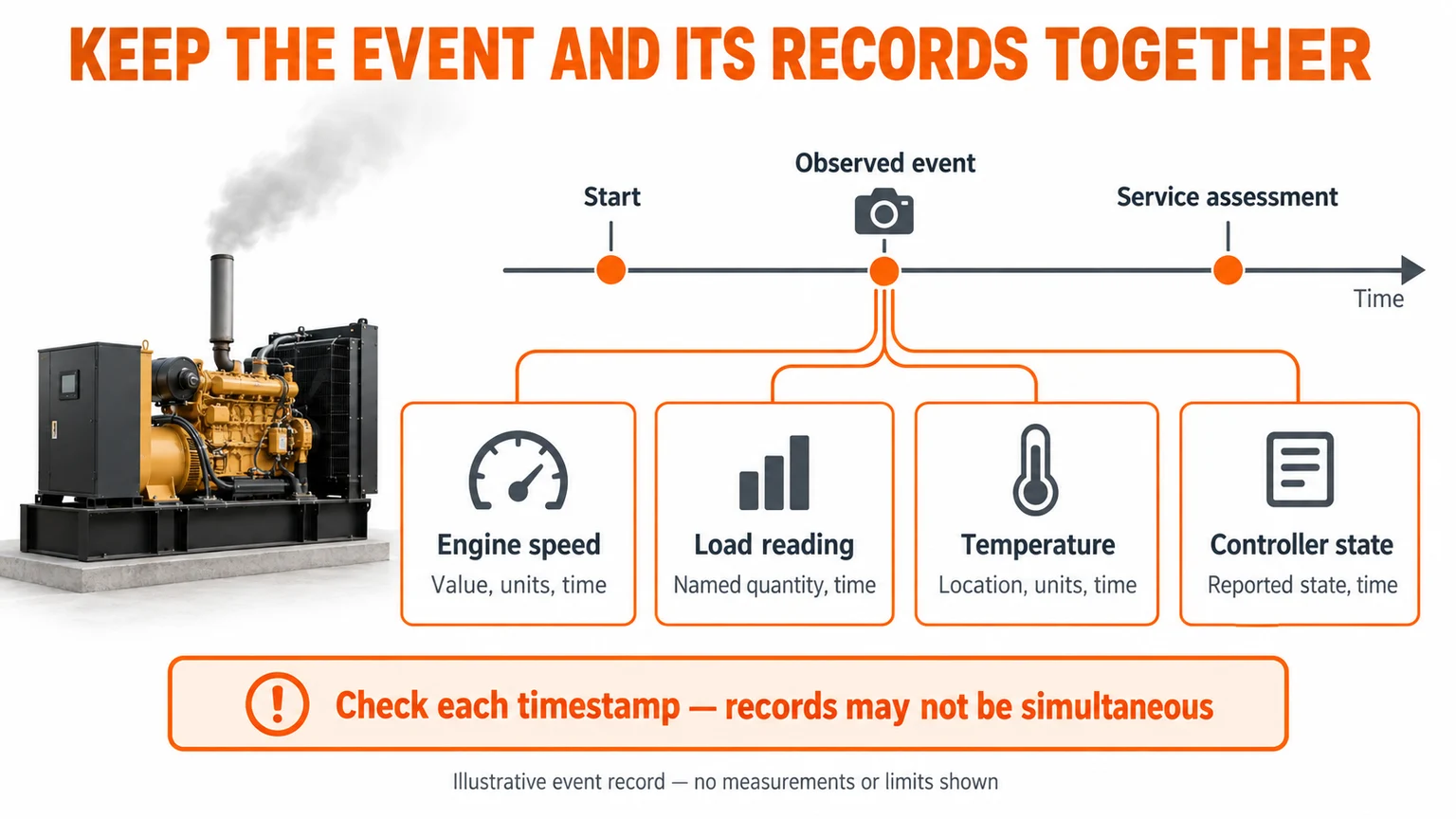

Figure — Keep the observation with speed, load, temperature and controller-state records, preserving each record's quantity, location or units and timestamp as appropriate. Grouping does not prove simultaneous sampling; this illustration contains no measured values or passing limits.
A short video can establish that something was visible or audible, but it rarely establishes the full operating history. Ask what happened before the recording started. Was the generator beginning an exercise, continuing an extended lightly loaded run, accepting a load change or returning from a service intervention? The timeline determines which evidence should be reviewed next.
Record the generator-set and engine identity, the start of the observed event, the operating mode, the indicated load and the available temperatures. Use the actual labels shown by the instrumentation. A panel percentage, an engine load parameter and an electrical output reading should not be merged under one unnamed “load” field.
Preserve the denominator behind a percentage when it is available. A percentage is meaningful only in relation to what the instrument or report defines as full scale. If that definition is unknown, retain the raw display and ask the service team to interpret it. Inventing a conversion can make a weak observation look more precise without making it more useful.
Keep events in order: start, stabilization, commanded changes, visible symptom, recorded controller state and shutdown. This is not a request to create a new load-test procedure. It is a way to preserve what occurred during an already authorized operating or service activity. The technician controls the procedure; the timeline protects its interpretation.
Note when the record is incomplete. If the symptom was reported by an operator but the technician arrived after the engine had warmed, retain both facts. A later satisfactory observation does not erase the original report, and the original report does not prove the same condition remained present during the technician's visit.
For remote review, synchronize the evidence as far as practical. A smoke video, a controller screenshot and a service note from unrelated times cannot establish one event simply because they are in the same email. Clear timestamps or a documented sequence are often more useful than a larger collection of disconnected attachments.
Do not treat a feature listed in the engine configuration as proof that it was operating during the complaint. “Enabled,” “eligible under the current conditions” and “active at this moment” answer different questions. A useful report keeps these states separate rather than collapsing them into one checked box.
The Cat 3500 paper describes conditional operation and notes that leaving the applicable parameter range ends the active strategy. It also gives examples of conditions affecting availability. This supports checking the actual event state; it does not provide a universal activation threshold that buyers should apply from memory. Cat 3500 conditional-strategy explanation.
When a supplier or workshop attributes a symptom to an automatic function, ask what establishes each part of the explanation. Was the configuration read from this engine? Were the relevant operating conditions captured? Is the reported active state contemporaneous with the symptom? An answer may be incomplete without being wrong, but the missing evidence should remain visible.
Do not use a neighboring generator as a universal reference. Two sets sharing a broad family description may differ in the configuration or operating conditions relevant to the comparison. The comparison becomes useful only after the technician identifies what is equivalent and what is not. A familiar sound from another site is not an engine-specific service limit.
An apparent state change during a record can be important. Ask whether it coincided with a load transition, temperature change or diagnostic activity, rather than assuming the system randomly stopped working. The purpose is to explain the transition with the applicable service information, not to force every event into the automatic-strategy hypothesis.
A report stating that the engine was “warm” is useful operator context, but it is not a substitute for a named temperature parameter where one matters to a service interpretation. Preserve whether the reading came from a controller display, a separate instrument or a technician's observation. Do not merge these into a single number after the event.
An exhaust-surface observation and a controller's coolant-temperature value describe different locations and measurement methods. Neither can be substituted for the other simply because both relate to heat. If a service conclusion depends on a particular input, ask for that input and the applicable interpretation instead of borrowing the most convenient available reading.
The same caution applies across visits. A value recorded after the engine had stabilized cannot automatically establish the condition during an earlier cold-start complaint. Record the time relative to the event and retain the original units. If the data were unavailable, state that limitation rather than reconstructing a likely temperature from ambient conditions.
These distinctions do not require the purchasing team to instrument the engine. They require the service report to preserve what was actually measured. The result is a clearer handoff: the reviewing technician can identify which required observation is missing and whether another authorized service activity is necessary to obtain it.
A plausible operating explanation should narrow the investigation, not erase contradictory evidence. If a fault record, abnormal service finding or repeated complaint remains unexplained, retain it. The fact that the engine has an automatic cylinder strategy does not establish that every associated sensor, cylinder or component is functioning correctly.
Ask for active and recorded fault information in the form actually provided by the service system, together with the engine identity and event context. Do not invent a fault-code interpretation from a generic list. If the service procedure gives a code-specific route, that route takes precedence over a broad explanatory article.
Be equally careful with a report of “no codes.” It describes what was checked and found in a particular session. It does not independently establish fuel quality, mechanical condition or the absence of every intermittent problem. The useful follow-up is whether the original complaint was reproduced and whether the applicable investigation was completed.
Keep separate records for a persistent symptom and a condition seen only during one start. This does not diagnose either condition, but it prevents a later quotation from treating them as the same event. If the complaint changes after maintenance, record the change rather than rewriting the original report to match the latest theory.
Where abnormal noise, leakage, alarms or another condition may make continued operation unsafe, the operator and qualified service team must follow the equipment's instructions and site procedures. This article does not establish permission to keep running in order to gather a cleaner comparison. Evidence collection must not override a required stop or a technician's safety assessment.
Load evaluation can be relevant to a low-load complaint, but it needs an approved purpose and method. A service team might be assessing the operating profile, checking performance after a repair or evaluating a symptom under a controlled condition. These purposes should not be combined into a vague instruction to “load it until it clears.”
Cummins' power-generation service literature describes load-bank testing as a controlled service activity that can provide performance information and supplemental load. That is useful industry context, not a Cat 3500 procedure or approval for a particular site. The correct load method, limits and duration still belong to the exact equipment and service plan. Cummins power-generation service solutions.
Before commissioning the work, state what result would change the decision. If the question is whether a complaint persists under an approved operating condition, the report must capture that condition and the complaint. If the question is overall standby performance, the acceptance criteria will be broader. A successful answer to one question should not be described as proof of the other.
The site also has responsibilities beyond the engine. The service provider must account for electrical connection, system isolation or transfer arrangements, exhaust and ventilation, nearby personnel, the load equipment and the facility's continuity requirements. A parts enquiry should request the competent provider's plan, not prescribe these arrangements through a blog checklist.
Reject an unqualified percentage-and-duration recipe copied from another machine. The fact that a general paper discusses load ranges does not establish the correct recovery or test regime for an individual set. If the relevant instructions are unavailable, the proper next action is to obtain them, not to choose a convenient figure from a search result.
After the evaluation, retain the planned condition, actual condition and result. If the test had to stop or could not reach its intended state, the incomplete result remains useful when honestly labelled. It should not become a pass certificate merely because the engine ran for part of the scheduled period.
An improvement after an approved operating evaluation may be encouraging, but specify exactly what improved. Was the visible plume reduced, did the recorded complaint disappear, or did a required service test meet its limits? These outcomes have different scopes. The report should not compress them into “all injectors good” without component-specific evidence.
Similarly, old residue found after the evaluation does not necessarily prove that the same condition continued throughout the test. Distinguish material already present from a new observation recorded during the work. If the service team needs a before-and-after comparison, it should establish a safe, documented method that does not destroy relevant evidence prematurely.
A single satisfactory event also does not describe the entire future operating profile. If the original concern involves repeated extended light loading, the operating plan needs review as well as the one service visit. The facility may need to discuss sizing, exercise arrangements or other approved operating measures with its generator specialist.
Keep that operating discussion separate from a replacement recommendation. A buyer can approve a necessary service activity without approving injectors, and can seek an indicative component quote while diagnosis remains open. Making those decisions separately avoids a commercial commitment being mistaken for a technical conclusion.
The same discipline applies when the symptom remains. Persistence is a reason for the service team to continue the applicable fault investigation; it is not permission for procurement to choose a component based on visibility or price. An unsuccessful broad intervention does not identify which part failed.
When the workshop identifies a component-level fault, the parts request should carry the finding that justified replacement. State the engine identity, the affected cylinder or component, the exact removed reference and the applicable service selection. Avoid replacing this explanation with the original shorthand “smoke at low load.”
If injectors are removed, preserve their individual identity and cylinder association using the specified clean handling method. A later test report is useful only when it can be connected to the unit that produced the engine-side evidence. Do not allow a group of unlabelled removed units to erase the distinction between one suspect cylinder and the rest of the engine.
Ask the supplier to separate fitment confirmation from test or condition claims. A matching reference does not prove the removed injector caused the symptom. A bench result does not automatically establish that the proposed replacement has the correct service identity. Each claim should answer its own question in the quotation or report.
The nozzle-leakage and spray-pattern guide addresses another evidence stage. It should be used where the actual injector system and service process make it relevant, not as a substitute for the Cat 3500 operating-state investigation described here.
Replacement quantity should follow the confirmed scope and applicable procedure. Neither a low-load smoke complaint nor the presence of several temporarily inactive cylinders establishes that an entire injector set should be purchased. If a wider replacement is recommended, ask for the engine-specific technical basis and the distinction between required work and an optional commercial proposal.
A cylinder-cutout strategy is a changing operating process, whereas many handoffs contain only still images. Before interpreting an inactive-cylinder display, establish whether it is an instantaneous observation, a retained result or a summary of an interval. A single frame cannot describe every cylinder throughout that interval. The display's refresh behavior is part of the evidence, even when the engine itself is operating steadily.
For example, if a technician manually opens several cylinder views in succession, the readings were not necessarily taken simultaneously. Placing those images beside each other can create an apparent all-cylinder condition that never existed at one moment. Preserve the order in which the views were captured. If simultaneous behavior matters to the diagnosis, ask the technician whether an appropriate synchronized record is available through the approved service method.
Do not fill unrecorded intervals by extending the last observed state. A log with a missing segment should identify that gap, particularly if the symptom or a load change occurred there. Likewise, a graph joined by software between two recorded points may look continuous without documenting the intervening behavior. A reviewer needs the original record and its acquisition context, not only a visually smooth presentation prepared for a report.
Exhaust observations have their own timing. A visible plume at the stack and a controller event describe different parts of the system; treating the start of a video frame as an exact cylinder-event timestamp is unjustified without a suitable measurement method. Use the comparison to locate a period for investigation. Do not calculate a cylinder-specific fuel event from the apparent arrival of smoke at the exhaust outlet.
This affects how a workshop should describe a conclusion. “The captured interval shows the reported strategy state” is narrower than “the strategy explains every occurrence.” “The cylinder was inactive in this view” is narrower than “the cylinder never fired.” Ask for the narrow statement supported by the record, then identify any additional observation needed before the repair decision. The aim is not to collect unlimited data; it is to avoid assigning a permanent component fault to a transient or incompletely sampled operating state.
If the evidence cannot distinguish a control sequence from a persistent fault, preserve that unresolved result and let the service team choose the next procedure. A parts buyer can reserve commercial options without converting a sampling limitation into authorization to remove injectors. This is particularly important when dismantling would prevent a later comparison with the original installed condition.
Provide the engine identity, exact injector reference, confirmed replacement reason and quantity, together with the relevant service finding. State whether the initial low-load observation has been explained and which questions remain open. The diesel fuel injector range is a sourcing route, not diagnostic approval. Send the evidence through the Elecdura email address once the request has a defined technical scope.
