MY2024 Cummins 1894/5177: A TSB240168 Buying Check

Cummins codes 1894 and 5177 do not, by themselves, establish that a VGT actuator needs replacement. TSB240168 documents a software case affecting specified MY2024 engines and actuator numbers—not every Cummins engine reporting either code. Before placing a parts order, ask the responsible service provider to verify the complete applicability record and the required service route. This guide is for buyers coordinating that decision. It separates engine identity, actuator hardware and software records, then explains what purchasing can conclude from a documented service finding. It is not a flashing tutorial or a vehicle-release instruction.

For a heavy-duty turbocharger or actuator enquiry, establish the need before choosing the supplied assembly. A component already in the receiving area belongs under the separate turbo actuator receiving-inspection guide. The question here comes earlier: does the documented case require buying hardware at all?

First establish whether this is the documented software case

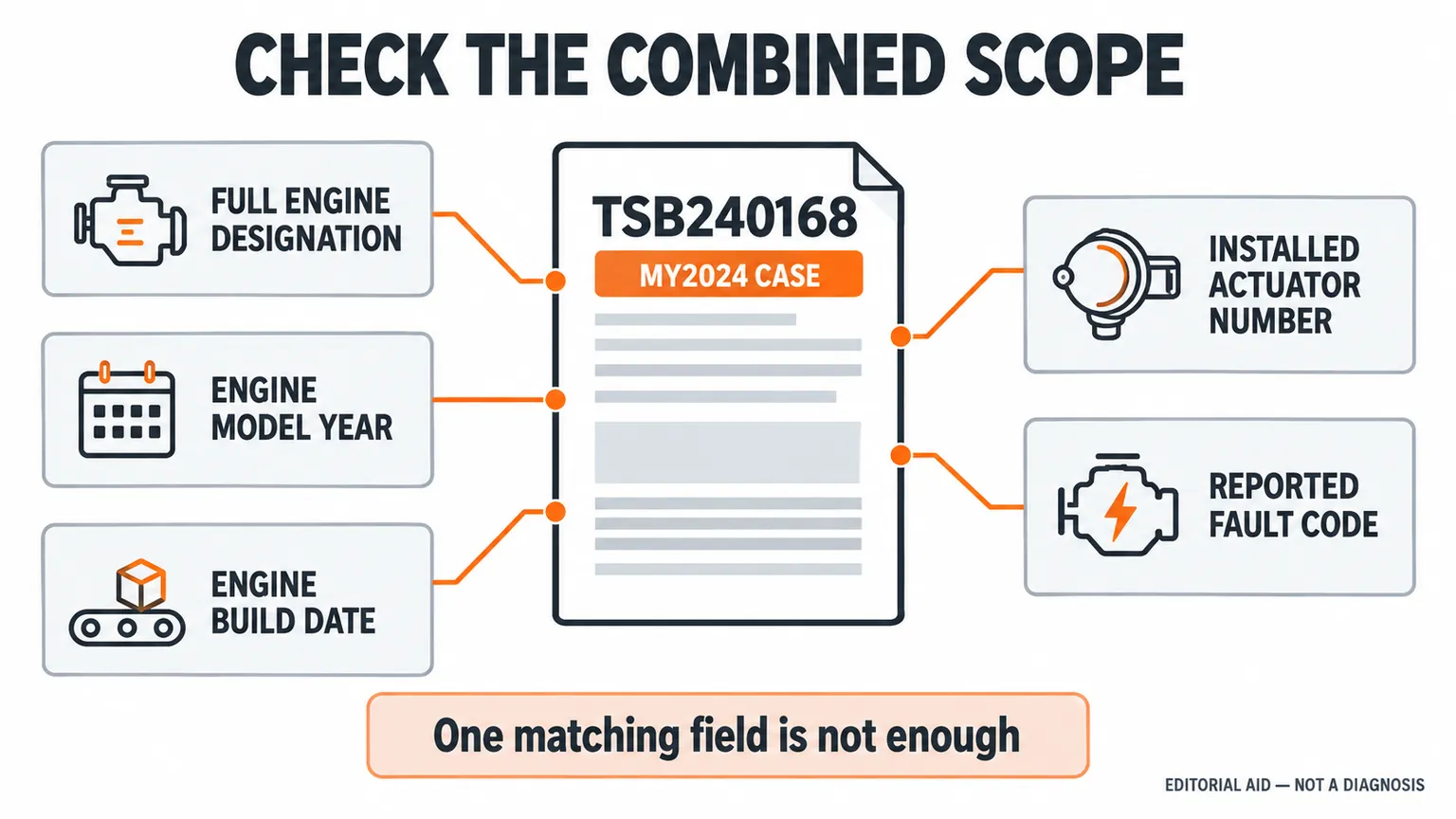

Cummins Technical Service Bulletin TSB240168, released March 13, 2025, identifies an internal VGT actuator software malfunction within the following scope. Treat these fields as a combined applicability check, not separate reasons to assume coverage.

Scope stated in the reviewed bulletin

For that case, the bulletin directs the prescribed actuator software download at the latest revision even if the latest revision is already present, followed by the specified checks that the codes do not return. It explicitly directs against actuator replacement and references service procedure 010-150. The document does not alter warranty coverage or authorize a TRP or campaign.

The practical implication is limited but important: do not turn a matching service case into a component order before the service provider has considered that instruction. This is not a recommendation to diagnose an entire engine family from a photograph or to apply a downloaded bulletin without checking its current status.

Editorial applicability aid. Verify the actual engine and installed actuator against current service information; this is not a diagnostic result.

Build an identity record the technician can actually use

A message saying “2024 Cummins, actuator code” leaves several questions open. The vehicle year may have been supplied instead of the engine model year. A family name may have been shortened. A replacement actuator may have been fitted since the original build. The purchasing team should preserve those distinctions instead of filling the blanks from a catalog description.

Cummins' North American technical-information page directs users to QuickServe Online for parts and service information by engine serial number or engine family, including engine dataplate information. Ask the service provider to use the actual engine identity to establish the applicable documents. A public article cannot perform that engine-specific lookup for the buyer.

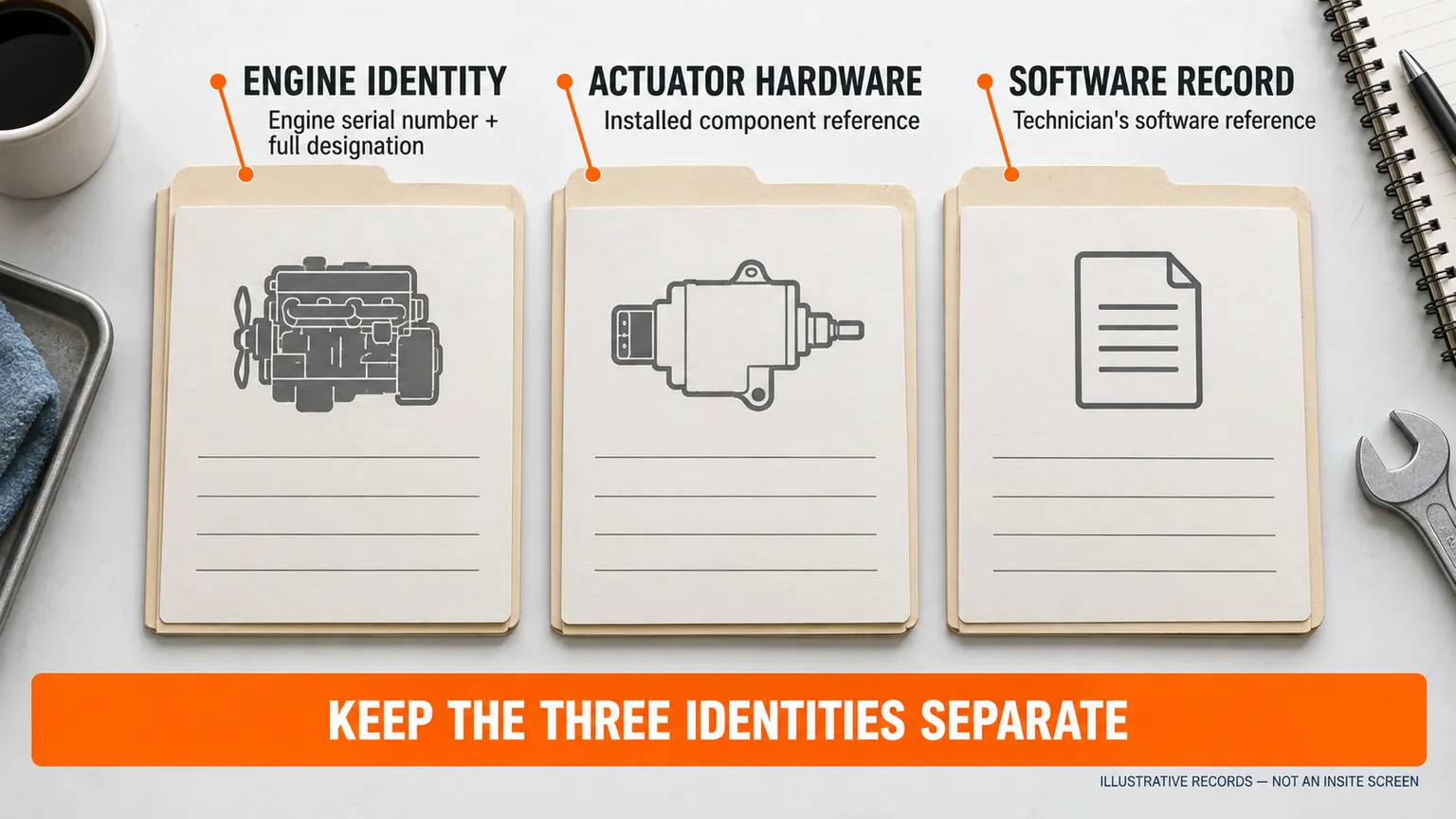

Keep the engine, actuator and software identities separate

Use a small, traceable record rather than one ambiguous “part number” field. Keep the engine serial number with the full engine designation; keep the installed actuator label or verified hardware identification with the component; and keep any software identification in the technician's service record. Do not overwrite the hardware field with a number copied from a software screen.

This distinction also protects repeat orders. If an old spreadsheet contains a number without saying whether it identifies a complete turbocharger, an actuator or software, flag it for clarification. A purchasing system that accepts any of those as an interchangeable stock reference can carry the same mistake into later quotations.

Record a missing fact as missing

If the build date is unavailable, write “build date not yet verified.” If a label cannot be read safely in place, ask the responsible technician how the identity should be obtained. Do not instruct a driver or receiving clerk to remove the actuator merely to complete a procurement form. The service procedure determines the safe access method and whether removal is appropriate.

Keep engine, hardware and software references separate. The record layout is an editorial example, not an INSITE screenshot or a calibration certificate.

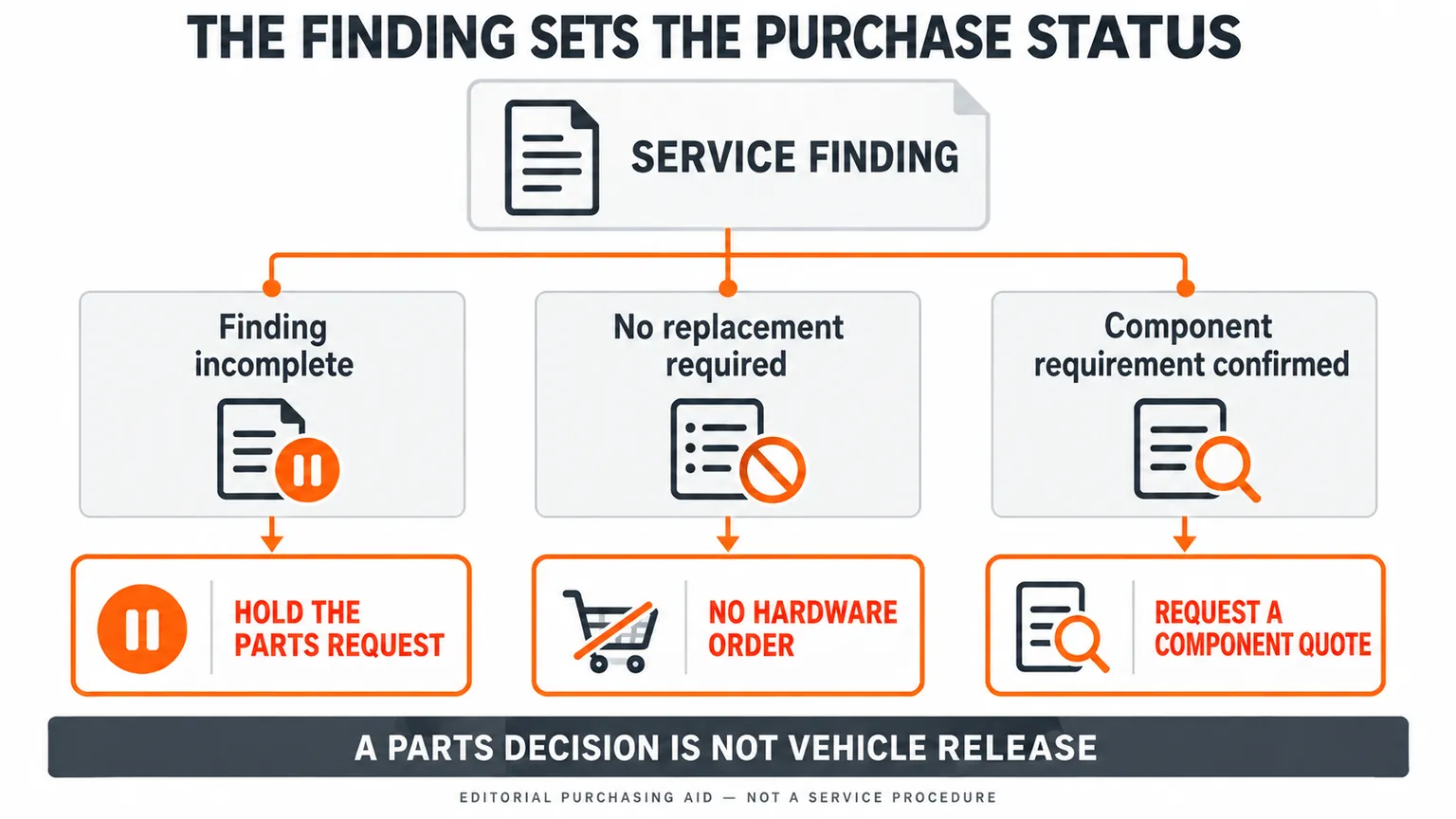

Ask for the service finding, not just an “updated” invoice

Request a short conclusion linking the identified engine to the applicable instructions, the completed work and its result. The following are suggested purchasing records, not additional Cummins service steps or acceptance limits.

• Applicability finding: engine-specific service reference and verified installed actuator identity.

• Work and result: completed action, traceable job reference, resulting fault status and outstanding work.

• Purchasing conclusion: no replacement requirement, further diagnosis needed, or an identified component requirement supported by the technician's findings.

“An update was attempted” does not establish that the prescribed work was completed and its result checked. If the result remains unknown, keep the request on diagnostic hold. An invoice heading or closed booking does not justify recording “software resolved” or “actuator failed.”

Do not substitute a tool's advertised capability for the specified procedure

The Cummins Holset e-Tool support page describes a tool for physical checks, diagnostics, actuator installation and calibration, available to eligible authorized Holset distributors with training. That description establishes a tool's intended functions; it does not establish that any calibration service offered by any workshop performs this particular bulletin's action.

Calibration and software updating are different service concepts, also distinguished in Jaltest's English-language technical news. That general distinction does not extend this bulletin to other codes or engines. A service quotation should identify the applicable procedure and result to be reported; “calibration” alone does not establish that the specified software work is included.

Nor should a software question be converted into an improvised mechanical test. Do not alter a linkage, adjust a stop, bypass a control function or substitute a mechanically similar actuator to make the purchase decision easier. Where the technician identifies a different mechanical question, the VGT hysteresis and vane-sweep guide explains that separate evidence problem. It does not replace the engine-specific service procedure.

When this recommendation does not apply

This article does not tell a service provider to ignore physical damage, additional faults or conflicting diagnostic findings. An unmatched or incomplete applicability record is not a reason to force the software route. Return the unresolved question to the appropriate troubleshooting process and let the responsible technician determine what further evidence is needed.

It also does not establish equivalence between an aftermarket actuator and either hardware number listed above. A reference-number match used in a quotation must be supported by application and configuration evidence; it is not proof of identical software, genuine origin or Cummins authorization.

Finally, resolving a parts request is not the same as releasing a vehicle to service. The workshop remains responsible for the required operational checks and any outstanding faults. Purchasing should record that boundary instead of interpreting a canceled actuator order as confirmation that the entire vehicle is ready.

Editorial purchasing workflow, not a service procedure or vehicle-release authorization. Record the actual technician's conclusion.

Only prepare a replacement inquiry when the findings support one

If further diagnosis establishes a replacement requirement, send the supplier the component scope the technician has actually requested. Do not silently change an actuator inquiry into a complete-turbo order, or assume that a complete turbocharger quotation includes the required actuator configuration and service work.

For an inquiry about Elecdura's heavy-duty turbocharger range, use the Elecdura turbocharger enquiry page and provide:

• The required item: complete turbocharger, actuator or another explicitly identified component.

• The engine identity, equipment application and readable installed-unit references, including known replacements.

• The replacement finding, compatibility questions, quantity and destination.

Obtain the proposed replacement identity and supply scope in writing. Elecdura is a parts-sourcing contact, not the authority determining Cummins software applicability, service completion or warranty eligibility. This article does not promise a specific compatible stock item or standalone actuator service.

Questions that often remain after the first service call

Can I use the truck's registration year as the engine identification?

Use it as vehicle information, but keep a separate engine identity record. Ask the service provider to reconcile the dataplate and engine serial number with the applicable service information. If those records disagree, keep the discrepancy visible; a convenient date in a fleet spreadsheet should not override the engine-specific finding.

What if the installed actuator is not the one shown in the original parts record?

Report both identities and the known replacement history. The technician needs to assess what is actually installed, while the buyer needs to know why the records differ. Do not erase the original reference or assume that the current unit is an approved supersession merely because it was previously fitted.

Does a successful service visit justify returning unused stock as defective?

No defect has been established in an unused replacement merely because the vehicle no longer needs it. Separate an unneeded-stock return from a technical defect claim and ask the supplier which commercial return terms apply. Preserve packaging and identification while that question is settled; do not assign a failure code unsupported by inspection.

How should a distributor handle the same code across several vehicles?

Keep one applicability and service finding per engine. You can group the cases for scheduling, but do not copy a diagnosis from the first vehicle into every purchase request. Different installed components, service histories or incomplete records may require different next steps. A shared symptom is a useful investigation lead, not batch replacement evidence.

Technical reference and editorial limit

The scope above comes from the reviewed March 2025 bulletin, not a claim that its revision is current for every engine today. Confirm the applicable service information through the responsible service channel before acting. The identity record, purchasing statuses and inquiry checklist are editorial aids; they do not amend manufacturer instructions or create a warranty or repair policy.
