Detroit DD15 turbocharger replacement is a system repair, not a one-part swap. Engine serial and configuration, turbo assembly, VGT actuator, mounting interfaces, oil feed and drain, charge-air condition, exhaust leaks, sensors, and calibration all affect the outcome.
A new turbo can fail quickly if debris, restricted oil supply, a damaged drain, contaminated charge-air piping, or an unresolved engine fault remains in the circuit. An actuator can also appear functional while its calibration or travel does not match the installed assembly. Buyers can use the Elecdurauto turbocharger category to organize reference and application research; final selection still depends on the measured application record.
This audit separates part identity, installation readiness, actuator control, and post-repair performance so a fleet or distributor can defend the replacement decision.
The workflow keeps supplier evidence distinct from vehicle measurements. Both are required before a product-level fitment claim can be accepted.
The final file also becomes a repeat-order and warranty reference because it links the approved turbo and actuator to the exact DD15 application and installation record.
Before the first loaded run, rotate and inspect the assembly only as the service procedure permits, verify unobstructed oil return, and keep the charge-air circuit free of fragments from the failed unit. If the prior failure involved wheel contact or heavy oil carryover, document how every retained pipe, cooler, and connection was cleaned or replaced before release.
Record engine serial, rating and emissions configuration, installed turbo markings, actuator identity, mounting style, and relevant service history. Before testing, the warranty analyst ties engine serial and rating to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire dd15 engine case.
Establish engine serial and rating first, then compare turbo markings while the original complaint is reproduced. Use actuator identity to challenge the first interpretation and retain service history as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why engine serial and rating represents the starting state and how turbo markings changes when the suspected failure appears. If evidence from actuator identity points elsewhere, the diagnosis stays open. Service history becomes the reference used to compare the removed unit, approved sample, and later production lot.
Engine serial and rating: Capture the initial value and the exact operating condition.
Turbo markings: Compare the response before and during the complaint.
Actuator identity: Use an independent observation to test the first theory.
Service history: Preserve the reference with date, instrument, and reviewer.
Do not approve a DD15 family match without the exact installed configuration. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded turbocharger behavior describe the same event.
Document engine serial and rating against the complaint, turbocharger identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Capture fault codes, boost command and actual response, actuator position, exhaust condition, oil evidence, charge-air leaks, noise, and wheel-contact clues. This stage converts the initial observation into a controlled test route. The fleet electrician prepares fault codes, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure command and feedback at the first defined point, then recheck oil and air evidence after the turbocharger reaches the second condition. Wheel and housing condition should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The dd15 engine controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
Fault codes: Define the pre-test state and preparation method.
Command and feedback: Log the first controlled response with its unit and tolerance.
Oil and air evidence: Repeat at the second condition without changing unrelated variables.
Wheel and housing condition: Note the deciding observation and any remaining ambiguity.
Preserve the original symptom before disassembly changes the system. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled dd15 engine test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

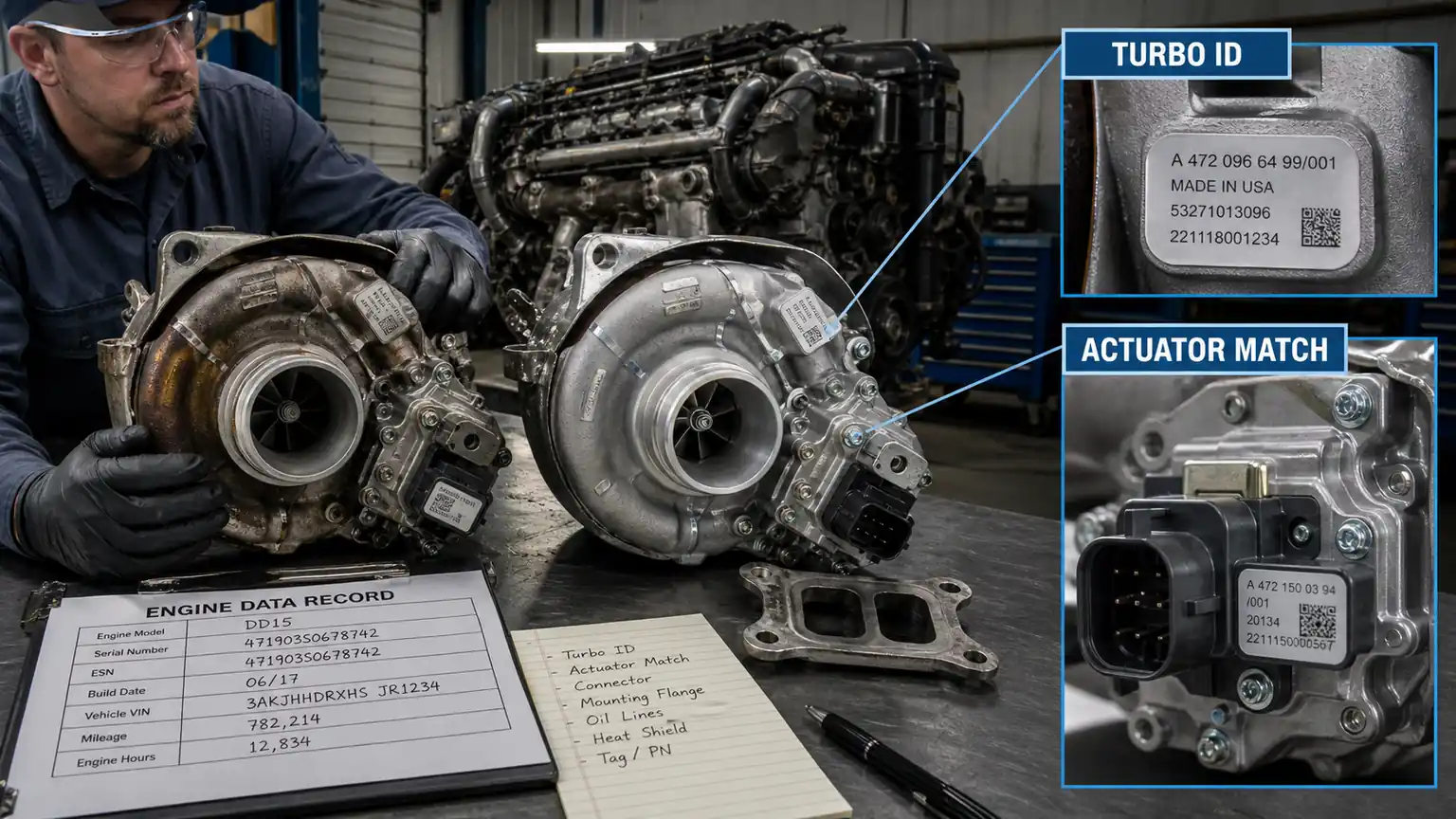

Detroit DD15-type VGT turbocharger and electronic actuator identity comparison.
Inspect feed restriction, contamination, drain routing, gasket condition, crankcase pressure, lubricant quality, and pre-lubrication method. The purpose here is pattern recognition rather than collection of isolated numbers. The bench technician aligns oil feed, oil drain, crankcase pressure, and pre-lubrication on one timeline so the sequence of the turbocharger response remains visible.
Interpret oil feed together with oil drain; either item alone can support several causes. Compare their timing with crankcase pressure, then use pre-lubrication to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong dd15 engine report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
Oil feed: Retain the unedited trace, image, or measured sequence.
Oil drain: Mark the feature that changes with the complaint.
Crankcase pressure: Compare the same feature under a control condition.
Pre-lubrication: State which cause the combined pattern supports or excludes.
A clean replacement cannot survive an unresolved lubrication or ventilation fault. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the turbocharger behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the dd15 engine evidence. Contradictory traces remain attached as open evidence.
Check compressor inlet, outlet, clamps, intercooler, intake path, turbine inlet and outlet, exhaust leaks, retained debris, and mounting alignment. This module examines how the turbocharger behaves after time, heat, load, or contamination has had an opportunity to act. The receiving inspector defines the exposure interval and tracks compressor interfaces before, during, and after that interval.
Correlate charge-air leakage with exhaust interfaces rather than treating either value as a universal limit. Add debris and alignment to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The dd15 engine stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
Compressor interfaces: Establish the pre-exposure reference.
Charge-air leakage: Capture the peak or worst-case behavior.
Exhaust interfaces: Compare the response at a fixed elapsed time.
Debris and alignment: Document recovery and any permanent change.
Every connected path must be clean, sealed, and mechanically supported. A result outside the limit requires the surrounding system to be checked before the turbocharger is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the dd15 engine stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the dd15 engine investigation, the turbocharger product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

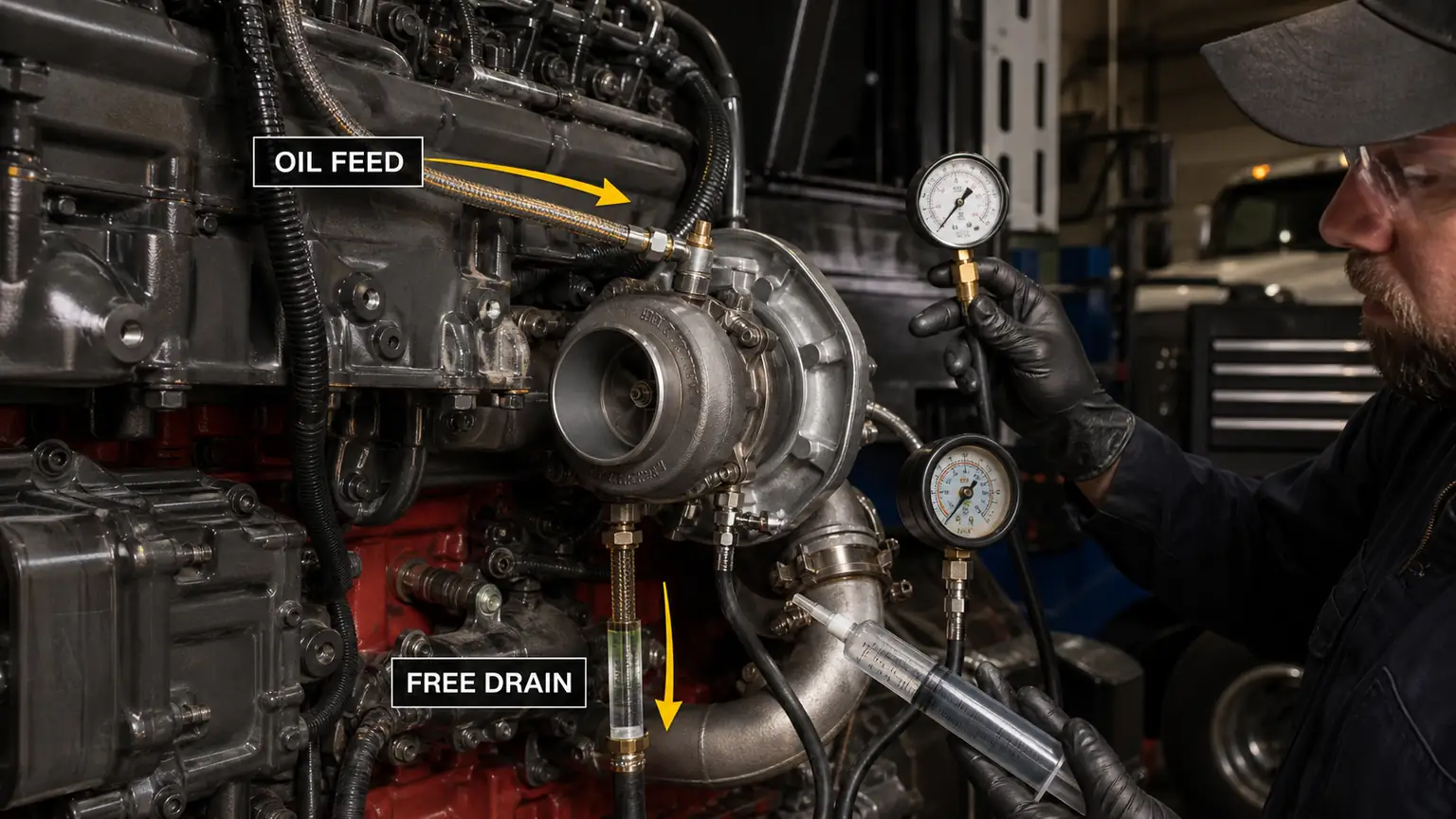

VGT turbocharger oil-feed pressure, free-drain routing, and crankcase-condition inspection.
Confirm actuator part identity, connector, linkage, travel, installation position, calibration procedure, command range, and learned or verified endpoints. Bench inspection now tests the internal or component-level theory developed on the machine. The technical buyer preserves the removed condition, cleans only what the method requires, and records actuator reference before disassembly can erase useful evidence.
Quantify linkage and travel with equipment suited to its expected range, verify calibration procedure through a second method where practical, and photograph endpoint verification beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact dd15 engine case under review.
Actuator reference: Preserve the as-removed condition and reference marks.
Linkage and travel: Record calibrated measurement and environmental correction.
Calibration procedure: Confirm the suspected mechanism with a second observation.
Endpoint verification: Connect visible condition with the measured failure path.
An actuator is not released from appearance or motor movement alone. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the dd15 engine bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Run a controlled post-install test while recording command, actual vane position, boost, exhaust pressure where available, intake temperature, engine load, and fault status. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The warranty analyst compares the evidence for VGT command with the evidence for position feedback under the same demand before changing any component.
Use boost and pressure to test the alternative explanation, then inspect temperature and load for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original turbocharger failure.
A cause map for the dd15 engine decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
VGT command: Define what this result would mean for the primary theory.
Position feedback: Compare the alternative component or system response.
Boost and pressure: Run the discriminating check that separates both paths.
Temperature and load: Inspect the interface where one fault could imitate another.
Synchronized data must show that the air and control systems agree. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the dd15 engine cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

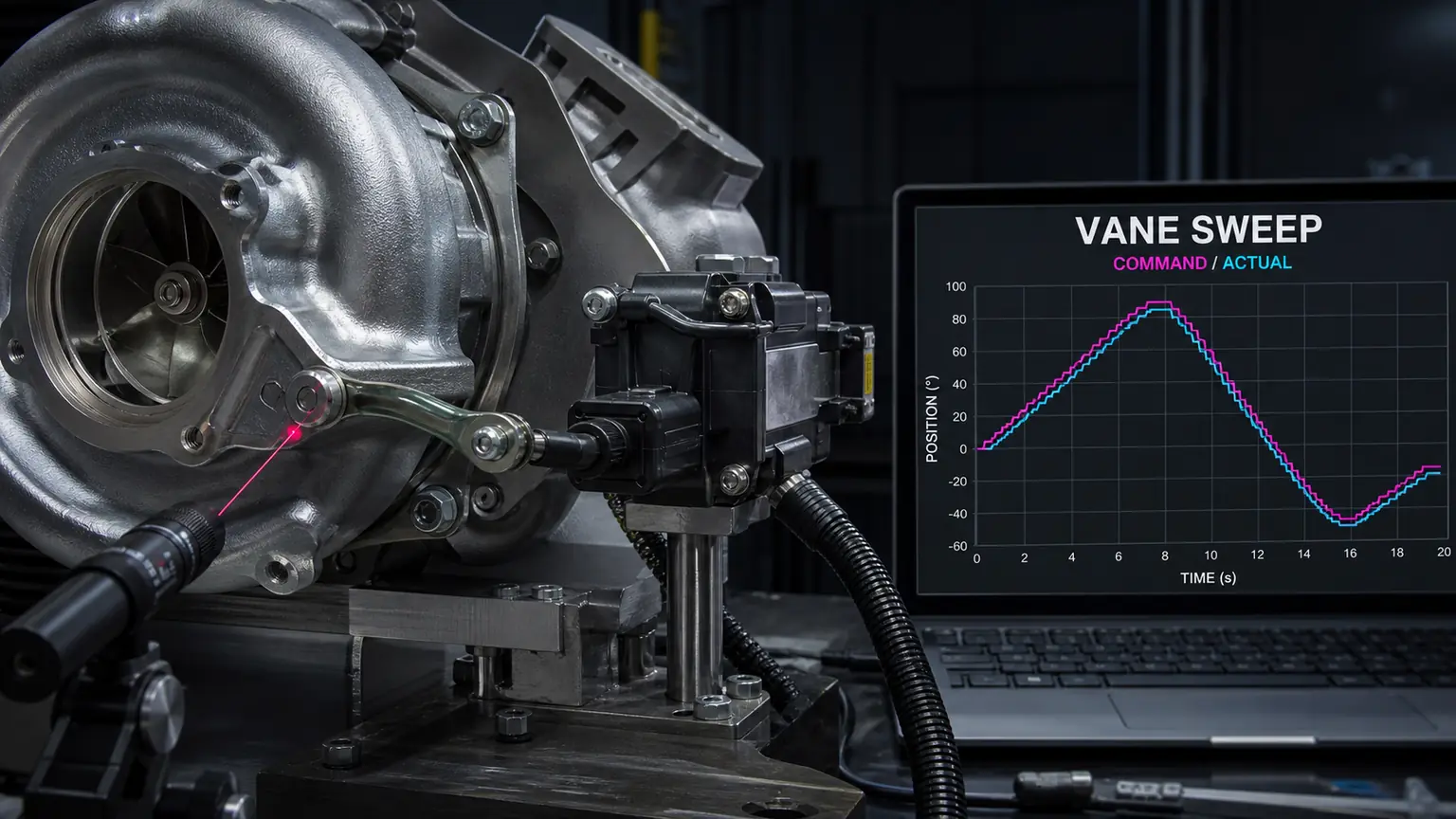

Electronic VGT actuator vane-sweep calibration with commanded and actual position traces.
Document oil priming, first start, leak checks, noise, warm-up, controlled load, cooldown, follow-up inspection, and product/lot identity. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The fleet electrician defines how the approved sample and production units will be compared using first-start evidence and controlled load.
Add cooldown and recheck to expose changes that a label or catalogue cross-reference cannot show. Use lot traceability to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The dd15 engine acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
First-start evidence: Define the release value and sampling method.
Controlled load: Compare sample evidence with the incoming lot.
Cooldown and recheck: Retain the technical record that exposes configuration drift.
Lot traceability: Trace approval, deviation, and claim decisions to one identity.
The replacement file closes only after stable operation and traceable receiving evidence. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory turbocharger acceptance field.
Authorize dd15 engine production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

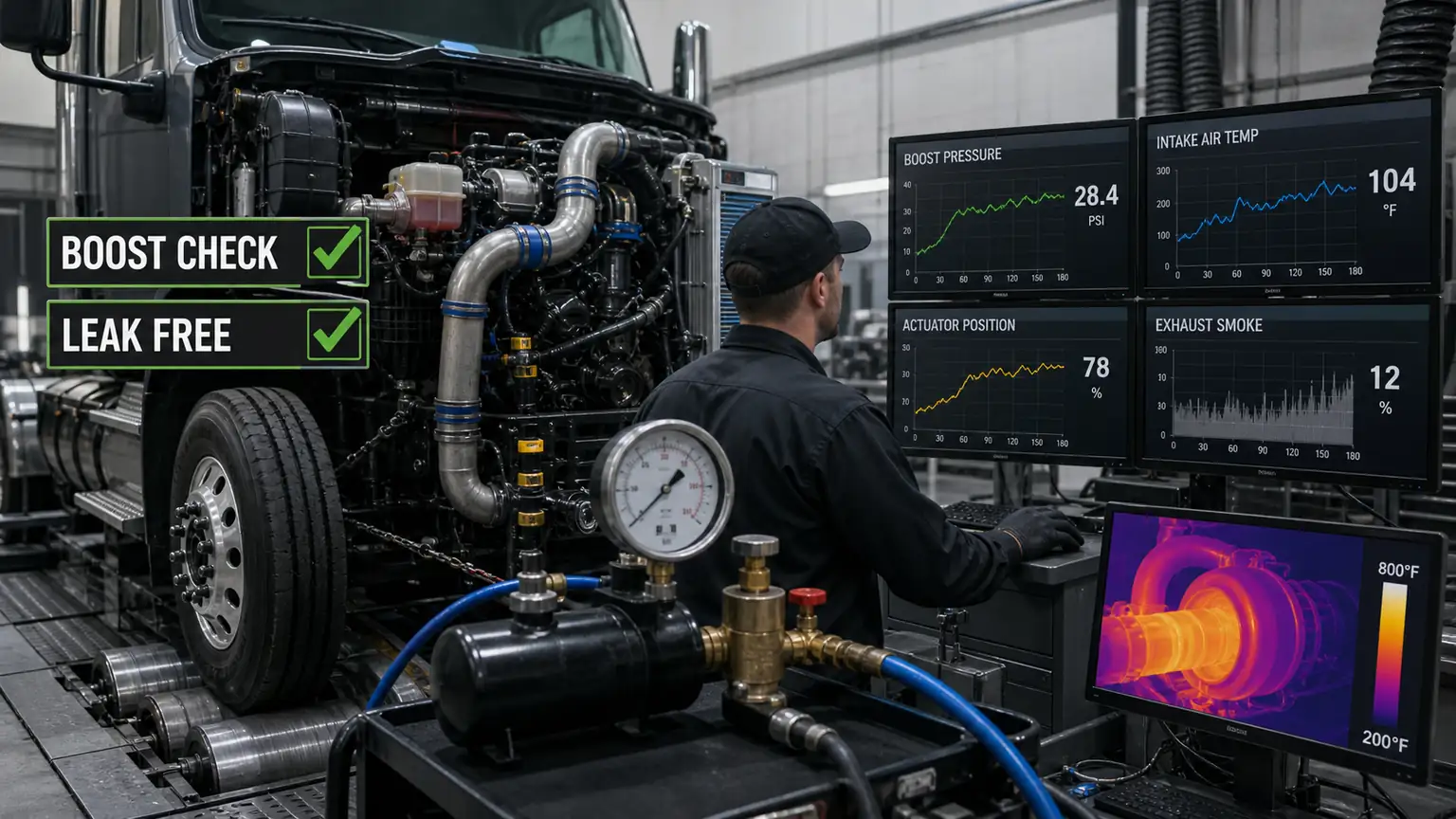

Controlled heavy-truck boost, charge-air leak, actuator, and thermal validation.
State whether the requested turbocharger for the dd15 engine application is new aftermarket, remanufactured, or another declared condition.
List the mandatory interfaces relevant to this dd15 engine case and identify the evidence for each one.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.
Retain the approved turbocharger sample or a complete photo and measurement record for the dd15 engine release.
Trace each incoming turbocharger lot to the supplier declaration and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Feed dd15 engine field failures back into the same evidence route used for initial approval.
This dd15 engine workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
Preserve the exact turbocharger identity, application evidence, measured test conditions, photographs, acceptance limits, and release decision for this dd15 engine case. The same record should connect the approved unit to receiving checks and any later field claim.
