Detroit Diesel Series 60 engines appear across many truck and equipment configurations, so the engine-family name does not identify one universal starter. Voltage, mounting, rotation, pinion geometry, solenoid arrangement, and vehicle wiring must agree with the exact application.
A slow-crank or no-crank complaint also needs circuit evidence before a replacement is ordered. Weak batteries, cable resistance, ground faults, control-voltage loss, oil viscosity, and ring-gear damage can produce symptoms that resemble a failed starter. Buyers can use the Elecdurauto starter category to organize reference and application research; final selection still depends on the measured application record.
This guide combines fitment control with loaded cranking tests. It helps fleets and distributors decide whether the fault is inside the starter, in the vehicle circuit, or at the mechanical interface.
The result is an RFQ that carries engine identity and measurable starter requirements rather than a broad request for a Series 60 starter.
Receiving teams can then compare the delivered unit with the approved sample and retain the same evidence route for warranty claims.
For hot-start complaints, keep coolant temperature, oil temperature, battery condition, delivered voltage, crank duration, and cooldown interval in the same sequence. A warm engine can change mechanical drag and cable resistance, while repeated cranking can heat the starter. Recording those conditions prevents a single successful cold test from hiding a duty-related fault.
Record engine serial and model data, vehicle identity, system voltage, battery-bank arrangement, ground strategy, and any previous engine or transmission conversion. Before testing, the bench technician ties engine identity to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire detroit diesel series 60 case.
Establish engine identity first, then compare vehicle configuration while the original complaint is reproduced. Use battery system to challenge the first interpretation and retain conversion history as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why engine identity represents the starting state and how vehicle configuration changes when the suspected failure appears. If evidence from battery system points elsewhere, the diagnosis stays open. Conversion history becomes the reference used to compare the removed unit, approved sample, and later production lot.
Engine identity: Capture the initial value and the exact operating condition.
Vehicle configuration: Compare the response before and during the complaint.
Battery system: Use an independent observation to test the first theory.
Conversion history: Preserve the reference with date, instrument, and reviewer.
The installed configuration defines the starter requirement. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded starter behavior describe the same event.
Document engine identity against the complaint, starter identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Capture the removed starter service number, flange, pilot, bolt pattern, nose depth, pinion, rotation, solenoid clocking, and terminal positions. This stage converts the initial observation into a controlled test route. The receiving inspector prepares starter family, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure mounting geometry at the first defined point, then recheck pinion interface after the starter reaches the second condition. Solenoid clocking should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The detroit diesel series 60 controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
Starter family: Define the pre-test state and preparation method.
Mounting geometry: Log the first controlled response with its unit and tolerance.
Pinion interface: Repeat at the second condition without changing unrelated variables.
Solenoid clocking: Note the deciding observation and any remaining ambiguity.
Do not approve a family-level cross-reference without the interface record. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled detroit diesel series 60 test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

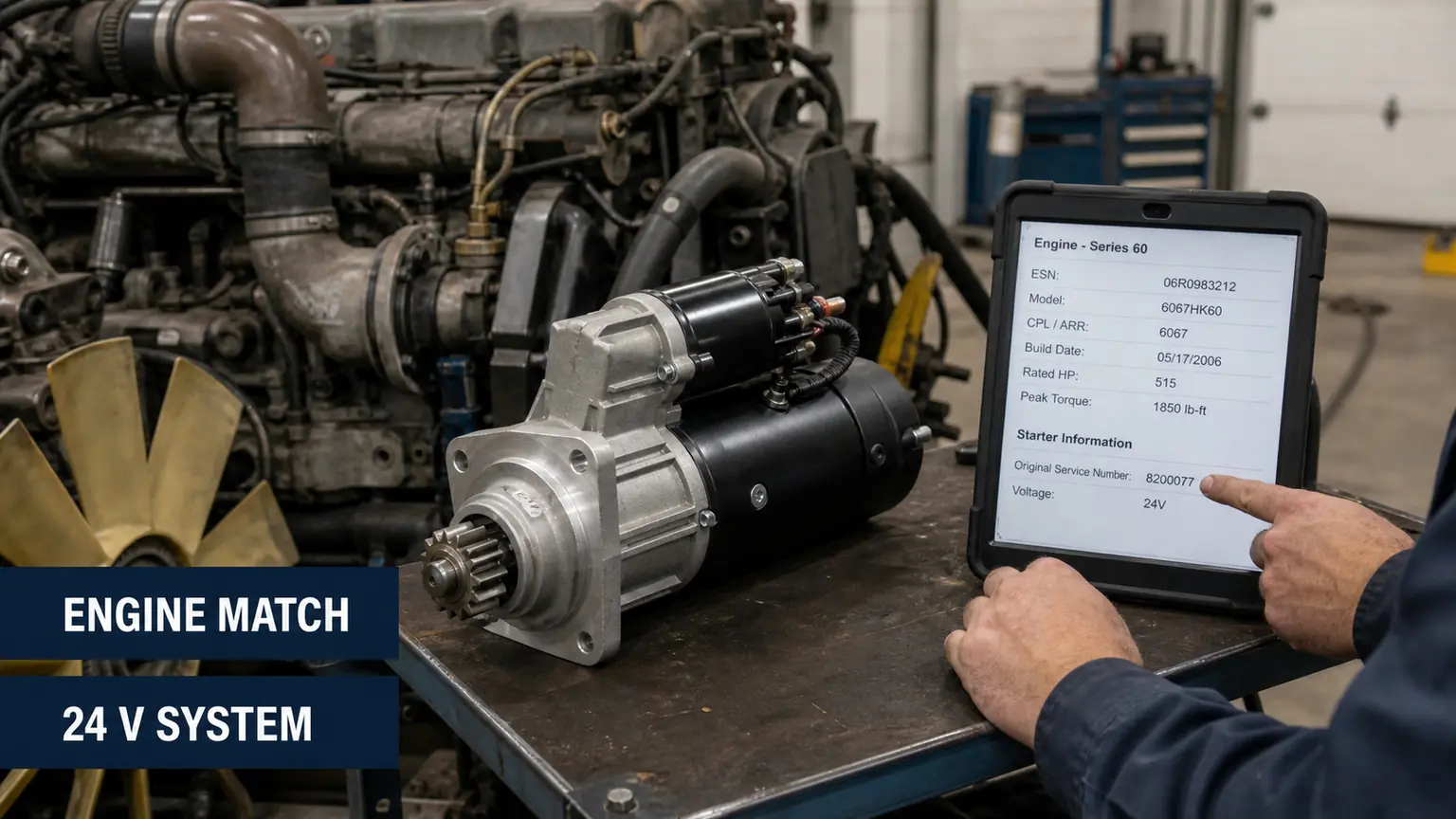

Detroit Series 60-type engine and 24-volt heavy-duty starter application match on a workshop bench.
Measure battery open-circuit condition, loaded voltage, balance between batteries, terminal condition, and recovery using a test appropriate to the bank. The purpose here is pattern recognition rather than collection of isolated numbers. The technical buyer aligns battery condition, loaded voltage, bank balance, and recovery on one timeline so the sequence of the starter response remains visible.
Interpret battery condition together with loaded voltage; either item alone can support several causes. Compare their timing with bank balance, then use recovery to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong detroit diesel series 60 report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
Battery condition: Retain the unedited trace, image, or measured sequence.
Loaded voltage: Mark the feature that changes with the complaint.
Bank balance: Compare the same feature under a control condition.
Recovery: State which cause the combined pattern supports or excludes.
A starter verdict requires a battery source capable of reproducing the complaint. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the starter behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the detroit diesel series 60 evidence. Contradictory traces remain attached as open evidence.
Place probes at defined endpoints and record positive-path, ground-path, control-circuit, and delivered starter voltage during the same crank event. This module examines how the starter behaves after time, heat, load, or contamination has had an opportunity to act. The warranty analyst defines the exposure interval and tracks positive voltage drop before, during, and after that interval.
Correlate ground voltage drop with control voltage rather than treating either value as a universal limit. Add starter terminal voltage to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The detroit diesel series 60 stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
Positive voltage drop: Establish the pre-exposure reference.
Ground voltage drop: Capture the peak or worst-case behavior.
Control voltage: Compare the response at a fixed elapsed time.
Starter terminal voltage: Document recovery and any permanent change.
Excess circuit loss must be corrected before the starter is condemned. A result outside the limit requires the surrounding system to be checked before the starter is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the detroit diesel series 60 stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the detroit diesel series 60 investigation, the starter product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

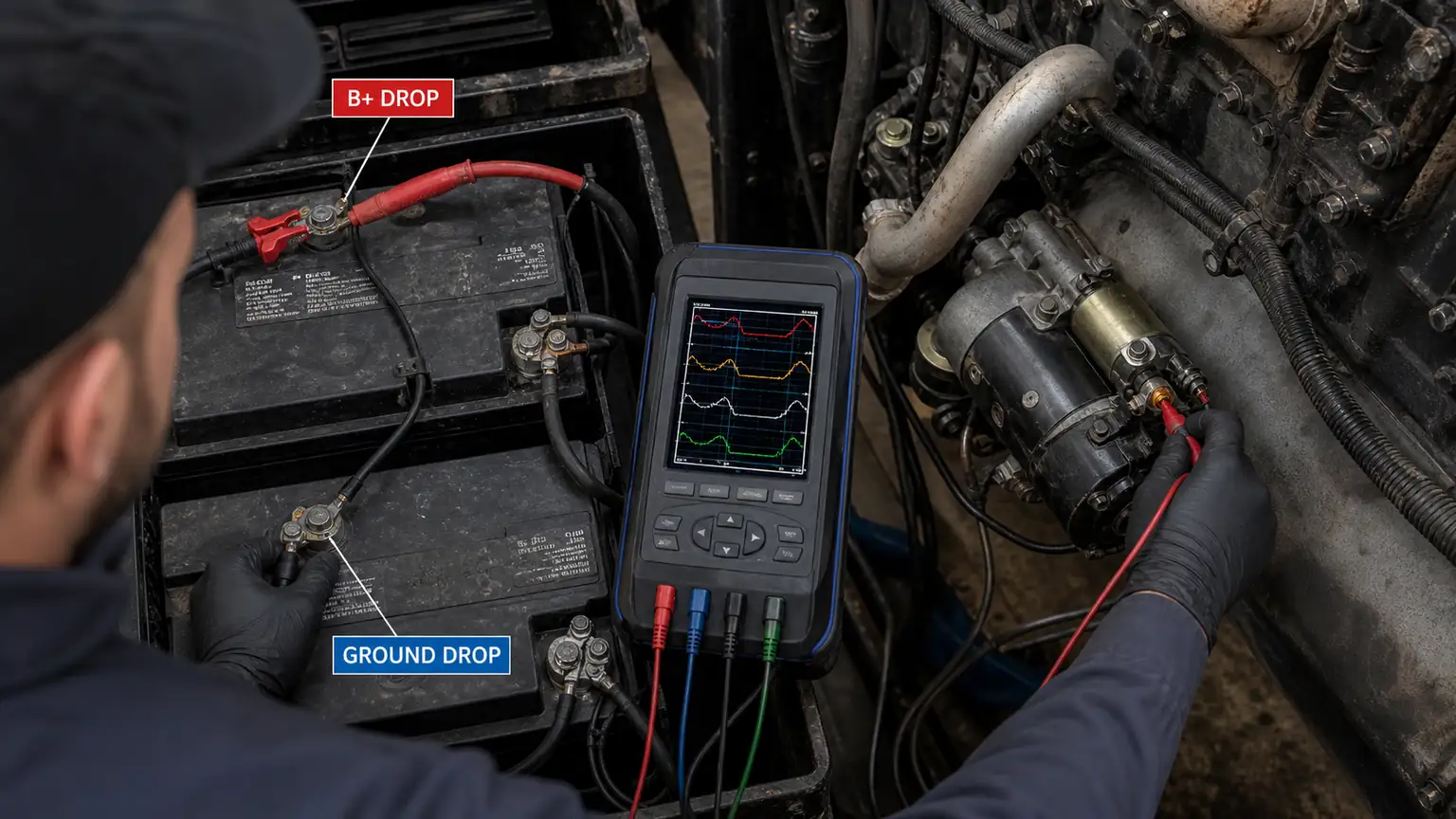

Positive and ground voltage-drop test on a heavy-truck starter circuit during cranking.
Record current, engine cranking speed, crank duration, temperature, sound, and waveform or clamp behavior rather than relying on one peak value. Bench inspection now tests the internal or component-level theory developed on the machine. The fleet electrician preserves the removed condition, cleans only what the method requires, and records cranking current before disassembly can erase useful evidence.
Quantify cranking speed with equipment suited to its expected range, verify temperature through a second method where practical, and photograph sound and waveform beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact detroit diesel series 60 case under review.
Cranking current: Preserve the as-removed condition and reference marks.
Cranking speed: Record calibrated measurement and environmental correction.
Temperature: Confirm the suspected mechanism with a second observation.
Sound and waveform: Connect visible condition with the measured failure path.
Current only becomes diagnostic when voltage and mechanical load are known. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the detroit diesel series 60 bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Inspect tooth contact, engagement depth, overrun, kickback evidence, mounting flatness, and several ring-gear positions after isolating the engine. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The bench technician compares the evidence for tooth contact with the evidence for engagement depth under the same demand before changing any component.
Use ring-gear condition to test the alternative explanation, then inspect mounting flatness for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original starter failure.
A cause map for the detroit diesel series 60 decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
Tooth contact: Define what this result would mean for the primary theory.
Engagement depth: Compare the alternative component or system response.
Ring-gear condition: Run the discriminating check that separates both paths.
Mounting flatness: Inspect the interface where one fault could imitate another.
Repeated grinding or kickback blocks release even if bench output appears normal. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the detroit diesel series 60 cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

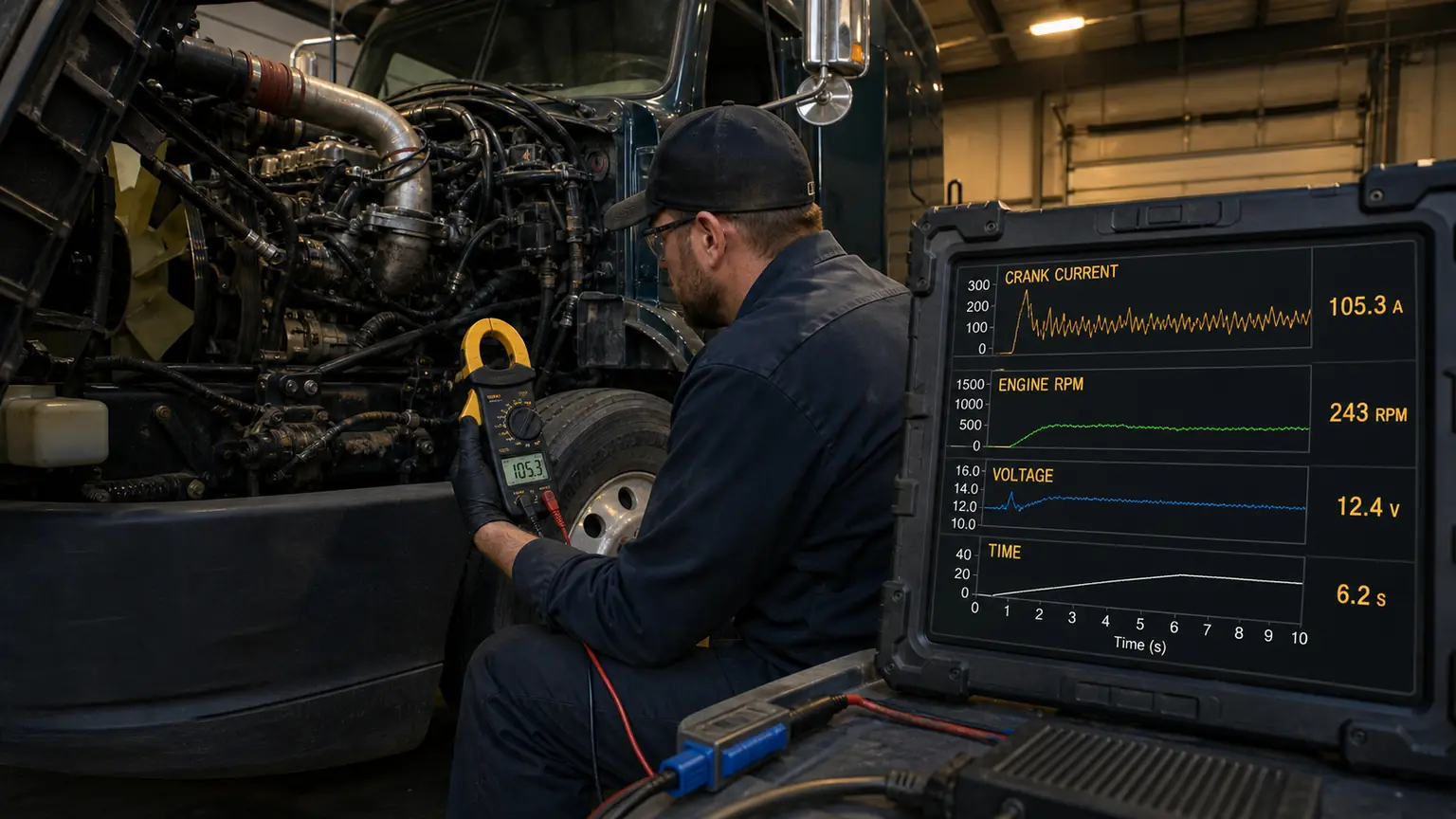

Loaded starter current, delivered voltage, and engine cranking-speed evidence in a fleet workshop.
Test the approved unit at representative cold and hot conditions, observe protection behavior, document cooldown, and compare repeat-crank consistency. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The receiving inspector defines how the approved sample and production units will be compared using cold-crank result and hot-crank result.
Add protection behavior to expose changes that a label or catalogue cross-reference cannot show. Use repeatability to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The detroit diesel series 60 acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
Cold-crank result: Define the release value and sampling method.
Hot-crank result: Compare sample evidence with the incoming lot.
Protection behavior: Retain the technical record that exposes configuration drift.
Repeatability: Trace approval, deviation, and claim decisions to one identity.
Release follows the defined duty cycle and traceable sample evidence. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory starter acceptance field.
Authorize detroit diesel series 60 production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

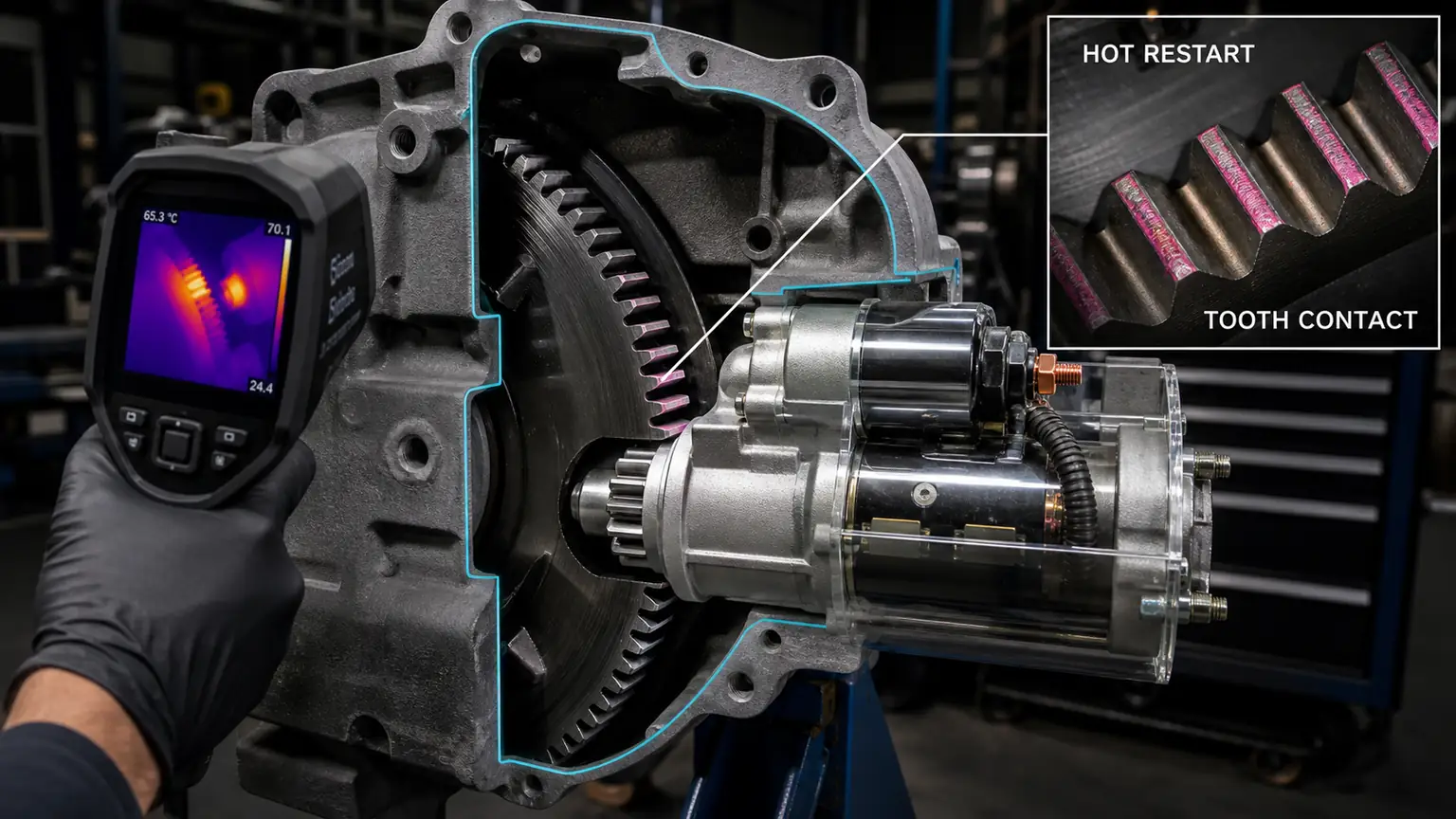

Starter pinion-to-ring-gear contact inspection with thermal evidence after repeated hot cranking.
State whether the requested starter for the detroit diesel series 60 application is new aftermarket, remanufactured, or another declared condition.
List the mandatory interfaces relevant to this detroit diesel series 60 case and identify the evidence for each one.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.
Retain the approved starter sample or a complete photo and measurement record for the detroit diesel series 60 release.
Trace each incoming starter lot to the supplier declaration and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Feed detroit diesel series 60 field failures back into the same evidence route used for initial approval.
This detroit diesel series 60 workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
Preserve the exact starter identity, application evidence, measured test conditions, photographs, acceptance limits, and release decision for this detroit diesel series 60 case. The same record should connect the approved unit to receiving checks and any later field claim.
