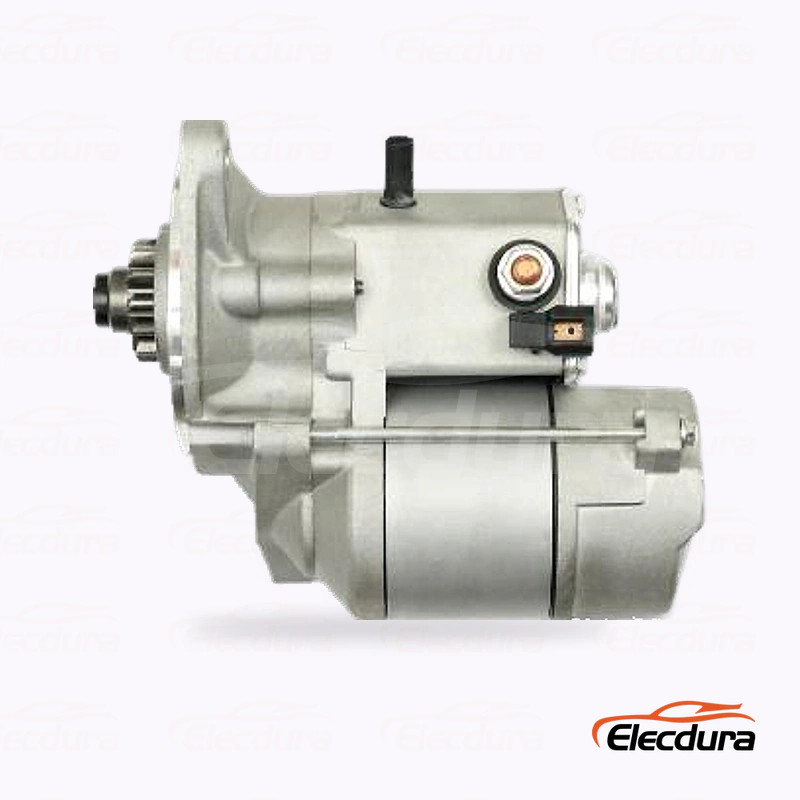

228000-0250 John Deere Yanmar Starter Motor 12V 1.2kW 13T

228000-0250 Starter Motor Fitment Overview for B2B Buyers

John Deere service records may identify this starter by an AM or TY number, while the removed unit carries a Denso 228000-series label. This page brings those purchasing references together around the verified 12V, 1.2kW, 13-tooth clockwise configuration without treating every John Deere machine using a Yanmar engine as interchangeable.

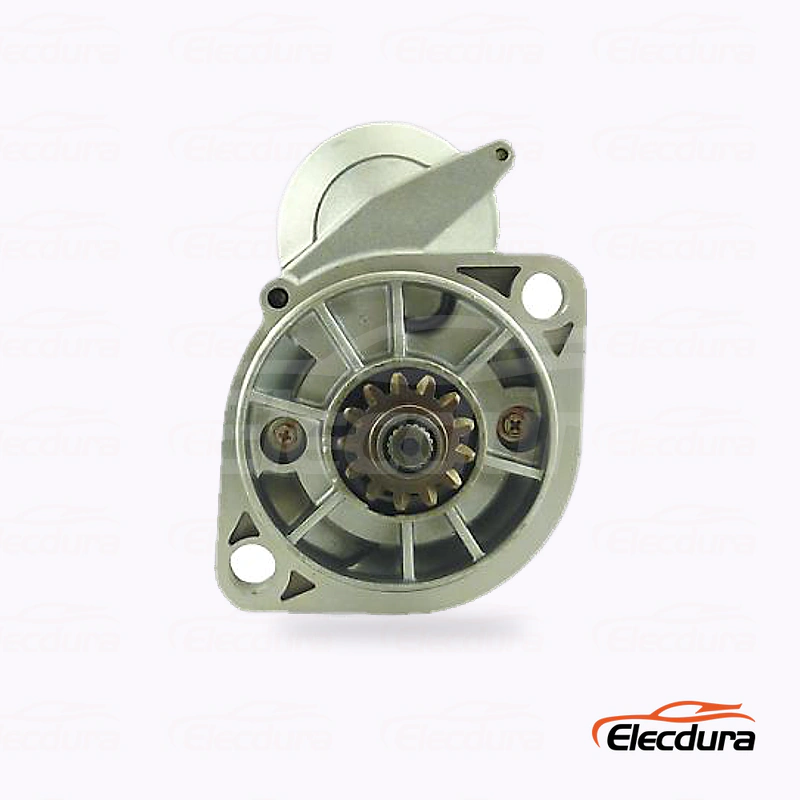

For distributor approval, connect the machine PIN and Yanmar engine record to one signed sample. Compare the two-ear drive end, approximately 39.5 mm pinion, 45° mounting-hole relationship, nose depth and terminal clocking before stock release. These checks reduce the risk of placing a visually similar 13-tooth unit with different mounting geometry in the same inventory bin.

228000-0250 Starter Motor Specifications and Mounting Dimensions for Distributor Approval

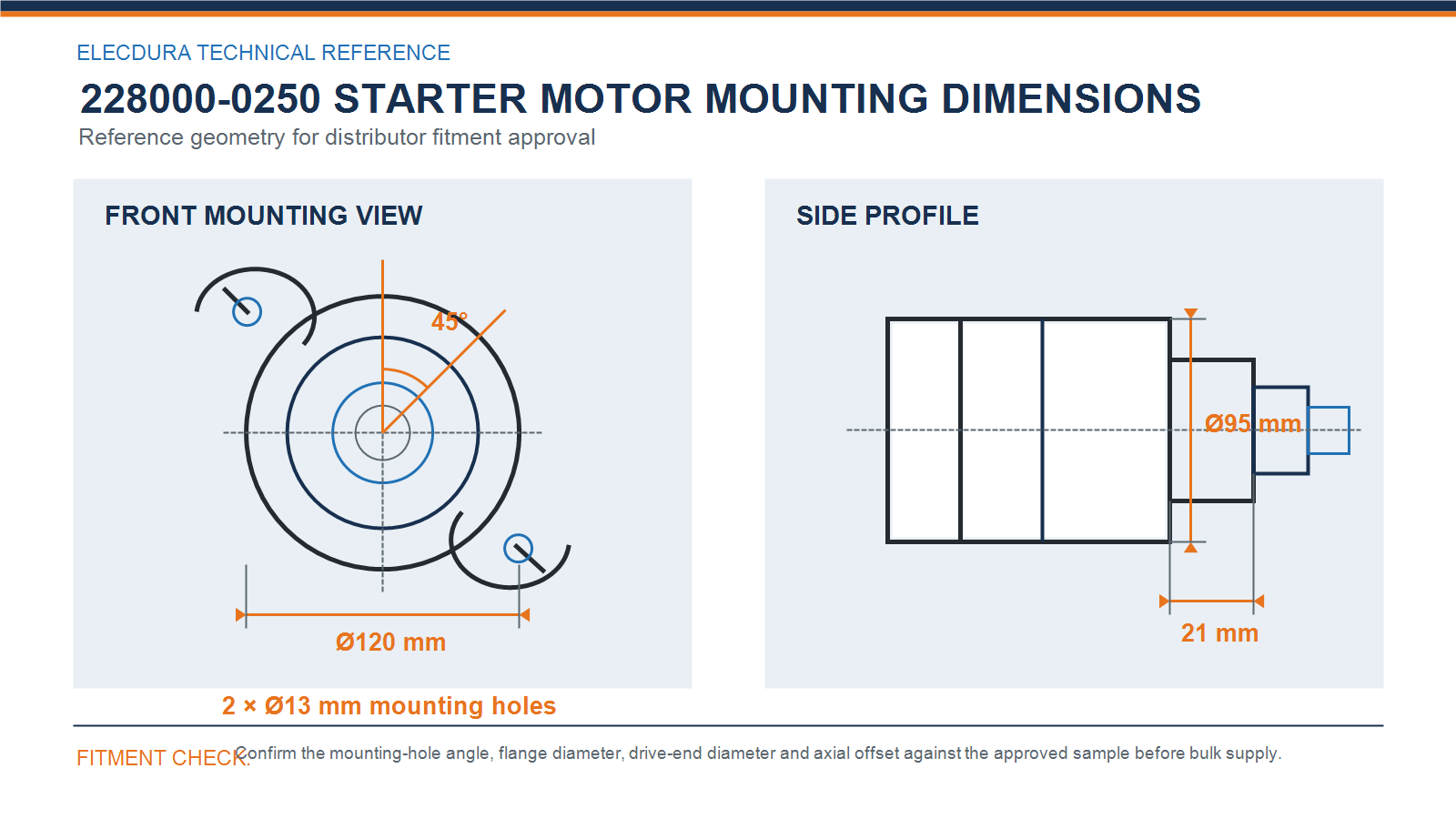

Elecdura reference drawing for 228000-0250 mounting approval. Confirm all dimensions against the removed unit or approved sample before bulk supply.

228000-0250 Starter Motor Cross-References and Applications for Wholesale Sourcing

The core interchange starts with Denso 228000-0250 and 228000-0251, then connects to John Deere AM876435, AM878415, TY25233 and TY25237 plus Yanmar 129129-77010. These references support identification, but the complete suffix, machine record, mounting face, pinion and solenoid-terminal layout must still agree with the approved old unit.

228000-0250 Starter Motor Testing, Video and Supply Terms for Distributors

This aftermarket replacement is intended for parts distributors, fleet-maintenance suppliers and rebuilders purchasing against an approved OE, application and physical record. The normal starting MOQ is 20 pieces; typical lead time is 7–15 days after order confirmation, with neutral packaging or private-label review and an 18-month warranty under agreed sales terms.

• Sample approval: retain one signed unit with the machine PIN, engine designation and dimensional record.

• Receiving control: sample cartons across the shipment and compare labels, 13-tooth drives, castings, terminal protection and mounting geometry with the approved unit.

• Mixed-reference orders: list each complete OE or cross-reference separately so different housings are not combined under one broad John Deere description.

The video below introduces Elecdura starter-motor production, testing and supply capabilities. Product approval remains tied to the 228000-0250 specification, application record and physical controls stated on this page.

▶ Watch the Elecdura starter motor production and testing video

228000-0250 Starter Motor FAQ for B2B Buyers

Is 228000-0250 the same starter as John Deere AM876435?

AM876435 is a recognized purchasing reference within the 228000-0250 interchange group, but it should not be the only release condition for a wholesale shipment. Confirm the complete old-unit label, 12V system, 13-tooth drive, two-ear mounting face, nose length, mounting-hole orientation and rear terminals before assigning the unit to distributor stock.

Which Yanmar reference should a buyer provide for this 228000-0250 starter motor?

Yanmar 129129-77010 and 129407-77010 are useful references associated with this starter family. A dependable RFQ should include the complete Yanmar number, engine designation, equipment PIN and photographs of the drive end, side profile and terminal end. This evidence separates the approved configuration from nearby starters used on other Yanmar-powered machines.

Why is the machine PIN important for a John Deere 228000-0250 starter order?

John Deere equipment families can span production changes and different engine packages, so a model name alone may not identify the exact starter housing or terminal position. The machine PIN, engine record and removed-unit label create a traceable link to the approved 228000-0250 configuration and help prevent wrong-fit returns on repeat distributor orders.

What electrical and drive details should be confirmed for 228000-0250?

Confirm a 12V system, 1.2kW rating, 13-tooth pinion and clockwise rotation when viewed from the drive end. Then compare the approximately 39.5 mm pinion outside diameter, pinion rest position, nose depth and solenoid terminals. Voltage and tooth count alone are insufficient because adjacent Denso families can share those headline specifications.

Which mounting dimensions distinguish this 228000-0250 starter motor?

The reference drawing shows two Ø13 mm mounting holes, a 45° mounting-hole relationship, a Ø120 mm front-flange reference, a Ø95 mm drive-end reference and a 21 mm axial offset. These dimensions should be checked against the removed unit or signed sample because similar 13-tooth starters may use a different drive-end casting or mounting geometry.

Can 228000-0250 be stocked for every John Deere machine with a Yanmar engine?

No. The reference is used across selected John Deere equipment, but a common engine brand does not make every starter interchangeable. Stock approval should be tied to a defined machine PIN range, engine designation, complete cross-reference and signed physical sample. Keep that approval record with the SKU so future inquiries can be checked consistently.

What photographs are needed before approving a 228000-0250 sample?

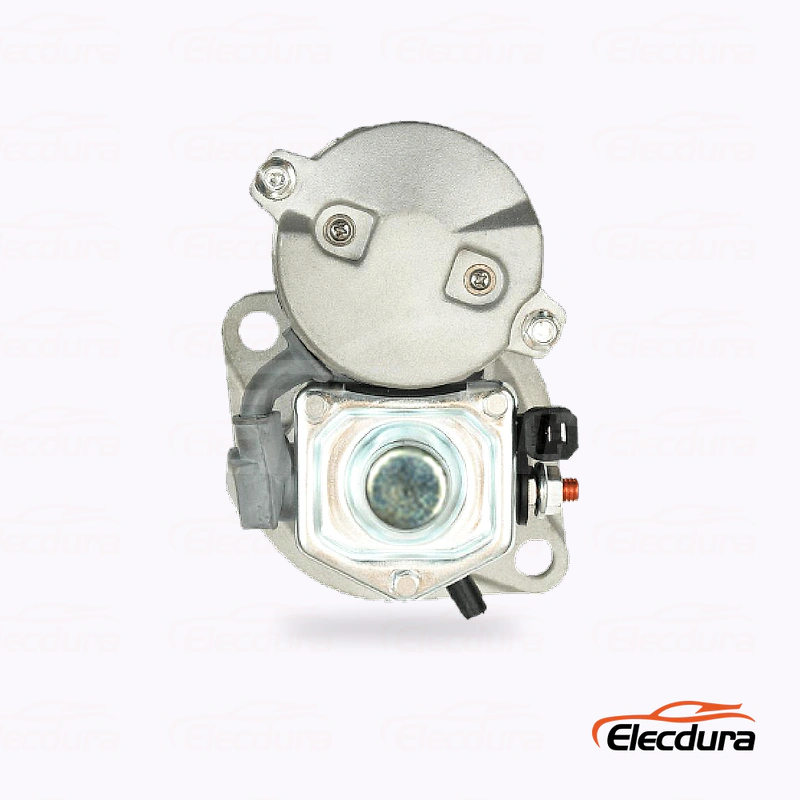

Provide a readable full label, straight-on drive-end view, side profile, rear-terminal view and a photograph showing the pinion at rest. Include the mounting-hole angle, flange diameter, drive-end diameter, offset and nose-depth measurements when possible. These views allow the supplier to compare the complete housing and terminal clocking before bulk production is released.

How should distributors inspect the first 228000-0250 shipment?

Select cartons from different positions in the shipment and compare label references, 13-tooth drives, mounting castings, 45° hole orientation, solenoid position and terminal protection with the signed sample. Record any variation before units enter stock. A retained approval unit and receiving checklist make later 228000-0250 replenishment faster and more consistent.

Request a Wholesale Quote for 228000-0250 Starter Motors

Send the complete Denso, John Deere or Yanmar number, machine PIN, engine model, old-unit photographs, required quantity and destination. Elecdura will align the 228000-0250 configuration with the purchasing record and confirm specification, packaging, lead time and sample requirements before the order is released.
