428000-4860 Kubota Starter Motor 12V 2.5kW 9T

428000-4860 Agricultural Machinery Starter Motor for KUBOTA V3307 (KX183 / 185)

For engine-parts specialists confirming commercial terms, 428000-4860 supports tractor, farm-equipment and industrial-engine replacement programs for KUBOTA V3307 (KX183 / 185). This agricultural machinery starter motor is defined by its 12V electrical system, 2.5kW output and 9T pinion, giving distributors a practical basis for quotation and stock matching.

For regional parts suppliers planning mixed-model inventory, the goal is a repeatable supply line: one agreed product identity, one packaging definition and one set of incoming checks. This is useful for importers building category coverage as well as fleet suppliers replenishing an existing starter reference.

428000-4860 Starter Motor Specifications and Technical Drawing

For importers reviewing drive-end geometry, the 9T pinion is a fast visual identifier, but the purchase decision should also retain 12V, 2.5kW, the mounting geometry and terminal position.

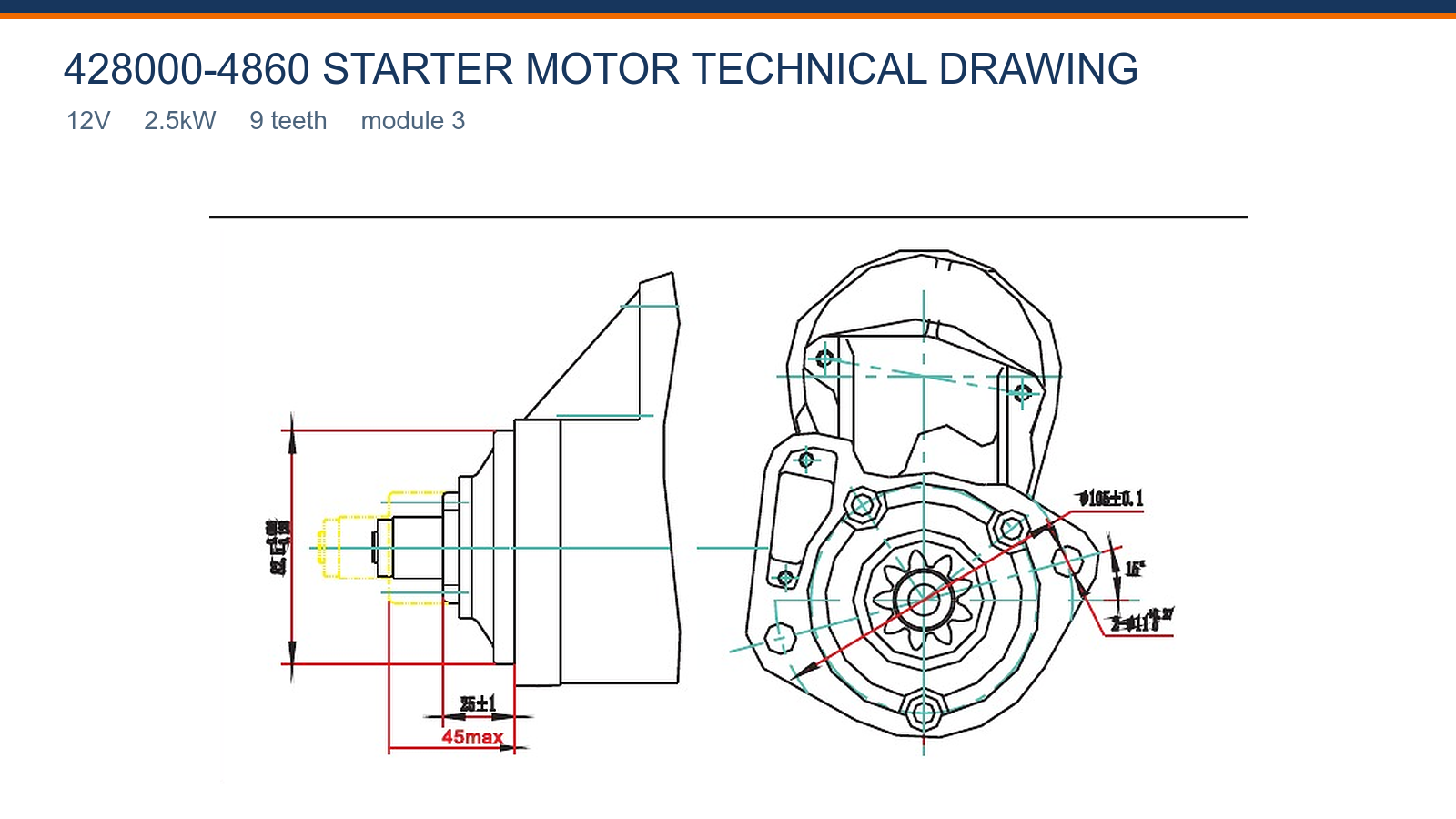

For product managers preparing an OE-based quote, the source-faithful technical drawing records the available mounting information for 428000-4860; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

428000-4860 Aftermarket Replacement and Application

For technical sales teams confirming the stated application, this aftermarket starter motor is organized around 428000-4860 for KUBOTA V3307 (KX183 / 185). Related numbers remain useful search and purchasing references, but Elecdura treats a changed rating, pinion, flange or terminal layout as a separate version for quotation.

For fitment reviewers checking version-defining data, do not merge a close-looking unit into this order only because the main number is related. The 9T drive, module 3, flange and terminals should agree with the version shown here.

428000-4860 Wholesale Supply for Distributors and Importers

For wholesale program managers planning a repeat order, importers planning 428000-4860 stock can request volume pricing, neutral or reviewed private-label packaging and agreed inspection records. Standard guidance is 20 pcs minimum, 7–15 days after confirmation and 18 months warranty under sales terms.

For sales teams setting packaging requirements, the order specification may include armature, solenoid, no-load or load testing together with label and packaging requirements. This gives receiving teams practical points for sampling a batch without treating appearance alone as proof of fitment.

428000-4860 Starter Motor Buyer FAQ

Which check should lead 428000-4860 replenishment before accepting a substitute?

For distributors reviewing customer demand, keep 428000-4860, 12V, 2.5kW, 9T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different removed unit appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

How can a buyer screen 428000-4860 cartons and units when preparing a product enquiry?

For aftermarket product managers planning a repeat order, sample cartons from different positions in the shipment and compare the 428000-4860 labels, 12V marking, 9-tooth pinion, flange shape and terminal protection with the order specification. Photograph any mixed marking, damaged terminal or different drive end before workshop fitting, and isolate those pieces so the rest of the lot can be assessed consistently.

How should a distributor confirm 428000-4860 solenoid and cable routing before stock is assigned?

For engine-parts specialists checking repeat-order specifications, use the side and rear photographs of 428000-4860 to check solenoid position, battery-stud direction and start-terminal access in KUBOTA V3307 (KX183 / 185). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

How should a workshop distinguish 9-tooth pinion identification before comparing delivery options?

For fleet-parts buyers matching the starter being replaced, count all 9 teeth on the 428000-4860 pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

How should a distributor confirm 428000-4860 drawing dimensions when checking a replacement proposal?

For technical sales teams reviewing drive-end geometry, read the 428000-4860 drawing as a comparison aid, not as permission to ignore the starter removed from the machine. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

What evidence best identifies 428000-4860 inside a mixed starter shipment when confirming the RFQ entry?

For sourcing managers building a new starter range, give each carton line its own reference, 12V, 2.5kW and 9T marking. The packing list should preserve those same fields. Receiving can then compare labels and drive-end appearance without opening every carton, while any mixed or unclear unit is isolated for review.

What evidence best identifies 12V system compatibility before comparing delivery options?

For application specialists separating similar housings, 428000-4860 is a 12V starter and must be connected only to the matching machine electrical system. Read the voltage marking on the old unit and verify the battery arrangement prior to purchase. A housing can look correct while the winding and solenoid are designed for another voltage, so appearance must not override the electrical label.

What should receiving teams compare on 428000-4860 drive-end photograph before stock is assigned?

For replacement-parts sellers evaluating a direct replacement, the drive-end image for 428000-4860 should be used to count 9 teeth and compare the flange, locating shoulder and pinion rest position. Capture the existing starter with comparable framing and clear light. An uneven camera angle can mask the pinion and bolt positions; clear frontal framing supports a better replacement decision.

Request a Wholesale Quote for 428000-4860 Agricultural Machinery Starter Motor

For warehouse planners planning replenishment, to source 428000-4860 for a distributor or importer program, send the OE group, KUBOTA V3307 (KX183 / 185), planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
