028000-903 Kubota Starter Motor 12V 2.0kW 9T

028000-903 Agricultural Machinery Starter Motor for KUBOTA

For private-label buyers confirming commercial terms, built for KUBOTA, this agricultural machinery starter motor combines 12V operation, 2.0kW rated power and a 9T drive. Elecdura supplies 028000-903 for tractor, farm-equipment and industrial-engine replacement programs, including distributor stock and planned replenishment.

For purchasing teams planning mixed-model inventory, the product is positioned for professional aftermarket supply, with product identification, fitment boundaries, inspection options and commercial terms visible before the buyer requests pricing.

028000-903 Starter Motor Specifications and Technical Drawing

For fitment reviewers checking application evidence, this reference group can cover nearby starter versions. Keep 028000-903, 12V, 2.0kW and 9T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

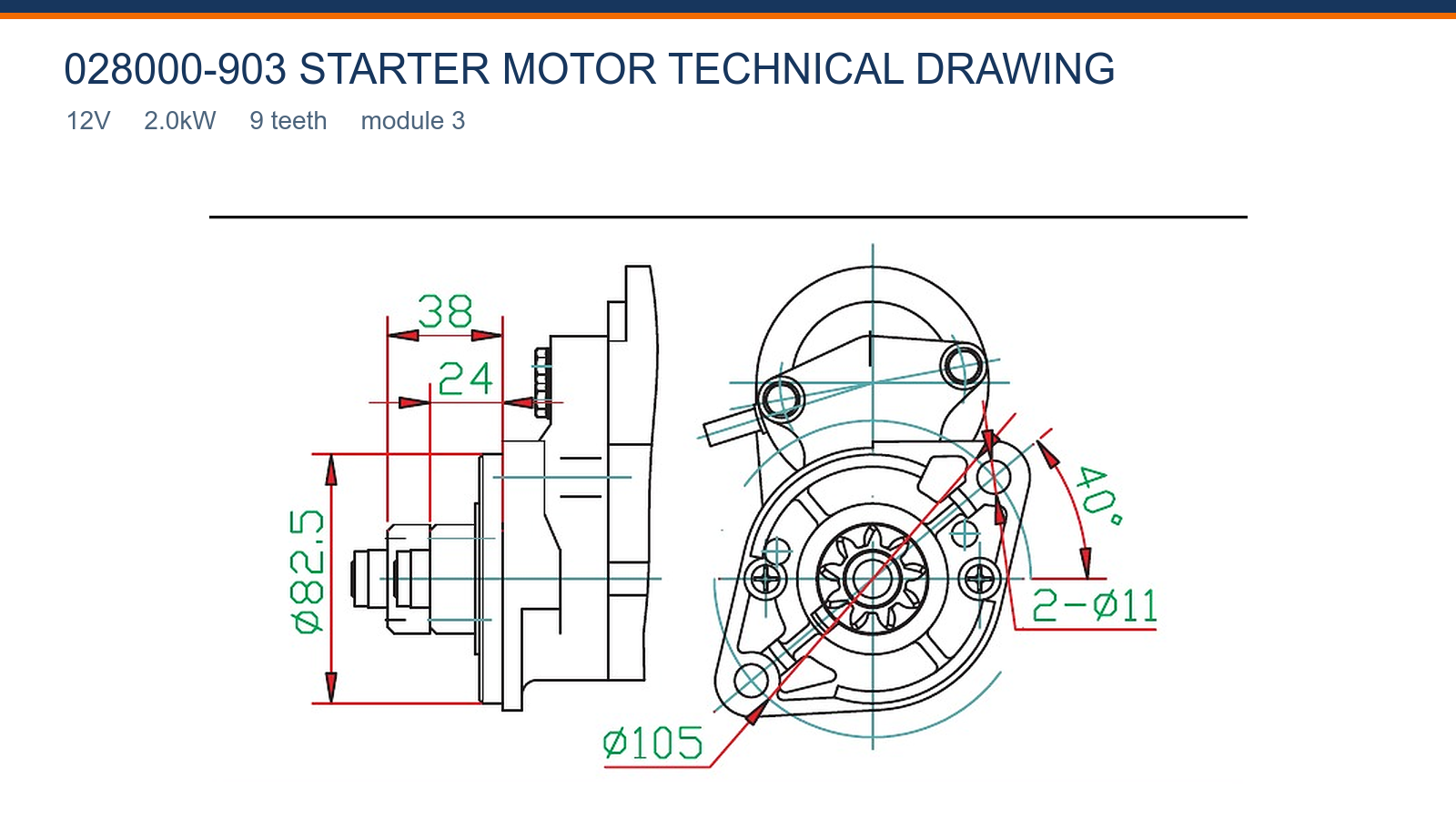

For application specialists preparing an OE-based quote, the source-faithful technical drawing records the available mounting information for 028000-903, including 2×Ø11; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

028000-903 Aftermarket Replacement and Application

For distributors confirming the stated application, send 028000-903, 028000-9031, 2-2209-ND, the full KUBOTA description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For technical buyers checking version-defining data, the unit taken from service should agree with the approved drive-end, side and rear views. Confirm the 9T pinion and module 3, then keep any different flange or terminal layout outside the current quote position.

028000-903 Wholesale Supply for Distributors and Importers

For engine-parts specialists planning a repeat order, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For regional parts suppliers setting packaging requirements, batch consistency should be controlled through the agreed reference, electrical rating, pinion, packaging and inspection points. Elecdura can discuss test documentation and pre-shipment photos that match the needs of the distributor or importer.

028000-903 Starter Motor Buyer FAQ

Which check should lead 028000-903 solenoid and cable routing before stock is assigned?

For product managers checking version-defining data, use the side and rear photographs of 028000-903 to check solenoid position, battery-stud direction and start-terminal access in KUBOTA. Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

How should a workshop distinguish KUBOTA production changes before stock is assigned?

For maintenance suppliers confirming electrical ratings, KUBOTA may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match 028000-903, 12V, 2.0kW and 9T to the existing starter. A changed suffix, flange or terminal layout should open a separate review for that machine.

What should receiving teams compare on 028000-903 three-view gallery for a first wholesale order?

For equipment-parts dealers checking repeat-order specifications, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to 028000-903; they should be reviewed together with the 9T drive and KUBOTA application. Request an additional close-up when the customer's unit hides a deciding feature.

What should purchasing verify first for 028000-903 inquiry package during an application review?

For purchasing teams planning replenishment, A useful inquiry for 028000-903 includes quantity, destination, required date, KUBOTA, the full old-unit number and clear photos of the label, drive end, flange and electrical connections. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 12V, 2.0kW, 9T version against a complete item definition.

How should a workshop distinguish 028000-903 drive-end photograph before stock is assigned?

For distributors reviewing drive-end geometry, the drive-end image for 028000-903 should be used to count 9 teeth and compare the flange, locating shoulder and pinion rest position. Ask for the replaced starter to be photographed from the corresponding angle. A poorly aligned photo can obscure drive and flange details; request another image before approving a near-match.

How should a distributor confirm 028000-903 among Kubota versions when confirming the priced item?

For technical buyers preparing an OE-based quote, 028000-903 should remain separate from another Kubota starter whenever voltage, output, tooth count, module, flange geometry or terminal position changes. For this line, retain 12V, 2.0kW and 9T together in the purchasing description. That specification bundle gives sales, warehouse and technical teams one consistent basis for reviewing alternatives.

How can an importer validate 028000-903 locating face when several versions look alike?

For engine-parts specialists separating similar housings, the 028000-903 flange should sit flat against the KUBOTA mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

How should a workshop distinguish 028000-903 label and suffix before stock is assigned?

For fleet-parts buyers evaluating a direct replacement, photograph the complete old-unit label for 028000-903, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

Request a Wholesale Quote for 028000-903 Agricultural Machinery Starter Motor

For aftermarket wholesalers planning replenishment, send 028000-903, 028000-9031, 2-2209-ND, the KUBOTA application, required quantity, destination and packaging preference. Add old-unit photos when available. Elecdura will review the 12V, 2.0kW, 9T version and prepare a product-specific wholesale quotation.
