Excessive Diesel Engine Oil Consumption: Turbocharger, Blow-By, and Breather Diagnosis

Views: 0     Author: Site Editor     Publish Time: 2026-08-26      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Oil found near a turbocharger does not prove that the turbocharger is the root cause. Restricted drains, excessive crankcase pressure, breather carryover, air restriction, worn cylinders, external leaks, and operating duty can move oil through the same area.

Replacing the turbo without measuring the engine and lubrication system can leave the original cause untouched and damage the new unit. Buyers can use the Elecdurauto turbocharger category to organize reference and application research; final selection still depends on the measured application record.

This guide organizes oil quantity, location, pressure, airflow, smoke, and operating condition into a cause-separation sequence for fleets, workshops, and warranty teams.

Follow the engine and turbocharger maker's safety and service procedures; do not run a diesel engine when oil ingestion creates a runaway risk.

Warranty decisions should retain the as-found oil map before hoses, coolers, breathers, or the turbocharger are cleaned. Record the quantity and location of pooled oil, the direction of staining, shaft and housing condition, drain routing, crankcase pressure method, and engine load at the complaint. That sequence lets the supplier distinguish an installation or engine-system cause from a genuine component defect.


Establish a Controlled Oil-Consumption Baseline

Confirm oil specification, fill method, verified level, distance or hours, duty, temperature, idle time, load, and top-up quantity. Before testing, the warranty analyst ties oil grade and fill level to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire engine oil consumption case.

Establish oil grade and fill level first, then compare distance or operating hours while the original complaint is reproduced. Use duty and idle profile to challenge the first interpretation and retain measured top-up quantity as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.

Establish a Controlled Oil-Consumption Baseline: Baseline Evidence

The opening record must explain why oil grade and fill level represents the starting state and how distance or operating hours changes when the suspected failure appears. If evidence from duty and idle profile points elsewhere, the diagnosis stays open. Measured top-up quantity becomes the reference used to compare the removed unit, approved sample, and later production lot.

  • Oil grade and fill level: Capture the initial value and the exact operating condition.

  • Distance or operating hours: Compare the response before and during the complaint.

  • Duty and idle profile: Use an independent observation to test the first theory.

  • Measured top-up quantity: Preserve the reference with date, instrument, and reviewer.

A consumption rate without operating context is not diagnostic. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded turbocharger behavior describe the same event.

Establish a Controlled Oil-Consumption Baseline: Decision Gate

Document oil grade and fill level against the complaint, turbocharger identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.


Rule Out External Leakage and Service Errors

Inspect covers, pan, seals, lines, filters, coolers, drain plugs, spills, overfill, and level-reading procedure before internal diagnosis. This stage converts the initial observation into a controlled test route. The fleet electrician prepares external leak map, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.

Measure service and fill history at the first defined point, then recheck filter and cooler condition after the turbocharger reaches the second condition. Cleaned recheck result should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.

Rule Out External Leakage and Service Errors: Controlled Test Setup

The engine oil consumption controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.

  • External leak map: Define the pre-test state and preparation method.

  • Service and fill history: Log the first controlled response with its unit and tolerance.

  • Filter and cooler condition: Repeat at the second condition without changing unrelated variables.

  • Cleaned recheck result: Note the deciding observation and any remaining ambiguity.

Visible oil must be traced after the area is cleaned. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.

Rule Out External Leakage and Service Errors: Decision Gate

Close the controlled engine oil consumption test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

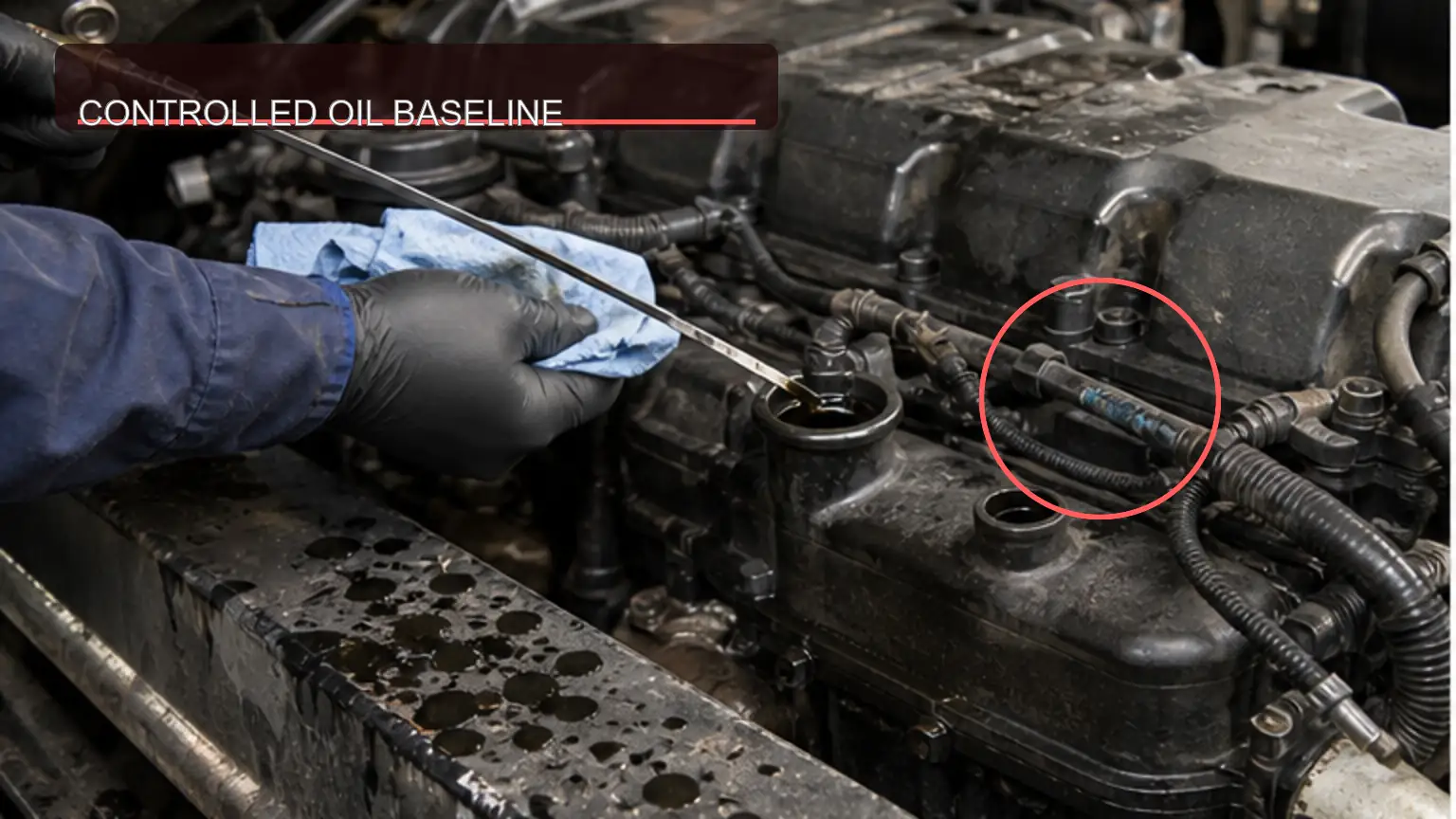

Heavy-duty diesel engine oil level and external leakage checked before diagnosis

Heavy-duty diesel engine oil level and external leakage checked before diagnosis.


Inspect Breather Carryover and Crankcase Pressure

Check breather restriction, separator condition, hose routing, pressure at the approved point, blow-by method, and oil carryover. The purpose here is pattern recognition rather than collection of isolated numbers. The bench technician aligns breather condition, crankcase pressure, blow-by test method, and carryover evidence on one timeline so the sequence of the turbocharger response remains visible.

Interpret breather condition together with crankcase pressure; either item alone can support several causes. Compare their timing with blow-by test method, then use carryover evidence to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.

Inspect Breather Carryover and Crankcase Pressure: Pattern Interpretation

A strong engine oil consumption report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.

  • Breather condition: Retain the unedited trace, image, or measured sequence.

  • Crankcase pressure: Mark the feature that changes with the complaint.

  • Blow-by test method: Compare the same feature under a control condition.

  • Carryover evidence: State which cause the combined pattern supports or excludes.

Do not use oil at the turbo inlet as sole proof of turbo leakage. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the turbocharger behavior changed.

Inspect Breather Carryover and Crankcase Pressure: Decision Gate

Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the engine oil consumption evidence. Contradictory traces remain attached as open evidence.


Audit Turbo Oil Feed, Drain, and Installation

Inspect feed pressure and cleanliness, drain freedom and angle, gaskets, sealant intrusion, housing orientation, shaft condition, and thermal evidence. This module examines how the turbocharger behaves after time, heat, load, or contamination has had an opportunity to act. The receiving inspector defines the exposure interval and tracks oil-feed condition before, during, and after that interval.

Correlate free-drain path with installation geometry rather than treating either value as a universal limit. Add bearing and housing evidence to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.

Audit Turbo Oil Feed, Drain, and Installation: Stress and Recovery Record

The engine oil consumption stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.

  • Oil-feed condition: Establish the pre-exposure reference.

  • Free-drain path: Capture the peak or worst-case behavior.

  • Installation geometry: Compare the response at a fixed elapsed time.

  • Bearing and housing evidence: Document recovery and any permanent change.

A restricted drain or high crankcase pressure must be corrected first. A result outside the limit requires the surrounding system to be checked before the turbocharger is condemned. Approval waits until the stress route and recovery evidence agree.

Audit Turbo Oil Feed, Drain, and Installation: Decision Gate

Approve the engine oil consumption stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.

For a physical reference in the engine oil consumption investigation, the turbocharger product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

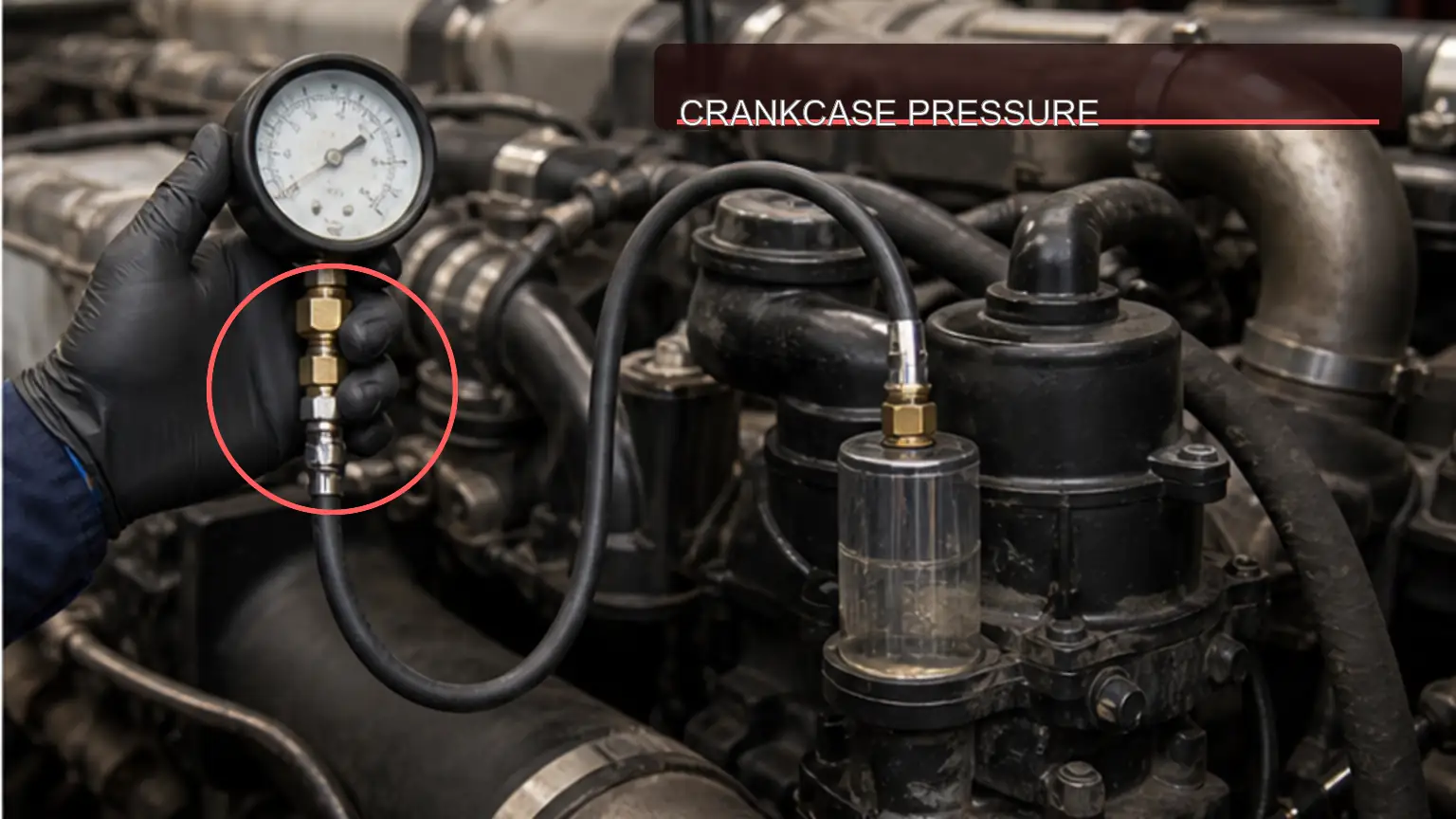

Crankcase pressure and breather carryover measured on a heavy-duty diesel engine

Crankcase pressure and breather carryover measured on a heavy-duty diesel engine.


Map Oil Through the Charge-Air and Exhaust Paths

Document oil location and quantity at inlet, compressor outlet, hoses, intercooler low point, intake, turbine, manifold, and exhaust. Bench inspection now tests the internal or component-level theory developed on the machine. The technical buyer preserves the removed condition, cleans only what the method requires, and records inlet-side oil before disassembly can erase useful evidence.

Quantify compressor-outlet and cooler oil with equipment suited to its expected range, verify turbine and exhaust oil through a second method where practical, and photograph location sequence beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.

Map Oil Through the Charge-Air and Exhaust Paths: Bench Confirmation

The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact engine oil consumption case under review.

  • Inlet-side oil: Preserve the as-removed condition and reference marks.

  • Compressor-outlet and cooler oil: Record calibrated measurement and environmental correction.

  • Turbine and exhaust oil: Confirm the suspected mechanism with a second observation.

  • Location sequence: Connect visible condition with the measured failure path.

Oil distribution must support the proposed source. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.

Map Oil Through the Charge-Air and Exhaust Paths: Decision Gate

Accept the engine oil consumption bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.


Separate Turbocharger and Engine Cylinder Causes

Combine compression or cylinder evidence, smoke timing, crankcase pressure, valve-guide clues, turbo inspection, and load response. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The warranty analyst compares the evidence for cylinder-condition evidence with the evidence for smoke timing under the same demand before changing any component.

Use turbo inspection to test the alternative explanation, then inspect load and temperature response for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original turbocharger failure.

Separate Turbocharger and Engine Cylinder Causes: Cause Separation

A cause map for the engine oil consumption decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.

  • Cylinder-condition evidence: Define what this result would mean for the primary theory.

  • Smoke timing: Compare the alternative component or system response.

  • Turbo inspection: Run the discriminating check that separates both paths.

  • Load and temperature response: Inspect the interface where one fault could imitate another.

The selected cause must explain the full pattern. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.

Separate Turbocharger and Engine Cylinder Causes: Decision Gate

Pass the engine oil consumption cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

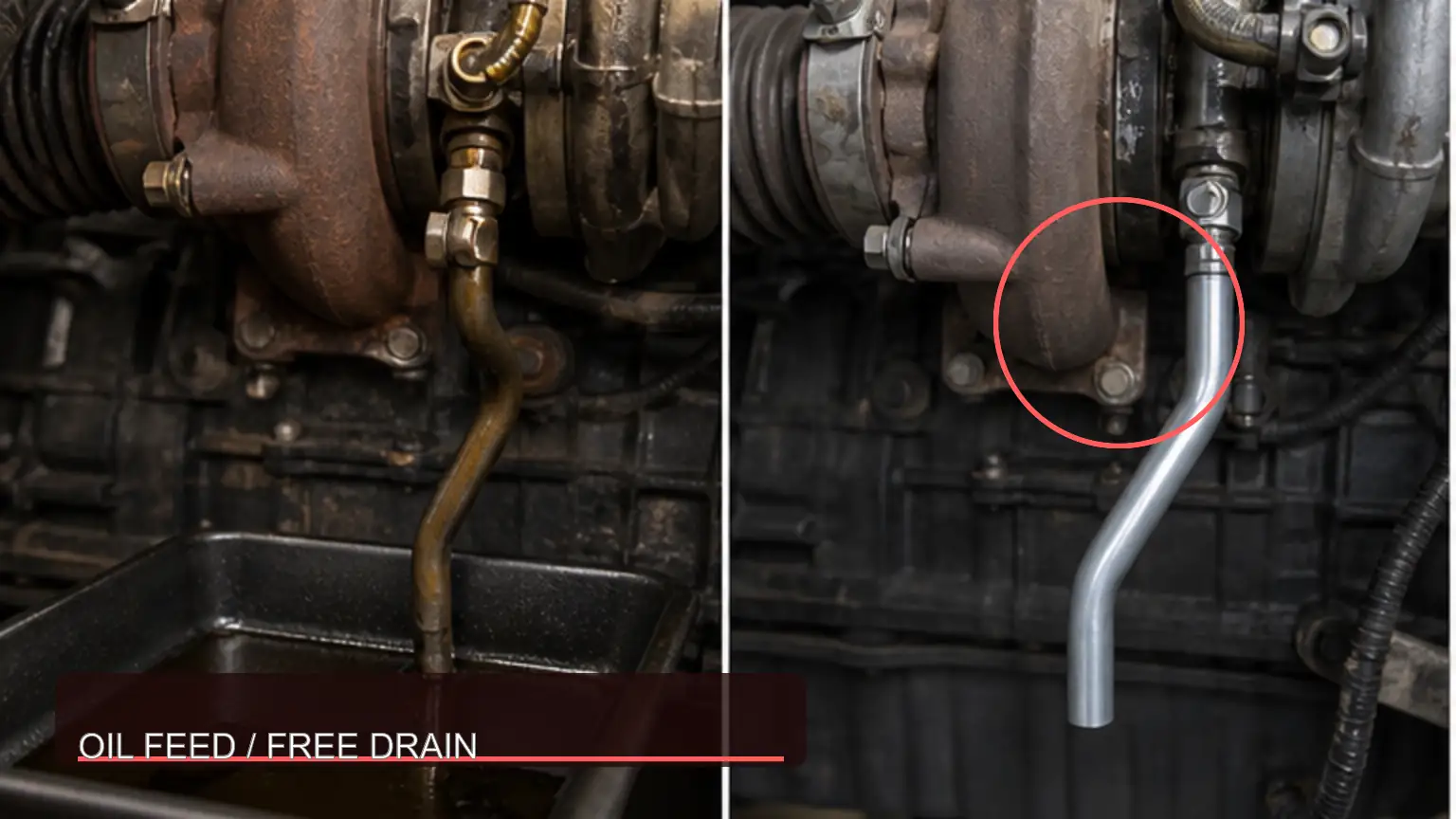

Restricted and free turbocharger oil-drain routing compared on an installed engine

Restricted and free turbocharger oil-drain routing compared on an installed engine.


Release the Repair With Follow-Up Measurement

Correct the root cause, clean retained paths, prime the turbo if replaced, verify first start, controlled load, oil level, pressure, and a defined follow-up interval. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The fleet electrician defines how the approved sample and production units will be compared using clean and prime evidence and first-run result.

Add controlled-load recheck to expose changes that a label or catalogue cross-reference cannot show. Use follow-up consumption rate to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.

Release the Repair With Follow-Up Measurement: Batch Acceptance Fields

The engine oil consumption acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.

  • Clean and prime evidence: Define the release value and sampling method.

  • First-run result: Compare sample evidence with the incoming lot.

  • Controlled-load recheck: Retain the technical record that exposes configuration drift.

  • Follow-up consumption rate: Trace approval, deviation, and claim decisions to one identity.

Close the case only after the consumption trend improves under comparable duty. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory turbocharger acceptance field.

Release the Repair With Follow-Up Measurement: Decision Gate

Authorize engine oil consumption production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

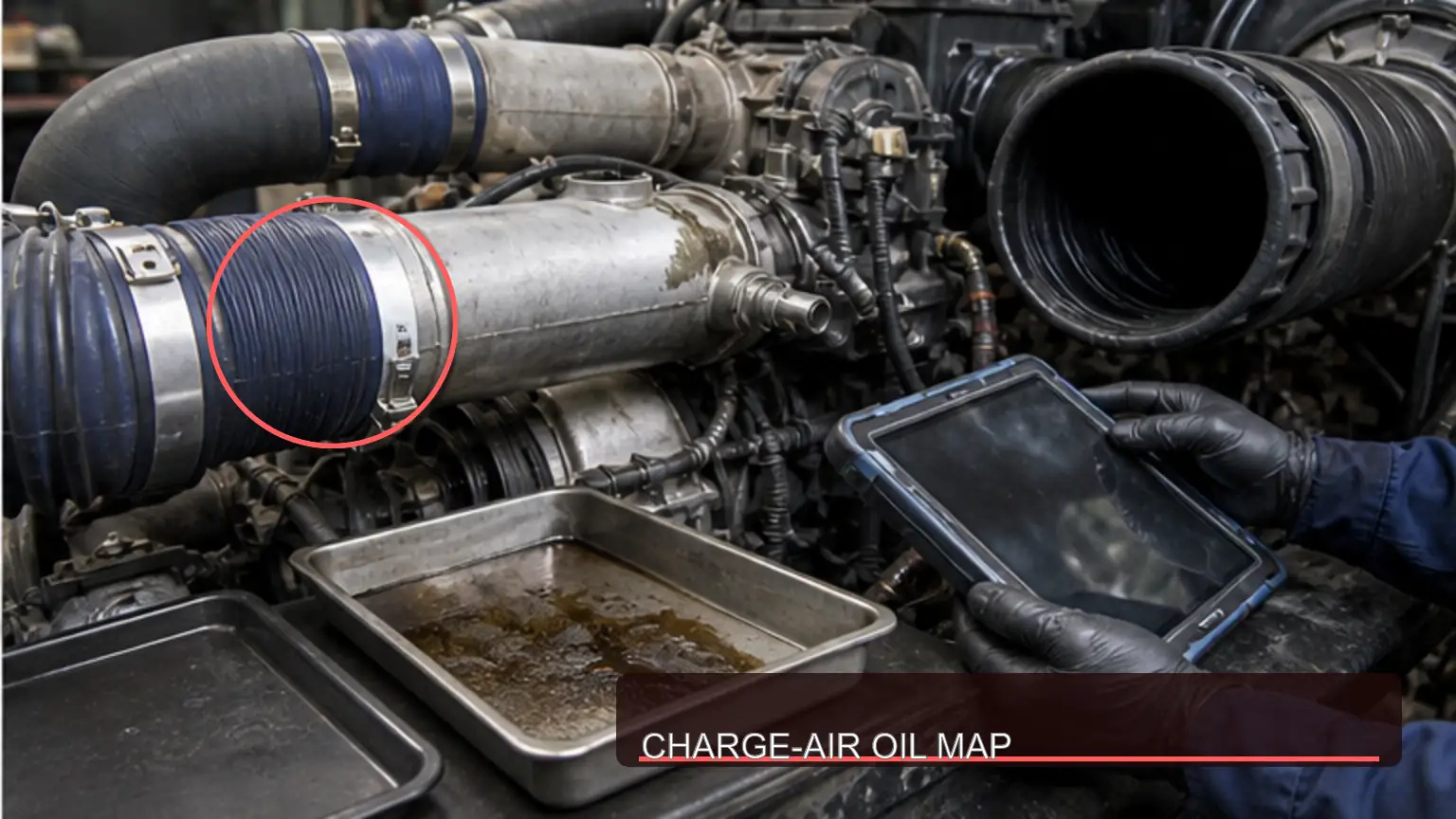

Charge-air piping and collected oil inspected to locate the source of oil consumption

Charge-air piping and collected oil inspected to locate the source of oil consumption.


Translate Turbocharger Findings Into an RFQ

Commercial Fields for the Turbocharger RFQ

  • State whether the requested turbocharger for the engine oil consumption application is new aftermarket, remanufactured, or another declared condition.

  • List the mandatory interfaces relevant to this engine oil consumption case and identify the evidence for each one.

  • Define sample evidence, receiving checks, packaging, labels, and change notification.

  • Keep price, MOQ, and lead time separate from unresolved technical fitment.


Govern the Turbocharger Pilot-to-Production Transfer

Controls for Turbocharger Production Release

  • Retain the approved turbocharger sample or a complete photo and measurement record for the engine oil consumption release.

  • Trace each incoming turbocharger lot to the supplier declaration and purchase-order revision.

  • Quarantine a changed interface, label, internal reference, or test result.

  • Feed engine oil consumption field failures back into the same evidence route used for initial approval.


Conclusion: Use Evidence to Release the Correct Turbocharger

This engine oil consumption workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.

Preserve the exact turbocharger identity, application evidence, measured test conditions, photographs, acceptance limits, and release decision for this engine oil consumption case. The same record should connect the approved unit to receiving checks and any later field claim.

For this engine oil consumption case, importers and fleet buyers can review Elecdurauto company information, send the completed turbocharger evidence through the B2B contact page, and use the Elecdurauto heavy-duty parts catalogue to connect the investigation with the appropriate product family. The quotation should answer oil-consumption baseline, external leakage, breather carryover, crankcase pressure, turbo feed and drain, charge-air oil mapping, cylinder condition, and controlled release rather than imply an unverified genuine or OE status.
