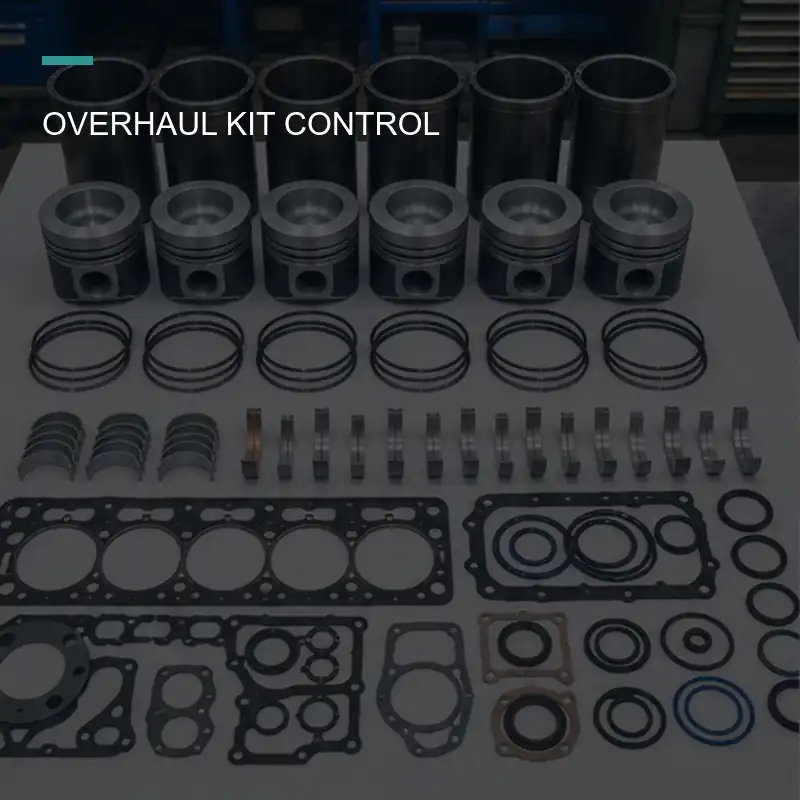

Diesel Engine Overhaul Kit Contents: Lock Pistons, Liners, Bearings, and Gaskets Before Ordering

Direct answer: “Complete overhaul kit” is not a technical specification. Lock the full engine serial, arrangement or configuration code, build list, rating and application; inspect the block, crankshaft, cylinder interfaces, head, rods, and reusable components; then issue a line-item bill of material. Define piston assembly and bowl, liner design and flange, ring pack, pin and retainers, main and rod bearing sizes, thrust parts, gasket and seal revisions, quantities, optional parts, and exclusions. Do not release a bulk order until every supplier substitution and supersession is tied to the exact engine build and repair findings.

This method is for rebuilders, engine-parts distributors, fleet remanufacturing programs, and wholesale importers. Because kit scope spans multiple product families, the correct Elecdura next step is a configuration-controlled engine-parts RFQ, not a generic catalog selection.

Freeze the Engine Build Before Naming the Kit

Record the full engine identity from the plate and current manufacturer service source: serial, arrangement, CPL or equivalent build code, model, rating, application, and relevant production range. Reconcile that record with markings on removed pistons, liners, bearings, gaskets, and prior overhaul documents. A repower or mixed previous repair can make the physical engine differ from the host vehicle record.

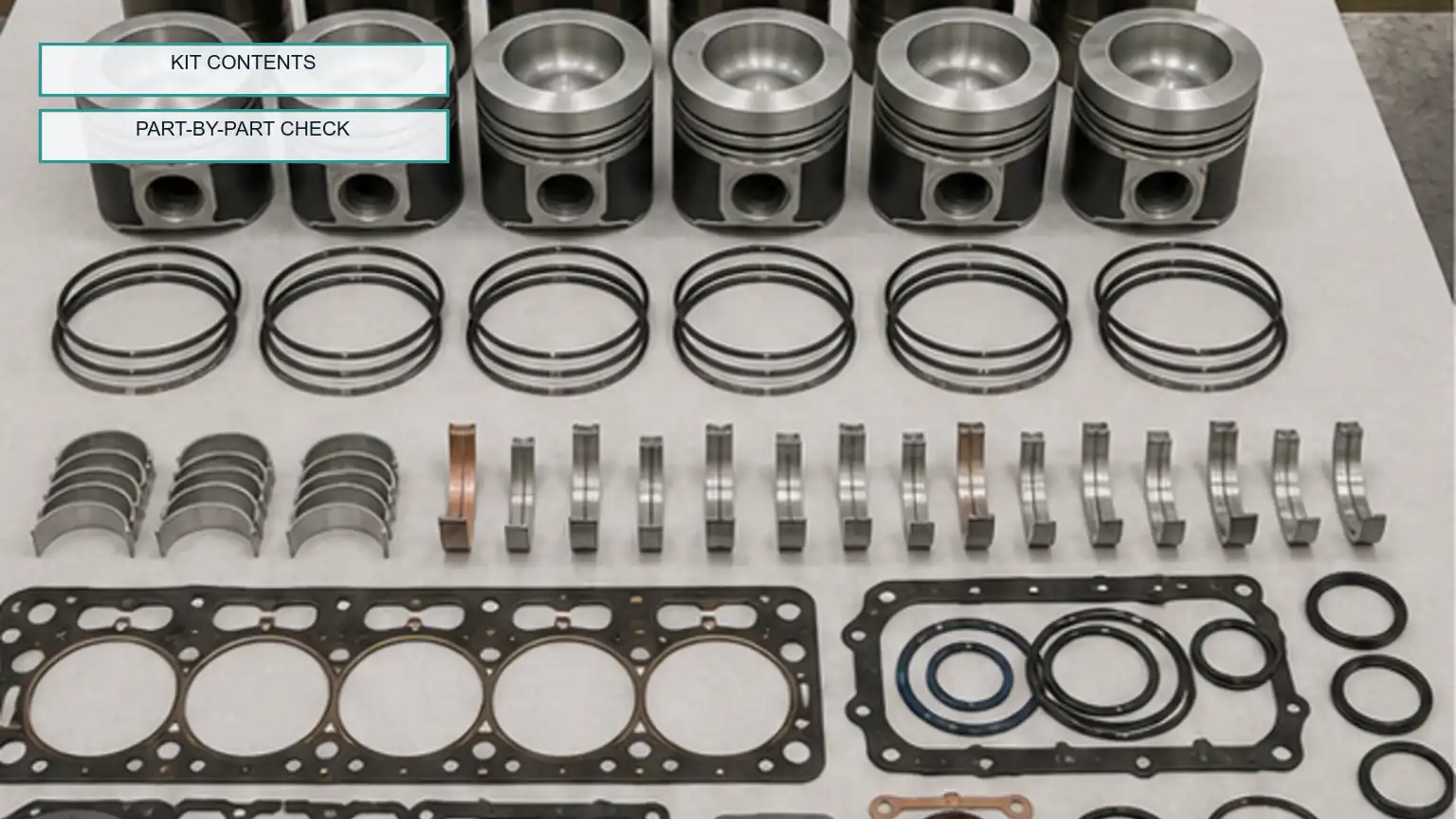

Organized six-cylinder diesel overhaul kit with pistons, liners, rings, bearings, gaskets, and seals visible on a clean table.

Keep three statuses for every field: confirmed from current controlled information, observed on the engine, or unresolved. A conflict is not solved by choosing the source that produces the cheapest kit; it must be explained before component release.

Let Inspection Define the Repair Scope

Clean, measure, and inspect the engine through the applicable rebuild procedure before finalizing size-dependent parts. Record cylinder and counterbore condition, crankshaft journals, bearing housings, head and deck condition, connecting rods, reusable fasteners where applicable, lubrication and cooling evidence, and the cause of the original failure.

A replacement kit cannot repair an unaddressed block or crankshaft

If machining, a counterbore repair, crankshaft grinding, rod service, or component replacement is required, update the parts plan with the resulting dimensions and procedures. Do not order standard bearings or a default liner set merely because they appear in a typical in-frame bundle.

Specify the Four Configuration-Critical Families

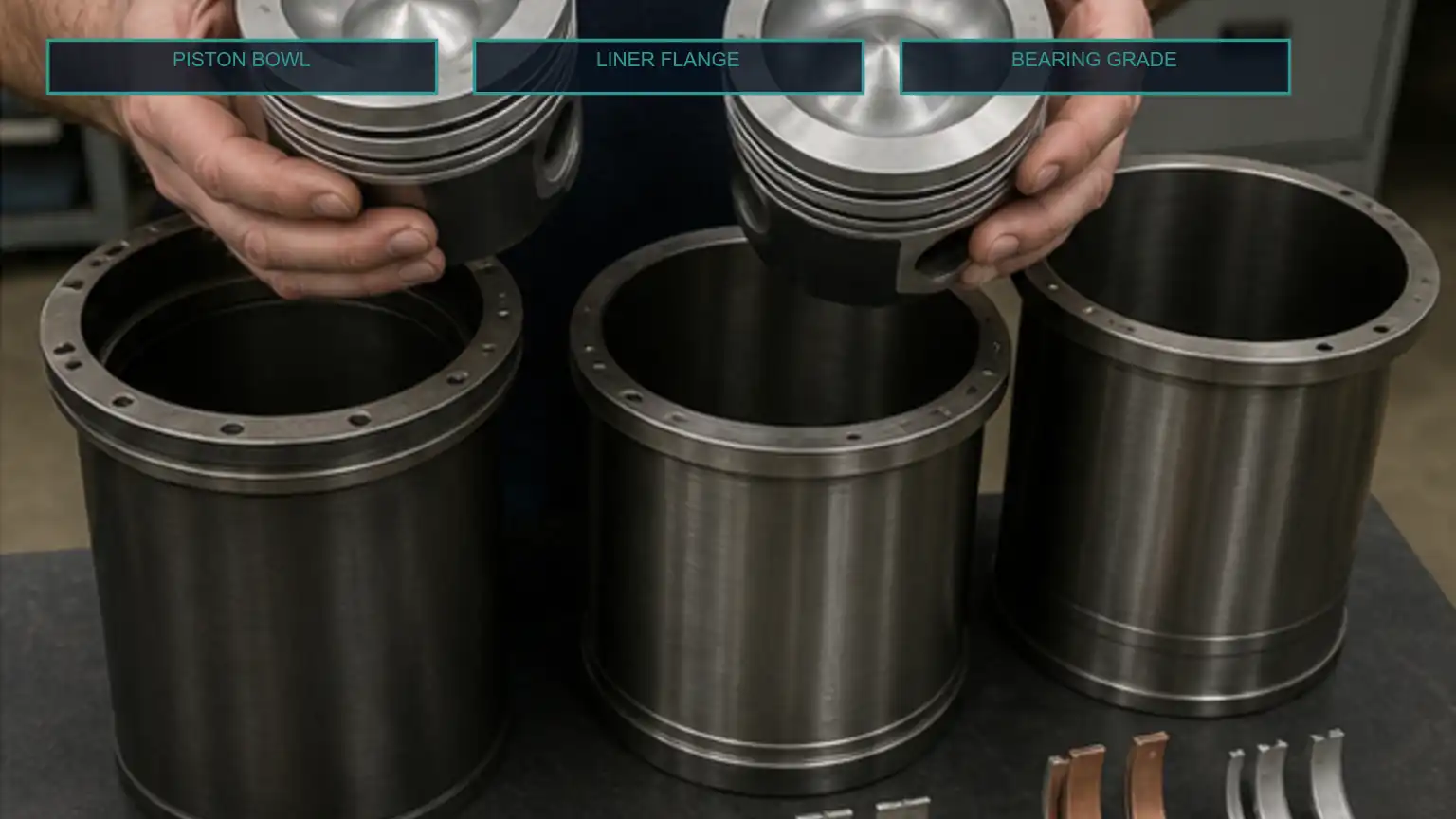

Technician comparing piston bowl geometry, cylinder-liner flange features, and bearing-shell variants on a rebuild bench.

Compare complete manufacturer service numbers and supersession paths. A visual similarity or nominal bore is not enough. If a supplier proposes a substitute, require a written mapping of the exact changed fields and the application evidence.

Measure the Cylinder Interface Before Final Liner Release

Prepare the block and measure liner protrusion or the relevant cylinder interface exactly as the engine procedure requires, at the specified positions and with calibrated tools. Record individual-cylinder results, gauge setup, surface condition, and any counterbore or shim work.

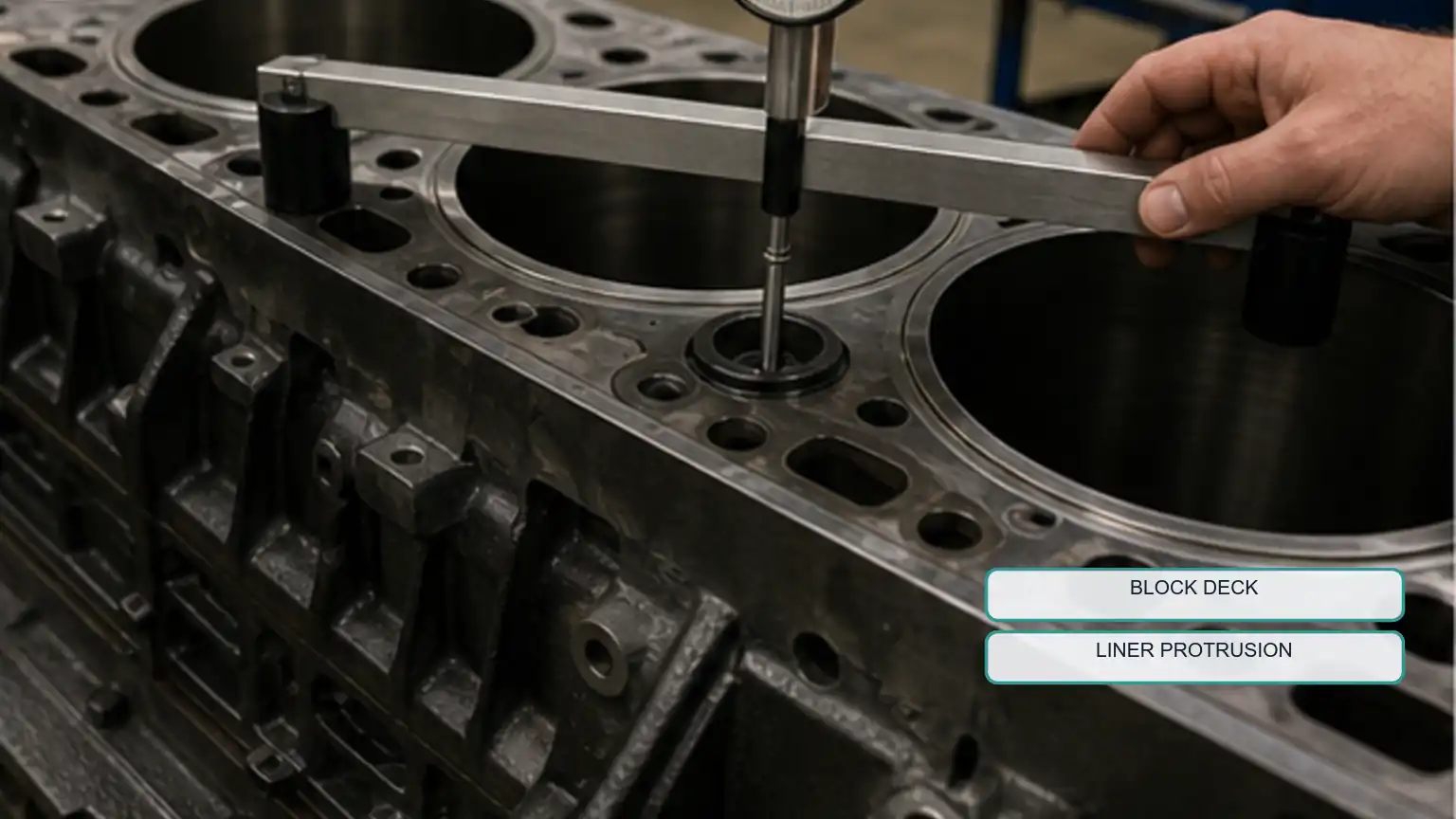

Wet-cylinder-liner protrusion measured on a diesel engine block with a bridge and dial indicator.

The measurement informs block preparation, liner and sealing decisions; it is not a universal pass/fail number and does not prove the liner's material or internal quality. Keep the block report beside the kit BOM so receiving and assembly teams know which components and service operations were approved.

Turn “Kit” Into an Auditable Bill of Material

List every component, finished part number, revision, quantity, size, matched-set rule, packaging requirement, and source. Add an explicit exclusion list for items such as pumps, injectors, turbocharger, head parts, bolts, sensors, or accessories when they are outside the package. Define whether optional repair sizes are separate orders or conditional releases.

Require the supplier to disclose substitutions before shipment. A new superseding number can be valid, but it must connect to the engine configuration and preserve the required geometry, material, and service function. Generic words such as OEM quality, premium, or complete do not close any BOM line.

Receive the Lot as Controlled Sets

Count and identify the outer kit and each internal group. Check labels, revision, size markings, paired or matched sets, protective caps and wrap, cleanliness, corrosion, impact damage, and cross-contamination. Compare selected components against the retained approved sample and BOM.

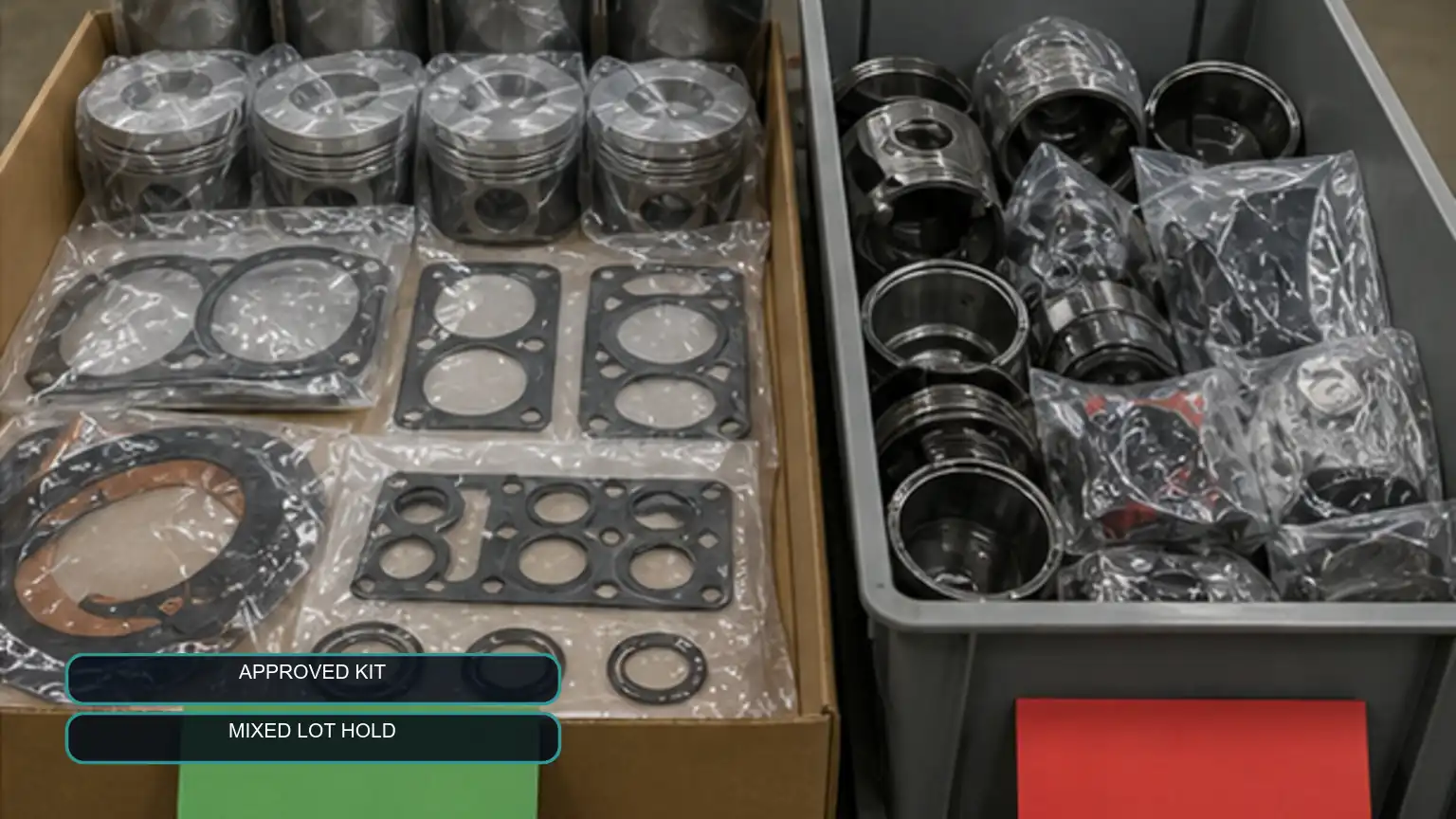

Sealed approved overhaul-kit contents separated from a quarantined bin of mixed engine components during receiving inspection.

Separate an unexplained substitute or mixed component immediately. Preserve lot, package, label, and component evidence; do not redistribute parts across kits to make counts look complete. Release only after the deviation and application impact are resolved.

When This Recommendation Does Not Apply

Follow the engine manufacturer's exact overhaul manual, parts system, and machining limits for the serial-specific build. This guide does not supply universal clearances, approve nonstandard piston or bearing combinations, authorize reuse, or replace qualified block, crankshaft, head, and connecting-rod inspection.

Overhaul-Kit RFQ Checklist

• Complete engine identity, build code, rating, application, and service source

• Failure cause and inspection or machining report

• Line-item BOM with numbers, revisions, sizes, quantities, and exclusions

• Piston, liner, bearing, gasket, seal, and matched-set requirements

• Approved substitutions, traceability, packaging, and retained-sample rules

• Quantity, destination, staged release plan, and receiving owner

Send the controlled BOM and unresolved fields through the Elecdura overhaul-parts RFQ. Ask for a line-by-line supplier response; a single kit number without contents is not an auditable quotation.

Diesel Overhaul Kit Questions

Does “in-frame overhaul kit” define the contents well enough to order?

No. The phrase describes a general repair scope, not a universal bill of material. Suppliers may include different pistons, liners, rings, bearings, gasket sets, seals, fasteners, or optional components under the same label. Tie the request to complete engine identity and current parts information, then list every required line item with quantity and revision. State explicit exclusions and who supplies them. If the engine inspection changes the repair scope, revise the BOM before release instead of assuming the bundle name will absorb the change.

Why should piston identity be checked beyond bore diameter?

Pistons with the same nominal bore can differ in bowl geometry, compression height, pin, ring-groove and ring-pack design, cooling gallery, material, coating, valve reliefs, weight class, and compatibility with liner, injector, compression ratio, emission or rating configuration. Record the complete engine build and approved piston assembly, then compare markings and critical features. A diameter match or an internet interchange list cannot demonstrate combustion compatibility, balance, clearance, or current service supersession.

When are standard-size bearings not a safe default?

Bearing size depends on crankshaft and housing condition, previous machining, journal measurements, and the current repair procedure. A prior overhaul may already have changed the required size, while an unreadable marking or old invoice can be wrong. Measure and classify the crankshaft only through the qualified rebuild process, retain the measurement report, and then release the exact main, rod, thrust, and cam-bearing requirements where applicable. Ordering standard bearings before inspection can leave an unusable kit or encourage unsafe substitution.

What does liner protrusion or counterbore evidence change in the purchase?

The measurement helps determine whether the block, counterbore, liner flange, shim or insert strategy, and head-sealing stack meet the engine procedure. Record each cylinder using the prescribed bridge, gauge positions, block preparation, and temperature condition. The result may change machining or service-part needs; it does not automatically identify a liner as defective. A new liner kit cannot correct a damaged or out-of-spec block interface, so the block decision must be closed before final kit release.

How should a mixed or substituted overhaul-kit lot be handled at receiving?

Quarantine the lot against the approved BOM and supplier release record. Check outer and inner labels, part identity, quantities, matched sets, piston and liner features, bearing size and markings, gasket and seal revisions, cleanliness, corrosion protection, and package damage. Do not combine pieces from multiple kits to create an apparent complete set without traceability and engineering approval. Ask the supplier to explain every substitution, affected engine configuration, validation path, and lot; release only through the buyer's controlled deviation process.
