A single click proves that something moved or a relay changed state; it does not prove that the starter motor received usable power. On modern heavy-duty systems the sound may come from a remote relay, an intelligent magnetic switch, the solenoid, or a protective control event.
Replacing the starter from sound alone creates avoidable warranty returns because low battery state, cable resistance, chassis grounds, neutral interlocks, thermal protection, damaged ring gear, and seized engine accessories can produce similar complaints. Buyers can use the Elecdurauto starter category to organize reference and application research; final selection still depends on the measured application record.
The diagnostic tree below preserves the exact symptom and then adds voltage, current, timing, temperature, and mechanical evidence until only one cause remains defensible.
Record whether the click is single, repeated, delayed, faint, or accompanied by pinion movement, lamp dimming, controller messages, heat, or a recent installation event. Before testing, the bench technician ties sound location to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire click-no-crank case.
Establish sound location first, then compare repeat pattern while the original complaint is reproduced. Use lamp and display behavior to challenge the first interpretation and retain recent service context as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why sound location represents the starting state and how repeat pattern changes when the suspected failure appears. If evidence from lamp and display behavior points elsewhere, the diagnosis stays open. Recent service context becomes the reference used to compare the removed unit, approved sample, and later production lot.
sound location: capture the initial value and the exact operating condition.
repeat pattern: compare the response before and during the complaint.
lamp and display behavior: use an independent observation to test the first theory.
recent service context: preserve the reference with date, instrument, and reviewer.
A precise symptom record prevents later tests from chasing the wrong branch. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded starter behavior describe the same event.
Document sound location against the complaint, starter identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Load-test each battery, confirm matched state of charge, inspect series or parallel jumpers, and record voltage at the battery bank before and during the request. This stage converts the initial observation into a controlled test route. The receiving inspector prepares individual battery result, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure bank voltage at the first defined point, then recheck jumper condition after the starter reaches the second condition. Temperature correction should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The click-no-crank controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
individual battery result: define the pre-test state and preparation method.
bank voltage: log the first controlled response with its unit and tolerance.
jumper condition: repeat at the second condition without changing unrelated variables.
temperature correction: note the deciding observation and any remaining ambiguity.
A bank can show acceptable open-circuit voltage while collapsing under starter demand. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled click-no-crank test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

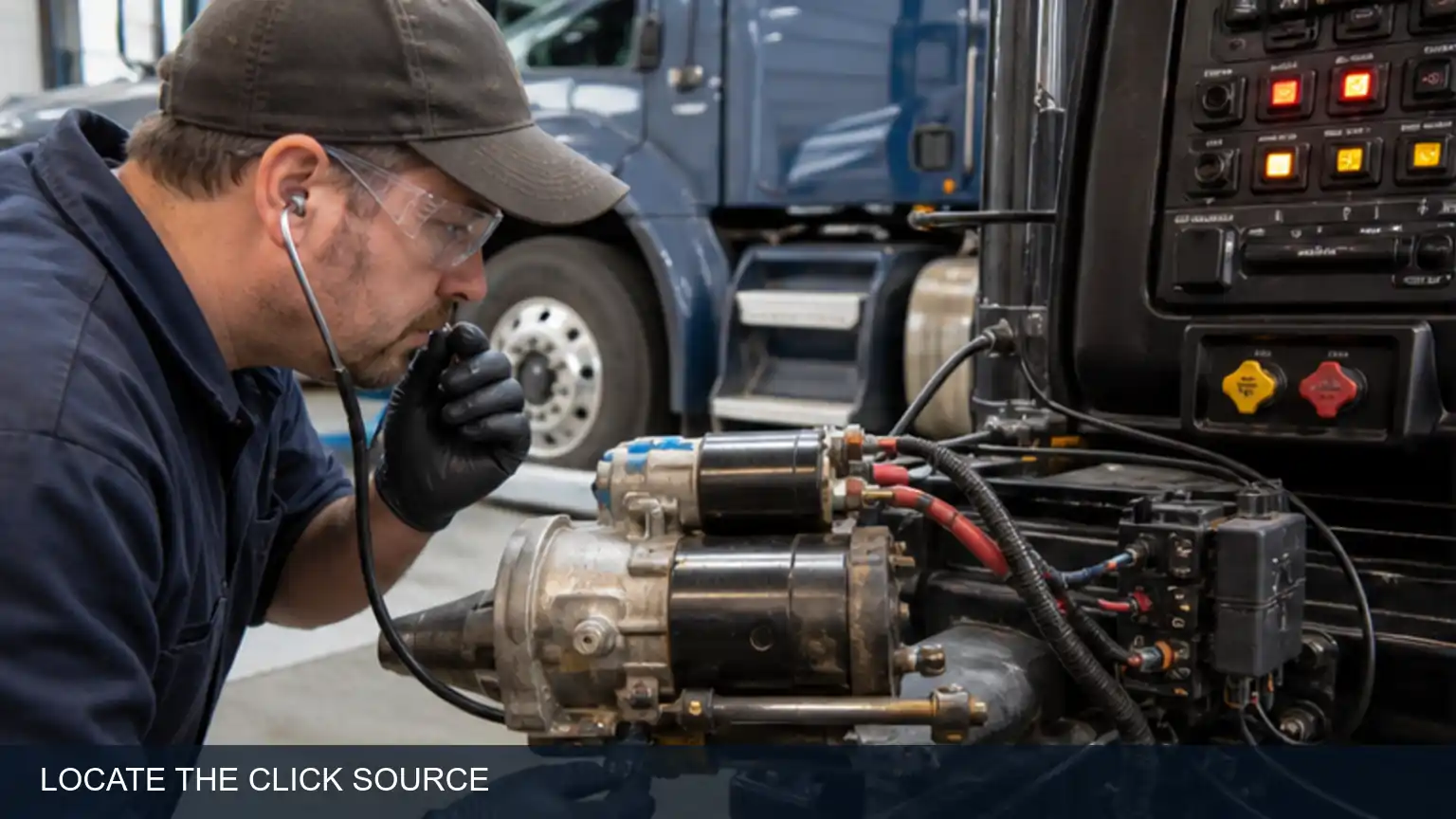

Technician locating a heavy-duty no-crank click and checking the starter relay and command circuit. This image supports the click-location check step in the article's evidence-based workflow.
Place meters at the battery posts, solenoid B+, motor terminal, housing, and battery negative to capture dynamic drop without moving the cables first. The purpose here is pattern recognition rather than collection of isolated numbers. The technical buyer aligns B+ delivery, contact-side voltage, ground return, and connection heating on one timeline so the sequence of the starter response remains visible.
Interpret B+ delivery together with contact-side voltage; either item alone can support several causes. Compare their timing with ground return, then use connection heating to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong click-no-crank report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
B+ delivery: retain the unedited trace, image, or measured sequence.
contact-side voltage: mark the feature that changes with the complaint.
ground return: compare the same feature under a control condition.
connection heating: state which cause the combined pattern supports or excludes.
Voltage-drop evidence identifies the resistive section rather than blaming the component downstream. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the starter behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the click-no-crank evidence. Contradictory traces remain attached as open evidence.
Measure command magnitude and duration, inspect relay or IMS input and output, and check whether thermal, neutral, overcrank, or anti-restart logic intentionally blocks engagement. This module examines how the starter behaves after time, heat, load, or contamination has had an opportunity to act. The warranty analyst defines the exposure interval and tracks S-terminal waveform before, during, and after that interval.
Correlate relay or IMS state with interlock status rather than treating either value as a universal limit. Add protective delay to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The click-no-crank stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
S-terminal waveform: establish the pre-exposure reference.
relay or IMS state: capture the peak or worst-case behavior.
interlock status: compare the response at a fixed elapsed time.
protective delay: document recovery and any permanent change.
A deliberate lockout is a control decision, not proof of a failed starter. A result outside the limit requires the surrounding system to be checked before the starter is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the click-no-crank stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the click-no-crank investigation, the starter product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

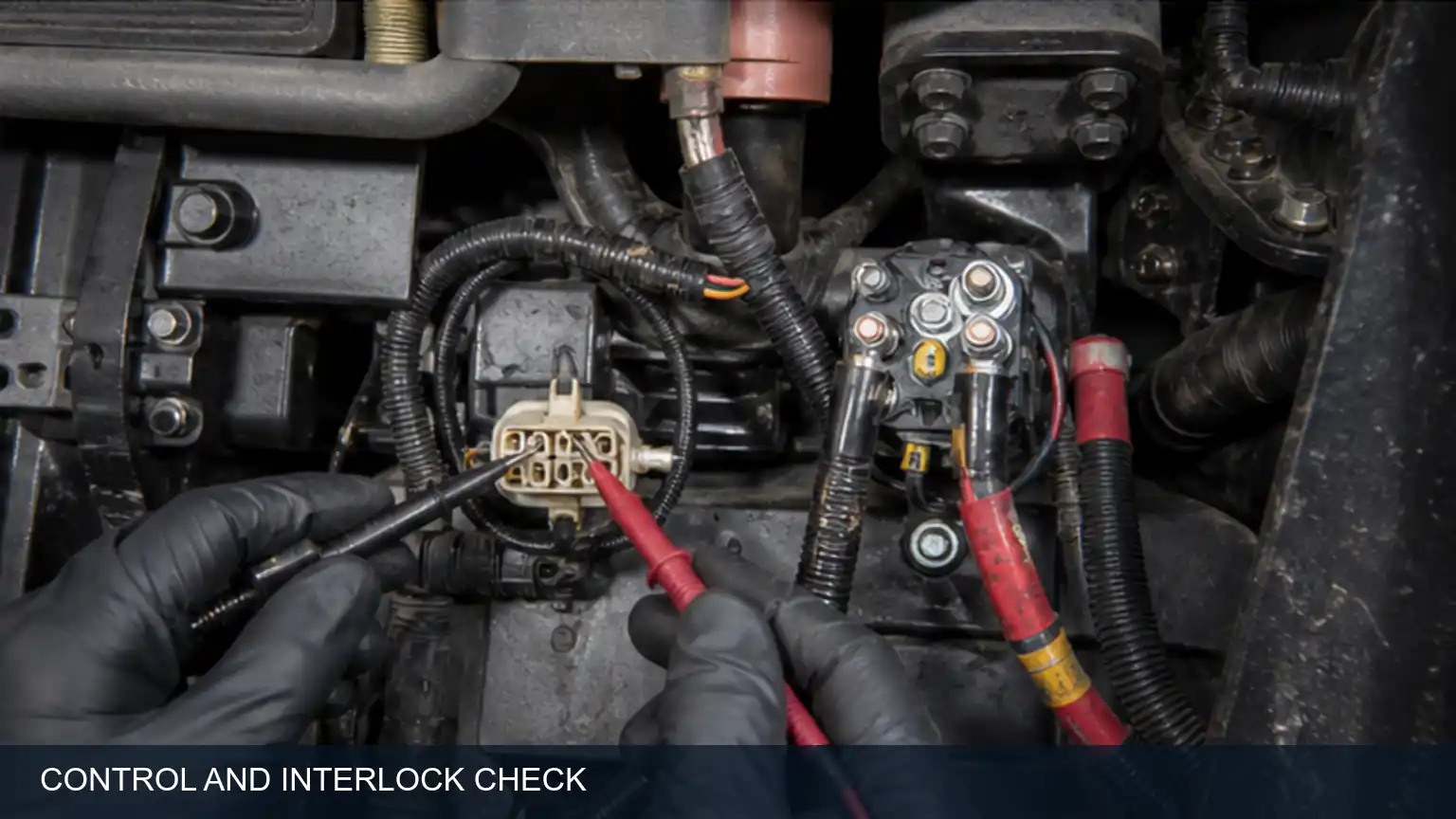

Heavy-duty truck neutral-safety and starter-control interlock test using live electrical measurements. This image supports the interlock test step in the article's evidence-based workflow.
Compare low, normal, and excessive current with motor movement, voltage, pinion travel, ring-gear position, and engine rotation. Bench inspection now tests the internal or component-level theory developed on the machine. The fleet electrician preserves the removed condition, cleans only what the method requires, and records current amplitude before disassembly can erase useful evidence.
Quantify voltage response with equipment suited to its expected range, verify pinion travel through a second method where practical, and photograph engine or accessory load beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact click-no-crank case under review.
current amplitude: preserve the as-removed condition and reference marks.
voltage response: record calibrated measurement and environmental correction.
pinion travel: confirm the suspected mechanism with a second observation.
engine or accessory load: connect visible condition with the measured failure path.
Current turns a shared click symptom into distinct electrical and mechanical branches. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the click-no-crank bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
After isolation, inspect solenoid contacts, plunger travel, linkage, pinion teeth, overrunning clutch, nose housing, ring gear, and evidence of abnormal mesh or heat. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The bench technician compares the evidence for contact pattern with the evidence for plunger travel under the same demand before changing any component.
Use pinion condition to test the alternative explanation, then inspect ring-gear inspection for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original starter failure.
A cause map for the click-no-crank decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
contact pattern: define what this result would mean for the primary theory.
plunger travel: compare the alternative component or system response.
pinion condition: run the discriminating check that separates both paths.
ring-gear inspection: inspect the interface where one fault could imitate another.
Internal evidence should agree with the earlier electrical signature. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the click-no-crank cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

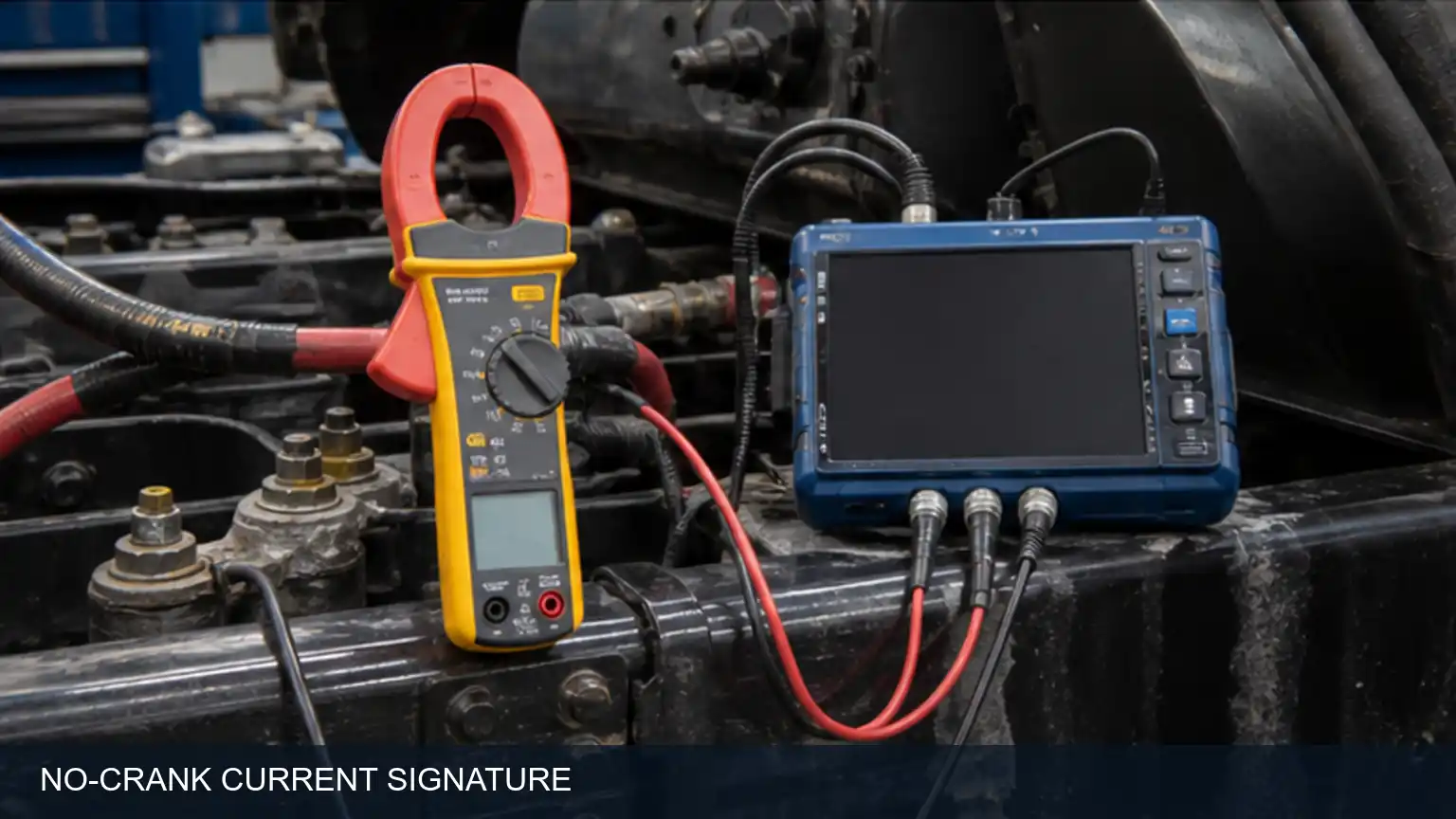

No-crank current-signature test on a heavy-duty starter circuit with clamp meter and voltage readings. This image supports the current-signature test step in the article's evidence-based workflow.
Repeat cold and hot starts, log voltage, current, crank speed, engagement time, release, and temperature, then tie the result to the repaired vehicle and replacement serial. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The receiving inspector defines how the approved sample and production units will be compared using repeat-cycle result and hot restart.
Add release timing to expose changes that a label or catalogue cross-reference cannot show. Use serial trace to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The click-no-crank acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
repeat-cycle result: define the release value and sampling method.
hot restart: compare sample evidence with the incoming lot.
release timing: retain the technical record that exposes configuration drift.
serial trace: trace approval, deviation, and claim decisions to one identity.
The job is complete only when the original operating condition no longer reproduces the fault. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory starter acceptance field.
Authorize click-no-crank production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

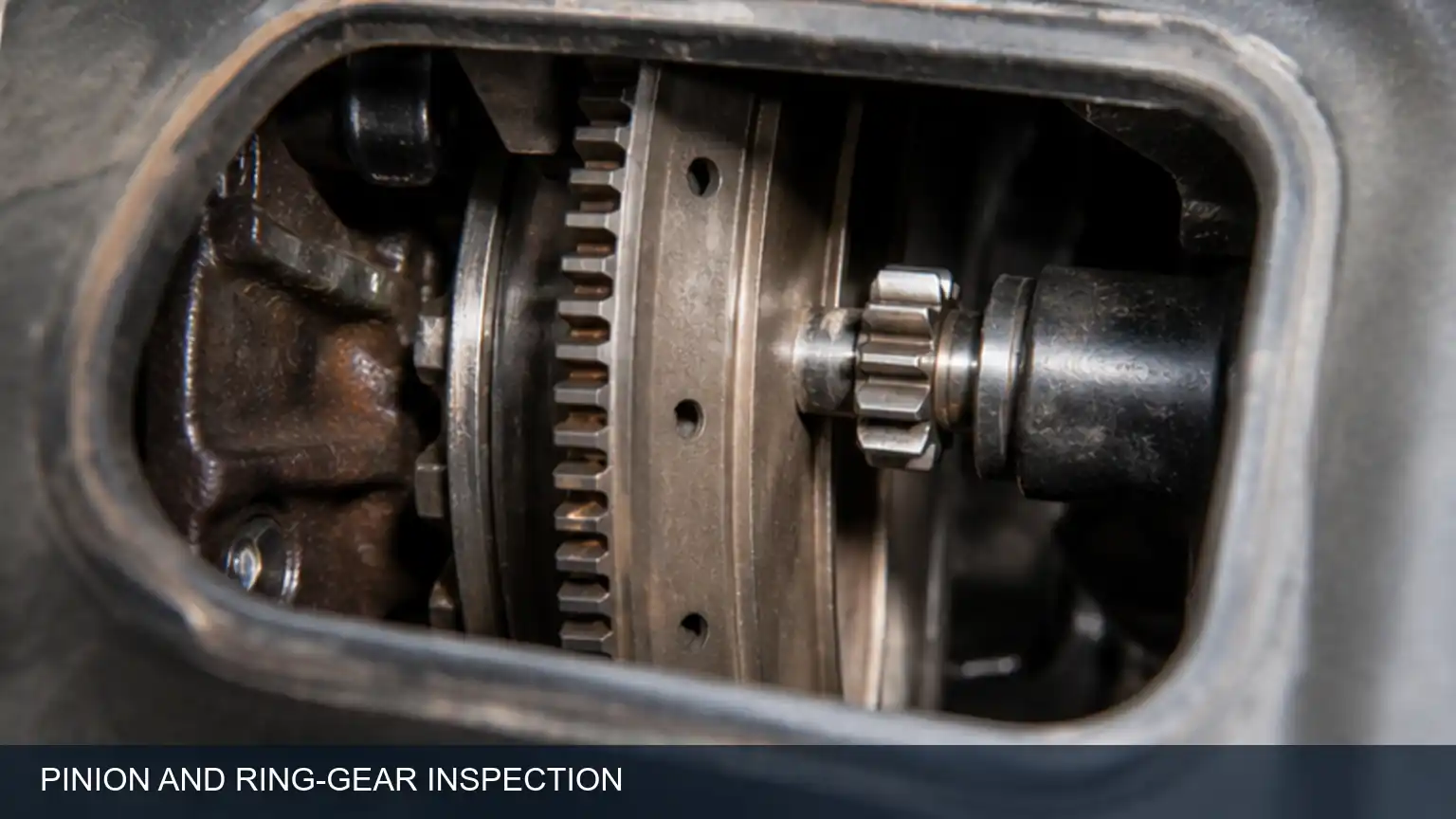

Starter pinion and flywheel ring-gear inspection after a click-no-crank complaint. This image supports the mechanical inspection step in the article's evidence-based workflow.
State whether the requested starter for the click-no-crank application is new aftermarket, remanufactured, or another declared condition.
List the mandatory interfaces relevant to this click-no-crank case and identify the evidence for each one.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.
Retain the approved starter sample or a complete photo and measurement record for the click-no-crank release.
Trace every incoming starter lot to the supplier declaration, approved no-crank sample, and applicable purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Return each field no-crank case to the battery, command, current-signature, and engagement evidence used for initial approval.
This click-no-crank workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
For a click-no-crank claim, preserve the click location, battery-bank load result, command state, current signature, pinion evidence, and repeat-start outcome. A replacement decision is defensible only when those observations point to the same failed path and remain reproducible under the original operating demand.
